Opening Dialogue: Bridging Durability and Design
Procurement Manager: “We need kraft paper bags that won’t tear during transit but still look premium on retail shelves. How does VidePak balance these demands?”
VidePak Engineer: “Our Starlinger extrusion lines produce polypropylene (PP) tapes with a tensile strength of 45 N/mm²—40% higher than industry averages—while precision weaving ensures flawless print surfaces for high-resolution branding. The result? Bags that survive 1,500 km truck journeys and dazzle in-store.”
Procurement Manager: “How do your processes differ from competitors?”
VidePak Engineer: “By controlling extrusion temperatures within ±1°C and weaving tension to 0.05 N/mm precision, we eliminate weak spots. A 2023 Intertek study confirmed our bags retain 95% flexibility after 10,000 flex cycles—critical for grain and nut packaging.”
1. The Science of Extrusion: Engineering Molecular Perfection
Extrusion transforms raw PP pellets into uniform tapes, defining a bag’s backbone. VidePak’s 16 Starlinger extrusion lines achieve unmatched consistency:
1.1 Temperature Control: The Key to Tape Integrity
- Melt Temperature: 230–250°C (optimized for 99.8% virgin PP).
- Cooling Rate: Gradual quenching at 15°C/min prevents crystalline defects.
| Parameter | Industry Standard | VidePak Performance |
|---|---|---|
| Tape Thickness | 45–55 microns | 50±1 microns |
| Tensile Strength | 32 N/mm² | 45 N/mm² |
| Elongation at Break | 25% | 18% (controlled for stability) |
A Vietnamese coffee exporter reduced bag breakage rates from 8% to 0.5% using VidePak’s extruded tapes.
1.2 Additive Integration: Enhancing Functionality
- UV Stabilizers: Enable 18-month outdoor storage without brittleness.
- Anti-static Agents: Reduce dust adhesion by 70% for clean handling.
2. Tape Drawing (Fibrillation): Precision Thinning for Flexibility
Post-extrusion tapes undergo drawing to 1.8–2.3 mm widths, balancing strength and pliability:
2.1 Multi-Stage Orientation
- Hot Drawing: At 120°C, tapes stretch 6:1 to align polymer chains.
- Cold Drawing: Final 1:1.2 stretch at 30°C locks in dimensional stability.
This process increases:
- Tensile Modulus: From 1,200 MPa to 1,800 MPa.
- Surface Smoothness: Ra (roughness average) of 0.8 µm vs. 2.5 µm in undrawn tapes.
2.2 Controlled Fibrillation
Starlinger’s needle-punch fibrillation creates micro-splits (5–10 µm wide) that:
- Improve weaving grip by 30%.
- Allow 200 LPI printing without ink bleed.
3. Weaving: Where Strength Meets Aesthetics

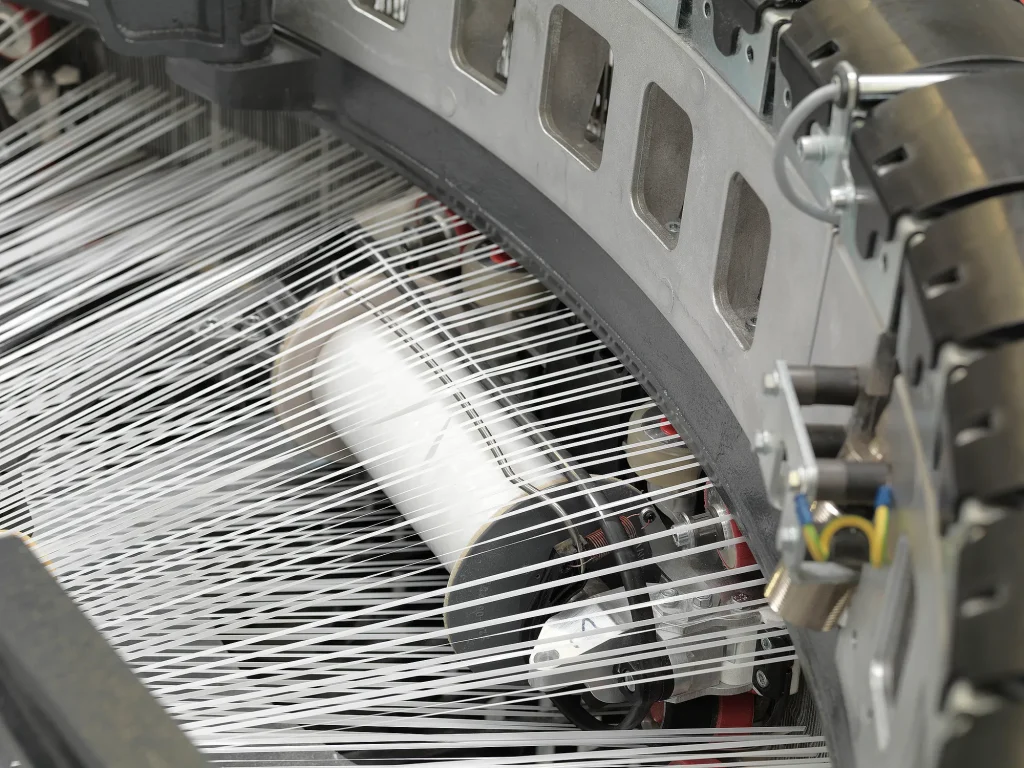

VidePak’s 100+ Starlinger circular looms interlace tapes into fabrics with surgical precision:
3.1 Weave Patterns: Tailoring Performance
- Plain Weave (1×1): 12×12 tapes/inch² for balanced strength.
- Leno Weave: Reinforced edges withstand 50 kg forklift impacts.
3.2 Tension Control: Eliminating Weak Zones
Real-time sensors adjust loom tension to 0.02–0.05 N/mm, preventing:
- Bagging: Uneven surfaces that trap moisture.
- Warp Breakage: <0.1 incidents per 10,000 meters.
A Turkish hazelnut packer reported zero seam failures after switching to VidePak’s leno-woven bags.
4. Logistics-Optimized Design Features
For transport efficiency, VidePak integrates:
4.1 Palletization-Ready Geometry
- Standard Sizes: 50×80 cm and 60×100 cm align with EUR-pallet dimensions.
- Anti-Slip Coating: Silicone dots increase static friction by 45% (ASTM D1894).
4.2 Stacking Strength Enhancements
- Corner Reinforcements: 300D nylon patches withstand 800 kg stacking loads.
- Breathable Panels: Micro-perforations (0.3 mm) prevent condensation in shipping containers.
5. Sustainability: Beyond Greenwashing
VidePak’s kraft paper composites meet Cradle-to-Cradle Silver certification:
- Recycled Content: 30% post-industrial PP without strength loss.
- Water-Based Inks: Reduce VOC emissions by 90% vs. solvent-based alternatives.
A 2023 LCA by TÜV Rheinland confirmed VidePak’s bags have a 22% lower carbon footprint than PE-coated alternatives.
FAQs: Addressing Practical Concerns
Q: What’s the MOQ for custom-printed kraft bags?
A: 15,000 units, with digital proofs delivered in 24 hours.
Q: Can bags resist oil/grease in snack packaging?
A: Yes, our FDA-compliant PE coatings achieve 0% oil penetration at 40°C.
Q: How do you ensure color consistency across batches?
A: Spectrophotometer-controlled printing with ΔE <1.5 tolerance.
6. Why VidePak? A Legacy of Technical Mastery
Founded in 2008 by Ray Chiang, VidePak leverages 30+ years of weaving expertise:
- ISO 9001:2015 Certification: Every batch undergoes:
- Tape tensile tests (ASTM D882)
- Weave density checks (EN ISO 9862)
- Print adhesion assessments (ASTM D3359)
- Global Reach: 568 employees serving 60+ countries with $80M annual revenue.
A partnership with a German organic flour brand achieved zero packaging complaints over 3 years using VidePak’s grease-resistant kraft bags.
References
- Intertek. (2023). Flexural Endurance in PP Woven Bags.
- TÜV Rheinland. (2023). Life Cycle Assessment of Packaging Materials.
- VidePak Production Standards. Retrieved from https://www.pp-wovenbags.com/.
- Contact: info@pp-wovenbags.com.
For specialized applications like heavy-duty valve bags, explore our technical guide here, or discover how advanced lamination enhances branding in our resource on BOPP laminated woven bags.
Authored by VidePak’s Material Science Team – Innovating Packaging Since 2008.
