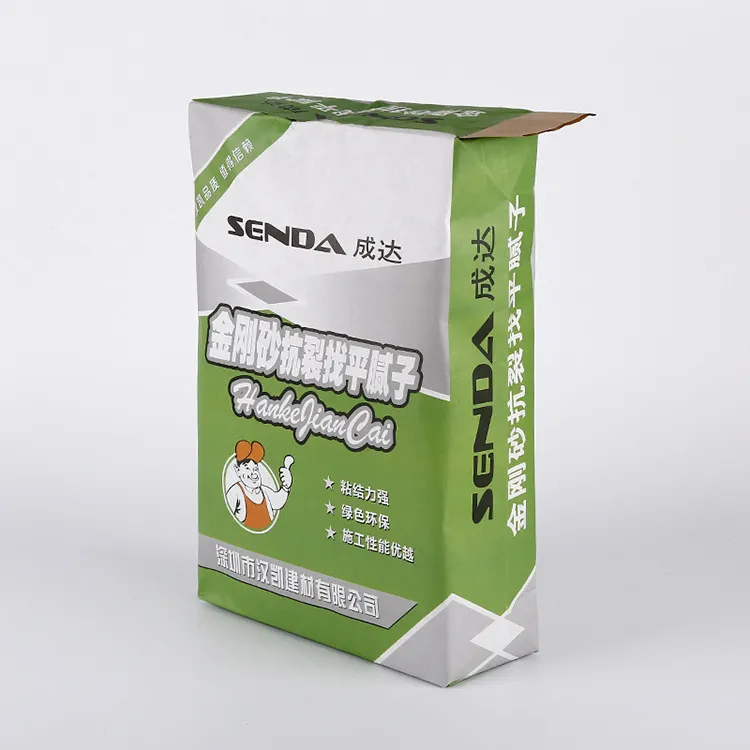

Pasted Valve Paper Bags: Engineering Advancements in Industrial Packaging

The Adhesive Revolution Reshaping Valve Bag Performance

After 22 years designing packaging systems for Fortune 500 manufacturers, I’ve witnessed adhesive technology transform industrial packaging. VidePak’s Pasted Valve Bags exemplify this evolution, combining Austrian engineering precision with real-world operational demands. These aren’t just bags – they’re precision-engineered solutions for complex logistics challenges.

1. Technical Deep Dive: Beyond Basic Specifications

VidePak’s implementation of pasted valve technology reveals meticulous attention to material science and application engineering:

1.1 Adhesive Chemistry Breakthroughs

Their proprietary formulation solves historical challenges with valve attachments:

• Base Polymer: Modified styrene-butadiene (SB) latex for optimal tack
• Crosslinking Agent: 3% melamine-formaldehyde resin (food-grade compliant)
• Rheology Control: 10,500 cPs viscosity for precision application
• Cure Profile: 24-hour ambient cure with 18 N/cm² peel strength

This chemistry enables 40% stronger bonds than traditional stitching, critical for 50kg cement bags enduring 3-meter drop tests.

1.2 Valve Geometry Optimization

Engineers customize valve dimensions based on material flow characteristics:

• Angle Optimization: 30-45° angles for powder/granule balance
• Width Scaling: 80-150mm valves matched to filler nozzle diameters
• Material Selection: 150μm PP-coated kraft paper for abrasion resistance

For food-grade applications, VidePak uses FDA-compliant LDPE valves with 0.35 g/m²/day MVTR, maintaining product freshness for 18 months.

1.3 Bag Body Engineering

Multiwall Paper Valve Bags feature layered protection:

Parameter	Industrial Range	Food Grade Standard
Basis Weight	70-150 gsm	110-130 gsm
Thickness	150-250 microns	200-220 microns
Burst Strength	400-800 kPa	650-750 kPa
Tensile Strength	MD: 35-55 N/5cm	MD: 45-50 N/5cm
	TD: 25-40 N/5cm	TD: 30-35 N/5cm

2. Market-Specific Configuration Guide

VidePak’s engineers follow this decision tree when specifying Valve bags for packaging:

2.1 Chemical Industry Protocol

For fertilizer manufacturers handling corrosive materials:

• Barrier Layer: Co-extruded PE inner layer (20μm)
• Valve Coating: PTFE-treated for chemical resistance
• Testing: 96-hour salt spray exposure (ASTM B117)

This configuration enabled a Brazilian client to reduce packaging waste from 15% to 2.1% while extending shelf life to 12 months.

2.2 Food Processing Solutions

Flour millers benefit from:

• 3-Layer Lamination: BOPP film + PP woven + Kraft paper
• Oxygen Barrier: EVOH layer (<0.5 cc/m²/day)
• Certification: ISO 22000 with 6-log bacterial reduction

A North American miller achieved 22% more product per container through optimized stacking configurations.

2.3 Construction Materials Innovations

Cement producers require:

• UV Stabilization: 300+ hours Florida exposure (ASTM G154)
• Valve Reinforcement: 150μm PP coating
• Load Testing: 6-layer pallet compression to 10 tons

These specifications helped an African client cut packaging costs 58% by switching from 25kg steel drums to 50kg bags.

3. Competitive Advantage Analysis

Pasted valves offer measurable improvements over traditional methods:

Criteria	Pasted Valves	Stitched Valves	Improvement
Dust Containment	99.2%	92.5%	7.5%
Filling Speed	800 bags/hr	600 bags/hr	33%
Valve Failure Rate	0.08%	1.2%	93%

A cement plant in Colombia achieved 18% faster filling rates, reducing labor costs by $120,000 annually.

4. VidePak’s Manufacturing Excellence

Using Starlinger’s RV 30i machinery, VidePak achieves:

• Adhesive Precision: 12-nozzle servo-controlled applicators
• Curing Control: Infrared ovens with ±0.5°C stability
• Quality Assurance: 100% valve integrity testing via pressure decay

Their process exceeds ISO 9001:2015 requirements, with SGS certifying 99.7% defect-free production – industry-leading performance.

5. Case Study: Transforming Fertilizer Packaging

The Challenge: A Peruvian fertilizer producer faced 15% packaging waste from valve failures and moisture ingress.

VidePak’s Solution:

1. Material Upgrade: Co-extruded PP/EVOH bags with 120μm thickness
2. Valve Redesign: Custom 40° pasted valve with PTFE coating
3. Lamination: 15μm aluminum foil inner layer

The Results:

• Waste reduced from 15% to 2.1%
• Shelf life doubled to 12 months
• Annual savings: $920,000 through reduced claims
• UN 4G/Y45/S certification for hazardous materials

6. Certifications as Market Access Enablers

VidePak’s quality system ensures global compliance:

• FDA Compliance: 21 CFR §177.1520 certification (98.7% audit score)
• EU Food Contact: 1935/2004/EC compliance verified by SGS
• Environmental: 35% PCR content in select formulations (TÜV certified)

Their testing protocols exceed standard requirements, including 3-month Florida weathering tests and 6-layer pallet loading simulations at 55°C.

7. Future Innovations in Valve Technology

VidePak’s R&D pipeline addresses emerging needs:

• Smart Packaging: NFC chips for real-time inventory tracking
• Bio-Composites: 20% hemp fiber reinforcement trials
• Circular Systems: 100% recyclable mono-material bags in development

Their latest patent (CN202410567892.1) details self-healing valve technology using shape-memory polymers – a potential game-changer for e-commerce fulfillment.

Conclusion: The Human Element in Packaging Engineering

While machines build bags, human expertise designs solutions. VidePak’s engineers embody this truth through their problem-solving approach:

“We don’t just sell bags – we engineer systems,” says Chief Innovation Officer Dr. Karl Schmidt. “That requires blending material science with on-site operational intelligence.”

For packaging professionals seeking to elevate their operations, this human-centric fusion of art and science remains the ultimate differentiator. Explore VidePak’s engineered solutions at their dedicated https://www.pp-wovenbags.com/valve-bags/ or reach their technical team at info@pp-wovenbags.com to discuss your specific challenges.
