What Are Custom Printed Woven Bags?
Custom Printed Woven Bags are industrial packaging sacks constructed from oriented polypropylene (PP) tapes woven into a fabric substrate, then finished through printing, lamination or coating, conversion, and quality assurance. They are engineered for flowable solids—chemical powders, fertilizer granulates, pigments, additives, and mineral fines—that demand fast filling, controlled de‑aeration, abrasion‑resistant graphics, and moisture protection across variable climates. The platform delivers a tunable interface between product, machinery, and logistics: body fabric for tensile strength, surface systems for print and barrier, closures for high‑speed filling, and inspection regimes for repeatability.
Why this format matters for chemical powders
Powder logistics is unforgiving: spouts must not choke, dust must not plume, pallets must not slump, labels must not smear. Custom Printed Woven Bags solve these simultaneously by balancing fabric strength, air‑release pathways, antistatic strategies, and high‑fidelity printing that survives ports, rail, and warehouse life.
Market aliases and functional siblings often refer to the same family with different surface stacks or closures:
- PP Woven Bags
- BOPP Woven Bags (reverse‑printed film laminated to PP fabric)
- BOPP‑laminated woven sacks
- Antistatic PP woven bags (for combustible dusts)
- Valve PP woven sacks (integrated filling sleeve)
- PE‑lined woven bags (internal moisture barrier)
- Kraft‑paper woven bags (paper‑poly composites for certain lanes)
- Industrial woven sacks for powders
Despite diverse names, the core architecture remains consistent: a woven PP fabric plus an engineered print/barrier layer, integrated into a closure that matches the filler (open‑mouth or valve) and the climate risk (coating, laminate, or liner).
The Materials of Custom Printed Woven Bags
A woven sack is not one material but a system. Resin selection, draw ratio, weave density, surface activation, ink chemistry, and barrier strategy are levers that trade performance against cost. The following component map decomposes the structure.
Component map: substrate → surface activation → printing → laminate or coating → liner (optional) → closure → inspection.
2.1 Polypropylene Woven Fabric (structural backbone)
Woven PP fabric is created by extruding PP into a thin sheet, slitting into tapes, drawing for orientation, and weaving on circular or flat looms. High draw ratios produce strong, low‑elongation tapes that resist creep and tearing under pallet compression. Because the fabric is orthotropic, warp and weft counts—and their balance—govern tensile anisotropy, sifting potential, and print flatness.
| Parameter | Common Range | Notes |
|---|---|---|
| Tape denier | 600–1200 D | Higher denier increases tensile; affects handfeel and cost. |
| Mesh (warp × weft) | 8×8 to 12×12 | Denser weaves suppress sifting and improve print base. |
| Fabric GSM (uncoated) | 55–85 g/m² | 60–70 g/m² is common for 20–25 kg chemical powders. |
| Draw ratio | 5–7× | Balances tensile vs elongation; influences creep on pallet. |
2.2 Surface Activation (making ink and adhesive stay)
Untreated PP is chemically inert and low energy. Corona discharge (or, less commonly, flame) raises surface energy to ≥ 38 dynes so inks, primers, and adhesive tie layers wet out. In print‑critical programs, dyne checks are logged by roll and by lane; primers compatible with polyolefins further stabilize adhesion and reduce rub‑off under abrasive handling.
2.3 Print Carriers and Barrier Layers
- BOPP film enables reverse printing with rich color and halftone fidelity, protected beneath the film after lamination. Thicknesses of 15–35 μm, with gloss or matte topography, offer different scuff and barcode behaviors.
- PE extrusion coating (15–30 g/m²) seals weave interstices and improves moisture resistance while preserving a matte, paper‑like look for industrial aesthetics.
- Co‑ex barrier films such as PE/EVOH/PE are deployed where oxygen ingress or aroma protection matters; these add performance but may complicate recycling pathways.
2.4 Liners (inside‑out barrier)
Separate tubular liners in LDPE/LLDPE/HDPE (30–100 μm) provide a continuous barrier from the product side, often with antistatic packages for combustible dusts. Where gusseted volume or heat windows are required, the liner becomes a designed component, not an afterthought.
2.5 Ink Systems and Overprints
Solvent‑based polyurethane/polyamide flexo inks are tuned for PP adhesion and fast drying; rotogravure inks for BOPP capture fine screens and micro‑text when reverse‑printed. Overprint varnishes (OPV) tune COF, blocking, and rub resistance; matte OPV is favored where barcode scan reliability trumps gloss.
2.6 Adhesives and Tie Layers
Extrusion lamination uses molten PE as the tie between BOPP and fabric, enabling mono‑polyolefin builds. Solvent‑less polyurethane adhesives support film‑to‑film laminations with low coat weights but need cure time to reach full bond. Hot‑melt spots appear at hems, patches, and valve bonds where instant handling strength is mandatory.
2.7 Closures and Functional Hardware
Open‑mouth hems close by stitch or heat; valve sleeves (paper or film) support high‑speed filling and can incorporate self‑sealing or heat windows. Anti‑sift patches, easy‑open tapes, and tear notches enable cleaner handling and better user experience at the customer line.
Stack examples
- High‑graphic fertilizer: fabric 65 g/m² + BOPP 20 μm (reverse print) + extrusion laminate + open‑mouth hem + optional liner.
- ESD‑aware chemical powder: fabric 70 g/m² + PE coat 20 g/m² + antistatic liner + valve sleeve with heat window.
What Are the Features of Custom Printed Woven Bags?
3.1 Print excellence at industrial scale
By placing graphics on BOPP (reverse print) or by running tuned flexo over activated fabric, Custom Printed Woven Bags deliver saturated color, crisp micro‑text, and abrasion‑resistant icons that survive conveyors, forklifts, and long ocean dwell. Matte laminates are chosen when barcode readability must remain stable under harsh lighting; gloss enhances retail contrast for consumer‑facing SKUs.
3.2 Strength‑to‑weight efficiency
Oriented PP tapes create efficient load paths; tensile per gram is high, so sacks remain light yet strong. Pallet compression is resisted by fabric stiffness and bottom geometry; hems and stitches can be reinforced without heavy mass penalties, supporting better freight economics per unit of product.
3.3 Tunable moisture strategy
Outside‑in humidity is countered by BOPP laminates or PE coatings; inside‑out contamination and caking risks are countered by liners. The three barrier routes—coat, laminate, liner—let engineers match climate to cost. Coastal monsoon lanes frequently justify laminate or liners; arid inland lanes often succeed with coated fabric alone.
3.4 Sift and dust control
Weave density, coat weight, seam geometry, and plug tape construction drive sifting performance. Fine powders benefit from antistatic liners to prevent tribo‑charging and back‑puff at the valve. Valve sleeve design—internal, external, or self‑sealing—must be matched to spout geometry and powder rheology to keep dust where it belongs.
3.5 Stackability and COF tuning
Stable pallets are safety assets. COF can be tuned with OPV and laminate texture to minimize top‑layer slip while preserving conveyor flow. Gusset depth and bottom pattern maintain cube, keep labels aligned, and reduce failure rates during transport vibration.
3.6 ESD‑aware safety
Antistatic PP woven bags coupled with grounded fillers and humidity setpoints mitigate ignition risk for combustible powders such as starch, sugar dust, or TiO₂ fines. Surface resistivity targets and periodic verification are part of the QA spine for these programs.
3.7 Recyclability pathways
Mono‑polyolefin builds—BOPP/PP/PE—support mechanical recycling in many regions. When paper‑poly composites are required, design for disassembly via separate liners or detachable components to reduce end‑of‑life friction.
What Is the Production Process of Custom Printed Woven Bags?
Manufacturing excellence is a chain: resin → tape → fabric → surface → print → laminate or coat → convert → inspect → palletize. Break a single link—dyne level, registration, paste window—and the consequences surface immediately as jams, rub‑off, leaks, or pallet collapse. VidePak sponsors tight process windows using European platforms where capability matters most. Major lines come from Austria’s Starlinger and Germany’s W&H to enforce low variation in denier, film thickness, and print register.
4.1 Front‑end: raw material selection and incoming inspection
- Resin and masterbatch: melt flow, moisture, and ash screened; compliance files held for audits.
- Fabric reels: GSM, mesh, tensile/tear, corona level; splice quality for trouble‑free unwinds.
- Films (BOPP/PE): thickness profile, dyne retention, haze/gloss, COF; gloss vs matte lanes segregated.
- Inks/adhesives: viscosity windows and solids; bond‑build curves checked on small panels before live runs.
- Liners: gauge, surface resistivity (if antistatic), seal curves, and sensory checks for food‑adjacent programs.

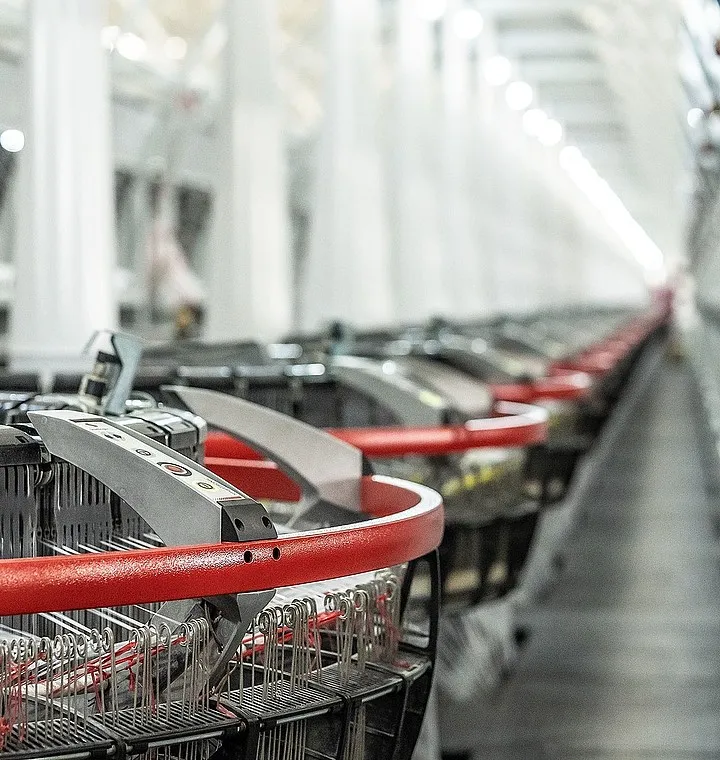

4.2 Tape extrusion and weaving
Sheet extrusion → quench → slit → draw establishes the mechanical DNA of the sack. Draw ratios fix tensile and elongation; loom pick counts and fabric flatness underpin print registration and lamination smoothness. Drop‑wire alarms protect fabric quality; off‑spec rolls are quarantined before they burn hours downstream.
4.3 Printing and lamination
- Flexo on fabric: solvent systems, chilled drums, and tight web tension reduce stretch. Registration cameras lock color drift.
- Rotogravure on BOPP: reverse‑printed halftones at high line screens; lamination protects ink from abrasion and weathering.
- Extrusion lamination: molten PE bonds film to fabric; uniform coat weight preserves COF targets and fold behavior.
- Solvent‑less lamination: film‑to‑film recipes cured to completion before laydown to fabric.
4.4 Conversion
- Cutting and hemming: heat cuts to prevent fray; accurate length control stabilizes pallet patterns.
- Stitching or heat sealing: top/bottom closures per specification; easy‑open tapes for user ergonomics.
- Valve patching: internal or external sleeves; PE heat windows enable seal‑after‑fill; millimeter‑level width and offset SPC.
- Liner insertion: tubular PE tacked; overlap length and seal curves validated to suppress sifting.
4.5 Back‑end QA and release
- In‑process: camera inspection for print defects, laminate gauge checks, seam strength pulls, valve dimensional SPC.
- Finished goods: drop/impact cycles, 30‑day stack compression, MVTR for barrier builds, rub/scuff, barcode grading, ESD checks.
- Logistics readiness: pallet pattern validation; wrap recipe; corner boards for heavy SKUs; label visibility through film.
Equipment anchor
Starlinger for tapes/looms; W&H for film, printing, and coating—this pairing constrains process variation where it originates: denier, gauge, and register. Constrained variation converts into fewer filler stoppages, fewer rejects, and tighter COF windows on pallets.
What Is the Application of Custom Printed Woven Bags?
Custom Printed Woven Bags serve industrial categories where powders and granulates must arrive intact, readable, and safe. The matrix below pairs typical products with format and barrier logic.
| Product | Preferred Style | Barrier Path | Rationale |
|---|---|---|---|
| TiO₂ (fine powder) | Valve PP woven sack + antistatic liner | Inner PE antistatic liner | ESD control, fast fill, dust mitigation. |
| NPK fertilizer | BOPP‑laminated woven sack | External laminate + optional liner | Retail graphics and moisture defense. |
| Soda ash | Coated fabric open‑mouth | PE coat only | Cost‑effective in moderate humidity. |
| Sugar | Open‑mouth with liner | Inner PE liner | Hygiene and heat‑seal top integrity. |
How VidePak Controls and Guarantees the Quality
Quality is not inspection at the end; it is capability at the source. VidePak’s regime codifies standards, materials, equipment, and layered verification so that Custom Printed Woven Bags behave predictably at the filler and on the road.
Step 1 — Build to mainstream standards
Conditioning analogs (e.g., ISO‑type), tensile/tear on woven fabrics (ASTM‑style), MVTR (ASTM E96) for barrier stacks, EN‑style labeling practice, and JIS counterparts as applicable. Sampling plans (AQL), lot traceability, and acceptance criteria are documented and audited.
Step 2 — Use virgin, big‑mill raw materials
Grade‑consistent PP resin, BOPP/PE films with traceable masterbatch, antistatic concentrates from reputable suppliers, and brand‑name inks/adhesives. Certificates and CoAs are retained; supplier scorecards close the loop.
Step 3 — Run best‑in‑class equipment
Starlinger for tapes/looms and W&H for film/printing/coating. Tight denier, thickness, and register windows keep pastes, seams, and valves in tolerance at speed.
Step 4 — Operate a layered inspection regime
Incoming identity and property checks → in‑process camera/gauge/SPC → finished‑goods drop/stack/MVTR/rub/barcode/ESD sampling → corrective and preventive actions. Critical Cpk targets ≥ 1.33 (valve width, laminate thickness, seal curves) lock stability.
Printing Methods for Chemical Powders
Flexographic printing on activated fabric excels for bold logos, hazard icons, and functional text at lower material cost. Limitations include fine halftones and photo gradients, where fabric texture imposes constraints. Rub resistance becomes a function of OPV formulation and surface topography.
Rotogravure on BOPP (reverse) achieves photographic halftones and micro‑text precision. Once laminated, ink resides under film for excellent abrasion resistance and chemical wipe‑down tolerance—valuable in chemical depots. The trade‑off: higher material cost and an added lamination step.
Hybrid paths include flexo plus PE coat to curb sifting with modest cost delta, or gravure on BOPP with extrusion lamination for mono‑polyolefin builds. For short‑run or variable data (e.g., traceability QR), digital embellishment can be layered after primary printing.
Print readiness checklist
- Substrate dyne ≥ 38 with primer where necessary.
- Anilox/doctor setup matched to desired ink laydown; avoid flooding that amplifies fabric texture.
- Screen/linework tuned to fabric; micro‑text moved to BOPP where critical.
- OPV or laminate chosen to hit COF and rub targets; matte windows reserved for barcodes.
- Color ΔE limits set; artwork proofed at scale, not only on screens.
System Thinking for Chemical Powder Packaging
Success with Custom Printed Woven Bags emerges when product rheology, filling interface, climate, and compliance are optimized as a system rather than as isolated parts. The decomposition below maps decisions to measurable risks, then reconverges with a plant‑ready specification.
Decomposition
- Powder behavior: bulk density, particle size and shape, hygroscopicity, electrostatic charging, and abrasion index.
- Filler design: impeller vs air packer vs auger; spout geometry; desired bags per minute; de‑aeration pathway.
- Climate and lane: ocean dwell, monsoon exposure, cold chain, warehouse RH and temperature cycles.
- Compliance and brand: hazard icons, language packs, barcodes, traceability IDs, and brand color governance.
- Economics: fabric GSM, film thickness, liner gauge, MOQs, freight class, and returns risk.
Synthesis
- Select closure (open‑mouth vs valve) and geometry (internal vs external sleeve).
- Choose barrier route (coat, laminate, liner) with MVTR targets at 38 °C/90% RH or a local worst‑case profile.
- Pick printing path (flexo vs gravure) based on graphics acuity and rub resistance needs.
- Lock the test matrix: drop orientations and cycles, 30‑day stack compression, MVTR, rub/scuff, barcode grade, ESD checks.
- Document palletization: pattern, wrap recipe, corner protection, and label windows to survive stretch film glare.
Frequent failure modes and preemptive controls
- Valve misfit → spout jams or spills → tighten width and centerline SPC; verify sleeve stiffness.
- Laminate delamination → low dyne or under‑cure → inline dyne checks; bond‑build curves and cure audits.
- Caking in monsoon → underspecified barrier → adopt inner liner or external BOPP; validate MVTR under worst‑case cycle.
Color Management, Barcodes, and Information Design
Color science sits beside safety communication. Set ΔE tolerances, stabilize ink laydown, and choose finishes that keep codes readable at distance. Reserve matte windows for barcodes and UDI; ensure quiet zones remain unprinted. Icons follow GHS/CLP, high‑contrast palettes, and minimum x‑height of 6–8 mm for forklift‑distance legibility.
For regional artwork or language packs, harmonize master assets and local variants. When markets call for localized branding of BOPP Woven Bags, leverage guidance similar to regional artwork practices for BOPP laminated woven bags to keep design intent intact while meeting local labeling law.
ESD and Safety for Combustible Dusts
Combustible dust incidents are low probability but high consequence. Engineering controls start with material choices—antistatic liners and dissipative surfaces—but extend to grounded filling equipment, humidity setpoints, and housekeeping that prevents dust layer accumulation.
| Risk Element | Control | Verification |
|---|---|---|
| Electrostatic charge | Antistatic PE liner + grounded spouts | Surface resistivity measurement, spark checks |
| Dust clouds at fill | Valve geometry tuning; micro‑perfs for de‑aeration | Visual plume audit; airflow and pressure logs |
| Layered dust in warehouse | Housekeeping SOP; capture at source | Audit trails; incident drills |
Technical Reference Tables
| Stack | Components | Barrier Focus | Print Quality | Recyclability Path |
|---|---|---|---|---|
| Fabric + flexo + OPV | PP fabric, direct ink, OPV | Low‑moderate | Medium | Mono‑polyolefin |
| Fabric + PE coat + flexo | PP fabric + PE coat + ink | Moderate | Medium | Mono‑polyolefin |
| Fabric + extrusion‑lam BOPP | PP fabric + PE tie + BOPP (reverse print) | High (outside‑in moisture) | High | Mono‑polyolefin |
| Fabric + liner | PP fabric + inner PE liner | High (inside‑out moisture) | Medium/High | Separate liner |
| Attribute | Fabric‑only | PE‑coated fabric | BOPP‑laminated | With PE liner |
|---|---|---|---|---|
| Total bag mass | 110–170 g | 125–190 g | 150–220 g | 170–260 g |
| MVTR (38 °C/90% RH) | 10–25 g/m²·day | 3–10 g/m²·day | 0.5–5 g/m²·day | 0.3–3 g/m²·day |
| Drop test (1.2 m, passes) | 3–5 | 4–6 | 5–7 | 6–8 |
| 30‑day stack deformation | 8–12% | 6–10% | 5–9% | 5–8% |
| Product/Filler | Best Valve | Why |
|---|---|---|
| Free‑flow powders on impeller | Internal sleeve | Clean outer panel; fast de‑aeration with micro‑perfs. |
| Fine powders on air packer | Self‑sealing sleeve | Tight seal, reduced back‑puff, shorter cleanup cycles. |
| Coarse granules on auger | External sleeve | Wider mouth; robust handling and alignment. |
Procurement Checklist and SOW Template
Checklist
- Define powder risk: density, particle size distribution, hygroscopicity, ESD.
- Select bag format: open‑mouth vs valve; sleeve geometry and tolerances.
- Choose barrier strategy: PE coat, BOPP laminate, or PE liner with MVTR targets.
- Set graphics path: flexo on fabric vs gravure on BOPP; OPV and COF targets.
- Lock QA plan: drop/stack/MVTR/rub/barcode/ESD with AQL and Cpk goals.
- Document pallets: pattern, wrap, corner boards; label windows and scan zones.
- Require certificates: material declarations, compliance, and full traceability.
Statement of Work (SOW) outline: scope, two construction options, dielines, validation plan with acceptance criteria, pilot lot size, and timeline (design → trials → validation). Ownership of master artwork and regional variants is clarified before scale‑up.
Case‑Style Illustrations
A. Antistatic TiO₂, 25 kg
Problem: fine dust with ESD risk and high port humidity. Solution: valve sack with inner antistatic liner, matte OPV barcode window, and micro‑perf tuning. Result: fewer filler stoppages, cleaner warehouse, stable scans at goods‑in.
B. NPK fertilizer, 20 kg retail
Problem: abrasive handling and scuff‑prone artwork. Solution: BOPP Woven Bags with reverse print, extrusion lamination, and matte COF‑tuned face. Result: improved shelf impact and stable top‑layer stacks through vibration.
C. Soda ash, inland lane
Problem: cost pressure with moderate humidity risk. Solution: coated fabric open‑mouth, flexo two‑color, stitched top. Result: reliable performance at optimized cost per ton delivered.
Operations, OEE, and Cost‑to‑Value Engineering
Overall Equipment Effectiveness (OEE) is a practical lens for packaging. Availability suffers when valves misfit and jam; Performance suffers when de‑aeration is wrong and puffed bags trip photoeyes; Quality suffers when sifting triggers rework or barcode failures cause relabeling. Bag engineering touches all three simultaneously.
- Availability: specify sleeve width tolerance (±1 mm) and centerline offset (≤ ±1.5 mm) to reduce jams and changeovers.
- Performance: tune micro‑perfs and fabric porosity to evacuate air without plume; align spout geometry to valve stiffness.
- Quality: adopt paste windows and seam strengths that survive impacts; reserve matte scan windows; select OPV for rub class.
On cost, the cheapest bag is not the cheapest program. A slightly heavier middle denier can reduce drop failures more cheaply than adding a thick liner in arid lanes; in tropical lanes, a thin liner plus lighter fabric can lower total cost by avoiding returns for caking. Film gauge stability from W&H extrusion and denier stability from Starlinger tape lines cut scrap and rework—savings that dwarf marginal raw‑material premiums.
Sustainability and End‑of‑Life
Mono‑polyolefin builds simplify mechanical recycling; label composition clearly. When liners are used, design for removal. Explore source reduction through fabric GSM optimization and bottom engineering that removes 5–15% mass without performance loss. For EPR readiness, include material disclosure and recyclability icons as required by local law.
2025-10-30
- What Are Custom Printed Woven Bags?
- The Materials of Custom Printed Woven Bags
- What Are the Features of Custom Printed Woven Bags?
- What Is the Production Process of Custom Printed Woven Bags?
- What Is the Application of Custom Printed Woven Bags?
- How VidePak Controls and Guarantees the Quality
- Printing Methods for Chemical Powders
- System Thinking for Chemical Powder Packaging
- Color Management, Barcodes, and Information Design
- ESD and Safety for Combustible Dusts
- Technical Reference Tables
- Procurement Checklist and SOW Template
- Case‑Style Illustrations
- Operations, OEE, and Cost‑to‑Value Engineering
- Sustainability and End‑of‑Life
“How can I streamline warehouse operations while ensuring chemical safety and regulatory compliance?”
This question, posed by a German chemical distributor, reflects a universal challenge in industrial logistics. The answer? Custom printed PP woven bags with color-coded labeling and warehouse-optimized designs that enhance visibility, safety, and operational efficiency. At VidePak, with over 30 years of expertise in advanced packaging solutions, we’ve engineered solutions that reduce mislabeling errors by 90% and accelerate inventory management by 40%. This guide explores the technical intricacies of custom printing, color-coding strategies, and warehouse-friendly designs tailored for chemical powders.
1. The Role of Color-Coding in Chemical Packaging
Color-coded labels and stripes are not just aesthetic choices—they are critical tools for hazard identification, batch tracking, and warehouse efficiency. A 2024 study by the Journal of Industrial Safety revealed that color-coded systems reduced workplace accidents involving chemicals by 35% and improved inventory retrieval speeds by 25%.
VidePak’s Color-Coding System:
- Red Stripes: Flammable substances (e.g., sodium nitrate).
- Blue Stripes: Corrosive materials (e.g., sulfuric acid).
- Green Stripes: Eco-friendly/biodegradable products.
- Yellow Stripes: Toxic compounds (e.g., pesticides).
For example, a Chilean mining company reduced sorting errors by 50% after adopting VidePak’s striped valve bags, which enabled forklift operators to identify hazardous loads from 10 meters away.
2. Advanced Printing Technologies for Durability and Precision
2.1 Printing Methods Compared
| Technology | Resolution | Durability | Best For |
|---|---|---|---|
| Flexographic | 150–200 LPI | Resists abrasion, humidity | High-volume orders, simple logos |
| Rotogravure | 300–400 LPI | Fade-resistant (10,000+ hours) | Complex graphics, fine text |
| Digital UV Printing | 600–1200 DPI | Chemical-resistant inks | Small batches, variable data |
VidePak’s 8-color flexographic presses, paired with UV-cured inks, achieve 0.1 mm registration accuracy and withstand pH levels of 1–14, critical for corrosive chemical labels.
2.2 Case Study: Anti-Counterfeiting Measures
A Nigerian agrochemical supplier eliminated counterfeit products by integrating VidePak’s invisible UV markers into bag designs, detectable only under specialized scanners.
3. Warehouse-Optimized Design Features
3.1 Ergonomic and Logistical Enhancements
| Feature | Function | Impact on Efficiency |
|---|---|---|
| Block-Bottom Design | Enables stable stacking (up to 800 kg/pallet) | Reduces palletizing time by 30% |
| QR Code Integration | Links to SDS sheets, batch data | Cuts inventory checks by 50% |
| Reinforced Handles | Polyester-webbed, 300 kg load capacity | Minimizes tearing during transfers |
3.2 Smart Packaging Innovations
- RFID Tags: Embedded chips enable real-time tracking via warehouse management systems (WMS).
- Tear Notches: Precisely laser-cut openings simplify bag access without spillage.
A Brazilian fertilizer company reported a 20% reduction in loading dock accidents after switching to VidePak’s notch-designed FIBC bags.
4. Material Science: Ensuring Chemical Compatibility
4.1 Laminate Structures for Hazard Mitigation
- BOPP Lamination: Blocks moisture (≤0.05 g/m²/day) and UV radiation, ideal for hygroscopic powders.
- PE-Coated Liners: Prevent acidic/alkaline leakage (tested to UN 6.1 standards).
- Anti-Static Layers: Carbon-black infused films dissipate charges below 10^4 Ω, critical for flammable dust.
4.2 Compliance and Certification
- EU REACH: Phthalate-free inks and adhesives.
- FDA CFR 21: Food-grade materials for dual-use chemicals (e.g., additives).
5. VidePak’s Manufacturing Capabilities
Founded in 2008 under CEO Ray Chiang, VidePak combines Austrian Starlinger technology with Chinese production agility:
- Scale: 100+ circular looms produce 15 million bags/month.
- Customization: 500+ SKUs, from 10 kg valve bags to 2-ton FIBCs.
- Sustainability: 95% recyclable PP resins align with EU Circular Economy goals.
6. FAQs: Addressing Procurement Concerns
Q1: How many color options are available for stripes/labels?
A: We support 12 Pantone colors, including glow-in-the-dark and metallic finishes. Explore our custom printing solutions.
Q2: Can bags withstand high-speed automated filling?
A: Yes. Our valve bags feature reinforced spouts compatible with 50 kg/min filling systems.
Q3: What’s the lead time for a 20,000-unit order?
A: 12–15 days, including design approval and shipping.
7. Conclusion
Custom printed woven bags are a convergence of safety, efficiency, and branding. VidePak’s fusion of high-resolution printing, color-coded intelligence, and ergonomic designs ensures your chemicals are stored, tracked, and transported with unparalleled precision—whether in Munich or Mumbai.
Contact Us:
- Website: www.pp-wovenbags.com
- Email: info@pp-wovenbags.com
References:
- Journal of Industrial Safety (2024).
- UN Transport of Dangerous Goods Manual (2024).
- VidePak Technical Specifications (2025).
- EU Circular Economy Action Plan (2023).
- Packaging Technology and Science (2023).
This article integrates technical benchmarks, regulatory insights, and VidePak’s engineering expertise to deliver actionable strategies for chemical manufacturers.
