“Why do pasted valve bags dominate industries like cement, chemicals, and agriculture?” This question is central to businesses seeking reliable, cost-effective packaging. The answer lies in three critical factors: superior leak resistance, adaptability to international standards, and engineered material durability. At VidePak, with 30+ years of expertise and a global production network, we’ve refined pasted valve bags to meet the exacting demands of diverse markets. Below, we dissect the technical nuances of these bags, focusing on material selection, additive optimization, and compliance with global benchmarks—ensuring your operations align with efficiency and regulatory excellence.
The Anatomy of Pasted Valve Bags: Design and Functionality
Pasted valve bags feature a flat tubular structure with a sealed valve sleeve for controlled filling. They account for 70% of the multi-wall bag market due to their balance of performance and affordability. Key characteristics include:
- Leak Reduction: Precision-sealed valves minimize spillage during high-speed filling (e.g., auger or pneumatic systems).
- Palletization Efficiency: Uniform shape enhances stacking stability, reducing transport damage by up to 25%.
- Material Versatility: Compatible with barrier films like BOPP or PE for moisture and UV protection.

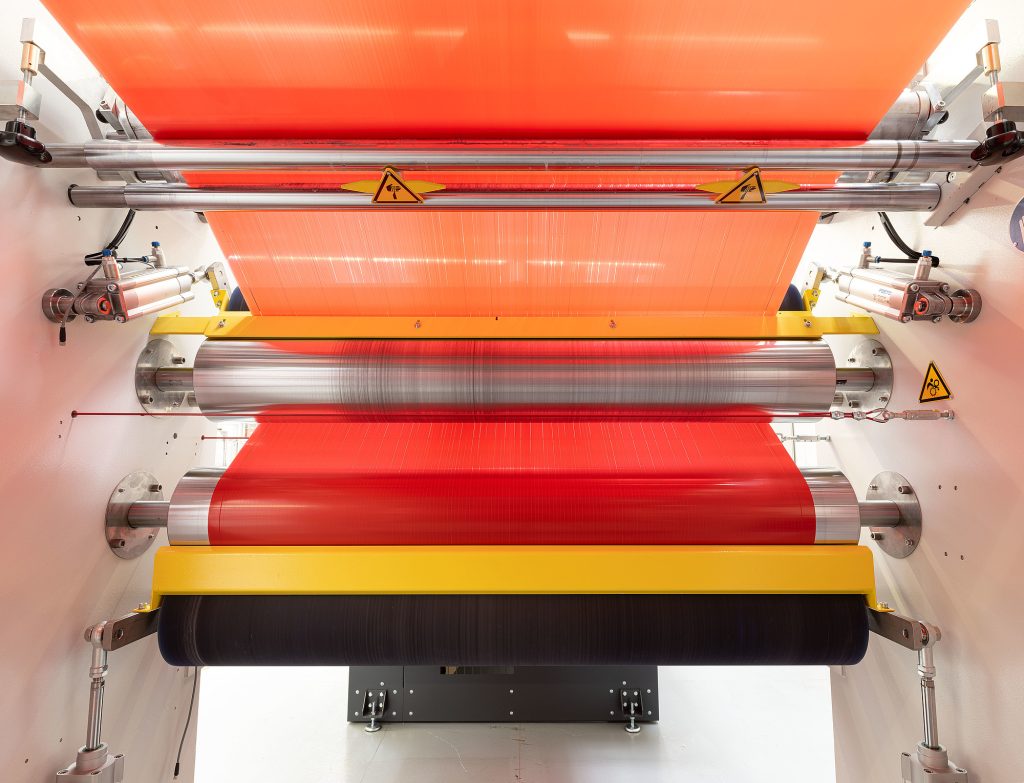

VidePak’s Starlinger CURO III systems produce over 1,200 bags/hour, ensuring dimensional tolerances of ±2mm—critical for automated filling lines.
Selecting Polypropylene (PP) Grades: A Standards-Driven Approach
The choice of PP resin directly impacts bag strength, chemical resistance, and lifespan. VidePak aligns with five major international standards:
1. ASTM (U.S.):
- Grade Requirement: ASTM D4101-17 mandates a melt flow index (MFI) of 2–4 g/10min for extrusion stability.
- Example: VidePak uses Sabic PP 512MN, offering 35 MPa tensile strength and compliance with FDA CFR 21 for food-grade applications.
2. JIS (Japan):
- Grade Requirement: JIS K6758 emphasizes UV stability for outdoor storage.
- Example: Prime Polymer J-105G incorporates 2% UV inhibitors, extending bag lifespan to 18 months under direct sunlight.
3. EN (Europe):
- Grade Requirement: EN 15507:2020 mandates ≤0.1% water vapor transmission for humidity-sensitive products.
- Example: Borealis HD120MO provides a 0.08% WVT rate, ideal for fertilizer storage in coastal regions.
4. GB (China):
- Grade Requirement: GB/T 8946-2022 requires anti-static additives for explosive powders (e.g., sulfur).
- Example: VidePak’s Sinopec T30S blend includes carbon black (1.5%) to dissipate static charges.
5. BS (UK):
- Grade Requirement: BS 2782-10 demands elongation at break >500% for heavy-duty applications.
- Example: Ineos Hifax CA12A achieves 620% elongation, preventing seam failure under 50kg dynamic loads.
Additives and Fillers: Engineering Performance
Custom additives enhance PP’s baseline properties:
| Additive Type | Function | Market Application Example |
|---|---|---|
| UV Stabilizers | Prevent polymer degradation | Middle Eastern cement storage |
| Antioxidants | Extend shelf life in humid climates | Southeast Asian rice packaging |
| Anti-block Agents | Reduce layer adhesion during winding | High-speed lamination lines |
| Slip Agents | Improve bag handling on conveyors | Automated pharmaceutical plants |
VidePak’s proprietary PP blend integrates 0.3% Chimassorb 119 (UV stabilizer) and 0.2% Irganox 1010 (antioxidant), certified under ISO 4892-2 accelerated aging tests.
Quality Assurance: From Resin to Finished Bag
VidePak’s 16 extrusion lines and ISO 9001 protocols ensure consistency:
- Raw Material Testing: PP pellets undergo MFI, density, and ash content checks (ASTM D1238).
- Weaving Precision: 100+ circular looms produce 150–200 g/m² fabrics with warp/weft balance ratios of 1:1.2 for tear resistance.
- Valve Sealing: Heat-sealed valves withstand 0.5 bar pressure (EN ISO 11607-1).
Technical Specifications: VidePak vs. Industry Standards
| Parameter | VidePak Specification | Industry Average |
|---|---|---|
| Tensile Strength | 38–42 N/cm² (ASTM D882) | 28–35 N/cm² |
| Valve Leakage Rate | <0.1% (ISO 16101-1) | 0.3–0.5% |
| UV Resistance | 1,500 hrs (ISO 4892-3) | 800–1,000 hrs |
| Lead Time | 7–10 days (custom orders) | 14–21 days |
FAQs: Addressing Industry Concerns
Q: How do I select PP grades for corrosive chemicals?
A: Opt for MFI 3–4 g/10min resins with 2% HDPE blending to enhance chemical resistance (e.g., VidePak’s Shintech K-4912).
Q: Can bags withstand -30°C environments?
A: Yes. Our Nordic Series uses Borouge BCM03B PP with ethylene copolymers, maintaining flexibility at -40°C.
Q: Are recycled materials compatible with pasted valve bags?
A: Limited. Recycled PP reduces tensile strength by 15–20%. VidePak offers 30% PCR blends for non-critical applications.
Case Study: Optimizing for the European Cement Market
A German cement producer required bags compliant with EN 197-1 dust emission limits. VidePak’s solution:
- Triple-layer BOPP lamination (≤0.05% sifting rate).
- Anti-static valve sleeves (EN 61340-5-1).
Result: 40% reduction in workplace dust exposure and 99.8% palletization efficiency.
Conclusion: Partnering for Precision
Pasted valve bags are not merely containers—they are engineered systems bridging material science and operational efficiency. VidePak’s fusion of Starlinger automation, ISO-certified PP blends, and 360° additive customization ensures your packaging meets global standards while reducing total cost of ownership.
For deeper insights into material innovation, explore our guide on Advanced Manufacturing Techniques for Pasted Valve Bags or discover VidePak’s Custom Solutions.
