Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — What Are Anti‑Bulge FIBC Bags?
Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse defines a family of form‑stable, reusable bulk containers engineered to hold 500–2,000 kg of granular or powdered materials while preserving a near‑perfect cube. In everyday usage these containers are also known as baffle FIBCs, Q‑bags, form‑stable bulk bags, square FIBCs, and anti‑bulge jumbo bags—different labels for the same idea: restrain belly, reclaim cubic space, reduce logistics waste. Conventional round FIBCs swell outward, steal aisle width, and waste trailer volume; anti‑bulge variants insert internal baffles or corner panels that guide expansion inward, so filled sacks stack like cartons, ride flatter, and unload faster. For readers who want a product‑family context, see this anchor page: Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse.
At VidePak, Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse isn’t a slogan but a specification compass. We prioritize mono‑polypropylene (PP) architectures to streamline end‑of‑life pathways, reinforce stress trajectories for multi‑trip lifecycles (6:1 safety factor builds), and embed traceable labeling that makes reuse auditable. Horizontally, this approach borrows from unit‑load engineering (pallet stability, tilt‑table logic) and flexible packaging (COF tuning, print legibility). Vertically, it connects the resin pellet to the forklift tine to the recycler’s granulator—one continuous chain where each link strengthens the next.
Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — What Are the Key Features?
A high‑performing cube bag is not a single attribute but a chorus: fabric GSM, baffle geometry, seam architecture, loop design, liner strategy, and print zoning. The features that distinguish Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse include:
- Form‑stability that pays rent. Corner baffles (slotted panels sewn into each corner) restrain outward belly, so a 90×90 cm footprint stays close to its intent under load. The payoff is tangible: more payload per container, fewer voids in 40‑foot boxes, straighter warehouse aisles. More cube, less chaos.
- Reusability by design. Builds with a 6:1 Safety Factor (SF) support qualified multi‑trip cycles when cleaning and inspection protocols are followed; 5:1 SF options serve single‑trip flows without over‑engineering. Stitch maps and reinforcement tapes are chosen to resist seam creep and loop stretch across repeated handling.
- Recyclability made simpler. Mono‑PP bodies with PP webbing, PP labels, and PP document pockets reduce contaminants in mechanical recycling. Where infrastructure allows, bags can be shredded, washed, and re‑granulated into PP streams with minimal sorting pain.
- Baffle intelligence. Vent slots (often 40–60 mm) balance two opposing needs: maintain the square, permit cross‑flow during filling. Too few slots and the bag starves; too many and the wall loses control. We tune the mesh and slot frequency to your product’s flow index.
- Safe handling interfaces. Corner or cross‑corner loops are sized for standard fork tines; wear sleeves and double‑chain + safety‑lock stitches extend loop life. The aim is ergonomic handling without mystery knots or dangerous improvisations.
- Dust & moisture management. Uncoated PP offers breathability for off‑gassing or warm‑fill products; optional coatings boost moisture defense. Liners—LLDPE for general use, antistatic or barrier structures for specialty powders—are tab‑fixed to prevent liner collapse.
- Coding that prevents errors. High‑contrast panels (typically 1–3 colors on FIBCs), large human‑readable SKU blocks, and GS1/QR codes support bay‑level identification and batch traceability—even from five to ten meters away.
- Static control choices. Type A/B fabrics for inert products, or Type C/D solutions when combustible dusts and grounding regimes are in scope; we match compliance level to powder risk profiles.
In short, Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse concentrates on the trifecta every operator cares about: safer lifts, tidier stacks, clearer audits.
Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — What Is the Production Process?
VidePak brings repeatability to every stage. Founded in 2008, staffed by 568 specialists, and equipped with top‑tier machinery from W&H (Germany) and Starlinger (Austria), we convert design intent into measurable output. While our broader plant also runs BOPP woven, valve, and kraft programs, the FIBC workflow is dedicated—separate weaving, cutting, baffle stitching, and loop assembly cells with digital traceability from tape spool to pallet label.

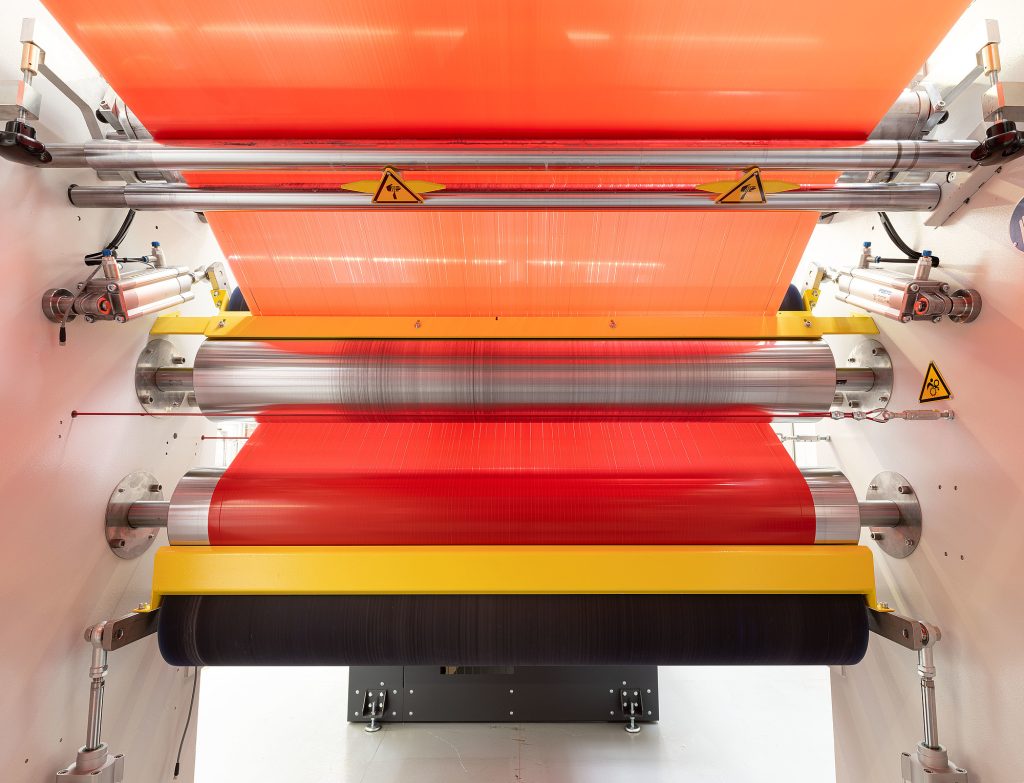

1) Tape extrusion and weaving. Virgin PP is extruded into flat tapes, drawn for tenacity, and woven into fabrics typically 140–220 g/m² for bodies (heavier GSM for 2‑ton SWLs). Warp/weft tension is monitored to keep skew low—a prerequisite for baffles that meet perfectly at the corners.
2) Coating (as needed) and panel cutting. For moisture‑sensitive products, a PP coating of 20–30 g/m² improves barrier; for breathable programs, uncoated fabric reduces condensation and aids drying. CNC tables cut panels square within tight tolerances so stress doesn’t concentrate at misaligned seams.
3) Baffle fabrication. Corner baffles are produced from lighter PP fabric (e.g., 90–120 g/m²), ladder‑slotted for cross‑quadrant powder flow. We validate slot geometry against your product’s flowability to prevent corner voids and ensure fast fills.
4) Loop assembly & seam engineering. High‑tenacity PP webbing (70–100 mm) is cut for four corner loops or cross‑corner designs. Double‑chain stitches with safety locks, plus localized reinforcement patches, resist creep during transport cycles.
5) Top and bottom closures. Choose a filling spout, full duffle, or open top; pair with a discharge spout, star closure, or flat bottom as your unloading dictates. Dust‑proof filler cords (3–5 mm) can be specified to improve cleanliness.
6) Liners and in‑bag components. LLDPE liners 60–120 μm cover general needs; antistatic and barrier liners support sensitive powders. Tab‑fixing or heat tacking prevents liner telescoping and speeds de‑airing during fills.
7) Inspection and testing. We run top‑lift, cyclic load, drop, and seam‑efficiency checks to ISO 21898 for non‑dangerous goods. For UN‑rated programs, 13H2/13H3 routes are available upon qualification. Lot COAs capture results with traceable IDs that link yarn batches, weave cells, and stitch teams.
This chain converts craft into criteria; criteria into confidence. It is the manufacturing engine behind Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse.
Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — What Are the Applications?
Where do these square‑shouldered giants earn their keep? Wherever cubic efficiency is currency, product integrity is non‑negotiable, and reuse can turn packaging from expense to asset.
- Food & feed ingredients. Sugars, starches, flours, premixes—liners protect against moisture while baffles preserve cube for racked storage. Hygiene documents accompany each lot upon request.
- Plastics & chemical resins. Pellets, masterbatch, and additives—stable cubes reduce trailer sway, protect silo‑feed accuracy, and shrink warehouse footprints.
- Fertilizers & agri‑inputs. Dense prills and granules gain from square stacking; UV‑stabilized fabrics support outdoor laydown between field runs.
- Minerals & construction powders. Calcium carbonate, silica, cement additives—abrasion‑aware seams and wear sleeves pay dividends under rough handling.
- Recycling & industrial scrap. Regrind, flakes, fiber—mono‑PP bodies align with in‑plant recovery, closing the loop on your own dock.
The horizontal pattern is clear: one platform, many streams. The vertical progression is clearer still: from fill head to pallet rack to return cycle—Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse keeps value inside the loop.
For related woven solutions that complement bulk handling, explore: Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse.
Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — Typical Parameters (Reference Ranges)
The ranges below reflect common market listings and VidePak trial data. Final specs are frozen after your line and route trials.
| Parameter | Reference Range | Notes for Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse |
|---|---|---|
| Safe Working Load (SWL) | 500–2,000 kg | 5:1 SF for one‑way; 6:1 SF for qualified reuse programs |
| Safety Factor (SF) | 5:1 or 6:1 | 6:1 requires documented inspection/cleaning cycles |
| Body Fabric GSM | 140–220 g/m² | Higher GSM for dense or abrasive products |
| Baffle Fabric GSM | 90–120 g/m² | Slotted for flow equalization while retaining cube |
| Coating (optional) | 20–30 g/m² PP | Improves moisture resistance; reduces breathability |
| Typical Footprint | 90×90 cm (±); 95×95 cm available | Custom footprints matched to rack and trailer geometry |
| Height | 90–120 cm typical | Set by bulk density and desired stack height |
| Lift Loops | 4 corner or cross‑corner | Webbing 70–100 mm; wear sleeves on request |
| Top Options | Spout / Duffle / Open top | Choose by filling method and dust class |
| Bottom Options | Discharge spout / Star closure / Flat | Match to discharge equipment |
| Liner | 60–120 μm LLDPE; specialty barriers on request | Tab‑fix or tack to prevent collapse |
| Printing | 1–3 colors (typical) | High‑contrast SKU blocks and GS1/QR codes |
| UV Stabilization | 150–200 kLy equivalent | Outdoor exposure programs on request |
Horizontal reading: parameters compare across industries (food, chemicals, minerals) to locate your operating window. Vertical reading: each parameter ladders from physics (bulk density, flowability) to process (weaving, stitching) to outcome (stack stability, reuse potential)—the very spine of Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse.
Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — Compliance, Reuse, and Recycling
Sustainability without compliance is a slogan; compliance without data is a risk. We ground Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse in three pillars:
- Standards & testing. ISO 21898 protocols for non‑dangerous goods; UN Recommendations (13H series) when dangerous goods certification is pursued; internal acceptance criteria for seam efficiency, top‑lift, and cyclic loading. Certificates ship with the pallet.
- Documented reuse. 6:1 SF programs cycle bags only after they pass visual and functional checks (loops, seams, base), are cleaned to the hygiene level your product requires, and are relabeled with the next cycle ID. We provide inspection checklists and durable tags to make this practical on busy docks.
- Recycling pathways. Mono‑PP construction simplifies mechanical recycling; labels and pockets can be specced as PP to avoid contaminate streams. Where access to collection is limited, we help trial baling and take‑back loops that keep material out of landfill and in your supply chain.
Horizontally, this connects quality, operations, and EHS into one workflow; vertically, it traces a line from design desk to dock to recycler—proof that the “S” in Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse stands for systems, not slogans.
Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — Why VidePak
Since 2008, VidePak has paired global scale with artisan discipline: USD 80 million in annual sales, 568 employees, and shipments across North America, Europe, Brazil and South America, Southeast Asia, Japan, Korea, Central Asia, the MENA region, East Africa, and South Africa. Our equipment pedigree—Windmöller & Hölscher and Starlinger—keeps tolerances tight and output steady; our materials policy (virgin PP unless PCR is specified) keeps quality predictable; our design agility (custom footprints, liners, prints, and labeling) keeps your operations simple. That is why customers describe Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse as a business lever, not just a package: less bulge, more cube; fewer disposables, more loops; easier sorting, cleaner recycling.
- Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — What Are Anti‑Bulge FIBC Bags?
- Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — What Are the Key Features?
- Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — What Is the Production Process?
- Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — What Are the Applications?
- Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — Typical Parameters (Reference Ranges)
- Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — Compliance, Reuse, and Recycling
- Advancing Environmental Sustainability with Anti-Bulge FIBC Bags: A Focus on Recyclability and Reuse — Why VidePak
Anti-bulge FIBC (Flexible Intermediate Bulk Container) bags offer unmatched solutions for packaging seeds, grains, powders, and agricultural products, combining enhanced durability, moisture resistance, and environmental sustainability. These bags not only meet diverse industrial needs but also align with global sustainability goals through their recyclability and innovative design.
Anti-Bulge FIBC Bags: Versatile and Reliable for Diverse Applications
Tailored Solutions for Agricultural and Industrial Packaging
Anti-bulge FIBC bags are increasingly used across sectors due to their customizable features, ensuring that each type of product is packaged optimally for storage, transportation, and protection. Below is an analysis of their applications:
| Product | Packaging Requirements | Key Features of Anti-Bulge FIBC Bags |
|---|---|---|
| Seeds | Breathability to maintain germination rates, protection from moisture and pests | Permeable fabric, optional insect-resistant coatings |
| Grains & Rice | Moisture-proofing to prevent spoilage | Laminated outer layers, ultrasonic sealing for leak prevention |
| Coffee Beans | Ventilation to prevent condensation, lightweight yet sturdy construction | Custom vents, durable weave with anti-condensation linings |
| Powders | Leak-proofing and resistance to static or chemical reactions | Inner PE liners, anti-static and multi-layer construction |
Performance Optimization in Design
Moisture Control and Breathability
Effective moisture resistance is critical for grains, seeds, and powders, as exposure can lead to spoilage or loss of quality:
- Laminated Outer Coating: Creates a barrier against water ingress.
- Optional Inner Liners: Provide secondary moisture protection, ideal for fine powders like starch.
For seeds, maintaining breathability ensures proper germination rates. Specialized woven designs with venting options optimize airflow, preventing condensation while safeguarding the contents.
Enhanced Load Stability
Anti-bulge FIBC bags are engineered for strength and load stability. Their dense weave and reinforced stitching prevent bulging under heavy loads, ensuring safe stacking and efficient use of storage or transport space.
Sustainability and Reusability
By manufacturing these bags with recyclable polypropylene (PP) and polyethylene (PE), VidePak supports a circular economy. Complying with global standards like ISO 21898, these bags are designed for multiple reuse cycles, minimizing environmental impact.
Customizing FIBC Bags for Specific Applications
Key Customization Parameters
Choosing the right FIBC bag requires analyzing the specific needs of the product and supply chain:
| Parameter | Recommended Specification |
|---|---|
| Thickness | 100–150 microns for added durability |
| Weight Per Unit Area | 200–300 g/m² for heavy-duty requirements |
| Capacity | 500–2000 kg, depending on the application |
| Breathability | Custom venting or woven permeability for seeds and grains |
| Moisture Resistance | Laminated outer layer or inner PE liner for powders |
Considerations for Specific Products
- Seeds: Optimal breathability and moisture protection to preserve germination rates.
- Grains: Enhanced moisture-proofing with laminated exteriors.
- Powders: Leak-proof construction with sealed liners and anti-static options.
FAQs
Q: Are anti-bulge FIBC bags recyclable?
A: Yes, these bags are made from 100% recyclable polypropylene, supporting eco-friendly practices.
Q: How do these bags prevent powder leakage?
A: Leak prevention is achieved through laminated exteriors, tightly woven fabric, and ultrasonic sealing for secure closures.
Q: Can FIBC bags handle heavy loads?
A: Absolutely. With reinforced seams and anti-bulge technology, they can safely transport and store up to 2000 kg.
For further details on sustainable FIBC packaging, explore this comprehensive guide.
Adherence to Global Standards
VidePak ensures that its anti-bulge FIBC bags comply with key international standards, making them suitable for use worldwide:
| Standard | Requirement | VidePak Solution |
|---|---|---|
| ISO 21898 | Reusability and recyclability | Durable, recyclable PP and PE materials |
| FDA (USA) | Food-grade safety for agricultural and food products | Non-toxic, food-safe coatings and liners |
| EN 15593 | Hygiene standards for food packaging | BPA-free, high-quality materials |
| GB/T 8946 (China) | Moisture and pest resistance for agricultural storage | Lamination, insect-resistant features |
Future Innovations in FIBC Technology
Eco-Friendly Coatings
Advances in biodegradable coatings and sustainable additives are making FIBC bags even more environmentally friendly.
Smart Packaging Integration
Embedding QR codes or RFID tags enables efficient inventory tracking, enhancing logistics management.
Enhanced Safety Features
Innovations in static-dissipative materials and fire-retardant coatings are expanding their industrial usability.
Conclusion
Anti-bulge FIBC bags represent the future of eco-conscious packaging, addressing the unique needs of agricultural and industrial sectors. From preserving seed germination rates to ensuring leak-proof storage for powders, these bags deliver exceptional performance and sustainability. By combining global compliance with cutting-edge design, VidePak leads the way in creating packaging solutions that are both efficient and environmentally responsible.
