Custom Woven Bags and Quality Assurance

What is Custom Woven Bags?

Custom Woven Bags are engineered packaging systems built on a polypropylene (PP) tape‑woven lattice, optionally laminated with PP/PE/BOPP films, and converted into open‑mouth or valve formats to carry powders, granules, or pellets across the 5–50 kg class with repeatable mechanics, predictable moisture control, and brand‑grade print surfaces. In commercial parlance, you’ll also meet them as PP woven sacks, block‑bottom woven sacks, valve woven bags, BOPP laminated woven bags, and paper–poly composite bags (kraft + PP). Different aliases, same family: a durable, configurable platform tuned to product density, abrasiveness, hygroscopicity, and the physics of your filling line.

Concept and vocabulary. “Woven” denotes the warp × weft lattice of drawn PP tapes. Think of it as a lightweight truss: loads distribute biaxially, puncture energy gets absorbed, and tear propagation is arrested along orthogonal paths. “Custom” means no two programs are identical: substrate GSM, weave density, lamination finish, sleeve geometry, liner gauge, and coefficient‑of‑friction (COF) windows are specified to your route and your equipment. “Quality Assurance” is not a wall certificate—it is a living loop that begins with resin COAs and ends with drop/stack evidence, barcode audits, and recall drills that actually work.

Systems lens. Why do Custom Woven Bags matter? Because packaging is not a single variable problem. It is a conversation between opposing forces: strength versus weight, barrier versus breathability, line speed versus cleanliness, eye‑catching graphics versus abrasion, recyclability versus performance. The win is rarely from maximizing one attribute; it emerges from orchestrating many—so the sack that leaves the converter is not merely a container but a compact machine.

Data reinforcement. Parameter bands repeatedly published by credible exporters and peer converters: woven fabric ≈ 55–120 g/m²; weave density ≈ 7×7 to 14×14; BOPP film ≈ 15–35 μm (gloss, matte, pearl); optional PE liners ≈ 50–150 μm; 25‑kg flat sizes ≈ 50×80 to 55×95 cm; engineered COF windows (anti‑slip) ≈ 0.4–0.6; graphics routinely up to 8–10 colors by rotogravure. These numbers are not theoretical—they’re the ranges buyers and QA teams negotiate every week.

Case analysis. A pigment producer pivoted from pillow‑type PP sacks to Custom Woven Bags with a block‑bottom, matte BOPP exterior, and a heat‑seal valve. The shift cut mouth‑zone dust, shaved seconds from each fill cycle, and produced squarer, calmer pallets. Less rework, fewer stretch‑wrap revolutions, more pallets per shift—three small wins that added up to a large one.

Comparative study. Versus multiwall paper, Custom Woven Bags deliver wet strength and puncture resilience. Versus plain PP woven, laminated faces add billboard‑class graphics and abrasion resistance. Versus FFS PE, they concede peak speed but reclaim value through cube discipline, on‑bag real estate, and dust containment at the valve. If you must choose between “strong or pretty,” you’ve framed the question too narrowly; the answer can be “strong and pretty and auditable.”

For adjacent constructions and print options, see Custom Woven Bags as a practical anchor for terminology, formats, and common conversions.

What is the features of Custom Woven Bags?

Features are not decorations; they are countermeasures to predictable failure modes. Below, each capability is explored through three lenses—Data reinforcement, Case analysis, and Comparative study—so claims are measurable, relatable, and positioned among nearby options.

1) Mechanical strength and safe handling

The PP lattice behaves like a biaxially reinforced mesh: warp and weft share tension, while the woven architecture disperses puncture shocks from angular minerals and pellets. Add a block‑bottom and you transform a pillow into a cube—flatter faces, truer corners, interlocking layers, and calmer forklifts.

• Data reinforcement. For the 25‑kg class, fabrics of ≈ 80–100 g/m² are common; punishing routes or abrasive cargos justify > 100 g/m². Bottom and seam designs are validated via sequences aligned to UN Model Regulations 6.1.5.3 (drop) and 6.1.5.6 (stack). Film robustness often references ASTM D882 (tensile) and ASTM D1709 (dart impact).
• Case analysis. After setting minimum seam‑peel thresholds and specifying corner fold geometry, a CaCO₃ shipper cut corner blows and reduced wrap force by double‑digit percentages without losing stability. When geometry is right, logistics breathes easier.
• Comparative study. Pillow sacks “banana” under compression and migrate on pallets; block‑bottom Custom Woven Bags resist layer creep, tolerate lower wrap tension, and present cleaner pick faces to robots.

2) Moisture discipline and sift control

Humidity is the slow saboteur—caking begets bridging, bridging disturbs dosing, and dosing drift erodes customer trust. Laminated exteriors (PP/PE or BOPP) close weave interstices; optional PE liners (≈ 70–150 μm) add deterministic vapor barriers; heat‑seal valves eliminate stitch holes. The result is a path from bag to hopper that stays clean and predictable.

• Data reinforcement. Barrier performance is commonly characterized by ASTM F1249 (WVTR). Liner mouth integrity is checked via ASTM F88/F88M; ASTM D1894 quantifies COF.^
• Case analysis. A coastal urea route that previously saw clumping stabilized after adopting a 100–120 μm liner and heat‑sealed valves. Returns fell; blender uptime rose.
• Comparative study. Foil or metallized films beat BOPP on barrier but complicate recyclability and cost; unlaminated woven sacks breathe but shed fines. Laminated Custom Woven Bags sit at the pragmatic middle for most minerals, fertilizers, and pet‑food bases.

3) Filling speed, repeatability, and line ergonomics

Speed that sprays dust is not speed; it is deferred housekeeping. Valve formats (sleeve ID ≈ 38–60 mm) funnel product, micro‑perforation patterns evacuate air, and heat‑seals close cleanly. Squared bases stand obediently under the spout; operators stop wrestling bags; scales stop drifting; OEE stops bleeding.

• Data reinforcement. The 25‑kg class dominates many chemical and agro lines; square stacks on 1,000 × 1,200 mm pallets can lift unit‑load density by a few percentage points—small per layer, material across a warehouse.
• Case analysis. A masterbatch filler shaved seconds per bag by stiffening the sleeve and repatterning vent holes—tiny deltas that compounded into pallets per shift and calmer staffing.
• Comparative study. FFS PE excels at extreme throughputs; open‑mouth sacks suit slow, manual fills; valve‑format Custom Woven Bags win where hygiene, changeover agility, and cube discipline share the scorecard.

4) Graphics, compliance real estate, and scanner‑friendliness

Packaging speaks two languages simultaneously: marketing and regulation. Reverse‑printed BOPP supports 8–10 colors, protects ink under film, and when finished matte, curbs glare for high‑bay scanners. Designated code windows keep lot, batch, and hazard pictograms legible after 1,000 miles of vibration.

• Data reinforcement. Target exterior COF ≈ 0.4–0.6 for pallet stability; validate barcode zones post‑vibration with field scanners; reserve white knockouts for microtext and QR fidelity.
• Case analysis. A pet‑food packer moved from glossy to matte faces; misread stoppages plummeted, and end‑effector uptime improved.
• Comparative study. Multiwall paper prints crisply but scuffs; plain PP woven can blur small modules; laminated Custom Woven Bags preserve image fidelity without surrendering abrasion resistance.

5) QA documentation and certification pathways

Real quality is evidenced quality. Converters of Custom Woven Bags typically operate under ISO 9001:2015 (QMS). Where hygiene matters, plants run BRCGS Packaging Materials. For food/feed adjacency, component films are supported by statements to EU 10/2011 and FDA 21 CFR 177.1520. Dangerous‑goods variants—less common but not absent—pursue UN performance testing before any marking; woven‑plastic bag codes 5H1–5H4 map to coatings/liners and to proven performance.

• Data reinforcement. Lot traceability, lamination specs, liner gauges, seal integrity records, SPC charts for width/length/valve ID, and routine drop/stack reports constitute the audit spine.
• Comparative study. Paper‑centric programs align with fiber‑recycling narratives; mono‑polyolefin Custom Woven Bags create clearer identification in mechanical recycling streams and can be engineered for layer separation where infrastructure exists.

What is the production process of Custom Woven Bags?

Manufacturing is a relay: each station passes assets and liabilities forward. The art is to amplify the former and drown the latter, so the bag that reaches your filler behaves like a compact machine—not a noisy source of variability.

1) Requirements discovery and QA plan

Start with product physics (bulk density, d10/d50/d90, abrasiveness), route climate (coastal vs. inland humidity), warehouse height (stack compression), and pallet patterns. Freeze acceptance limits and AQLs (e.g., ANSI/ASQ Z1.4; typical AQL 1.0–2.5 on visual/functional). Define test protocols: ASTM F1249 for WVTR, ASTM D1894 for COF, ASTM D882/D1709 for film strength, and UN 6.1.5.3/6.1.5.6 when a performance‑rated path is contemplated.

2) Tape extrusion, drawing, and weaving

Extrude PP resin to tape, draw to align chains (raising tensile and modulus), slit to width, and weave on circular or flat looms to target ≈ 70–110 g/m² and ≈ 10×10–14×14. Loom tension, tape width uniformity, and pick count stability govern the dimensional drift that later determines valve fit, bottom symmetry, and pallet behavior.

3) Surface activation and lamination/coating

Polyolefins are chemically shy—low surface energy resists inks and adhesives. Corona treatment confers polar functionality so coatings and adhesives anchor. Apply PP/PE extrusion coatings or laminate BOPP 15–35 μm via solventless PU or co‑extrusion. Additives here tune COF, UV stability, and anti‑block behavior; reverse printing beneath BOPP protects inks from abrasion.

4) High‑fidelity printing and registration

Flexographic or rotogravure systems lay down up to 8–10 colors with tight registration. Reserve code windows; specify matte/gloss varnishes to match scanner behavior; run abrasion and barcode verification after vibration. Registration marks guide downstream valve and bottom formation so artwork avoids folds and seals.

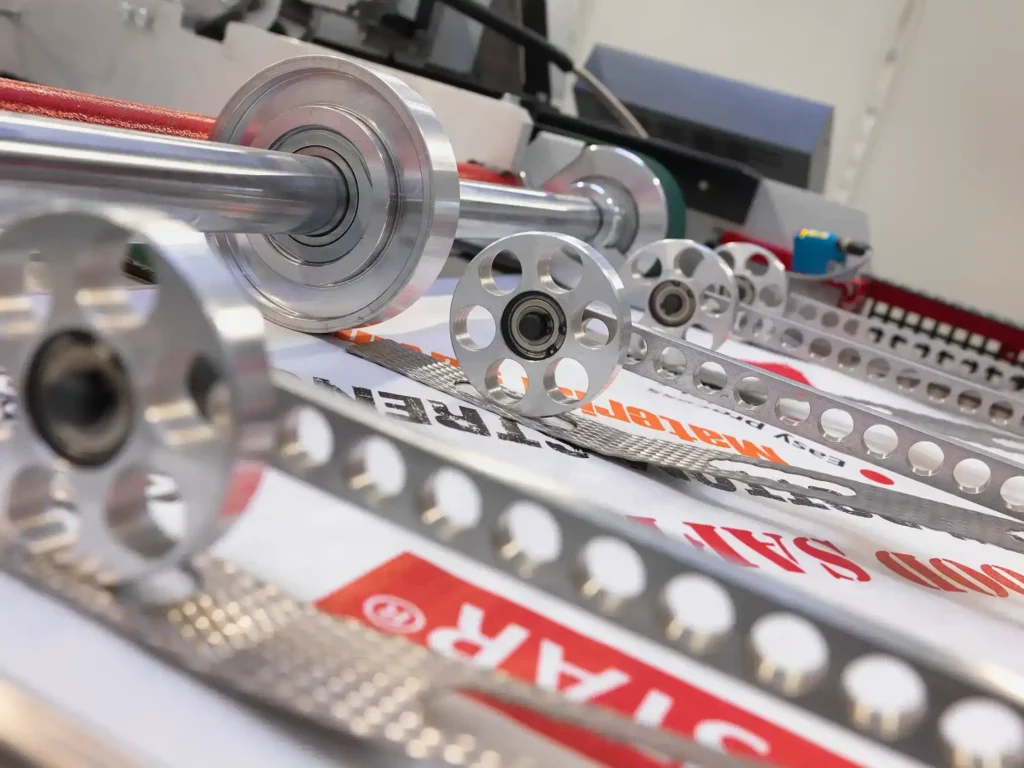

5) Conversion: tubing, gusseting, bottoms, and tops

Form tubes, introduce side gussets, fold and seal bottoms (glue or heat) to create block‑bottoms. Finish tops as open‑mouth (stitched/glued) or valve (self‑close or heat‑seal). Dimensional discipline (±1–3 mm) governs pallet conformity and packer compatibility; bottom fold symmetry predicts corner survival under forklift impacts.

6) Liner integration (optional)

Insert loose, cuffed, or adhered PE liners 50–150 μm. Correct integration couples the liner mouth to the valve or top closure, eliminating bypass paths for humidity and fines. Choose thickness by trading off barrier target against foldability and heat‑seal speed.

7) Quality control and release

Run dimensional checks, seam/peel and tear tests, ASTM D882/D1709 on films, ASTM F1249 for WVTR, ASTM D1894 for COF, and drop/stack sequences for performance‑rated SKUs. Archive results with barcoded lot traceability; perform mock recalls to prove data integrity.

Comparative note. Cold‑cut stitched open‑mouth tops remain useful for slow fills and unusual liners; heat‑seal valves are the hygiene and speed choice for dusty, high‑volume powders. The right process is the one that harmonizes your filler physics (air vs. impeller), your climate lane (arid vs. humid), and your audit narrative (industrial‑only vs. food‑adjacent).

What is the application of Custom Woven Bags?

Applications are where theory meets forklifts, humidity, and hurried hands. The same platform morphs by changing GSM, weave density, lamination finish, valve geometry, and liner presence. Below, representative segments illustrate how Custom Woven Bags move from converter to pallet to point of use.

Chemicals and minerals

Calcium carbonate, talc, barium sulfate, silica, pigments—dense, sometimes abrasive, often dusty. The woven lattice arrests tears; laminated skins protect print; heat‑sealed valves curb fugitive dust. For dangerous‑goods adjacency, a UN performance path (drop/stack) moves claims from marketing to proof and pins them to bag codes 5H1–5H4 where relevant.

Fertilizers and soil amendments

Granular NPK, urea, and micronutrient blends punish corners and closures while humidity drives caking. Custom Woven Bags with block bottoms, anti‑slip exteriors, and 100–120 μm liners resist clumping, preserve square stacks in coastal depots, and protect shelf impact during peak season resets.

Food and feed (with appropriate declarations)

Rice, pulses, pet food, feed premixes value matte BOPP (photo‑grade branding without glare) and valve hygiene. Component films should carry statements referencing EU 10/2011 and FDA 21 CFR 177.1520; plants frequently uphold BRCGS Packaging Materials programs with documented hygiene controls.

Construction and retail agriculture

Seeds, cementitious blends, specialty sands prefer squared bases for shelf presence and pallet stability. For outdoor racks, UV‑stabilized films preserve color fidelity; anti‑slip lacquers allow lower wrap force; micro‑perforation is tuned to vent air during fill without spraying fines into aisles.

Specialty and private label

Consumer‑facing aisles (pet‑care, lawn & garden) need billboard space and audit trails. Pearlized or matte BOPP with crisp QR/lot blocks turns Custom Woven Bags into a reliable communicator: brand on the shelf, traceability in the ERP, sanity on the floor.

Quality Assurance Architecture (Making “QA” a System, Not a Slogan)

Quality is designed upstream and proven downstream. A resilient QA architecture for Custom Woven Bags threads through people, process, and proof. The goal is not paperwork; it is predictability.

1. Supplier governance. Approved resin/ink/adhesive/film vendors with current ISO 9001:2015; material COAs tied to lots; change‑control that actually controls change.
2. Specifications as code. Machine‑readable specs (dimensions, GSM, valve ID, COF windows, AQLs) to limit interpretation drift; controlled revisions that ripple to shop‑floor travelers and QC forms.
3. SPC on critical features. Control charts for width, length, valve ID, bottom fold symmetry; alarms linked to corrective actions; Cpk targets that matter for pallet fit and robot picks.
4. Incoming and in‑process checks. ANSI/ASQ Z1.4 sampling (typical AQL 1.0–2.5) on visual and functional attributes; pre‑ship audits that repeat the few tests customers will actually perform.
5. Performance tests. ASTM D882/D1709 for film strength; ASTM F1249 for WVTR; ASTM D1894 for COF; UN 6.1.5.3/6.1.5.6 where applicable. Results archived with photos and raw data—not just pass/fail.
6. Traceability and recall drills. Lot‑level barcoding; mock recalls rehearsed to service‑level targets; links from printed batch IDs to raw‑material COAs and machine settings.
7. Hygiene and migration controls (when applicable). BRCGS Packaging Materials programs; migration statements for EU 10/2011/FDA 21 CFR 177.1520; HACCP for food/feed adjacency; foreign‑matter controls that keep the audit honest.

Key Parameters and QA Controls (Quick Table)

Note: Ranges reflect values widely published by credible exporters and converters. Final acceptance limits should be locked by your own trials, product density, particle size distribution, climate lane, and warehouse practices.

Integrated Solution (System Synthesis for Custom Woven Bags)

Objective. Deliver a 25‑kg specification for a moderately abrasive, moisture‑sensitive mineral powder moving through humid coastal legs and retail‑facing warehouses where barcode fidelity matters as much as bag integrity—without choking throughput.

Subsystem A — Mechanics & geometry. Select PP woven 90 g/m² at ≥ 10×10 weave; specify a block‑bottom with reinforced corners; lock dimensional tolerance at ±1–3 mm; record seam‑peel minimums in vendor QA sheets; validate drops in worst‑case forklift strike orientation and stacks to warehouse height.

Subsystem B — Barrier & cleanliness. Choose matte BOPP lamination 20–25 μm; integrate a PE liner 100–120 μm; specify a heat‑seal valve with sleeve ID ≈ 45–55 mm; use anti‑sift seam designs; verify WVTR performance via ASTM F1249; reserve matte varnish to reduce glare at scanners.

Subsystem C — Throughput & logistics. Confirm flat size 55×95 cm for 25‑kg on 1,000×1,200 mm pallets; set exterior COF at ≈ 0.5; dry‑run robot picks with filled dummies; document wrap force windows and pallet patterns to prevent overhang.

Subsystem D — Graphics & compliance. Print up to 8–10 colors on matte BOPP; reserve code windows for batch, grade, QR, and hazard pictograms (if any); compile an evidence pack with ASTM D882/D1709/F1249/D1894 certificates, lamination specs, seal records, and routine drop/stack reports; include supplier statements for EU 10/2011 and FDA 21 CFR 177.1520 where food/feed adjacency exists.

Subsystem E — Sustainability & EPR readiness. Favor mono‑polyolefin constructions for clearer identification downstream; label polymer families openly; evaluate recycled PP content in the woven layer where mechanical properties and regulatory rules permit; make end‑of‑life language specific, not vague.

One‑line spec. “Custom Woven Bag, 25 kg, 55×95 cm, PP woven 90 g/m² (≥ 10×10), laminated BOPP 20–25 μm matte, valve with heat‑seal (ID ≈ 45–55 mm), optional PE liner 100–120 μm, anti‑slip exterior (COF ≈ 0.5), rotogravure up to 10 colors; evidence: ASTM D882/D1709/F1249/D1894, internal drop/stack; plant: ISO 9001:2015, BRCGS Packaging Materials; UN performance path optional if classification changes.”

Why this coheres. Geometry serves mechanics; matte faces serve scanners; liners and heat‑seals serve hygiene; GSM and weave secure margin. Each choice amplifies the next, turning Custom Woven Bags from a wrapper into a dependable part of the process.
