What Are Valve Bags?
Valve Bags—also called PP woven valve sacks, block‑bottom valve bags, or self‑sealing valve packaging—are industrial sacks engineered to be filled rapidly and closed automatically by means of a short, reinforced sleeve built into the top or corner of the bag. Connect the sleeve to a gravity, air, or impeller packer; product flows in; the sleeve tucks, welds, or locks; the unit exits the station already sealed. In practical language, Valve Bags merge three promises that usually fight each other: the ruggedness of woven polypropylene, the housekeeping discipline of film‑style packing, and the neat, square stance of a box‑like base. Do they serve retail polish or factory grit? Both—and that duality is why Valve Bags are becoming the default where speed, cleanliness, and pallet discipline are not nice‑to‑haves but table stakes. For category context and design options, see Valve Bags.
From a technical vantage, Valve Bags sit at the junction of powder rheology (how powders de‑aerate, how fines migrate, how angles of repose change with humidity), textile mechanics (mesh density, tape denier, creep behavior under compression), and conversion precision (valve geometry, seal initiation temperatures, seam efficiency). A horizontal comparison clarifies the choice: sewn open‑mouth sacks are versatile but incur a second closing step and more dust at the spout; mono‑film PE FFS tubes sprint on form‑fill‑seal lines yet may creep in tall stacks; multiwall paper prints beautifully but can soften in humid depots. Valve Bags reconcile those trade‑offs: fewer handling steps, cleaner aisles, squarer pallets, steadier freight.
A vertical, cause‑and‑effect view connects upstream dials to downstream behavior. Resin grade governs drawability; drawability sets tape modulus; modulus and tape width drive fabric GSM and mesh; fabric stiffness, combined with bottom geometry, determines squareness under load; valve sleeve length, stiffness, and lip angle influence fill rate and dust halo; coating weight and laminate choice influence moisture ingress and print resilience. Change a dial in extrusion or lamination, and you hear the echo on the dock—less pillowing, fewer toppled columns, clearer labels.
What Are the Features of Valve Bags?
Features in packaging are only meaningful when they neutralize a failure mode. Valve Bags are built as countermeasures: to quell powder halos at the spout, to tame humidity on marine legs, to resist abrasion on conveyors, to keep columns upright when warehouses run warm.
Fast filling with built‑in closure. An integrated sleeve (internal or external; typical inlet Ø 35–55 mm) mates with gravity, air, or impeller packers. As product enters, air escapes through controlled porosity or micro‑vents; the sleeve then self‑seals—by tuck‑in, film flap, or heat/ultrasonic activation—so no separate stitching or taping is required. Less handling, fewer variables, tighter takt time.
Dust control by design. Sleeve architectures can include anti‑sift patches, heat‑responsive films, or welded fins that collapse under compression. On the body, sift‑proof seams with filler cords close needle paths where stitching is used; pinch‑type closures remove needle holes altogether. The result is less airborne particulate, cleaner scales, steadier net weights—and happier EH&S audits.
Square‑standing stability. Block‑bottom or stepped‑end constructions distribute stress through crisp creases and formed bases. Why chase squareness? Because upright stacks mean higher cube utilization, fewer wrapper revolutions, and lower side loads on closures. A tidy column is more than a look; it is a logistics outcome.
Barrier and face options you can tune. Uncoated woven fabric breathes—useful for hot or gassy fills. Add PE/PP extrusion coats (≈ 18–30 g/m²) to moderate humidity and seal dust; specify reverse‑printed BOPP (18–25 µm) or kraft laminations for scuff‑resistant, photo‑grade branding; integrate loose or tubular PE liners (20–40 µm) when hygroscopic powders (urea, salt, TiO₂, starches) demand extra isolation. One backbone, many faces.
Handling safety embedded in the surface. Anti‑slip emboss or spray targets a stacking COF ≈ 0.45–0.60, so pallets travel upright with less wrap. UV‑stabilized packages (200–400 h typical) preserve tensile properties and color during yard exposure. These are not cosmetics; they are guardrails for real routes.
Branding that survives the route. CI flexo up to six colors on coated fabrics, or gravure under BOPP for billboard‑grade imagery. Microtext, QR/2D codes, and hazard panels remain readable after marine legs, cross‑dock hops, and forklift kisses. If the label is the contract with your buyer, lamination is its legal counsel.
Horizontal thinking links these elements to adjacent disciplines: valve geometry borrows from fluid dynamics; anti‑slip tuning borrows from tribology; UV lifetime borrows from photochemistry. Vertical thinking steps from resin to route: polymer orientation → fabric modulus → crease retention → pallet lean probability—each link tested, not wished.
How Are Valve Bags Produced?
Performance on the pallet begins with discipline at the machine. VidePak manufactures Valve Bags in a controlled sequence where every upstream choice shows itself downstream as line speed, seal integrity, and stack behavior.
1) PP tape extrusion & drawing. Virgin polypropylene is extruded as a film, slit into tapes, and hot‑drawn to align chains. Draw ratio sets tensile strength and elongation; die gap, quench rate, and anneal temperature fix tape width and crystallinity. Anti‑fibrillation agents curb yarn “hairiness,” which otherwise wicks fines and complicates lamination.
2) Weaving (circular & flat looms). More than 100 circular looms interlace warp and weft into meshes such as 8×8–14×14 at ≈ 60–120 g/m² for 10–50 kg classes. Balanced loom tension minimizes skew and delivers a flat, dimensionally stable print base—critical for bottom squareness and valve alignment.
3) Coating & lamination. A PE/PP melt curtain (≈ 18–30 g/m²) bonds to the fabric for humidity and dust control. Where premium optics or extra abrasion resistance are required, reverse‑printed BOPP (18–25 µm) or kraft outer plies are laminated to the woven substrate. Adhesion windows are documented: too cool starves bonds; too hot relaxes fabric or mutes film gloss. Peel strength tells the truth.
4) Printing. Corona‑treated surfaces accept high‑linecount CI flexo or gravure. ΔE color targets and registration control keep logos, nutrition/hazard panels, and data‑matrix codes crisp after forming and filling. Low‑odor, compliant ink systems are available where regulations require.

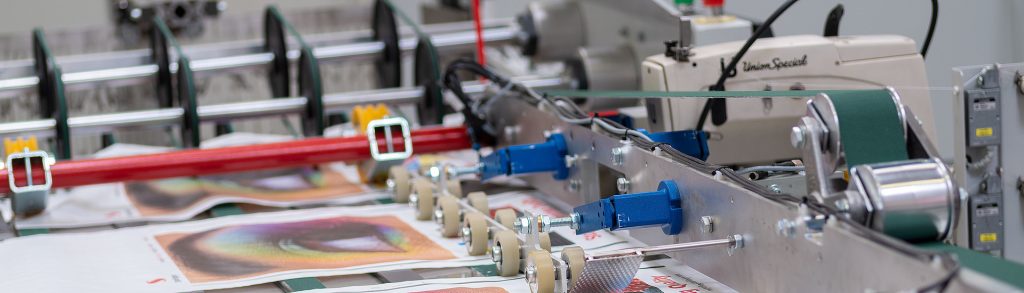

5) Valve conversion & bottom formation. Tubes are formed; side gussets set; bottoms built as block‑bottom (heat‑welded on compatible coats) or stepped‑end. The valve sleeve—film or woven—is inserted and ultrasonically sealed, heat‑welded, or stitched per design. Sleeve length, lip stiffness, opening angle, and patch materials are tuned to powder rheology and packer type. The geometry may be small, but its impact on cycle time and dust halo is large.
6) QA & performance verification. Routine checks verify fabric tensile/tear, seam/valve strength, lamination peel, COF, dimensions/squareness, and filled‑bag drop/stack behavior. For leak‑tight duty, vibration‑assisted sift tests on representative powders (< 75 µm) and wet‑dock spray cycles validate seams and closures. Stability across lots is what turns a drawing into a dependable program.
VidePak executes this choreography on top‑tier platforms from W&H (Germany) and Starlinger (Austria)—an asset base of 16 extrusion lines, 100+ circular looms, and 30+ lamination/printing machines—so adhesion, registration, and valve integrity remain inside measured, repeatable windows.
Where Do Valve Bags Excel?
Because Valve Bags unite fast filling, dust control, and square‑standing stacks, they thrive in sectors where packaging must sell, shield, and stack—often in a single shift.
Cement & construction blends. Dry mortar, tile adhesives, gypsum: impeller and air packers couple cleanly to valve sleeves; block‑bottoms hold their stance from silo to site. De‑aeration is faster; pallet loads are denser; site dust is lower.
Fertilizers & agro‑inputs. Urea, NPK blends, MAP/DAP, SOP/MOP, seeds: liners curb caking; anti‑slip backs hold columns upright in open depots; UV‑tuned builds survive sun‑yards. It isn’t just a bag—it’s insurance against humidity and handling.
Minerals & chemicals. Calcium carbonate, TiO₂, salt, silica: laminated faces resist conveyor scuff; anti‑sift valves keep fines where they belong—inside the bag, not hovering over your weighers.
Animal nutrition. Premixes and compound feeds: photo‑grade BOPP faces carry formulations and brand cues; sleeve geometries reduce dust at mills; optional liners temper oil migration from high‑fat diets.
Food staples (where permitted). Sugar, flour, starches: stitch‑free valve builds and compliant inks protect organoleptics while preserving line speeds demanded by seasonal peaks.
Across lanes in the US, Europe, Brazil & South America, Southeast Asia, Japan, Korea, Central Asia, the MENA Region, East & South Africa, VidePak tunes the controllables—mesh/GSM for tear paths, coat weights for climate, valve geometry for packer type, COF for stack profile—so Valve Bags behave as specified in your climate, not someone else’s brochure.
Typical Parameters for Valve Bags
The ranges below reflect widely available, market‑validated specifications sourced from active offers and published industry data; VidePak supports application‑specific customization.
| Parameter | Typical Range / Option | Notes (for Valve Bags) |
|---|---|---|
| Body material | PP woven fabric; optional BOPP/kraft laminate | Woven backbone for strength; film/paper for print & scuff |
| Fabric mesh | 8×8 – 14×14 | Balance between tensile modulus and smooth print base |
| Fabric weight (GSM) | 60 – 120 g/m² | Tuned to fill weight and drop‑energy targets |
| Tape denier | 700D – 1000D | Correlates with tensile and puncture resistance |
| Coating weight | 18 – 30 g/m² (PE/PP) | Dust/humidity moderation; seam and print anchoring |
| BOPP film | 18 – 25 µm (gloss/matte) | Photo‑grade imagery; high rub/scratch resistance |
| Valve sleeve Ø | 35 – 55 mm | Geometry matched to gravity/air/impeller packers |
| Bottom style | Block‑bottom / Stepped‑end | Square‑standing stability vs. line preference |
| Bag width | 350 – 600 mm | Common bodies for 10 – 50 kg SKUs |
| Bag length | 500 – 1,100 mm | Tuned to bulk density and filler setup |
| Liner options | PE 20 – 40 µm (loose/tubular) | Extra moisture and aroma control for hygroscopic contents |
| COF (stacking) | ≈ 0.45 – 0.60 | Anti‑slip emboss/spray to target window |
| UV stability | 200 – 400 h | Package tailored to outdoor exposure |
| Printing | Flexo up to 6; Gravure up to 8–10 | Registration‑controlled branding and regulatory legibility |
| Load capacity | 10 – 50 kg | Depends on GSM, seams, and chosen safety factor |
Why VidePak
Since 2008, VidePak has paired process discipline with scale to deliver Valve Bags that behave as drawings promise. A core team with 30+ years of woven‑packaging experience, a workforce of 568, and a platform anchored by W&H printers/converters and Starlinger tape & loom lines—16 extrusion lines, 100+ circular looms, and 30+ lamination/printing machines—give us repeatability at speed. We use 100% new raw materials to stabilize mechanical properties and color outcomes; we support customization and multi‑color printing; and we ship globally—to the US, Europe, Brazil & South America, Southeast Asia, Japan, Korea, Central Asia, the MENA Region, East & South Africa—with annual sales around USD 80 million.
Need to increase line speed, reduce housekeeping dust, and keep pallets square? Share dimensions, fill weights, powder profile, packer type, climate, and storage conditions—VidePak will engineer Valve Bags to match or surpass your reference pack and provide the validation data to prove
- What Are Valve Bags?
- What Are the Features of Valve Bags?
- How Are Valve Bags Produced?
- Where Do Valve Bags Excel?
Valve bags revolutionize packaging by providing superior efficiency, product protection, and compliance with stringent health and safety standards. Designed with advanced sealing methods and customizable features, they cater to a wide range of industries while prioritizing sustainability and operational effectiveness. VidePak sets the benchmark for innovative valve bag solutions.
Introduction
Packaging is a critical component of modern supply chains, and valve bags are at the forefront of this transformation. These self-sealing bags not only optimize product handling but also ensure safety and environmental compliance. From agricultural products like flour and fertilizers to industrial materials such as cement, VidePak’s valve bags meet diverse needs with unparalleled quality and customization.
The Role of Valve Bags in Modern Packaging
Valve bags offer an innovative solution for packaging granular and powdered products, ensuring clean and efficient filling processes while reducing spillage and contamination risks. Key applications span industries such as agriculture, construction, and chemicals.
Core Benefits
- Filling Efficiency: Valve bags allow for rapid filling, reducing operational time and costs.
- Improved Containment: The self-sealing valve minimizes spillage, ensuring clean packaging and storage.
- Versatility: Customizable options cater to various product types, weights, and handling requirements.
Health and Safety in Valve Bags
The health and safety aspects of packaging are essential, especially for food-grade products. VidePak’s valve bags adhere to strict quality control protocols, ensuring both safety and functionality.
Health and Safety Features
- Food-Grade Materials: Compliant with global safety standards like ISO 22000, ensuring non-toxicity and hygiene.
- Dust Mitigation: The valve design minimizes airborne particles during filling, protecting workers and maintaining cleanliness.
- Durable Sealing: Prevents leakage and protects against environmental factors such as moisture and UV exposure.
Evaluation Metrics
- Seam Strength: Tested to withstand heavy loads without rupturing.
- Material Safety Certification: Ensures compliance with health regulations for food and non-food applications.
- Environmental Resistance: Guarantees integrity in varying climatic conditions.
Innovative Sealing and Design Options
Valve bags from VidePak utilize cutting-edge sealing and design technologies to enhance functionality and durability.
Sealing Methods
| Sealing Type | Description | Ideal For |
|---|---|---|
| Stitching | Traditional method ensuring strong seams | Cement and industrial products |
| Heat Sealing | Airtight sealing for moisture-sensitive materials | Flour, sugar, and chemicals |
| Ultrasonic Sealing | Advanced clean sealing for precise applications | Pharmaceuticals and high-value food products |
Valve Configurations
- Self-Sealing Valves: Automatically close during filling, reducing manual labor and contamination risks.
- Adjustable Valves: Offer controlled product release for granular goods.
- Custom Valves: Tailored to meet specific operational needs, such as high-speed filling or tamper-proofing.
Tailored Customization for Diverse Applications
VidePak’s valve bags are customizable to suit various industry-specific needs, ensuring maximum efficiency and product safety.
| Feature | Options Available | Benefits |
|---|---|---|
| Material | Laminated PP, food-grade PP | Ensures durability and compliance |
| Bag Size | 10–50 kg | Flexible capacity for different products |
| Sealing Method | Heat, stitching, ultrasonic | Customized for product type and storage needs |
| Valve Type | Self-sealing, adjustable | Versatile filling and dispensing |
Quality Control at VidePak
VidePak’s valve bags undergo rigorous quality testing to ensure performance and compliance with international standards.
Testing Protocols
- Load Testing: Evaluates strength under heavy loads, ensuring safety during transport and storage.
- Environmental Testing: Assesses resistance to extreme temperatures, UV rays, and moisture.
- Valve Efficiency Testing: Verifies proper sealing and functionality.
Certifications
- ISO 9001: For quality management systems.
- HACCP: For food safety management.
- REACH Compliance: For chemical safety in industrial applications.
Sustainability and Innovation
VidePak is committed to environmental sustainability by integrating eco-friendly materials and advanced technologies in valve bag production.
Sustainability Features
- Recyclable Materials: Made from 100% recyclable polypropylene, reducing waste.
- Energy-Efficient Production: Solar-powered machinery minimizes carbon emissions.
VidePak also incorporates smart packaging solutions such as RFID tags and QR codes, enabling real-time tracking and inventory management. For example, a European agricultural firm reported a 15% improvement in inventory accuracy after switching to RFID-enabled valve bags.
Learn more about VidePak’s sustainable innovations.
FAQs
Q: What makes valve bags suitable for food products?
A: VidePak’s valve bags are manufactured using food-grade, non-toxic materials and comply with global safety standards like ISO 22000.
Q: How do valve bags enhance packaging efficiency?
A: The self-sealing valve reduces filling time and minimizes product spillage, streamlining operations.
Q: Can valve bags withstand harsh environmental conditions?
A: Yes, VidePak’s valve bags are tested for moisture resistance, UV stability, and load durability.
Q: Are valve bags customizable?
A: Absolutely. Options include various sizes, materials, valve types, and sealing methods to suit specific needs.
For more details, visit our guide on valve bag efficiency.
Conclusion
Valve bags represent a significant advancement in packaging technology, combining efficiency, safety, and sustainability. With VidePak’s innovative approach, businesses can achieve superior packaging performance while reducing environmental impact. Whether for food-grade products or industrial materials, VidePak’s valve bags deliver reliability and excellence, setting a new standard in modern packaging.
