FIBC Bags: Exploring Versatile Designs and Advanced Seven-Layer Coextruded Films

What Are FIBC Bags and Why the Term Still Matters?

FIBC Bags (Flexible Intermediate Bulk Containers) are large-capacity industrial containers constructed from woven polymer fabrics, purpose-built for transporting and storing dry, flowable products such as powders, pellets, flakes, granules, and seeds in typical loads ranging from 500 kg to 2,000 kg. By combining a high-tenacity woven shell with engineered lifting systems, tailored filling and discharge features, and optional barrier liners, FIBC Bags deliver a distinctive triad of strength, flexibility, and operational efficiency. In supply chains where uptime is money and cleanliness is safety, these containers bridge the gap between small sacks and rigid bins—lighter than drums, more stackable than bales, more adaptable than crates.

Also known as (aliases):

1. Bulk bags
2. Big bags
3. Jumbo bags
4. Super sacks
5. Q‑bags or baffle bags (form‑stable variants)
6. Square FIBCs (form‑stable family)
7. Conductive Type C bulk bags
8. Static‑dissipative Type D FIBCs

The Materials of FIBC Bags — What They Are, Why They’re Used, How the Stack Works

An FIBC is less a “bag” than a material system. Each constituent—shell, faces, liner, lifting webbing, closures—performs a specific role, and mis‑specifying any one can ripple through uptime, safety, and cost. Think of the construction as a layered stack: load‑bearing shell → faces/coatings → liner (optional) → lifting system → closures and accessories → print and marking. When these layers harmonize, FIBC Bags feel inevitable; when they fight, everything feels difficult.

Key Features That Change Daily Outcomes

Features only matter when they move the needle on uptime, hygiene, and cost. What follows links attributes to measurable effects in mills, recyclers, and chemical plants—so that FIBC Bags are justified not by adjectives but by metrics.

• Form stability and cube utilization: Baffle panels or form‑stable weaves hold a square footprint after fill, increasing storage density and container payloads without altering footprint. Less creep, straighter stacks, calmer warehouses.
• High strength at modest tare: Oriented PP tapes deliver tensile and tear performance without drum‑like mass. Targeted bottom GSM and corner reinforcements resist puncture from angular media.
• Moisture and oxygen moderation: With laminates and seven‑layer liners, FIBC Bags achieve WVTR/OTR levels suitable for sensitive powders—dampening caking, preserving flavor/aroma precursors, and reducing rework.
• Static safety choices: Type C (grounded) or Type D (dissipative) unlocks speed where combustible dusts once forced caution. Fewer nuisance trips, fewer shutdowns, more stable BPM at the filler.
• Line cleanliness and speed: Correct spouts, de‑aeration paths, and mouth stability cut reseats and dust. Skirted liner mouths capture fines; operators spend more time running and less time sweeping.
• Clear markings and traceability: Visible SWL, safety factor, static class, and QR/datamatrix zones make audits dull—in the best way.
• Reuse in controlled loops: 6:1 or 8:1 builds, paired with inspection and cleaning SOPs, replace “single‑trip” with “right‑trip.” When reuse is impractical, mono‑polymer designs aid mechanical recycling.

How FIBC Bags Are Produced — From Pellet to Pallet

Manufacturing is a chain of tolerances. Each station either tightens control or magnifies risk. The smoothest operations write their success in the details: denier accuracy, baffle window geometry, seal windows, print rub resistance. Get these right and FIBC Bags behave like loyal equipment rather than consumables.

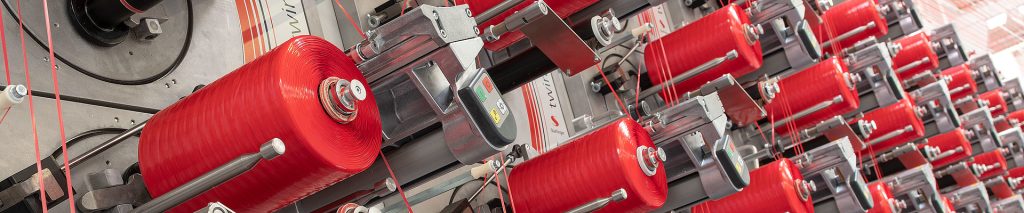

1. Tape extrusion and drawing. PP pellets plus UV/antistatic masterbatches are melted, cast, slit into tapes, then drawn to raise tensile strength. Denier variance here reappears later as seam failures or uneven tear behavior. In Type C fabrics, conductive yarns or tapes are introduced to establish a continuous grid.

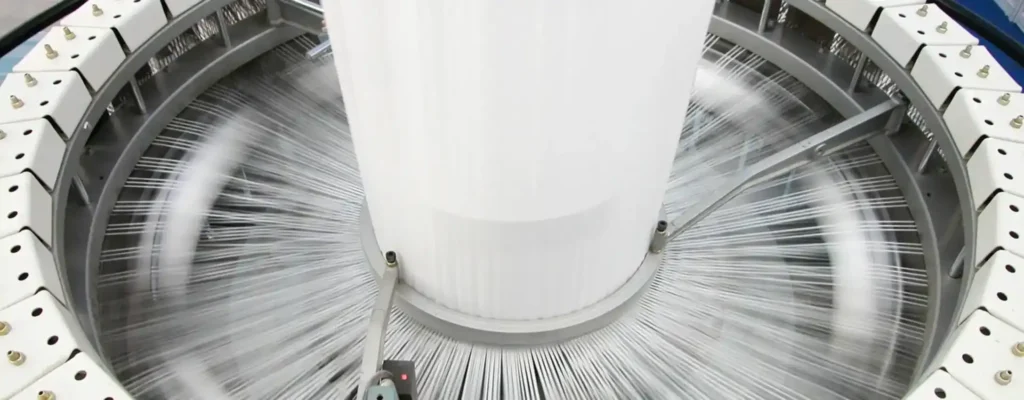

2. Weaving. Circular or flat looms set GSM and picks per inch. For form‑stable bodies, weave patterns create load paths that mimic baffle restraint. Otherwise, standard body panels and separate baffle panels are produced (with laser‑cut or die‑cut windows sized to particle behavior).
3. Coating and lamination. Extrusion coatings reduce sifting and establish weldable interfaces. Adhesive or extrusion lamination bonds BOPP or paper faces for print, scuff control, and friction.
4. Printing and marking. Art and regulatory panels are printed on film or paper webs pre‑lamination for fidelity. Quiet zones for machine‑readable codes are placed outside conveyor scuff paths.
5. Cutting, baffle prep, and sewing. Body panels are cut to tolerance; baffles are cut with window geometry tuned to aeration and flow. Multi‑row seams join panels; dense box‑and‑cross patterns secure lifting points.
6. Liner fabrication and fitment. Tubular, gusseted, or form‑fit liners—sometimes seven‑layer—are extruded and cut. Attached liners are heat‑tacked at alignment points; conductive/antistatic liners are oriented and verified.
7. Finishing and inspection. Spouts, skirts, and closures are installed; dimensions, seam strength, top‑lift cycles, drop tests, compression dwell, COF, static performance (when relevant), and liner seal checks are completed. Traceability marks (SWL, safety factor, static class, date codes) are printed.

Applications That Reward the Format

FIBC Bags thrive wherever bulk solids dominate and the cost of a spill, a lean, or a delay is real. The categories differ, but the dials repeat: geometry for stack, friction for stability, liners for barrier, static class for safety.

• Food ingredients & nutraceuticals: sugar, starch, proteins, vitamins, spices. Hygiene and oxygen control drive seven‑layer liners with EVOH cores; antistatic management protects against dust ignition.
• Feed & agriculture: grains, pellets, premixes, seeds. Moisture moderation, UV‑ready storage in yards, and robust discharge spouts to mate with augers are typical asks.
• Chemicals & minerals: pigments, TiO₂, calcium carbonate, potash, salts. Abrasion resistance and static management matter; tight coatings/liners limit sifting.
• Construction powders: cement, gypsum, dry mortar. Form‑stable bodies keep pallets square; reinforced bases endure angular aggregates.
• Recycling & waste: PET flakes, HDPE regrind, glass cullet, RDF/SRF pellets. Square geometry maximizes container payloads; liners manage odor and fines; static class selection addresses dust risk.
• Specialty & regulated: where UN codes apply, construction and testing are prescribed; anti‑bulge geometry and barrier liners are layered in as needed.

Versatile Designs Meet Seven‑Layer Coextruded Films

The phrase may sound grand, but the problem it solves is ordinary: different products need different behaviors, yet one site must run them all. Geometry (U‑panel, circular, four‑panel, baffle), static class (A/B/C/D), loop style, and spout configuration give the outside of FIBC Bags their personality. Coextrusion gives the inside its voice—one liner, many functions: oxygen barrier, moisture control, mechanical toughness, sealability, electrostatic behavior. These two levers—outer design and inner film—create a practical palette for real factories.

Specification Tables — Engineering Starting Points

Systems Thinking — Break the Decision, Then Recombine

To specify FIBC Bags with confidence, decompose the problem into six subsystems—integrity, mechanics, operations, compliance, sustainability, cost—and then assemble a design that balances all six. The method is simple, the outcomes are not.

Practical Risk Register — Symptom → Likely Cause → Fix

• Leaning pallets in storage → COF too low; bulge exceeds pallet edge; wrap recipe off → specify matte faces or anti‑slip varnish; adopt form‑stable bodies; adjust wrap and add corner boards.
• Excess dust at filler → undersized vent area; unskirted liner mouth; spout mismatch → increase baffle windows or micro‑perfs; add skirted mouth; match and clamp spouts.
• Under‑payload in containers → conservative stack height; bulging reduces grid → tighten form‑stability spec; validate higher layer count with compression tests; re‑grid pallet layout.
• Liner slump/snags on discharge → loose liner without tacks; poor form fit → heat‑tack at alignment points; shift to form‑fit liners; raise liner gauge in lower third.
• Static alarms or near‑miss events → poor ground contact (Type C) or wrong class → use monitored ground clamps; clean contact points; consider Type D where grounding is unreliable.
• Baffle blow‑outs → stitch density too low; baffle GSM under‑spec → increase stitch density; upgrade baffle fabric; consider form‑stable weaves to reduce seam count.

Worked Cost‑of‑Quality Lens

A recycler moves 1,000 kg PET flakes per unit. Switching from standard four‑panel to baffle FIBC Bags with matte faces and form‑fit seven‑layer liners raised container payload about a fifth in a typical lane and trimmed stretch‑wrap use by roughly a fifth. Skirted liner mouths cut sweep time at the filler. Even with a modest unit premium, freight normalization, rework avoidance, and housekeeping savings drove a lower total cost‑to‑serve. The geometry paid; the film whispered; the spreadsheet agreed.

RFQ Checklist — Copy, Paste, Fill the Blanks

Frequently Asked Technical Questions

Scenario Planning With Seven‑Layer Films — Templates

A Compact Buyer’s Map (In One Breath)

Product behavior → climate and dwell → geometry and static class → fabric GSM and reinforcements → face friction and print durability → liner barrier and electrostatics → spout choices and de‑aeration → stack and wrap recipe → end‑of‑life. Pause. Measure. Iterate. Then standardize. That is how FIBC Bags stop being a commodity and become a lever for throughput, safety, and cost.
