BOPP Woven Bags: Exploring Their Versatility in Agricultural Packaging with Tailored Solutions for Diverse Crops

Canvas: 112

What Are BOPP Woven Bags? Definition, Scope, and Why Agriculture Keeps Choosing Them

In the fast‑moving world of agricultural logistics, BOPP woven bags—also described in catalogs as BOPP laminated woven bags, printed BOPP woven bags, PP woven BOPP bags, and BOPP woven sacks—combine a load‑bearing woven polypropylene (PP) fabric with a printable surface, most often a reverse‑printed biaxially oriented polypropylene (BOPP) film. This composite behaves like an industrial container while communicating like a retail billboard. It lifts; it protects; it sells. When crops move through humidity spikes, UV exposure, rough conveyors, and long storage windows, the package cannot be a single‑trick film. It must be a system.

The Material Stack of BOPP Woven Bags: From Monomers to Mechanics

The agricultural environment punishes packaging. Lifts crush seams; forklift tines bruise corners; monsoon air creeps through weak barriers; winter handling embrittles poorly chosen resins. BOPP laminated woven bags outperform plain film sacks or single‑ply paper because every layer responds to a specific, measurable stress in the field.

1) Woven Polypropylene Fabric — Structural Backbone

Oriented PP tapes (flat yarns) are woven on circular or flat looms into a fabric whose denier and pick density determine strength and puncture behavior. UV stabilizers lengthen outdoor life. Homopolymer PP maximizes seam strength; impact‑modified copolymers favor winter toughness; fine‑denier tapes enable lower basis weight without surrendering tear resistance.

2) Printable Skins — BOPP Film, Extrusion Coat, Paper Lamination

Reverse‑printed BOPP (15–35 μm) protects ink behind the film—superb rub life and photographic graphics. Polyolefin extrusion coats (PP/PE) reduce cost with robust flexographic printability. Paper laminates add tactile grip and high COF for brick‑stable pallets. Finish (gloss, matte, satin) is both a marketing decision and a logistics dial for stacking.

3) Tie Layers, Primers, Inks, and Varnishes — Chemistry That Holds the Look Together

Anhydride‑modified tie resins ensure lamination bond. Primers raise surface energy for water‑based inks. White underprints give color depth on tinted fabric. Matte or hybrid over‑varnish bands deliver grip where bags touch straps, while preserving gloss in the display panel.

4) Liners and Inner Skins — Barrier by Design

LDPE/HDPE tubular liners (40–100 μm) manage moisture; EVOH co‑ex liners add oxygen barrier for aroma‑sensitive crops; foil‑assisted structures deliver extreme protection when recyclability takes a back seat. Form‑fit liners protect pleats in block‑bottom geometries; engineered micro‑perforations handle respiration for select produce.

5) Performance Additives — Small Percentages, Large Effects

UV stabilizers, antistatics, slip/anti‑block agents, elastomer modifiers, and anti‑scratch topcoats turn borderline performance into robust performance. Mineral fillers (CaCO₃) tune stiffness and cost, but overuse risks fold endurance.

Feature Set: From Shelf Impact to Pallet Physics

BOPP woven bags pay their way by solving simultaneous problems for farmers, millers, exporters, and retailers.

• Strength‑to‑weight advantage — Oriented PP tapes deliver high tensile and tear at low mass; seams survive drops and top‑lift loads common to 25–50 kg SKUs.
• Graphics that survive reality — Reverse‑printed BOPP entombs ink; paired with tough varnishes, artwork remains legible after long ocean legs and conveyor abrasion.
• Moisture management — Coatings and liners throttle WVTR to protect hygroscopic crops (rice, sugar, salt) from caking and mold.
• Friction tuned for stacking — Matte films, paper laminates, or anti‑slip bands keep columns square; gloss resides in non‑contact panels.
• Clean filling and discharge — Valve versions accelerate pack rates; open‑mouth with heat‑seal tops suit food ingredients; engineered perforations balance deaeration with barrier.
• ID and traceability — Smooth films accept high‑resolution codes; label windows and quiet zones protect scannability after rub.
• Regulatory alignment — Food‑contact inks/adhesives, UV packages for yard storage, and ESD‑aware liners where necessary.

Production Process: From Resin to Ready Pack

Variation upstream appears downstream as field failure: seam bursts, scuffed art, leaning pallets. VidePak compresses variance by anchoring critical steps on Starlinger (Austria) for tape extrusion, weaving, and converting, and on W&H (Germany) for coating/lamination and high‑register printing.

A) Raw Materials and Incoming QA

• Virgin PP for tapes; PE/PP for coats; BOPP films by gauge/optical class.
• Masterbatches (UV, antistatic, color) with lot‑tied certificates.
• Liner gauge and corona checked; co‑ex layer distributions verified.
• Traceability binds incoming QC to SPC mid‑stream and AQL at release.

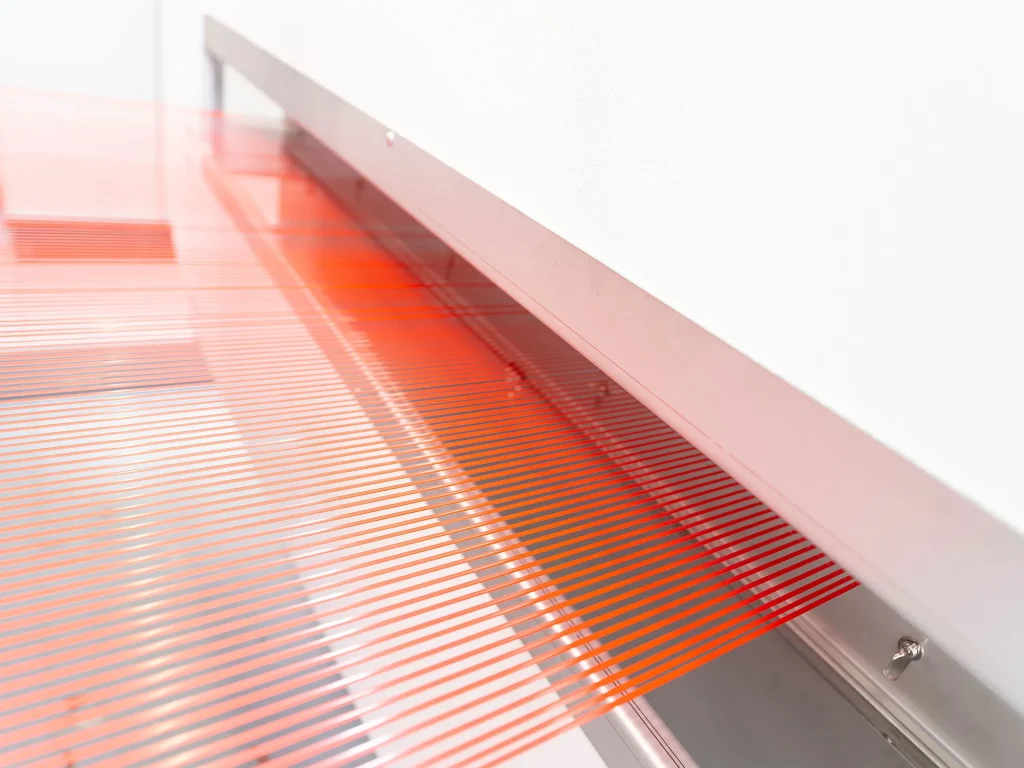

B) Tape Extrusion and Drawing (Starlinger)

Resin drying → film extrusion → slitting into tapes → drawing for molecular orientation → heat‑setting. The draw ratio, temperature profile, and line tension maintain denier uniformity; poor control yields loom breaks and weak seams.

C) Weaving (Circular and Flat Looms)

Circular (tubular) fabrics minimize side seams; flat fabrics suit back‑seam or block‑bottom constructions. Picks per inch and tension maps are monitored via on‑loom SPC; outputs include basis weight, tape adhesion, and defect logs.

D) Surface Prep and Printing (W&H)

Corona treatment raises surface energy. Gravure or CI‑flexo printing, often with a white underprint, holds brand color fidelity and barcode clarity. Varnish selection balances rub life with COF targets for pallets and bag‑to‑bag friction.

E) Lamination/Coating (W&H)

Extrusion lamination fuses printed BOPP to the fabric; extrusion coating lays PP/PE skins directly when film lamination is unnecessary. Coat weight, bond strength, and nip temperature/pressure are tuned to avoid over‑bonding (film stress) and under‑bonding (heat blisters).

F) Converting and Forming (Starlinger Converting Suite)

Hot‑knife/ultrasonic cutting manages fray; folding/creasing creates block‑bottom precision; sides and tops are sewn or heat‑sealed; valve assemblies and easy‑open features are added; handles punched if required; liners inserted (tabbed, glued, or form‑fit).

G) End‑of‑Line QA and Release

Dimensions (layflat, height, gusset, mouth) are checked; performance tests cover seam pull, top‑lift cycles, drop tests, WVTR sampling, COF targets, rub resistance, and barcode grades. AQL sampling targets zero critical defects. Retention samples are archived; pallets are wrapped to recipe with edge protection and durable labeling.

Applications: Crops, Climates, and Where BOPP Works Hardest

Because BOPP woven bags are modular, they can be tuned to specific crops and routes—rice in monsoon climates, salt in seaside yards, coffee on export legs, animal feed in retail chain distribution.

• Rice and grains — Food‑grade liners; matte contact bands for high stacks; optional micro‑perfs for seasonal humidity; high‑contrast barcodes for DC scans.
• Coffee and cocoa — EVOH or foil‑assisted liners for aroma retention; one‑way degassing valves for roasted coffee; premium gravure artwork for export markets.
• Seeds — Anti‑scratch topcoats; transparent windows; tamper‑evident heat‑seal mouths.
• Hardy produce — Engineered venting for respiration; dust control remains intact; finish tuned for crate stacking.
• Salt and sugar — Moisture barrier first; clean interiors; print durability for outdoor yards.
• Animal feed — Low‑migration inks/adhesives; block‑bottom stability; optional handles and punch grips for retail.

VidePak’s Four‑Step Quality Discipline

1. Standards anchoring — Alignment with ISO/ASTM/EN/JIS frameworks (tensile/seam tests, drop/stacking, COF, WVTR); SOPs and calibrated gauges reduce human variance.
2. Prime inputs — Virgin PP/PE resins, certified films/liners, qualified masterbatches; lot traceability from resin to finished pallet.
3. Best‑in‑class equipment — Starlinger (extrusion, weaving, converting) and W&H (coating/lamination, printing) hold tolerances through long runs and seasonal shifts.
4. Closed‑loop inspection — Incoming checks → in‑process SPC (denier, pick density, coat weight, register) → final AQL with zero critical defects → retention samples → CAPA into design rules.

Systems Thinking for Agriculture: From Constraints to Coherent Specs

Technical Tables for Agricultural Decision‑Making

Table 1 — Crop‑Specific Starting Points

Table 2 — Printing & Finish Choices

Table 3 — QA Snapshot for Ag SKUs

Table 4 — Cost Levers You Control

Field Failures and Countermeasures

• Scuffed graphics after belt transfer → raise over‑varnish hardness; add anti‑scratch topcoat; consider gloss‑panel/matte‑contact finish.
• Leaning pallets in hot/humid DCs → increase matte area or paper laminate on contact faces; tune wrap tension; verify crease accuracy.
• Caking after monsoon storage → WVTR under‑spec; thicken liner or coat; switch to breathable wrap patterns; add desiccants.
• Dust clouds at grain filler → map micro‑perfs; optimize spout geometry; consider liner valves.
• Barcode scan failures → re‑target optical density and quiet zones; protect codes with windows; balance varnish COF vs reflectance.
• Winter whitening at folds → elastomer‑modified coats or impact‑modified tapes; wider crease radius; adjust dwell/temperature.

Climate and Route Engineering

• Tropics — Heavier coats/liners; matte grip; UV package; breathable wrap with desiccants.
• Arid zones — Antistatic liners; dust extraction; protect codes from sand abrasion.
• Cold regions — Wider heat‑seal windows; flexible varnishes; verify low‑temp impact.
• Maritime routes — Corrosion‑resistant threads; vented containers; wrap patterns that avoid condensate traps.

Economics: Total Cost Over Piece Price

The cheapest bag is the bag that prevents loss. Unit price disappears next to damage returns, filler stoppages, and DC inefficiencies. BOPP laminated woven bags reduce TCO when they stabilize OEE, keep pallets square through climate swings, and carry legible codes to the last scan point. Gravure cylinder costs amortize over long runs; flexo or coat‑print routes suit frequent artwork changes. Procurement is not “cheapest today,” but “fewest problems tomorrow.”

Rhetorical Cross‑Checks That Clarify Specs

• If graphics sell the crop, why hide them under scuffs? Choose reverse‑printed films plus anti‑scratch systems.
• If pallets lean, is friction the villain or are creases inconsistent? Tune matte area and converting tolerances before cranking wrap tension.
• If caking ruins margins, is it barrier, venting, or wrap? Sequence: WVTR → micro‑perfs → breathable wrap + desiccant.
• If codes fail at DCs, is it ink, varnish, or placement? Guard quiet zones and verify contrast after rub.
• If winter breaks bags, is it material brittleness or seal windows? Consider impact‑modified PP and wider heat‑seal ranges.

Related Reading

For a focused discussion on artwork methods, finish strategy, and durability choices in premium printing routes, see advanced printed BOPP woven bags.
