What is FIBC Bags? Also Known As…
In bulk logistics, quality is not an adjective—it is a liability line, an uptime metric, a lost‑time incident avoided. FIBC Bags—the ubiquitous flexible intermediate bulk containers—stand exactly where those concerns converge. Built from woven polypropylene (PP) and engineered to fold flat when empty yet hold half a tonne to two tonnes when filled, FIBC Bags convert polymer orientation into predictable strength, seam geometry into safety margins, and lifting‑loop design into forklift efficiency. They move via crane hooks or forks; they store like boxes yet weigh like fabric. Catalogs may also call them big bags, jumbo bags, bulk bags, or super sacks; dangerous‑goods variants carry UN codes such as 13H1–13H4; electrostatic behavior is grouped into Types A, B, C, and D. Different names, same intent: controlled containment at scale. For a concise category overview and configuration options, see FIBC Bags.
Why place so much emphasis on a bag? Because shrink, spills, and sparks are costly. A torn corner is not just a mess; it is payables lost to the floor. A static discharge is not a curiosity; it is a near miss in an OSHA log. FIBC Bags exist to interrupt those failure modes before they propagate.
From a systems lens, the structure nests layers of expertise: textile mechanics (tape denier, weave density), polymer science (coatings and liners), electrical safety (ESD control), and logistics engineering (pallet fit and stack stability). Vertically, the logic climbs from resin → tape → fabric → seam → loop → filled‑bag behavior → fleet‑level KPIs: breakage rate, damage claims, return logistics, CAPA closure cycles. That ladder matters, because one weak rung—say, inconsistent stitch density—can travel upward into a forklift drop and downward into an insurance report.
What is the features of FIBC Bags?
Features are not decorations; they are engineered answers to familiar pain points: torn edges on rough decks, caking in damp depots, nuisance sparks near loaders, sluggish discharge at mixers. FIBC Bags meet these with an interlocking set of attributes whose value multiplies when specified together.
1) Load‑Bearing Architecture & Fabric
Core. Woven PP fabric in approximately 140–230 g/m² weights forms the structural skin. Tensile behavior is tuned by tape denier and pick density. Lifting is achieved through two or four woven loops—cross‑corner patches on U‑panel or four‑panel constructions—stitched into reinforced seams. Safety factors typically run 5:1 (single‑trip, ST) or 6:1 (multi‑trip, MT), verified by top‑lift testing under EN/ISO 21898.
Data reinforcement. Supplier specifications routinely list Safe Working Loads (SWL) of 500–2,000 kg, base footprints of 90×90 cm or 95×95 cm, and heights of 90–200 cm, mapping to roughly 0.8–2.0 m³ capacities. These are not marketing flourishes but production reality visible across importer catalogs and converter datasheets.
Case analysis. A limestone micronizer consolidated outbound packaging from steel octabins to FIBC Bags with a 6:1 SF. Immediate effects: 30% fewer back‑haul empties, fewer dock jams thanks to fork‑friendly loops, and flatter stacks that survived inter‑modal transfers.
Comparative study. Compared with rigid IBCs, FIBC Bags collapse on return—zero washing, low reverse‑logistics cost. Compared with paper valve sacks, one lift moves an order of magnitude more mass with lower incident rates per tonne handled.
2) Electrostatic Control (Type A/B/C/D)
Core. Dust and vapor environments punish complacency. Type A bags offer no static mitigation. Type B are insulating fabrics with low breakdown voltages that reduce propagating brush discharges. Type C fabrics include a conductive grid and require grounding. Type D dissipative fabrics neutralize charge without external earthing. Classification follows IEC 61340‑4‑4 and practices aligned to NFPA 77 in North American plants.
Data reinforcement. Powder handlers in combustible dust zones frequently specify Type C with mandatory ground leads or Type D when reliable earthing is hard—crowded docks, worn clamps, human‑factor gaps.
Case analysis. A starch mill that suffered intermittent ground‑lead failures shifted to Type D FIBC Bags. The incident log on nuisance sparks went to zero; compliance climbed because the solution removed a behavioral dependency.
Comparative study. Type C excels when grounding integrity is enforced; Type D reduces operational friction at the cost of stricter incoming fabric inspection and routine surface checks. Both paths, when applied correctly, lower ignition probability by orders of magnitude compared with unmanaged static in Type A.
3) Liners, Coatings & Hygiene
Core. Coatings of PP/PE at ~20–40 g/m² add dust and moisture resistance; internal LDPE liners at ~60–100 μm control vapor ingress; multi‑layer barrier liners (PE/EVOH/foil) protect aroma and extend shelf stability; baffle liners preserve squareness to improve cube utilization. Food and feed applications require liners made under ISO 22000 or BRCGS Packaging Materials and compliant with FDA 21 CFR 177.1520 and EU 10/2011.
Data reinforcement. Moisture‑sensitive fertilizers maintain flow when liner permeation is matched to warehouse relative humidity and dwell time; flavor‑active commodities (cocoa, coffee) retain volatiles better under EVOH or foil constructions.
Case analysis. A cocoa processor shipping in reefers adopted baffle‑liner FIBC Bags. Bulging vanished, pallet fill improved, and corner crush complaints at destination dropped away.
Comparative study. Coated fabrics lower dusting but cannot replace a true barrier when water activity matters. EVOH/foil liners push shelf‑life further—at a recycling trade‑off that some supply chains accept and others mitigate via liner recovery.
4) Filling, Discharge & Handling Interfaces
Core. The top can be open, a filling spout, or a full duffle; the bottom flat, a discharge spout, or a full‑open door. Baffled FIBCs keep a cubic silhouette; sift‑proof seams arrest fines. Add document pouches, dust‑tight zips, and color‑coded loops for visual management.
Data reinforcement. Standard bases—90×90 or 95×95 cm—tessellate efficiently in 20‑/40‑ft containers; baffles maintain geometry, raising fill ratios and stability. Plants handling finer than 75 μm powders specify sift‑proof tapes to block needle‑hole leakage along seams.
Case analysis. A premix facility retrofitted its mixers with iris valves and switched to spout‑out FIBC Bags. Dosing changed from on/off to controlled flow; changeovers shrank because operators no longer fought with bag‑cutting variability.
Comparative study. Duffel tops welcome varied spout geometries but demand disciplined tie‑offs; spout tops integrate neatly with closed fillers and dust hoods but need closer tolerance on diameter and length.
Synthesis. The “clean, safe, fast” configuration is straightforward: right electrostatic Type (C or D where needed) → fabric GSM with 6:1 SF for reuse → liner tuned to climate and product → baffles for cube → spout‑in/spout‑out matched to your equipment.
What is the production process of FIBC Bags?
Reliability is not inspected in—it is manufactured in. From pellet to pallet, each station either accumulates assurance or erodes it.

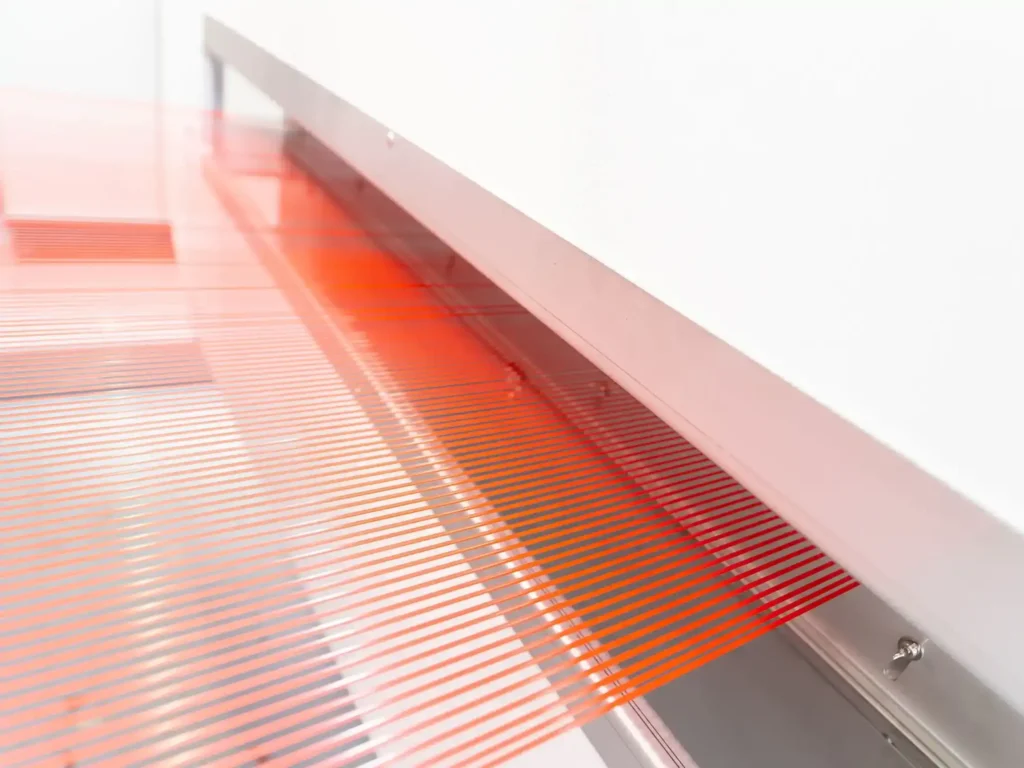

- Tape extrusion & stretching. PP resin and masterbatch are extruded, slit, drawn, and annealed into oriented tapes. Denier control determines later tensile behavior.
- Weaving. Circular or flat looms build fabric; pick density uniformity and loom tension stability drive seam pull‑out resistance.
- Coating / lamination (optional). PP/PE coatings add dust and moisture resilience; treated surfaces improve print adhesion.
- Cutting & forming. Panels are cut to size; reinforcement patches prepared; baffle panels assembled for form‑stable builds.
- Liner production & insertion. Mono‑ or multi‑layer liners are blown, gusseted, cut, and inserted or adhered.
- Sewing & seaming. Chain‑stitch and overlock patterns set seam strength; sift‑proof tapes are applied where fines are likely.
- Printing & labeling. High‑contrast identifiers and, where relevant, UN marks are applied.
- Quality assurance. Top‑lift, stacking, drop, and tear testing per EN/ISO 21898 and UN protocols; electrostatic verification to IEC 61340‑4‑4; food‑contact migration as required; full CoC/CoA and lot traceability under ISO 9001, ISO 22000 / BRCGS.
- Palletization & conditioning. Pressed stacks and moisture‑controlled storage stabilize geometry ahead of shipment.
Horizontal / vertical insights. The line borrows from film converting (tension and registration control) and apparel manufacturing (stitch discipline). Small drifts—tape denier, stitch per inch—magnify under dynamic lift, which is why top‑lift and stacking tests are non‑negotiable.
What is the application of FIBC Bags?
Primary use cases
- Chemicals & minerals — TiO₂, CaCO₃, silica, pigments; Type C/D for dust hazard zones and solvent traces.
- Food & feed — sugar, grains, cocoa, coffee, premixes; food‑contact liners plus controlled‑environment packing.
- Construction — cement, sand, aggregates; heavy fabrics and baffles for flatbed stability.
- Agriculture — fertilizers and seeds; liners that protect flowability and germination.
- Plastics & resins — pellets and regrind; anti‑static paths to reduce cling and loading sparks.
Data reinforcement. Supplier catalogs converge on SWL 500–2,000 kg, 5:1 or 6:1 safety factors, and pallet‑friendly bases—evidence that the platform is standardized yet richly configurable.
Case analysis. A resin shipper replaced octabins with baffled FIBC Bags to alleviate racking congestion. Payload per truck rose by nearly 20%, and the reverse‑logistics loop for bins quietly disappeared.
Comparative study. Against drums, FIBC Bags deliver lower packaging mass per delivered kilogram and faster decanting; against rigid IBCs, they trim backhaul cost and shrug off dents by virtue of flexibility.
What is the application landscape of FIBC Bags? (Procurement & Operations View)
Filling lines. Match top geometry to filler spout, and do not neglect dust‑proofing where fines <75 μm are routine. In combustible atmospheres, enforce Type C grounding checks or Type D policy to IEC 61340‑4‑4 / NFPA 77. Calibrate perforation density and liner thickness to residence time and climate (warehouse RH, transit duration).
Logistics. Choose 90×90 or 95×95 cm bases for container tessellation; select baffles for higher cube. Color‑coded loops accelerate pick accuracy; document pouches and barcodes shorten receiving cycles.
Regulatory. UN‑rated variants carry 13H marks after drop/stack/top‑lift testing under the UN Orange Book. Food SKUs need documented EU 10/2011 and FDA 21 CFR 177.1520 liner compliance; hygiene systems audited under BRCGS or ISO 22000 keep records inspection‑ready.
System view. Packaging is a node in a network—dust collection, forklift tine wear, pallet spec, container humidity. By containing fines, preserving cube, and simplifying grounding behavior, FIBC Bags lower the load on adjacent nodes; the ROI appears in maintenance logs and P&L lines alike.
Key Specifications & Compliance Matrix (Field‑Verified Ranges)
Note: Values below reflect common, publicly listed manufacturer ranges; finalize against bulk density, ignition risk, and route climate.
| Parameter | Typical Options / Ranges | Technical Notes |
|---|---|---|
| Safe Working Load (SWL) | 500–2,000 kg | Select by bulk density & lift plan |
| Safety Factor (SF) | 5:1 single‑trip, 6:1 multi‑trip | Verified by top‑lift (EN/ISO 21898) |
| Fabric weight | 140–230 g/m² | Higher GSM → tear & seam pull strength |
| Base × Height | 90×90 / 95×95 cm × 90–200 cm | Maps to ~0.8–2.0 m³ cube |
| Electrostatic type | A / B / C / D | Type C grounded; Type D dissipative (IEC 61340‑4‑4) |
| Top / Bottom | Open / filling spout / duffle • Flat / discharge spout / full‑open | Match to filler & mixer |
| Liner options | LDPE 60–100 μm, EVOH, foil, baffle liner | Food‑contact per EU 10/2011 / FDA 177.1520 |
| Coating | 20–40 g/m² PP/PE | Dust & moisture resistance |
| Loops | 2 or 4 loops, cross‑corner or side‑seam | Color coding aids logistics |
| Standards | EN/ISO 21898, UN 13H1–13H4, IEC 61340‑4‑4, ISO 22000/BRCGS, ISO 9001/14001 | Testing & audit framework |
Integrated Solution Architecture (From Sub‑Arguments to a Whole)
Problem framing. Plants do not buy fabric; they buy fewer incidents, faster handling, compliant audits, and predictable cube. To give them that, FIBC Bags must be specified as systems rather than parts.
Subsystem synthesis.
- Material stack (fabric GSM + coating + liner) sets mechanical strength and barrier behavior.
- Electrostatic class (Type C or D in dusty zones) governs ignition risk and operator workflow.
- Geometry (baffles, base size, loop style) determines pallet cube and forklift safety.
- Interfaces (spout/duffle; discharge spout vs. full‑open) determine fill speed and dosing control.
- QA & compliance (EN/ISO 21898, UN 13H, IEC 61340‑4‑4, EU 10/2011, FDA 177.1520, ISO 22000/BRCGS) transform production runs into documents that withstand audits.
Outcome. Tuning these levers converts bag‑level precision into system‑level efficiency—cleaner floors, safer fills, and higher payload per truck. In practice, that is how FIBC Bags turn “quality and durability” from headline words into KPIs you can measure.
FIBC Bags, also known as Flexible Intermediate Bulk Containers or Bulk Bags, are crucial for industries that require the safe and efficient handling of large quantities of goods. These bags are used extensively across various sectors, including agriculture, chemicals, construction, and food processing. At VidePak, we understand that the quality of FIBC Bags is paramount, not only for the protection of the goods they carry but also for the safety of those handling them. Our rigorous testing protocols and commitment to quality assurance ensure that our FIBC Bags meet the highest standards of durability, reliability, and safety.
The Importance of FIBC Bags in Modern Industry
FIBC Bags are versatile and essential for the transportation and storage of bulk materials. These bags are capable of holding anywhere from 500 kg to over 2,000 kg of material, depending on the design and construction. The robust nature of FIBC Bags makes them ideal for transporting goods such as grains, fertilizers, chemicals, and even building materials like sand and cement. Their flexibility and strength allow them to be easily handled by forklifts or cranes, streamlining the logistics process.
VidePak’s FIBC Bags are crafted with high-quality woven polypropylene (PP) material, providing excellent strength while remaining lightweight and easy to handle. The woven structure of these Bulk Bags ensures that they are breathable yet sturdy, capable of withstanding the stresses of transportation and storage. Whether used in agriculture for storing grain or in construction for transporting sand and gravel, VidePak’s FIBC Bags deliver reliable performance.
Comprehensive Testing for Quality Assurance
At VidePak, we believe that the key to producing high-quality FIBC Bags lies in rigorous and comprehensive testing. Our quality assurance processes cover every aspect of production, from the raw materials we use to the final inspection of the finished product. Each FIBC Bag undergoes a series of stringent tests to ensure that it meets our exacting standards for thickness tolerance, edge cutting, tensile strength, environmental safety, and more.
Thickness Tolerance and Edge Cutting
One of the fundamental aspects of FIBC Bag quality is the consistency of material thickness. Variations in thickness can lead to weak points in the bag, increasing the risk of rupture under load. At VidePak, we employ precise measuring tools to monitor the thickness of the polypropylene fabric used in our Woven Bulk Bags. This ensures that every bag is made from material that meets the specified thickness tolerance, providing uniform strength across the entire surface of the bag.
Edge cutting is another critical area of focus. The edges of the fabric must be cut cleanly and evenly to prevent fraying, which can compromise the integrity of the bag. Our automated cutting machines are calibrated to produce precise cuts with minimal deviation, ensuring that each bag’s edges are smooth and free of loose fibers. Additionally, we inspect each cut for potential rough edges that could affect the bag’s performance or safety.
Color Consistency and Weight Measurement
Color consistency is not just an aesthetic consideration; it also reflects the quality of the material used. Inconsistent coloring can indicate issues with the raw materials or the manufacturing process. At VidePak, we conduct color consistency checks throughout the production process to ensure that our FIBC Bags maintain a uniform appearance, which is especially important for clients who require branded or color-coded packaging solutions.
Weight consistency is another vital aspect of our quality control process. We measure the weight of each bag to ensure it meets the specified gram weight. This measurement is crucial for maintaining the structural integrity of the bag, as deviations from the specified weight can affect the bag’s strength and durability. By ensuring that each bag is made to the correct weight specification, we guarantee that our FIBC Bags provide reliable performance under load.
Tensile Strength and Elongation Testing
Tensile strength and elongation are critical parameters that determine the load-bearing capacity and flexibility of FIBC Bags. Tensile strength measures the force required to break the material, while elongation measures the material’s ability to stretch before breaking. Both properties are essential for ensuring that the bags can handle heavy loads without tearing or losing their shape.
At VidePak, we test the tensile strength and elongation of both the raw polypropylene fibers and the finished FIBC Bags. This dual-level testing ensures that our bags are not only strong but also capable of withstanding the dynamic forces encountered during handling and transportation. By maintaining high standards for tensile strength and elongation, we ensure that our Bulk Bags can safely transport even the heaviest materials.
Impact Resistance and Aging Tests
Impact resistance is another key factor in the durability of FIBC Bags. These bags often face rough handling during loading, transportation, and unloading. To ensure that our bags can withstand these conditions, we conduct impact resistance tests that simulate the stresses encountered in real-world applications. This testing helps us identify any potential weaknesses in the bag’s design or construction, allowing us to make improvements as needed.
In addition to impact resistance, we also conduct aging tests to assess the long-term durability of our FIBC Bags. These tests expose the bags to environmental factors such as UV light and extreme temperatures to simulate the aging process. The results of these tests provide valuable insights into the lifespan of our bags, ensuring that they remain reliable even after extended periods of use.
Environmental Safety and UV Resistance
As part of our commitment to sustainability and safety, VidePak conducts comprehensive environmental safety testing on our FIBC Bags. We evaluate the bags for compliance with environmental regulations, ensuring that they do not contain harmful substances or pollutants. This testing is particularly important for clients in the food and agricultural sectors, where the safety of packaging materials is paramount.
UV resistance is another critical factor, especially for bags that will be stored outdoors or in direct sunlight. Prolonged exposure to UV rays can degrade the polypropylene material, leading to a loss of strength and flexibility. To prevent this, we incorporate UV stabilizers into the fabric and conduct UV resistance tests to ensure that our FIBC Bags can withstand sun exposure without compromising their performance.
VidePak’s Commitment to Quality and Innovation
At VidePak, quality is more than just a goal—it’s a core principle that guides everything we do. Our investment in advanced testing equipment and our dedication to continuous improvement ensure that our FIBC Bags meet the highest standards of quality and safety. We understand that our clients rely on our bags to protect their products and ensure the efficiency of their operations, which is why we leave no stone unturned in our pursuit of excellence.
Advanced Manufacturing for Enhanced Performance
VidePak’s FIBC Bags are produced using state-of-the-art manufacturing processes that incorporate the latest technological advancements. Our automated production lines ensure precision and consistency in every bag we produce. From the weaving of the polypropylene fabric to the cutting, sewing, and final inspection, each step of the production process is carefully monitored to ensure that every bag meets our stringent quality standards.
Our focus on innovation extends to the materials we use as well. We continuously explore new polypropylene blends and additives that can enhance the performance of our FIBC Bags. Whether it’s improving UV resistance, increasing tensile strength, or enhancing environmental safety, we are always looking for ways to make our products better.
Global Reach and Client Satisfaction
VidePak serves clients in a wide range of industries around the world. Our global reach, combined with our commitment to quality, makes us a trusted partner for businesses that require reliable packaging solutions. Whether it’s supplying FIBC Bags to a construction company in North America or providing Bulk Bags to an agricultural business in Asia, we deliver products that meet the unique needs of our clients.
Our dedication to customer satisfaction is reflected in our comprehensive testing protocols, which ensure that every bag we produce is of the highest quality. We work closely with our clients to understand their specific requirements and provide customized solutions that align with their operational goals. Whether it’s adjusting the size and capacity of the bags or incorporating specific features such as UV resistance or anti-static properties, we tailor our products to meet the exact needs of our customers.
VidePak’s FIBC Bags are more than just containers—they are a testament to our commitment to quality, innovation, and customer satisfaction. Through rigorous testing and advanced manufacturing processes, we ensure that our bags deliver the reliability and performance that our clients expect. As we continue to expand our capabilities and explore new opportunities, we remain dedicated to providing the highest quality packaging solutions to industries worldwide.
