HDPE Fabric Bags: A Scientific Approach to Packaging Chemical Raw Materials

What Are HDPE Fabric Bags? A Plant-Floor Definition With Real-World Names

HDPE Fabric Bags are industrial sacks manufactured from woven tapes of high‑density polyethylene that are converted into open‑mouth, pinch‑bottom, valve, or bulk‑tote formats to contain powders, granules, and crystalline solids—especially chemical raw materials. Unlike single‑ply film bags or multiwall paper sacks, the woven grid distributes load in two orthogonal directions, resists point‑load puncture from forks and conveyors, and holds shape on pallets with minimal creep. In other words, they are the chemically robust, abuse‑tolerant workhorses that carry value from silo to reactor, from blending hall to customer dock.

To avoid cross‑functional confusion, the same concept is often marketed or specced under different labels. The distinctions usually reflect filling method, closure style, or end use. Common aliases include:

1. HDPE Woven Fabric Sacks
2. HDPE Woven Chemical Bags
3. HDPE Block‑Bottom Valve Bags
4. HDPE Open‑Mouth Woven Sacks
5. HDPE Pinch‑Bottom Woven Bags
6. HDPE FIBC Bulk Bags (large woven HDPE containers rated from 500–2,000 kg for plant‑to‑plant transfer)

Why the persistent interest in HDPE Fabric Bags? Because they close three practical gaps at once: they carry mass at low packaging weight, they stand up to corrosive cargos better than many alternatives, and—when engineered with antistatic controls—they reduce ignition risk when fine powders are filled at speed. Throughput improves, complaints fall, and the supply chain looks calmer.


Materials and Architecture of HDPE Fabric Bags: Resin, Additives, Structure, and Cost Logic

At the polymer level, high‑density polyethylene has a relatively linear chain structure and elevated crystallinity compared with LDPE and LLDPE. That morphology yields higher modulus, better solvent resistance to many chemicals at ambient temperature, and lower gas and vapor permeability than low‑density variants. In woven packaging, these intrinsic properties are amplified by orientation: a film is extruded, slit into narrow tapes, then drawn to align chains in the machine direction. Orientation raises tensile strength, reduces creep, and improves puncture resistance—yet excessive draw can embrittle folds. The architectural choices below convert polymer physics into predictable package behavior.

Base polymers and tape design

• HDPE tapes: the load‑bearing skeleton. For 25–50 kg sacks, typical denier ranges are ~600–1200; bulk totes demand 1000–2400 and up. Higher denier lifts tear resistance but can slow weaving and stiffen folds.
• Blends/co‑tapes: when colder routes or tighter sealing windows are required, modest blending with LLDPE or using bimodal HDPE grades preserves chemical resistance while gaining ductility at folds.
• Draw ratio: multi‑stage drawing sets tenacity. Too low and sacks creep on pallets; too high and tapes crack at corners.

### Functional additives and surface physics

• UV stabilizers in tapes and coatings guard against embrittlement in outdoor yards; dosage follows local solar load and dwell time.
• Antistatic packages (permanent or migratory) reduce surface resistivity to manage dust ignition hazards during high‑rate filling.
• Color masterbatch provides identity and branding; dispersion quality avoids weak lines.
• Processing aids in coatings and extrusion help hold coefficient of friction (COF) and gauge stability.

Coatings, laminations, and liners

HDPE Fabric Bags may be supplied uncoated (for breathable agricultural goods) or with polyolefin extrusion coatings for dust‑tightness and better print lay. For moisture‑ or aroma‑sensitive chemicals, a separate PE liner (mono‑PE or PE/EVOH barrier) can be inserted or loosely attached. In chemical packaging, liners are not decorative accessories; they are functional barriers that control moisture pickup, oxygen ingress, and contamination. The division of labor is simple: the woven HDPE cloth resists gravity and impact, the liner resists vapor and chemistry.

Cost drivers that actually move the P&L

• Fabric GSM and tape denier: dominate mass and strength; the goal is the lightest cloth that passes drop tests with margin.
• Coating weight: too light invites sifting and fray; too heavy stiffens folds and complicates conversion.
• Liner gauge and resin: small gauge changes can crush claims for hygroscopic powders; barrier liners add cost but may prevent a pallet of ruined goods.
• Printing/varnishes: high‑coverage solids and matte/gloss effects add ink and press time; reverse printing beneath a thin film can protect graphics without a heavy over‑varnish.
• Roll geometry and splice counts: long, tight rolls improve OEE in conversion and printing; poor winding is a silent scrap engine.

Layer / Component	Material	Primary Function	Design Notes
Woven body	HDPE tapes (raffia)	Load‑bearing grid; puncture and tear resistance	Denier, pick count, GSM set strength vs. loom speed
Coating (optional)	PP/PE extrusion 15–30 g/m²	Dust‑tightness; moisture moderation; print holdout	Too heavy stiffens folds; too light leaks fines
Liner (as needed)	Mono‑PE or PE/EVOH	Moisture/O₂ control; product purity	Justify by WVTR/OTR and route climate
Closure	Pinch‑seal, valve sleeve, or stitch (minimize)	High‑speed filling; dust control; seal integrity	Geometry must match powder flow and lance

Characteristic Features of HDPE Fabric Bags: Traits That Matter in Chemical Supply Chains

• Mechanical strength at low mass — the oriented grid spreads loads, tolerates point impacts, and limits creep under compression, leading to straighter stacks and fewer seam failures during drops.
• Chemical compatibility — resistance to many acids, bases, and salts at ambient conditions gives a wide use window; strong oxidizers or unusual solvents still require liner and segregation logic.
• Moisture control — uncoated cloth breathes for produce and some feeds; coatings slow ingress; liners are the tightest control for hygroscopic solids such as sugar, urea, or catalysts.
• Static management — bag systems can range from neutral bodies with antistatic liners to static‑protective totes with defined dissipation paths. Choose to match dust class and environment.
• Pallet mechanics — block‑bottom and pinch‑bottom formats create square bodies that stack neatly; applying anti‑slip to one panel often balances stack stability with wrap release.
• Print and identity — treated surfaces accept durable graphics; QR and variable data support traceability.
• Recovery pathway — mono‑polyolefin bodies have credible material recovery routes where PP/PE programs exist; closed‑loop tote reclaim is increasingly practical.



Production of HDPE Fabric Bags: Raw Materials → Fabric → Coating/Lamination → Printing → Conversion → Final QA

A robust bag is not an accident; it is a sequence. Plants that run quietly do three things well: define inputs explicitly, transform consistently, and verify against risks the product actually faces.

Upstream selection and incoming screens

• Resin governance: approve HDPE grades for drawability and tenacity; lock melt‑flow and density windows. Audit masterbatch suppliers for dispersion, UV chemistry, and antistatic performance.
• Pellet hygiene: moisture, dust, and gels are monitored at intake; retains and COAs backstop every lot.
• Film and fabric checks: gauge, dyne, and COF are measured before rolls enter printing or conversion.

Core process stages

1. Tape extrusion and drawing — film extrusion, slitting, and multi‑stage stretching align molecules. Draw ratio and oven profile target denier/tenacity while protecting fold ductility.
2. Weaving — circular or flat looms interlace tapes to a specified pick count; on‑loom tension control, broken‑tape alarms, and automatic doffing preserve uniformity.
3. Coating/lamination — extrusion coating deposits a thin polyolefin to seal interstices and create a printable face; coat weight is controlled via die lip, nip pressure, and line speed.
4. Printing — flexographic or gravure platforms render graphics and regulatory marks; adhesion and rub are validated.

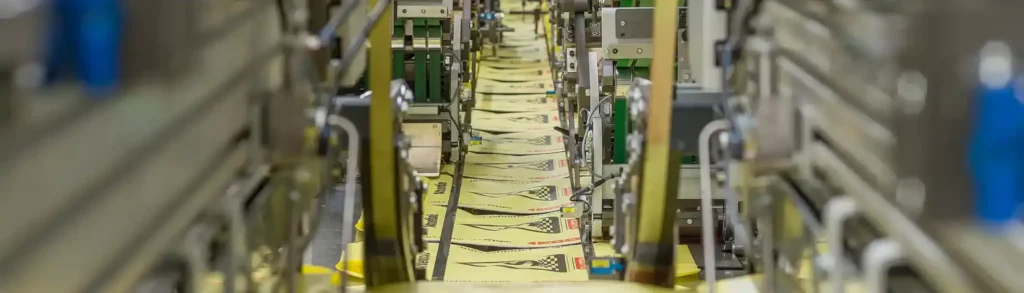

5. Conversion — cutting, folding, and bottom welding form open‑mouth or pinch formats; block‑bottom valve bags integrate a sleeve matched to the filler lance.
6. Finishing and pack‑off — bundles are counted and palletized; patterns and interlayers are matched to exterior friction; lean is checked after vibration conditioning.

Downstream quality gates

• Fabric mechanics: MD/TD strip tensile and elongation; seam efficiency to confirm the joint is not the weak link.
• Drop performance: filled‑bag drop tests across corners, edges, and flat faces; pass criteria set on tears and sifting.
• Moisture behavior: WVTR checks at route‑relevant climates where liners are absent; liner integrity screens where present.
• Surface and identity: COF, dyne, print adhesion, and rub resistance protect runnability and legibility.
• Dimensional capability: body width, cut length, and bottom geometry are trended with SPC to ensure pallets build square.



Applications of HDPE Fabric Bags: Matching Cargo → Format → Control Plan

• Acids, bases, and salts (non‑oxidizing, non‑fuming): coated woven open‑mouth or pinch‑bottom with mono‑PE liner. Rationale: body gives handling strength, liner manages vapor and purity, pinch closure avoids stitch holes.
• Fertilizers and agricultural inputs: coated woven valve or open‑mouth with UV‑stabilized body; liners for hygroscopic blends. Rationale: fast seasonal fills, outdoor yard survival.
• Polymer resins and additives: block‑bottom valve versions for cleaner fills and neat stacks; antistatic measures by dust class. Rationale: fewer alarms, faster lines.
• Minerals, catalysts, metal salts: pinch‑bottom with tight liners when humidity degrades performance; valve formats for fine powders with tuned vent paths. Rationale: preserve reactivity, reduce sifting.
• Food ingredients (industrial scale): pinch‑bottom with food‑contact liner; rub‑resistant exterior for warehouse ID. Rationale: protect hygiene and legibility.
• Bulk intermediates: woven HDPE FIBC totes with appropriate static class; spout top and bottom discharge. Rationale: tonnage per handler and closed‑loop transfer.

Cargo	Preferred Format	Key Controls	Why It Works
Fertilizer blends	Valve or pinch‑bottom	UV stabilized body; vent paths; panel anti‑slip	Fills cleanly and stacks in sun‑exposed yards
Sugar / salt	Pinch‑bottom + liner	WVTR spec; stitch‑free closure	Reduces caking and contamination risk
Polymer pellets	Block‑bottom valve	Antistatic spec; sleeve‑to‑lance fit	Cleaner fills, fewer dust alarms, square pallets

How VidePak Controls and Guarantees Quality for HDPE Fabric Bags

1. Build to named methods — reference recognizable frameworks for film impact, friction, sack drop logic, and tote stacking/usage; write SOPs with equipment, parameters, and pass/fail criteria so numbers mean the same thing in every plant.
2. Virgin‑grade inputs from audited producers — base resins, masterbatches, and coatings carry batch COAs and traceability. If recycled content is used by request, guardrails cover odor, gels, and mechanical drift.
3. Best‑in‑class equipment lineage — tape lines, looms, coaters, printers, and conversion machines are selected for gauge control, tension stability, registration accuracy, and logged weld energy/pressure.
4. Comprehensive inspection flow — incoming (MI/density, dispersion, dyne/COF), in‑process (gauge/COF monitoring, bond/peel spot checks, registration) and finished goods (tensile, tear, seam efficiency, drop orientation matrix, WVTR where unlined, antistatic resistivity where specified, rub and dimensional capability). Retains and traceability are non‑negotiable.

HDPE Fabric Bags: A Scientific Approach to Packaging Chemical Raw Materials

A persuasive slogan only matters if it maps onto a repeatable engineering plan. The useful mapping follows a compact chain: structure → property → performance → risk.

• Structure — choose polymer grade, tape denier, pick count, GSM, coating weight, liner type, and closure geometry from the hazards (moisture, reactivity, dust explosibility) and the route’s climate.
• Property — translate tensile, tear, puncture, COF, rub, WVTR, and surface resistivity into named methods and limits; verify capability with Cp/Cpk.
• Performance — validate on the real filler at the real speed: net‑fill accuracy, dust counts, valve closure behavior, pallet lean after vibration, drop survivability by orientation.
• Risk — score failure modes (sifting, delamination, seam split, electrostatic ignition) by severity × occurrence × detection; reduce RPN with prevention (spec changes) and detection (process checks) until residual risk is acceptable.



System Thinking for HDPE Fabric Bags: Sub‑Problems → Root Causes → Working Remedies

A) Dust plumes during high‑speed valve filling
Drivers: sleeve‑to‑lance mismatch, insufficient venting, powder aeration.
Remedies: right‑size the valve sleeve, add engineered micro‑vent paths, match lance geometry; validate with dust counters at the head.

B) Pallet lean after long transit
Drivers: smooth panel on smooth interlayer, bag length variability, underfilled corners.
Remedies: apply anti‑slip to one panel, tighten cut‑length tolerance, adopt brick/pinwheel patterns; verify lean after vibration.

C) Delamination at folds
Drivers: under‑bonded coating/lamination, tight fold radius, low cure.
Remedies: lift bond targets in fold zones, increase fold radius, re‑tune lamination temperature/nip.

D) Moisture pickup in humid routes
Drivers: insufficient coating GSM, delayed wrap after fill, liner punctures.
Remedies: raise coating GSM modestly, reduce fill‑to‑wrap dwell, verify liner with leak screens.

E) Static‑related alarms
Drivers: neutral bodies with high resistivity in combustible dust atmospheres, poor grounding discipline.
Remedies: specify antistatic liners or static‑protective totes per hazard analysis; train operators and verify resistivity windows.



Technical Parameters for HDPE Fabric Bags: Illustrative Baselines To Customize

| Attribute | Typical Target (25–50 kg Sack) | Why It Matters |
| ———————————– | ———————————— | ————————————————————- |
| Fabric GSM (uncoated) | 70–90 g/m² | Governs drop performance and stiffness without over‑weighting |
| Extrusion coating | 15–30 g/m² | Dust‑tightness, print holdout, fold behavior |
| Tape denier | 600–1200 | Tenacity/tear vs loom speed and flexibility |
| Seam efficiency (bottom) | ≥ 70–85% of fabric strength | Ensures joints are not first failure mode |
| Panel COF (film/film) | 0.25–0.45 | Balances runnability and stack stability |
| Rub resistance | Pass tape/rub cycles per SOP | Preserves legibility of handling marks |
| Drop test | Pass corner/edge/flat at spec height | Simulates mishandling in distribution |
| WVTR (no liner) | ≤ 5–15 g/m²·day @ 38 °C/90% RH | Screens moisture pickup in humid routes |
| Surface resistivity (if antistatic) | ≤ 10¹¹–10¹² Ω/sq | Manages powder ignition risk |

> Note: Choose methods and limits that mirror your hazards and climates; bag‑only numbers without route context can be misleading.

Validation Plan for HDPE Fabric Bags: Lab → Pilot → Packer → Route

1. Lab — peel/bond, fabric tensile MD/CD, seam efficiency, COF, rub resistance, WVTR at climate setpoints, surface resistivity (if specified).
2. Pilot conversion — run 2–3 lots; log bottom geometry variance, sleeve placement, weld energy/pressure.
3. Packer trial — run at target packs/min; capture dust counts, net‑fill accuracy, reject codes.
4. Distribution simulation — vibration + compression + drop; measure pallet lean after 48 hours; age a subset hot/humid.
5. Freeze spec — lock limits where there are at least three good operating points, not one fragile peak.



Extended Materials Science for HDPE Fabric Bags: Why the Polymer Behaves the Way It Does

Crystallinity and density — HDPE’s density (~0.94–0.97 g/cm³) and relatively linear chains drive higher crystallinity than LDPE or LLDPE. Higher crystallinity yields a stiffer, more solvent‑resistant matrix because fewer amorphous domains invite small‑molecule diffusion. Drawn tapes further align chains, raising modulus along the draw axis and improving puncture resistance. The trade‑off is reduced fold endurance if draw is excessive; tune draw against bottom‑fold geometry. Thermal window and welding — HDPE’s melting range (around 130 °C) pairs well with hot‑air and ultrasonic welding. The objective is to drive energy into the fold interior without thinning the outer layers. Logged energy and pressure create repeatability; unlogged processes drift into seam whitening. Moisture and permeability — HDPE absorbs little water; failures arise from interstices in fabric, insufficient coating GSM, or liner defects. That is why liner integrity and wrap timing often beat fabric GSM in preventing caking and clumping. Chemical compatibility heuristics — dilute acids/bases and most mineral salts: generally compatible at ambient conditions; polar solvents (alcohols, glycols): usually fine at room temperature; strong oxidizers, halogenated solvents: require rigorous review; oils/plasticizers: check for swelling over time and select liners accordingly.

Static Electricity, Powder Hazards, and Selection Guidance

Fine powders entrain air, separate charge, and can ignite when minimum ignition energies (MIE) are low. Packaging is not the only control—ventilation, inerting, bonding/grounding, and housekeeping belong in the plan—but HDPE Fabric Bags must not become the ignition source.

• Neutral sacks with antistatic liners suit many non‑flammable powders; resistance targets are documented at release.
• For combustible dusts in classified atmospheres, specify static‑protective totes with verified dissipation paths and train operators to maintain grounding integrity.
• Treat each first run as validation: measure dust counts and resistivity under real fill rates; set alarms based on data, not folklore.

Troubleshooting Guide for HDPE Fabric Bags: Symptoms → Causes → Fixes

| Symptom | Likely Root Cause | Actionable Fix |
| ————————– | ——————————————————- | —————————————————————— |
| Sifting at pallet corners | Low coating GSM; fold micro‑voids | +5–10 g/m² coating; raise bond in fold zones; increase fold radius |
| Seam whitening on drops | Overheated fold thinning the outer layer | Reduce energy; increase fold radius; log seam temperature |
| Bags stick to stretch wrap | Exterior friction too high on all panels | Apply anti‑slip to one panel only; tune wrap recipe |
| Liner crumples at valve | Film stiffness or length mismatch | Trim liner; choose lower‑SIT film; pre‑form liner mouth |
| Pallet lean after 48 h | Smooth interlayers; cut‑length variance; pattern choice | Match interlayer friction, tighten cut length, use brick/pinwheel |



Sustainability and Circularity That Work in Plants

Sustainability is pragmatic long before it is poetic. For HDPE Fabric Bags, practicality begins with mono‑polyolefin bodies and continues with logistics and end‑of‑life design.

• Design for recovery — choose inks and coatings that do not compromise PP/PE recovery; mark materials clearly to support sorting.
• Collection realities — industrial sacks often return via pallet loops; totes can be baled or compacted.
• Durability as sustainability — the biggest footprint reduction frequently comes from preventing product loss. A bag that does not fail keeps chemical value intact and waste out of the ledger.

For a closely related reference on woven polypropylene sack families used across many of the same applications, see this concise guide to woven PP bags.

Procurement and Supplier Governance for HDPE Fabric Bags

Experienced buyers blend unit price with risk controls.

• Qualify resin and masterbatch sources and ask for consistency data (melt flow distributions, stabilizer chemistry) and batch traceability.
• Audit weaving and conversion capability; look for logged weld energy/pressure, coat weight, loom pick counts, and bottom geometry variance.
• Demand retains and capability studies; suppliers who share data handle excursions faster.
• Secure parts and service; when conversion stops, minutes are expensive—favor ecosystems with rapid support.

Template Specification for 50 kg Product in HDPE Fabric Bags (Illustrative)

• Format: block‑bottom valve or pinch‑bottom depending on powder behavior
• Fabric: 80 g/m² woven HDPE, circular loom
• Coating: 25 g/m² polyolefin (lift to 30 g/m² for humid routes)
• Valve: woven sleeve, size matched to lance; micro‑vent path
• Exterior: one‑panel anti‑slip
• Liner: 60 μm mono‑PE (add EVOH where oxygen sensitivity warrants)
• Printing: up to 4 colors; corona treat to target dyne
• QA: drop tests at agreed height (corner/edge/flat), valve dust screen during fill trials, pallet lean after vibration
• Traceability: lot code linking resin, weaving, coating, and conversion batches

Frequently Asked Questions About HDPE Fabric Bags

Do coated woven sacks still breathe? Coatings reduce but rarely eliminate vapor transfer; liners deliver the tightest barrier. Choose by product sensitivity and route climate. Are these bags compatible with recycling streams? Mono‑polyolefin bodies provide a credible pathway where PP/PE programs exist. Choose inks, liners, and labels to keep that pathway open. Which closure is better—pinch‑bottom or valve? Valve versions accelerate powder fills and can close as headspace collapses; pinch‑bottom avoids stitch holes and may better serve moisture‑sensitive solids. Decide by powder flow, dust tolerance, and seal integrity. How should static be managed? Use antistatic liners or static‑protective totes per dust class and environment; train operators and verify resistivity. Why do some pallets lean when bags look perfect? Friction balance, bag length variance, and pattern choice govern lean as much as bag geometry. Treat palletization as part of the package.
