What is HDPE Valve Bags?
HDPE Valve Bags are engineered plastic sacks manufactured from high‑density polyethylene film structures and configured with a short valve sleeve that mates to valve‑type filling spouts. During filling, powder flows through the sleeve while entrained air is guided outward through controlled gaps or micro‑vent arrays; once the target weight is reached, the product head forces the sleeve to collapse, creating an inherent self‑seal that can be reinforced with a brief thermal weld or ultrasonic touch. In plant environments that prize cleanliness, repeatable weights, and stable pallets, HDPE Valve Bags have become a mainstay because they resist moisture uptake, curb dust escape, and stack into square, brick‑like loads.
Industry vocabulary is rarely singular. The same format is variously called poly valve sacks, plastic valve bags, film valve packs, PE valve sacks, and—when a square base is used—block‑bottom valve bags. Naming diverges; purpose converges. The goal is a container that fills fast, seals tight, prints cleanly, and survives real logistics. Compared with traditional kraft multi‑wall valve sacks, HDPE Valve Bags offer lower water‑vapor transmission at comparable basis weight, weldable closures that withstand vibration, and mono‑material recyclability in jurisdictions with film collection streams. Are we replacing paper outright? Not everywhere. But wherever humidity, hygiene, and long export lanes dominate, this film‑based architecture is difficult to beat.
The Material of HDPE Valve Bags
Performance is the sum of layers. Each constituent of HDPE Valve Bags maps to a specific failure mode—caking, sifting, puncture, slumping—and each failure mode is addressed by a property, a test, and a tolerance. The result is a specification that is as much systems engineering as it is polymer selection.
High‑density polyethylene (ρ ≈ 0.94–0.97 g/cm³) forms the backbone. Monolayer films exist, yet 3–7 layer co‑extrusions dominate because property zoning works: stiffer outer skins for scuff resistance and crisp printing; ductile cores for impact absorption; sealable inners for reliable valve welding. Typical gauges for 20–25 kg formats span 60–140 μm, trending higher for sharp, dense, or highly abrasive powders.
Why HDPE? Higher crystallinity depresses water‑vapor transmission rate (WVTR) compared with LDPE at equal thickness. Stiffness improves stand‑up behavior and pallet geometry. Chemical resistance covers a wide spectrum of mineral and organic powders encountered in industry.
Cost logic: HDPE tracks ethylene and is globally available, delivering a favorable barrier‑to‑cost ratio versus specialty barrier families while remaining compatible with polyolefin recycling streams.
LLDPE or metallocene‑LLDPE inner skins provide low‑temperature sealability and hot‑tack, enabling fast valve closure. MDPE/LLDPE blends raise dart impact and instrumented puncture resistance to survive corner drops and conveyor knocks. Tailored slip/antiblock packages preserve machinability without contaminating powders; UV stabilizers defend against outdoor storage exposure.
Antistatic masterbatches temper tribocharging during high‑velocity fills—especially important with carbon black, TiO₂, or organic powders with combustible dust behavior. All of this remains within a mono‑polyolefin family to keep recyclability straightforward.
Materials mirror the wall (HDPE/LLDPE) to maintain single‑polymer logic. Corner or top‑center placement is chosen to suit packer layout. Sleeve internal width matches nozzle OD and target cycles per minute; the lead‑in angle controls aeration and entrapped air discharge. Optional inner flaps or pre‑applied hot‑melt create self‑closing, sift‑resistant behavior. Some sleeves embed one‑way vents that allow air out while keeping fines in.
Block‑bottom geometry (gusseted, folded, welded) gives a brick‑like footprint and outstanding stack stability. Pinch‑bottom alternatives rely on continuous heat‑seal seams when absolute sift‑proofing is mandated. Reinforcement at fold radii is prudent for sharp fillers.
Corona or flame treatment elevates dyne level so inks anchor. Flexographic or digital presses deliver hazard pictograms, batch IDs, and brand marks. Selective matte or micro‑embossed stripes create local high‑friction zones to keep layers from sliding while leaving the rest of the web conveyor‑friendly.
Process stabilizers protect polymer chains at high output. Pigment packages supply visual coding without undermining recyclability when matched to compatible systems. For sensitive adjacencies, odor and taint controls plus plant hygiene maintain low organoleptics.
What are the Features of HDPE Valve Bags?
Features matter only if they solve pain points on the line and in the warehouse. The attributes below translate polymer science into day‑to‑day reliability.
- Moisture resistance at modest gauge — Crystalline HDPE skins lower WVTR; co‑ex zoning achieves barrier without exotic, hard‑to‑recycle layers. Hygroscopic powders stay free‑flowing and dosing‑ready.
- Dust and sift control — Self‑closing sleeves collapse under head pressure; a brief thermal weld or ultrasonic touch produces near‑zero sift closures. Micro‑vents vent air while retaining fines.
- Impact and puncture durability — MDPE/LLDPE‑rich cores lift dart impact (ASTM D1709) and Elmendorf tear (ASTM D1922) to survive conveyor transfers, corner drops, and forklift bumps.
- Pallet efficiency & hygiene — Block‑bottom geometry cubes tightly and resists slumping; smooth film wipes clean, supporting GMP or 5S programs; selective anti‑slip zones hold stacks without jamming conveyors.
- High‑speed, low‑mess filling — Impeller/auger/air packers meter through a narrow orifice with superior weigh stability; sleeve geometry shortens the path to target CPM.
- Recyclability potential — Mono‑polyolefin design aligns with flexible‑film collection where available; PIR/PCR incorporation is feasible with validated mechanics and seals.
- Print clarity & traceability — Treated exteriors accept multi‑color graphics, batch serialization, and QR‑enabled tracking.

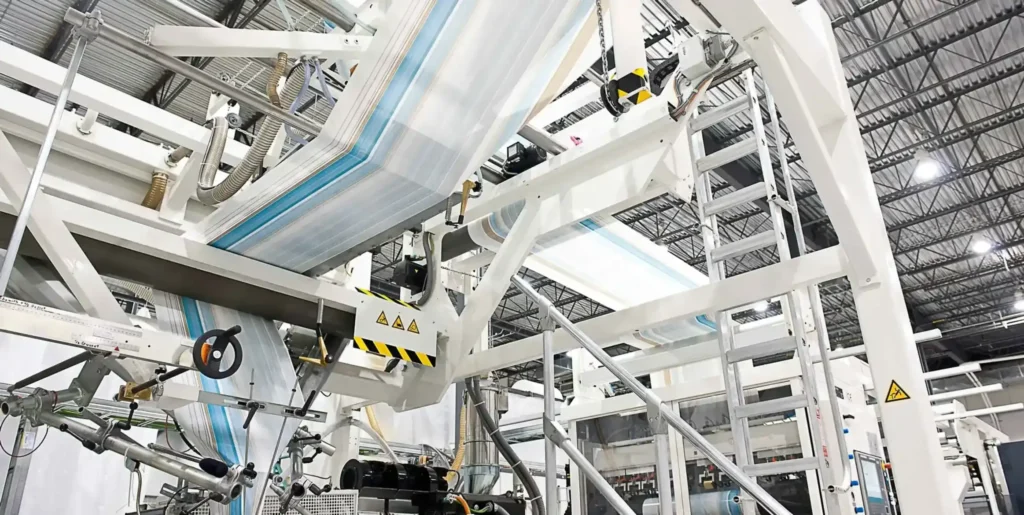

What is the Production Process of HDPE Valve Bags?
From pellet to pallet, repeatability depends on disciplined variables. Control the variables, and failure rates fall. Neglect them, and rework rises.
- Resin preparation & extrusion — Masterbatch blending (antistatic, slip, antiblock, UV) followed by blown‑film (for toughness and gauge control) or cast‑film (for tight uniformity). Co‑extrusion zones stiff HDPE skins outside, ductile cores inside, sealable layers where they matter. Monitor melt temperature, blow‑up ratio, frost‑line height, and gauge Cpk.
- Web converting — Corona treatment raises dyne level; flexographic presses lay down graphics and compliance marks with tight registration; slitting and gusseting set the side folds that make a square base possible.
- Tube making & valve insertion — Film becomes a tube; a prefabricated sleeve is inserted with positional tolerance. Sleeve stiffness and lead‑in angle govern fill rate and dust behavior; pre‑applied hot‑melt can enable self‑sealing.
- Bottom forming — Pinch‑bottom or hot‑air welding completes the block‑bottom; seal peel tests and visual bead checks catch weak seams and pinholes.
- Optional micro‑perforation — Laser or mechanical tools produce vent patterns sized and placed per powder aeration traits.
- Finishing & QC — Stacking, counting, and strapping pair with a control plan: thickness profile, tensile/elongation, tear, dart impact, seal strength, coefficient of friction, WVTR/OTR where applicable.
- Filling & closure at the customer — Impeller/auger/air packers meter product; the valve self‑seals; heat sealing is added when export lanes or long storage demand absolute sift‑proofing.
What is the Application of HDPE Valve Bags?
HDPE Valve Bags support industries where humidity is a foe, dust is a hazard, and pallets travel far. Use cases cluster around chemical powders, agrochemicals, construction minerals, industrial salts, and specialty cleanroom adjacencies.
| Application Cluster | Powder Traits | Design Emphasis |
|---|---|---|
| Chemicals (TiO₂, CaCO₃, talc, silica, carbon black) | Abrasive, dust‑prone, moderate bulk density | Higher dart impact, balanced MD/TD tear, antistatic package |
| Agrochem & fertilizers (NPK, MAP/DAP, urea) | Hygroscopic, caking risk, seasonal outdoor storage | WVTR control, UV stabilization, heat‑sealed valve |
| Construction powders (cementitious blends, gypsum, mortar) | Variable density, fines, abrasive particles | Reinforced corners, robust bottom welds, anti‑slip stripes |
| Industrial salts & process powders | Moisture sensitive, corrosive dust potential | Barrier‑forward film, sealed valve, corrosion‑aware logistics |
Systems Thinking for “HDPE Valve Bags: A Durable Solution for Chemical Powders”
Durability is not a single metric; it is an emergent property. Moisture resistance, dust retention, impact survival, and pallet geometry interact. One weak link raises complaint rates; one strong link cannot rescue the rest. The method below decomposes the system, sets targets, and then recomposes the whole into a coherent specification.
Lower WVTR slows caking; balanced MD/TD tear prevents zippering; antistatic packages quell nuisance shocks and lower ignition risk. Corner reinforcements shield fold lines from sharp mineral edges.
Sleeve width and lead‑in angle set cycles per minute; micro‑vents reconcile fast aeration with long‑term barrier; exterior COF magnitude determines conveyor harmony.
Block‑bottom geometry creates predictable layer patterns; selective anti‑slip stripes build friction where needed; stack compression is validated to target height and climate.
Shared methods—D882, D1922, D1709, F1249, D3985, D1894; ISO 8367‑2 for sack tolerances—give vendors and buyers a common language. Dangerous goods trigger UN/ADR/49 CFR performance testing.
Recompose the system and the logic is straightforward: choose a co‑ex with HDPE skins for barrier, a tougher core for impact, a sealable inner for closure; set a sleeve that self‑seals at weight yet accepts a quick weld; design venting that helps the scale and does not hurt the shelf; set exterior friction to ride conveyors and resist pallet slip. That is the blueprint that converts theory into lower returns.
Standards, Certifications, and Identifiers
Numbers prevent disagreements. The following identifiers appear routinely on technical data sheets and quality agreements for HDPE Valve Bags and the powders packed inside them.
- ISO 8367‑2 — Dimensional tolerances for sacks made from thermoplastic flexible film (valve width, sleeve position, gusset, circumference, bottom width).
- ASTM D882 — Tensile properties of thin plastic sheeting.
- ASTM D1709 — Free‑falling dart impact resistance.
- ASTM D1922 — Elmendorf tear resistance.
- ASTM F1249 — Water vapor transmission rate.
- ASTM D3985 — Oxygen transmission rate.
- ASTM D1894 — Static and kinetic coefficient of friction.
- UN performance packaging and 49 CFR Part 178 / UN Model Regulations / ADR — Authorization and tests (drop, stack, tear/rupture) for dangerous goods where applicable.
- IEST‑STD‑CC1246D — Cleanliness levels when cleanroom manufacture is specified for sensitive environments.
- ISTA 3A/3E — Transport simulation profiles for vibration, compression, and drop exposures.
Engineering Calculations and Selection Heuristics
Selection is a sequence of bounded choices rather than a guess. The approach below converts powder behavior and lane risks into film, sleeve, and venting parameters.
- Set drop and puncture targets — For 25 kg formats in mixed manual/mechanical handling, anchor to ≥ 1.0 m survival on all orientations. Dense or sharp powders justify 100–120 μm with MDPE‑rich cores; verify dart impact thresholds per D1709.
- Define WVTR threshold vs. shelf life — For humidity‑sensitive powders, set ≤ 2–4 g/m²/day at 38 °C/90% RH (F1249). Reach it via higher‑crystallinity skins or gauge increase before reaching for exotic barriers.
- Match sleeve width to nozzle OD — Choose the minimum clearance that avoids backpressure spikes; tune length and flap overlap to self‑seal under product head and accept a heat‑seal for export.
- Engineer venting — Start with 6–12 holes at 0.3–0.5 mm in the upper third. Adjust by aeration behavior and checkweigher stability; avoid over‑venting that undermines barrier.
- Set exterior COF — Target static 0.40–0.50; apply anti‑slip stripes locally to hold layers without stalling conveyors.
| Parameter | Typical Range | Rationale |
|---|---|---|
| Total film thickness | 60–140 μm | Balances impact, barrier, and cost by lane risk. |
| Valve width | 40–80 mm | Controls fill rate and self‑seal dynamics. |
| Dart impact (D1709) | ≥ 300–600 g | Resists corner drops and conveyor hits. |
| WVTR (F1249 @ 38 °C/90% RH) | ≤ 2–6 g/m²/day | Prevents caking; protects flowability. |
Comparative Positioning
Choice is contextual. The table below summarizes practical differences packaging teams debate during trials.
| Criterion | Film Valve (HDPE Valve Bags) | Paper Valve | Woven PP Valve |
|---|---|---|---|
| Moisture barrier | Strong at modest gauge | Moderate unless PE‑laminated | Good with liner; complexity rises |
| Dust control | Excellent with heat‑sealed valve | Fair to good; seam‑dependent | Good with inner liner |
| Line speed potential | High on valve packers | Moderate | High with modern packers |
| Recyclability (mono‑material) | Yes where films are collected | Often mixed materials | Delamination often required |
Implementation Blueprint
From trial to rollout, discipline is everything. Pilot multiple co‑ex structures across two gauges; capture failure modes by orientation in controlled drops; validate sleeve geometry against every nozzle; run accelerated humidity exposure at 38 °C/90% RH; simulate transport with vibration and compression profiles; define retest cadence for regulated SKUs; train operators on seal parameters and vent checks.
- 3–5 film structures × 2 gauges for pilot
- Valve width and lead‑in optimized per packer
- Humidity exposure testing tied to caking thresholds
- Transport simulation (ISTA profiles) including vibration, compression, impacts
- Retest cadence defined for regulated SKUs
- Operator training: valve alignment, heat‑seal, venting validation
Risk and Safety Considerations
Powder handling ranges from tranquil to volatile. Carbon black, TiO₂, metal powders, and organic dusts may be combustible; measure Kst and Pmax, ground equipment, employ extraction, select antistatic films. Abrasive fillers justify reinforced corners and higher dart impact thresholds. Export lanes argue for heat‑sealed valves and humidity indicators in sentinel pallets.
Quality Plan and Supplier Qualification
- Incoming resins: MFR, density, moisture; additive verification.
- Film in process: gauge Cpk, dyne level, gel count, visual inspection.
- Converting: sleeve position tolerance, seal strength, bottom fold geometry.
- Final tests: D882 tensile/elongation, D1922 tear, D1709 dart, F1249 WVTR, D3985 OTR as relevant; drop tests by orientation; sift‑loss after vibration.
- Traceability: printed lot codes tied to resin batches and roll IDs; optional QR serialization for warehouse systems.
Buyer’s Decision Flow
- Bulk density, particle size distribution, angle of repose, abrasiveness, and hygroscopicity of the powder?
- Target shelf life and climate exposure along the lane?
- Packer type (impeller, auger, air) and nozzle OD; target cycles per minute?
- Export conditions, vibration severity, and need for sift‑proof seals?
- Pallet pattern, stack height, racking method; exterior COF requirement?
- Sustainability targets (PIR/PCR content) and end‑market recycling guidance?
- If hazardous, governing UN number and packing instruction; required periodic tests?
Two Worked Scenarios
High‑whiteness TiO₂ — Abrasive, dusty, medium density, graphics‑sensitive. Choose 3‑layer HDPE/MDPE/HDPE at ~110 μm with antistatic masterbatch; corner valve 60 mm with pre‑applied hot‑melt; eight 0.4 mm vents near the top third; exterior COF ≈ 0.45 via discrete anti‑slip bands. Acceptance: D1709 ≥ 500 g; F1249 ≤ 3 g/m²/day at 38 °C/90% RH. Heat‑seal the valve for export.
Urea fertilizer — Hygroscopic, outdoor storage likely. Select 3‑layer HDPE/LLDPE/HDPE at ~120 μm with UV stabilization; larger sleeve to accommodate aeration; fewer vents to preserve barrier. Acceptance: F1249 ≤ 2–4 g/m²/day; stack compression validated to target height.
Parameter Summary Table
| Parameter | Typical/Recommended | Notes |
|---|---|---|
| Film thickness (total) | 60–140 μm | Tune to drop/abuse risk and barrier needs. |
| Structure | Monolayer or 3–7 layer co‑ex | Zoning enables sealability/impact control. |
| Valve sleeve width | 40–80 mm | Match packer nozzle and CPM targets. |
| Valve closure | Self‑seal and/or heat‑seal | Heat‑seal for export or long storage. |
| WVTR (38 °C/90% RH) | ≤ 2–6 g/m²/day | Lower for hygroscopic powders. |
| Dart impact (D1709) | ≥ 300–600 g | Higher for heavy/abrasive service. |
| Elmendorf tear (D1922) | ≥ 150–300 mN (MD/TD) | Balance to avoid zippering. |
| Tensile (D882) | MD ≥ 35–45 MPa; TD ≥ 30–40 MPa | Ensure fill/transport strength. |
| COF (D1894) | Static 0.40–0.50 | Balance conveyors and stack stability. |
| Micro‑perforations | 0–20 holes; 0.3–0.8 mm | Vent air during filling without exporting fines. |
| Recycled content | 0–50% PIR/PCR (where allowed) | Validate mechanics, seals, and odor. |
The packaging industry plays a critical role in safeguarding products, particularly in sectors like chemicals, agriculture, and construction, where maintaining product integrity is essential. Among the many packaging solutions available, Valve Bags have emerged as a reliable and versatile option, especially for transporting fine chemical powders. High-Density Polyethylene (HDPE) Valve Woven Bags provide durability, protection, and efficiency in packaging a wide range of chemical materials such as titanium dioxide, color pigments, calcium titanate, silica powder, latex powder, sodium carbonate, and zinc sulfate.
In this article, we will explore the advantages of HDPE Valve Bags, how they serve the chemical industry, and why companies like VidePak are leading the market as a trusted valve bags manufacturer. We will also compare our approach with industry competitors to highlight how innovation in material use and bag design is setting new standards for chemical packaging.
Valve Bags: An Overview of Their Importance in Chemical Packaging
Valve Bags are specialized packaging solutions designed for efficient filling and sealing. They are typically used for powdered or granular materials and feature a small valve at one corner of the bag, allowing for rapid filling and automatic closure. This design minimizes product loss and contamination, making it ideal for packaging fine chemical powders.
For materials such as titanium dioxide, which is widely used in paints and coatings, or sodium carbonate and zinc sulfate, used in various industrial processes, maintaining product purity and minimizing waste is essential. The Valve Woven Bags designed for such applications provide a perfect solution, combining the strength of woven polypropylene (PP) with the versatility of valve technology.
Advantages of HDPE Valve Bags for Chemical Powders
Valve PP Bags made from high-density polyethylene (HDPE) offer numerous advantages over other types of packaging. These include:
- High Strength and Durability: HDPE Valve Bags are known for their superior tensile strength, making them ideal for handling heavy or sharp-edged chemical powders like titanium dioxide and silica powder. These bags can endure rough handling, ensuring that the contents remain protected during transport and storage.
- Moisture Resistance: Chemical powders are highly sensitive to moisture, which can alter their properties and reduce their effectiveness. Valve sacks made from HDPE offer excellent resistance to moisture, ensuring that products like latex powder and calcium titanate remain dry and free from contamination.
- Efficient Filling and Sealing: One of the main advantages of using Valve Woven Bags is the efficient filling process. The valve design allows for quick and easy filling without the need for manual sealing. Once the bag is filled, the valve closes automatically, minimizing the risk of product spillage or contamination. This is particularly important when dealing with fine powders like color pigments and zinc sulfate, where maintaining product purity is essential.
- Eco-Friendly and Recyclable: HDPE is a highly recyclable material, making Valve PP Bags an environmentally friendly option for companies looking to reduce their carbon footprint. Many manufacturers, including VidePak, are committed to sustainability, offering eco-friendly packaging solutions that meet both regulatory requirements and customer expectations.
- Cost-Effective Solution: The combination of strength, durability, and efficient filling makes HDPE Valve Woven Bags a cost-effective packaging solution for the chemical industry. By reducing product loss and contamination, these bags help companies save money while ensuring that their products reach their destination in pristine condition.
Applications of Valve Woven Bags in the Chemical Industry
HDPE Valve Bags are widely used in the chemical industry for packaging a variety of powdered and granular materials. Some of the most common applications include:
- Titanium Dioxide: Titanium dioxide is a fine white powder used in the production of paints, coatings, plastics, and cosmetics. Its fine texture makes it prone to spillage and contamination, making it an ideal candidate for HDPE Valve sacks. The valve design ensures that the powder can be filled efficiently without the risk of product loss.
- Color Pigments: In industries such as printing, textiles, and plastics, color pigments are used in powdered form to create a wide range of colors. HDPE Valve PP Bags offer excellent protection against moisture and contamination, ensuring that the pigments maintain their vibrancy and quality throughout the supply chain.
- Calcium Titanate: Used in ceramics and electronic components, calcium titanate is a fine powder that requires careful handling. HDPE Valve Woven Bags provide the necessary strength and protection to prevent spillage and product degradation.
- Silica Powder: Silica powder is widely used in the production of glass, ceramics, and concrete. Its fine texture makes it difficult to handle, but HDPE Valve bags offer a convenient and efficient solution for packaging and transporting this material.
- Latex Powder: Latex powder is used in adhesives, coatings, and rubber products. HDPE Valve sacks provide moisture resistance and protection against contamination, ensuring that the powder remains dry and easy to use.
- Sodium Carbonate: Commonly known as soda ash, sodium carbonate is used in the manufacturing of glass, detergents, and chemicals. HDPE Valve PP Bags offer a durable and moisture-resistant solution for packaging this material.
- Zinc Sulfate: Zinc sulfate is used in agriculture as a fertilizer and in the chemical industry as a raw material. HDPE Valve Woven Bags provide the necessary protection against moisture and contamination, ensuring that the product remains effective throughout its storage and transportation.
VidePak: A Leading Valve Bags Manufacturer
At VidePak, we specialize in producing high-quality HDPE Valve Woven Bags for a variety of industries, with a particular focus on the chemical sector. As a leading valve bags manufacturer, we are committed to providing packaging solutions that meet the highest industry standards for durability, moisture resistance, and efficiency.
What sets VidePak apart from other manufacturers is our dedication to using 100% virgin polypropylene and polyethylene materials. This ensures that our Valve PP Bags are not only stronger but also more environmentally friendly, as they are fully recyclable. Additionally, we employ advanced production techniques, such as ultrasonic sealing, to create bags that are more resistant to wear and tear, ensuring that they can withstand the rigors of transportation and storage in demanding environments.
Our focus on innovation extends to the valve design itself. While many competitors still rely on traditional stitching methods for sealing, we use advanced valve designs that allow for faster filling, automatic closure, and enhanced protection against moisture and contamination. This ensures that our customers receive packaging that not only protects their products but also streamlines their production processes.
Comparison with Competitors
While many manufacturers offer Valve sacks for chemical packaging, few can match the level of quality and innovation provided by VidePak. Some competitors use lower-grade materials, such as recycled plastic, which can compromise the strength and durability of the bags. Others may rely on outdated sealing methods, which can lead to product loss and contamination.
In contrast, VidePak’s commitment to using virgin materials and advanced sealing techniques ensures that our Valve Woven Bags offer superior performance in terms of strength, moisture resistance, and efficiency. This is particularly important in the chemical industry, where product integrity is critical to maintaining quality and meeting regulatory standards.
Additionally, our focus on sustainability sets us apart from other manufacturers. By offering recyclable packaging solutions, we help our customers reduce their environmental impact while still providing the highest level of protection for their products.
Future Trends in Chemical Packaging
As industries continue to demand more efficient and sustainable packaging solutions, the role of HDPE Valve Woven Bags in the chemical sector will continue to grow. With advancements in material technology and sealing methods, companies like VidePak are well-positioned to lead the way in providing innovative and reliable packaging solutions that meet the evolving needs of the market.
In conclusion, HDPE Valve Bags offer a durable, efficient, and cost-effective solution for packaging a wide range of chemical powders. From titanium dioxide to sodium carbonate, these bags provide the necessary protection against moisture, contamination, and product loss. As a leading valve bags manufacturer, VidePak is committed to providing high-quality, sustainable packaging solutions that meet the needs of our customers and set new standards for the industry.
