Industrial Woven Bags

What are Industrial Woven Bags?

Industrial Woven Bags are load‑bearing flexible sacks fabricated from woven polymer tapes—most commonly isotactic polypropylene (PP)—and engineered to contain, protect, and transport bulk solids such as powders, pellets, granules, flakes, and agricultural produce. In different markets and plants, they are also described as woven PP bags, poly woven sacks, coated woven bags, BOPP‑laminated woven bags, PP valve sacks, and, at higher capacities, FIBCs (also called bulk bags, big bags, or super sacks). While the names vary, the engineering intent is consistent: synergize fabric architecture (tape denier and weave density), surface layers (coating or lamination), closures (stitch, pinch, valve), and liners to deliver mechanical strength, barrier performance, cleanliness, and safe handling across real‑world supply chains.

Materials of Industrial Woven Bags: Polymers, Additives, Layers, Cost Levers

Every constituent in Industrial Woven Bags unlocks a performance lever and imposes a constraint. The optimum bill of materials minimizes failure modes while respecting economics and end‑of‑life pathways. Below, materials are organized by function: structure, barrier, identification, closure, and compliance.

Cost levers center on fabric gsm, coating/lamination presence, liner gauge, and loop/seam engineering. Resin indexes matter, but geometry and architecture drive most of the cost‑performance outcome once conversion is stable.

Key Features of Industrial Woven Bags

Industrial Woven Bags succeed because they blend rugged mechanics with information integrity and end‑of‑life logic. Their advantages are multifaceted, and each advantage carries a design trade‑off that professionals should surface explicitly.

• Strength‑to‑weight & SWL discipline. Safety factors of 5:1 (single trip) and 6:1 (heavy duty) are typical in large formats; small sacks depend on seam efficiency and stitch architecture.
• Dust containment. Valve sleeves and coatings suppress airborne fines; liner seals prevent egress during transport and handling.
• Moisture and gas control. Liners set the WVTR and, if needed, OTR via EVOH layers; coatings moderate moisture pick‑up for moderately sensitive goods.
• Hygiene and sensory neutrality. Low‑odor ink/coating systems and clean conversion practice reduce taint risk in food/feed chains.
• Print durability and traceability. Rub‑resistant panels maintain hazard icons and codes after abrasion events; QR and linear barcodes enable batch‑level audit trails.
• ESD safety (where applicable). Type A/B/C/D architectures and compatible liners mitigate ignition risk when powders or solvents are involved.
• Recyclability pathways. Mono‑PP designs with separable liners align with emerging EPR language (“recyclable in practice and at scale”) where infrastructures exist.

Production Process of Industrial Woven Bags: From Resin to Release

The manufacturing journey of Industrial Woven Bags is a chain of capability gates. Each step narrows process variation and locks in performance. Neglect one gate and downstream failure modes rise—sometimes invisibly until a humid week or a rough forklift shift reveals the gap.

1. Tape extrusion & drawing. PP pellets → film → slit tapes → draw 5–7×. Manage melt temperature (≈220–250 °C), chill roll (≈25–35 °C), and tension to achieve gauge stability and low fibrillation. Target MFI ~2–4 g/10 min for steady tapes.

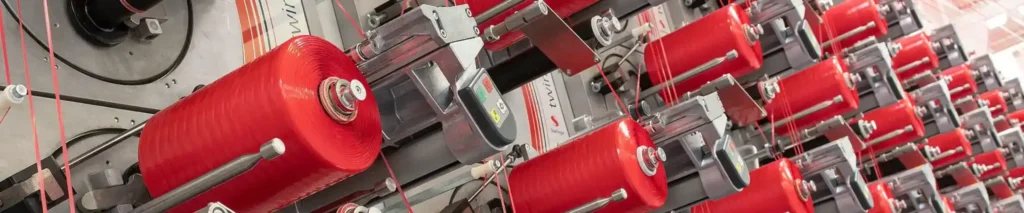

2. Weaving & heat setting. Circular looms for tubes; flat looms for panels. Select ppi and denier by SWL and puncture profile. Heat setting minimizes shrink and warp ahead of coating and print.
3. Coating/lamination & surface energy conditioning. PP coatings (20–40 g/m²) seal pores; BOPP films (15–35 µm) enable high‑rub print. Corona to ≥38 dyn/cm for ink anchorage; balance nip and temperature to prevent fabric print‑through.
4. Printing. Flexo/gravure apply warnings, instructions, and codes. Control anilox BCM, viscosity, dryer curves. Validate rub class and barcode/QR legibility after abrasion cycles.
5. Conversion & loops. Cut panels, stitch seams, integrate loop tapes with reinforcement patches. Tops (open, skirt, spout) and bottoms (flat, star, discharge) are assembled per the drawing with SPI audits and dimensional checks.
6. Liner extrusion, forming & insertion. Tubular or form‑fit liners are extruded and sealed. Define seal windows (130–170 °C; 0.5–1.2 s; 2–4 bar) to achieve peel‑mode failure. Pinhole/leak tests protect sensitive powders.
7. Quality assurance & release. Top‑lift (for FIBCs), drop, stacking/compression, seal peel, WVTR (if relevant), rub resistance, barcode scans, and dimensional conformance. Release packs tie lot codes to CoAs and functional tests.

Applications of Industrial Woven Bags

Use‑cases for Industrial Woven Bags span chemicals, minerals, construction materials, agriculture, food/feed, plastics recycling, and energy. The common thread is a need for strong, clean, collapsible containers that interface well with packers, pallets, and people.

• Chemicals & mineral fillers: calcium carbonate, TiO₂, silica, soda ash. Emphasis: dust control, abrasion resistance, ESD classification for fines.
• Construction materials: cement, mortar, grout, gypsum compounds. Emphasis: valve sacks for speed, rugged exteriors, weather exposure resilience.
• Agriculture & fertilizers: urea, NPK blends, seeds. Emphasis: moisture defense (liners), UV stabilization for yard storage, reliable loops.
• Food & feed ingredients: sugar, salt, starches, milk powder, pet food premixes. Emphasis: hygienic liners, low‑odor inks, migration documentation.
• Recycling & plastics: PET flakes, PP/PE regrind, virgin pellets. Emphasis: dust control, color coding, repeat handling endurance.
• Energy & metals: biomass pellets, coke breeze, copper concentrates (special liners). Emphasis: ESD, strong bottoms, controlled discharge.

Reasoning Path: Turning the Keyword Industrial Woven Bags into a Single Spec

Clarity emerges when teams follow one disciplined storyline: define hazards → map to materials → choose constructions → validate → control change. The storyline is simple; the execution is meticulous.

1. Define product & hazards. Particle size, bulk density, cohesion (ffc), moisture/odor/oxygen sensitivity, electrostatic risk. Route constraints: pallet pattern and height, climate exposure, and transport modes.
2. Map hazards to building blocks. Strength → gsm/denier + seam/SPIs + loop geometry; Barrier → liner gauge and polymer; ESD → bag type and liner resistivity; Information → print system and rub class.
3. Choose constructions by segment. Minerals vs. fertilizers vs. food/feed vs. ESD‑sensitive powders; baffles for squareness; discharge style for flow behavior.
4. Validate tests & docs. Top‑lift, stacking, drop, WVTR, seal peel, barcode rub; ISO 9001; BRCGS/FSSC for hygiene chains; liner DoCs.
5. Manage change. Resin and masterbatch lots; adhesive/tie‑layer revisions; first‑article approvals; 60‑day notice clauses; QR‑linked batch dossiers.

Standards, Certifications, and Identifiers (2024–2025)

• ISO 21898:2024 — Flexible Intermediate Bulk Containers for non‑dangerous goods (design tests, labeling, UV guidance).
• IEC/EN 61340‑4‑4:2018 — Electrostatics classification and testing for Types A/B/C/D and their liners.
• UN Model Regulations (Rev. 24, 2025) — Codes for FIBCs (13H1–13H4) and woven sacks (5H1/5H2) where applicable.
• ISO 9001:2015 — Quality management discipline for converters and film suppliers.
• BRCGS Packaging Materials Issue 6 (position statements current through 2024/2025) — Hygiene/GMP scaffolding for packaging plants.
• ISO 22000 / FSSC 22000 — Food safety management where bags/liners interface with food chains.
• FDA 21 CFR 177.1520 — U.S. olefin polymer regulation for liners used in food contact.
• ISO 18604 — Packaging and the environment — material recycling; relevant for mono‑PP designs and documentation.

Engineering Data — Parameters and Process Windows

For additional background on woven PP construction, see the internal link anchored to the keyword Industrial Woven Bags.

Cost of Quality and TCO for Industrial Woven Bags

“Cheapest on paper, costliest in practice” is a familiar trap. The total cost profile of Industrial Woven Bags hides in four places: (1) product loss from moisture or dust leakage; (2) line downtime from rejects and cleanup; (3) warehouse density and pallet stability; and (4) documentation friction that delays shipments. Sensitivity models on gsm (±10–20), liner gauge (±20–40 µm), coating weight (±10 g/m²), and loop reinforcement patterns reveal knee points where robustness outperforms added cost.

Troubleshooting Matrix for Industrial Woven Bags

Procurement‑Ready Specification Template

Title: Industrial Woven Bags — 25–50 kg valve sack, coated PP with heat‑sealable sleeve
Scope: Dry mineral powder; indoor storage ≤60 days; stack pattern 5×5; forklift handling

• Body: Woven PP 100 gsm; coating 30 g/m²; weave 12 ppi; white.
• Valve sleeve: PE film 90 µm; length 140 mm at 30°; auto‑close petals; post‑fill heat seal.
• Seams: Bottom double chain; SPI 9–10; PP thread 1,000–1,200D; edge bindings as specified.
• Print: 4‑color flexo; barcode/QR contrast ≥70%; rub class per internal rubric.
• Tests: Drop 10× @1.0 m; base peel (if square‑bottom) ≥25 N/25 mm; valve seal peel 14–18 N/15 mm (peel failure); moisture ingress per product target.
• Compliance: ISO 9001 current; BRCGS Packaging Materials (if hygienic conversion applies); liner DoC referencing FDA 21 CFR 177.1520 where relevant; ESD class and allowed liners if applicable.
• Change control: 60‑day notice for resin/additive/geometry changes; first‑article approval on critical parameters.
• Traceability: Lot/date/line code; QR link to batch dossier.

Case Studies

Case 1 — Hygroscopic Starch (25 kg Valve Sack)

Issue: 2.1% moisture‑related caking during rainy season. Intervention: Sleeve gauge 70→100 µm; double‑fin seals; pallet top sheets; RH <65%. Outcome: Complaints to 0.3%; OEE +1.8%; measurable cost/ton reduction.

Case 2 — Abrasive Mineral Filler (FIBC, 1,250 kg)

Issue: Panel scuff erased hazard icons and lot codes on long hauls. Intervention: Exterior coating +10 g/m²; higher rub‑class inks; corner boards. Outcome: Legibility preserved after 1,500 km; fewer handling incidents; faster audit traceability.

Extended FAQ

Are Industrial Woven Bags better than drums or octabins? It depends on product physics and route geometry. For free‑flowing solids requiring collapsibility and high cube efficiency, woven bags usually outperform; rigid formats win for fragile or liquid cargoes.

Can recycled PP be used in body fabrics? Yes—preferably in non‑critical zones. Validate drawability/tenacity; avoid recycled content in loop load paths unless tested.

Do form‑fit liners always beat tubular liners? No. Form‑fit excels with cohesive powders and cleanliness targets; tubular liners are sufficient for pellets and granules.

Which ESD type should I choose? Type C if grounding discipline is practical; Type D if grounding is not but compatible‑liner rules can be enforced. Types A/B are for low‑risk contexts.

How do we set WVTR targets? Start with product sorption isotherms and allowable moisture gain; back‑solve to package WVTR; verify via ASTM F1249/ISO 15106‑2 at relevant climates.

Is UV stabilization necessary for indoor programs? Less critical, but staging and transit often involve sunlight. Minimal stabilization is inexpensive insurance.

90‑Day Plan: From Commodity to Engineered Industrial Woven Bags

1. Audit failure modes. Categorize by moisture, seam, loop, discharge, ESD, and labeling. What is unnamed remains unimproved.
2. DOE on gsm × reinforcement. Two gsm levels × two seam/loop variants on representative routes; measure top‑lift margin, drop, and stack behavior.
3. Liner gauge A/B. Add +20–40 µm to humid‑season routes; track caking and residue complaints.
4. Verify ESD discipline. For Type C, install/inspect grounding; for Type D, validate liner pairing and refresh training.
5. Document cadence. Refresh ISO/BRCGS/FSSC certificates (≤12 months), liner DoCs, ESD reports; add change‑control clauses to POs.

From Sub‑Arguments to One Integrated Solution

The reliability of Industrial Woven Bags emerges as four strands are woven deliberately: mechanical strength, barrier & hygiene, ESD safety, and information integrity. Each strand has levers—gsm and loops; liner and seals; resistivity and grounding; inks and codes. The integrated specification aligns these so procurement can buy, converters can build, QA can verify, crews can handle, and recyclers can process—with fewer surprises and a lower total cost of ownership.
