Sub‑title: A systems approach to designing lighter sacks that carry more, last longer, and print better
What is Lightweight Woven Bags (also called PP/PE Woven Sacks)?
Lightweight Woven Bags are engineered plastic sacks formed by weaving drawn polypropylene (PP) or polyethylene (PE) tapes into a robust fabric and then transforming that fabric—through cutting, printing, and closure operations—into open‑mouth or valve‑type packaging. In the marketplace they also travel under familiar aliases: PP woven bags, polypropylene woven sacks, raffia bags, and, when a printable film is laminated to the outside, BOPP‑laminated woven bags. To understand Lightweight Woven Bags from an industry perspective, it helps to situate them at the intersection of polymer science (orientation of semicrystalline PP/PE for tensile efficiency), converting technology (weaving, coating, lamination), and logistics (pallet stability, moisture control, shelf presentation). A deceptively simple question—what are they?—quickly expands into a system: base fabric, surface barrier, seam architecture, and regulatory hygiene moving in concert.
This systems lens matters. Packaging is not just a bag; it is an engineered compromise among weight, strength, graphics, and cost. When we say Lightweight Woven Bags, we invoke a design philosophy that pursues lower tare mass without surrendering drop performance, crush resistance, or print fidelity. Horizontally, compare them against paper sacks (cellulosic fibers bonded into a sheet) and mono‑layer PE film bags (continuous thermoplastic membranes): the woven structure behaves like a truss—open lattice, high tear resistance per gram, excellent creep control under stacked loads. Vertically, trace the product lifecycle from resin pellet to pallet: draw ratio sets molecular orientation → mesh density controls sifting and ink laydown → seam geometry governs edge‑fail modes → compliance frameworks (food contact, transport) define allowable chemistries and tests. The logic ties together; the trend is clear—modified materials and smarter architecture enable lighter bags that still pass the real tests: filling line speed, transport abuse, retail humidity.
Data reinforcement. Sector norms for 5–50 kg classes include meshes around 7×7 to 14×14, tapes in the 400D–1600D band, and fabrics commonly 50–120 GSM. The “lightweight” intent is to work in the lower half of those ranges while still clearing tensile, seam, and drop criteria. Case analysis. A rice brand reduced base fabric from ~95 GSM to ~80 GSM by upgrading bottom construction from single‑fold/single‑stitch to double‑fold/double‑stitch and by adding a 15–20 GSM surface layer—pallet stability was preserved and freight mass improved. Comparative study. Against paper, woven PP resists humidity and puncture more convincingly; against plain PE film, it holds dimensional integrity during long dwell times under stack, enabling taller pallets at similar tare.
For readers seeking category context, one representative starting point is Lightweight Woven Bags, which outlines mainstream PP woven solutions and helps anchor terminology and configurations used below.
What are the features of Lightweight Woven Bags?
The signature attribute of Lightweight Woven Bags is strength‑to‑weight efficiency. That efficiency emerges from oriented tapes that behave like tiny load‑bearing beams. In polymer physics terms, stretching PP/PE past the yield point aligns crystalline lamellae, raising tensile strength while narrowing elongation variance. In operations language, it means a brand can shed grams without surrendering performance. Horizontally, this mirrors trends in automotive lightweighting—swap solid mass for oriented structures; vertically, it cascades from yarn selection to loom settings to seam design.
Data reinforcement. Light‑duty builds often use 50–100 GSM fabrics paired with 8×8 to 12×12 meshes and ~400D–1200D deniers. Case analysis. A fertilizer customer faced seam failures when bags were jerked during forklift turns. Holding GSM constant but tightening weft from roughly 8 to 10 picks per inch and refining stitch pitch removed the failure mode because force paths were re‑distributed from seam threads into the fabric lattice. Comparative study. For equal payloads, modern lightweight constructions can trim tare by approximately 10–25% relative to legacy heavy fabrics by trading denier for mesh density and optimizing draw ratios—less mass, same drop passes.
Another hallmark feature is the modified surface. Lightweight Woven Bags accept two mainstream treatments: PP coating (a thin molten polyolefin layer) and BOPP lamination (a printable bi‑axially oriented film). Coatings seal pinholes, suppress sifting, and provide a modest moisture barrier; laminations unlock photo‑grade graphics and scuff resistance. The contrast is instructive: coating is a pragmatic shield; lamination is both shield and billboard. Horizontally, this echoes barrier engineering in flexible pouches (think PE film plus EVOH), where function and print live together; vertically, it links substrate roughness, ink anchorage, and abrasion metrics to retail outcomes.
Data reinforcement. Coating weights around 15–30 GSM are common; BOPP layers around 10–45 GSM cover matte‑to‑gloss visual targets, printable in multiple colors via gravure or high‑line‑screen flexo. Case analysis. A pet‑food brand experiencing “whitening” from abrasion switched from coated fabric to matte BOPP; complaint rates fell and shelf readability improved, while drop results held steady because the structural fabric—and seam logic—were unchanged. Comparative study. Laminated Lightweight Woven Bags shrug off wet markets in a way paper cannot, yet maintain the truss‑like load behavior that plain film cannot match.
Seam engineering and geometry complete the feature set. The bottom fold (single or double) and stitch count route stresses; the top finish (heat‑cut, hemmed, or valve) governs filling efficiency and closure options. For free‑flowing granules, open‑mouth formats suit manual or semi‑auto lines; for powders, valve bags accelerate dosing and reduce dust. Horizontal thinking compares this to textile seam science—bias, edge fray, stitch density—while vertical thinking connects fold selection to measured edge‑tear strength and to real‑world events like pallet corner drops.
Data reinforcement. Widths around 27–75 cm tune to filler tooling and pallet footprints. Case analysis. Switching a corn‑feed SKU from single‑fold to double‑fold bottoms increased edge strength by more than 20% without altering GSM, because the neutral axis migrated away from the cut edge. Comparative study. Valve designs quicken cycle time on powder lines while open‑mouth designs keep changeovers simpler for granular goods.
Finally, compliance and hygiene—often underappreciated—are essential features. Lightweight Woven Bags for food contact rely on virgin resins and inks/adhesives that meet migration criteria; UV‑stabilized yarns protect tensile retention in outdoor exposure. Horizontal links span regulatory science and materials engineering; vertical depth runs from supplier declarations to lot‑traceable QA to accelerated aging.
Data reinforcement. Food‑contact builds map to relevant GB/ISO frameworks; UV masterbatch selections are verified via tensile retention after weathering. Case analysis. Coastal distribution often brings high UV and salt spray; switching to matte film with UV‑stabilized tapes curbed photo‑degradation and glare, maintaining acceptance values under accelerated tests. Comparative study. Paper may compost; woven PP endures humidity and puncture.
What is the production process of Lightweight Woven Bags?

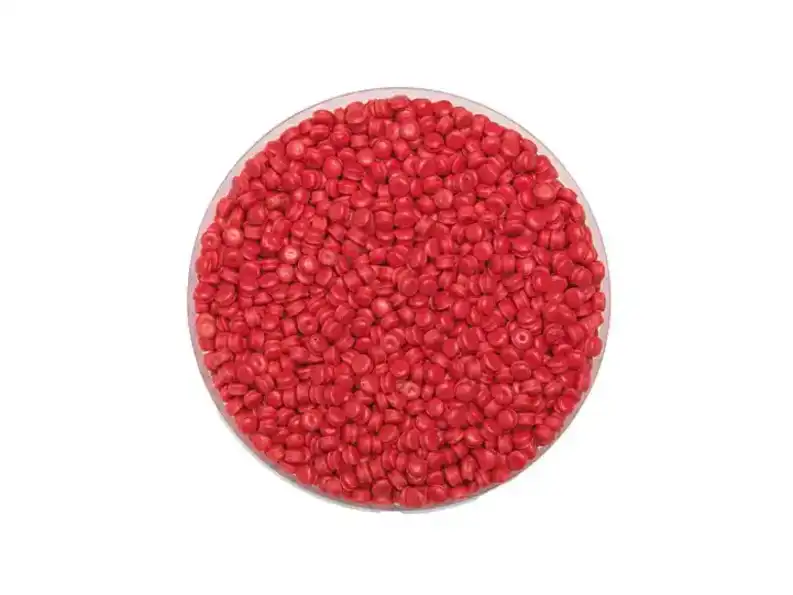

Production begins with resin and compounding. Pellets of PP or PE—optionally dosed with UV masterbatch, anti‑slip, colorants—define the chemical and mechanical starting point. In extrusion and orientation, molten resin becomes a film, then narrow tapes, then highly oriented load carriers; denier and draw ratio lock in tensile/elongation trade‑offs. Weaving on circular or flat looms produces the fabric; the loom program determines mesh density, which in turn influences stiffness, air permeability, and ink laydown behavior. Surface engineering follows: either a PP coating is applied to seal the weave, or a BOPP film is laminated to deliver barrier and print latitude. Converting operations cut, print, form, and close bags into open‑mouth or valve formats, with single‑ or double‑fold bottoms stitched according to edge‑strength targets.
Quality assurance closes the loop. Lightweight Woven Bags are tested for tensile (warp/weft), seam strength, and drop performance at specified fill quantities and drop heights. Food‑contact versions undergo migration testing; outdoor SKUs face UV‑aging and tensile‑retention checks. Lot coding ensures traceability—because when a pallet fails in the field, root‑cause analysis should trace back to loom settings, not guesswork.
Data reinforcement. Lightweight ambitions do not excuse poor QA; they demand sharper control—consistent drop passes on 25–50 kg fills while dialing fabric GSM downwards. Case analysis. Adding in‑line vision to spot broken picks reduced defect escapes and enabled safe mesh light‑weighting. Comparative study. Laminated lines deliver barrier and graphics in a single composite; coated lines offer a simpler, lower‑CAPEX path for commodity SKUs.
What is the application of Lightweight Woven Bags?
Applications span agriculture (rice, grains, seed, feed), building materials (cement, sand), chemical products (resins, additives), and staple foods such as flour and sugar. The winning pattern is consistent: where humidity threatens paper and rough handling punishes film, Lightweight Woven Bags protect product, hold stack shape, and display brand artwork with clarity. Horizontally, think of them as the midpoint between fibrous papers and continuous films; vertically, map the value chain—filling line efficiency, transport shock, retail climate, consumer handling.
Data reinforcement. The 5–50 kg payload class dominates across these sectors. Base fabrics in the ~50–100 GSM range, paired with suitable coatings or laminations, usually suffice for dry flowables when seam designs are tuned to drop orientations. Case analysis. In a sugar plant, shifting from uncoated fabric to a ~20 GSM coated build at the same base GSM materially reduced sifting losses, with immediate housekeeping and yield benefits. Comparative study. On export routes with humid legs, pallets constructed with Lightweight Woven Bags are measurably more stable than equivalent paper‑sack pallets at equal payload and footprint.
What are the application scenarios of Lightweight Woven Bags?
Scenario planning clarifies fit. Open‑mouth, sewn‑bottom formats suit grains and feed when manual or semi‑automatic closing is prevalent—they are forgiving, economical, and serviceable. Valve designs, by contrast, shine on powder lines that prize speed and cleanliness; de‑aeration is more efficient, dusting is contained. Where retail presentation matters—pet food, specialty flours—BOPP‑laminated Lightweight Woven Bags provide billboard‑quality graphics and rub resistance that survive shelf life and consumer handling. For seeds and agri‑inputs stored outdoors, UV‑stabilized constructions defend tensile properties under sunlight, postponing embrittlement and keeping stacks safe.
Data reinforcement. Widths from roughly 27 to 75 cm interface cleanly with common filler spouts and standard pallet layouts; valve geometries reduce dusting and improve cycle time. Case analysis. A cement producer moving from open‑mouth to valve bags cut filling time by ~12% and achieved cleaner floors—evidence that geometry is not an afterthought but a throughput lever. Comparative study. If the application tips into the one‑tonne realm, FIBCs become appropriate; within 5–50 kg, Lightweight Woven Bags remain the economical sweet spot.
Certification, Standards & Compliance (spec numbers for buyers)
Compliance is not paperwork; it is a design constraint and a risk shield. Lightweight Woven Bags targeted at general industrial goods align with mechanical and build requirements in national frameworks for plastic woven sacks, while composite variants reference the paired composite standards. Drop testing follows the ISO methodology for filled sacks, ensuring that a lab schedule correlates with field realities like edge‑first and flat‑face impacts. Food‑contact versions adhere to the applicable plastics, inks, and general safety standards in the GB framework; the chemistry of resins, primers, inks, and adhesives is therefore not a brand flourish but a legal boundary. For woven sacks specifically intended for foodstuffs, the ISO document on PP sacks for bulk packaging helps harmonize properties and test conditions. UV performance, relevant for outdoor storage, is validated through tensile‑retention protocols that mirror PP fabric guidance: exposure, measure, compare, and only then approve. The upshot: when a buyer writes a PO, the standards are not footnotes; they are the spec itself.
Quick Spec Table — Lightweight Woven Bags
| Parameter | Typical Options / Range | Notes |
|---|---|---|
| Material | 100% virgin PP (optionally PE blend) | Food‑contact builds pair virgin resin with compliant inks/adhesives |
| Fabric GSM | 50–100 GSM (lightweight); broader 40–140 GSM available | Balance strength/weight per payload & drop targets |
| Denier (tapes) | ~400D–1600D | Higher denier raises tensile at a given mesh |
| Mesh | ~7×7–14×14 | Tighter meshes reduce sifting and improve ink laydown |
| Surface | PP coating ≈15–30 GSM; BOPP lamination ≈10–45 GSM (matte/gloss) | Coating for moisture/sifting; BOPP for print & abrasion |
| Width × Length | ~27–75 cm width; length to spec | Match filler hardware and pallet footprint |
| Loading capacity | 5–50 kg class | Verify with seam & drop tests at fill density |
| Printing | Flexo/gravure up to ~6–7 colors | Matte/gloss BOPP elevates shelf impact |
| Top/Bottom | Heat‑cut/hemmed/open‑mouth/valve; single/double‑fold bottoms | Geometry strongly influences edge strength |
| Additives | UV masterbatch where sun exposure occurs | Target tensile retention after UV aging |
| Standards | GB/T 8946, GB/T 8947, ISO 7965 series, ISO 23560; GB 4806 family for food contact | Include in PO and QC plans |
How to compose a “lightweight without risk” spec (integrated solution)
Begin with the payload and its environment. What is the mass, the particle size distribution, the bulk density, the humidity profile along the route? Lightweight Woven Bags thrive when the problem is framed precisely. Choose a base fabric that fits the mechanics—say, 80–90 GSM with a 10×10 mesh and ~800–1000D tapes for 25–50 kg granular goods—because structure, not guesswork, should carry the load. Select a surface that matches the failure mode you fear most: a ~20 GSM PP coating if sifting and splash are the issues; a ~20–30 GSM BOPP lamination if abrasion and brand graphics define success. Engineer a bottom that will not betray the stack; double‑fold/double‑stitch configurations lift edge strength and improve drop pass rates. Decide on the top with the line in mind: valve for powders that need speed and low dust; open‑mouth for grains where simplicity and re‑close options matter. Lock compliance early: food‑contact SKUs use documented GB 4806‑series materials and inks and retain certificates; outdoor‑dwell SKUs specify UV‑stabilized tapes and verify tensile retention after exposure. Validate with discipline: tensile, seam, and drop tests aligned to acceptance plans, plus accelerated UV where applicable.
In short, the integrated logic of Lightweight Woven Bags is not a slogan: specify the lattice, tune the skin, architect the seam, secure the paperwork, then prove it in tests that mimic the real world. That is how lighter becomes safer, leaner becomes stronger, and packaging becomes performance rather than mere containment.
In the packaging industry, the quest for efficiency and performance is never-ending. Lightweight Woven Bags have emerged as a popular choice for many applications due to their balance of strength, flexibility, and cost-effectiveness. At VidePak, we have embraced the challenge of enhancing these properties through the use of modified materials, ensuring that our Lightweight Woven PP Bags offer superior performance while meeting industry standards.
The Benefits of Lightweight Woven Bags
Lightweight Woven Bags are designed to provide a robust and versatile packaging solution without the bulkiness of traditional options. These bags are primarily used for packaging products such as grains, chemicals, and fertilizers. Their lightweight nature translates into lower shipping costs and reduced environmental impact, making them a sustainable choice for businesses looking to optimize their logistics and reduce their carbon footprint.
- Strength-to-Weight Ratio: Despite their lightweight construction, these bags are engineered to handle substantial loads. The strength-to-weight ratio of Lightweight Woven Bags is achieved through advanced manufacturing techniques and the selection of high-quality polypropylene fibers. This ensures that the bags can withstand the rigors of transportation and handling while remaining cost-effective.
- Flexibility and Versatility: Lightweight Woven Sacks are known for their flexibility, which allows them to be easily filled, stacked, and transported. This flexibility is essential for industries that require efficient packaging solutions that can adapt to various products and packaging lines. Additionally, the bags can be customized with different features such as liners, closures, and printing, making them suitable for a wide range of applications.
- Cost-Effectiveness: By using less material without compromising on strength, Lightweight PP Bags offer significant cost savings. This not only reduces the overall cost of packaging but also contributes to a more sustainable approach by minimizing the use of raw materials.
Enhancing Performance through Modified Materials
At VidePak, we are committed to pushing the boundaries of what lightweight woven bags can achieve. This commitment is reflected in our use of modified materials and additive formulations that enhance the performance of our products. The incorporation of advanced additives and modifiers ensures that our Lightweight Woven Bags offer exceptional strength, flexibility, and durability.
- Modified Polypropylene: The core material used in our lightweight woven bags is polypropylene, a thermoplastic polymer known for its strength and durability. To enhance its performance, we use modified polypropylene formulations that improve the material’s tensile strength, impact resistance, and flexibility. These modifications allow the bags to maintain their integrity under various conditions, including heavy loads and rough handling.
- Additive Formulations: The performance of Lightweight Woven Sacks is further enhanced through the use of specialized additives. These additives include stabilizers, plasticizers, and fillers that are carefully selected and formulated to meet industry standards. For example, UV stabilizers are added to protect the bags from degradation due to exposure to sunlight, while impact modifiers improve the material’s resistance to cracking and breaking.
- Compliance with Standards: Ensuring that our additive formulations comply with industry standards is a critical aspect of our manufacturing process. We adhere to rigorous quality control measures to verify that all additives used in our Lightweight PP Bags meet regulatory requirements and do not compromise the safety or performance of the bags. This commitment to quality ensures that our products are reliable and effective for various applications.
The Role of Technology in Production
The production of high-quality Lightweight Woven Bags involves sophisticated technology and processes. At VidePak, we utilize state-of-the-art machinery and techniques to produce bags that meet our exacting standards.
- Advanced Weaving Technology: Our weaving machines are equipped with the latest technology to produce fabrics with consistent quality and performance. The precision of our weaving technology ensures that the bags have uniform strength and flexibility, which is essential for reliable packaging.
- Automated Manufacturing Processes: Automation plays a crucial role in our manufacturing processes, allowing us to achieve high production rates while maintaining strict quality control. Automated systems handle various stages of production, including weaving, coating, and finishing, ensuring that each bag meets our specifications.
- Quality Control and Testing: Rigorous quality control procedures are implemented throughout the production process to ensure that our Lightweight Woven Bags meet the highest standards. This includes testing for tensile strength, tear resistance, and flexibility, as well as inspections to ensure that the bags are free from defects.
VidePak’s Commitment to Innovation and Sustainability
VidePak is dedicated to leading the industry in both innovation and sustainability. Our approach to producing Lightweight Woven Bags reflects our commitment to these values, as we continuously seek ways to improve our products and reduce our environmental impact.
- Research and Development: Our R&D team is constantly exploring new materials and technologies to enhance the performance of our bags. By investing in research and development, we are able to introduce innovative solutions that meet the evolving needs of our clients and the industry.
- Sustainable Practices: Sustainability is at the core of our operations. We strive to minimize our environmental footprint by using recyclable materials, reducing waste, and optimizing energy consumption. Our lightweight woven bags are designed to be eco-friendly, with a focus on reducing material usage and promoting recycling.
- Ethical Manufacturing: We are committed to ethical manufacturing practices, including fair labor practices and responsible sourcing of materials. Our production facilities adhere to high standards of safety and fairness, ensuring that our workers are treated with respect and dignity.
- Customer-Centric Approach: At VidePak, we prioritize our clients’ needs and work closely with them to develop customized packaging solutions. Whether it’s adapting our Lightweight Woven Sacks for specific applications or incorporating unique features, we are dedicated to providing products that deliver exceptional value and performance.
Global Reach and Industry Impact
VidePak’s Lightweight PP Bags are used by industries around the world, reflecting our global presence and influence. Our commitment to quality and innovation has made us a trusted partner for businesses seeking reliable and efficient packaging solutions.
- International Standards: Our products are designed to meet international standards and regulations, ensuring that they are suitable for global markets. We work closely with our clients to understand their requirements and provide solutions that align with their needs and industry standards.
- Expanding Market Presence: As we continue to expand our market presence, we remain focused on delivering products that exceed expectations. Our lightweight woven bags are well-regarded for their performance, and our dedication to innovation and sustainability sets us apart in the industry.
- Long-Term Partnerships: We value long-term relationships with our clients and strive to build partnerships based on trust, quality, and mutual success. By consistently delivering high-quality products and exceptional service, we aim to be the preferred choice for businesses seeking reliable and efficient packaging solutions.
In summary, Lightweight Woven Bags from VidePak represent the perfect balance of strength, flexibility, and cost-effectiveness. Through the use of modified materials and advanced manufacturing technologies, we ensure that our products meet the highest standards of performance and quality. Our commitment to innovation, sustainability, and ethical practices underscores our dedication to providing packaging solutions that are both reliable and responsible.
