What is Poly-BOPP Bags? Also Known As…
In packaging, a bag is seldom just a bag; it is a micro‑system of physics, chemistry, and brand theater. Poly‑BOPP Bags—laminated constructions marrying a PP‑woven base to a printed BOPP skin—translate that system into day‑to‑day reliability on the line and day‑long appeal on the shelf. The woven substrate carries the mechanical load with low elongation and high tensile stability, while the biaxially oriented film closes inter‑yarn pores and protects graphics from the rough‑and‑tumble of conveyors. Catalogs call them many things—BOPP‑laminated woven sacks, PP woven laminated bags, laminated polypropylene woven bags, PP sacks with BOPP film. The intent is singular: containment that advertises.
Ask why Poly‑BOPP Bags have become the default where powder control meets retail polish. Because they sit at the junction of three imperatives: contain granular or powdered contents without sifting; convey brand stories without scuff; comply with hygiene and food‑contact frameworks without drama. One format, three jobs. As a quick category reference and configuration menu, see Poly‑BOPP Bags.
Horizontally, the format borrows from textile mechanics (tape denier, weave density), barrier science (lamination thickness, optional liners), and print engineering (reverse gravure or high‑line flexo). Vertically, the reasoning climbs from resin → tape → fabric GSM → laminate thickness → seam/closure → pallet dynamics. Break one link—say, a hungry adhesive coat weight—and the symptom appears three stations later as skewed stacks or rub‑off returns.
What is the features of Poly-BOPP Bags?
Features matter only insofar as they neutralize real‑world failure modes: sifting fines, smudged artwork, humidity‑softened walls, and lines that slow to keep housekeeping under control. Poly‑BOPP Bags counter these with an interlocking trio—materials & barrier, structure & seams, and brandability & handling—whose value compounds when specified together.
1) Materials & Barrier Stack
Core build. PP‑woven fabric typically in 60–120 g/m² GSM with 10×10 to 14×14 (EPI×PPI) weave densities is laminated to BOPP film around 18–35 μm. The film is usually reverse‑printed so inks live under the film, not on it. Where moisture or aroma matters, LDPE/HDPE inner liners (25–80 μm) add vapor control. UV stabilizers can be compounded for yard storage; outer CoF is tuned—matte or gloss—to balance conveyor slide and pallet grip.
Data reinforcement. Public listings across major trading platforms cluster around 5–50 kg fill capacities, 6–8 colors of print, optional micro‑perforation for de‑aeration, and stated dimensional tolerances near ±5 mm—signals that these are field norms, not experiments.
Case analysis. A regional spice brand migrated from uncoated PP sacks to Poly‑BOPP Bags with 30 μm BOPP and a 50 μm PE liner. Aromatic loss during port dwell fell below sensory thresholds; line sweep time dropped, and returns due to label scuffing nearly disappeared.
Comparative study. Against multi‑wall kraft paper bags, the laminated woven build resists humidity and edge tears at similar basis weight; against mono‑layer PE film sacks, the woven core’s low elongation improves drop performance and pallet stability while the BOPP restores barrier lost by weave porosity.
2) Structural Design & Seams
Core geometry. Open‑mouth or valve‑top; flat or side‑gusseted profiles for stand‑ability; bottoms closed by double‑chain stitch with folded hem, heat‑sealed pinch (where the laminate is sealable), or ultrasonic seams for the most dust‑sensitive powders. De‑aeration is handled by engineered micro‑perfs positioned away from the product layer, or by valve‑top venting on rapid‑fill lines.
Data reinforcement. Stitch density, thread tex, and hem fold width set seam pull‑out performance; ultrasonic and heat seals remove needle‑hole channels entirely—critical for fines such as TiO₂, cement additives, or carbon black. Many converters quote width/length tolerances around ±5 mm, which is tight enough to keep pallet footprints repeatable.
Case analysis. After switching to valve‑top Poly‑BOPP Bags with ultrasonic bottoms, a mortar‑admixture packer reported double‑digit reductions in airborne dust at the HMI and held the same cycle times—evidence that sealing energy is not a cosmetic choice but a leak‑path decision.
Comparative study. Sewn bottoms are forgiving and inexpensive but create microneedle perforations; heat/ultrasonic closures demand more setup discipline but pay for themselves where net‑weight accuracy and housekeeping are KPI’d. Coarse granules tolerate sewn+liner builds well; ultra‑fine powders do not.
3) Brandability, Friction & Handling
Core. Reverse‑printed BOPP produces photo‑grade surfaces, keeps inks behind a protective film, and tolerates long conveyor journeys. Outer CoF can be dialed in—matte for pallet grip, gloss for carton slide—and selective varnish can create contrast zones that guide the eye to a logo or claim. Anti‑slip lacquers and corner guards suppress transit rub.
Data reinforcement. Brand owners routinely report fewer scuff complaints and more consistent shelf presence with reverse‑printed film compared to surface‑printed paper; warehouses report steadier pallet stacks when outer CoF is tuned to stretch‑wrap recipes.
Case analysis. A premium pet‑nutrition line adopted matte BOPP with spot‑gloss overprints. Post‑launch store checks showed higher legibility at three meters and fewer abrasion defects after mixed‑mode distribution.
Comparative study. Paper graphics read warm and tactile but rub more easily; BOPP gloss reads crisp and durable but can slip if CoF is ignored. Poly‑BOPP Bags let you pick the balance, not accept a compromise.
Synthesis. To get “leak‑tight + brand‑bright,” combine: woven PP base → reverse‑printed BOPP laminate → closure tuned to powder behavior → optional liner → QA sampling over drop, seam, and burst.
What is the production process of Poly-BOPP Bags?
Reliability is designed upstream and confirmed downstream. From pellet to pallet, each station either damps variation or amplifies it.

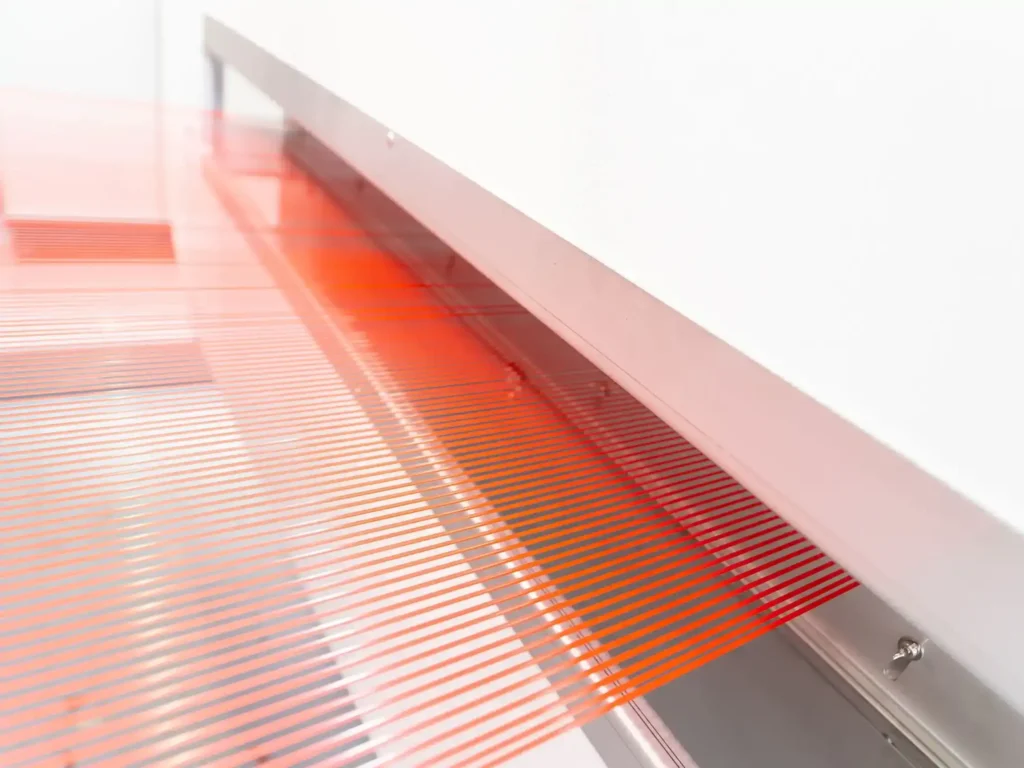

- Tape extrusion & stretching. PP resin with masterbatch is extruded, slit, drawn, and annealed into oriented tapes. Denier control sets tensile behavior and weave efficiency.
- Weaving. Circular or flat looms produce fabric where pick density uniformity governs seam pull‑out resistance and tear propagation.
- Printing. BOPP film is corona‑treated and reverse‑printed—often 6–8 colors—using low‑migration ink systems on food‑adjacent SKUs. Registration and dot‑gain control preserve fine halftones.
- Lamination. Extrusion or adhesive lamination bonds BOPP (18–35 μm) to the woven base. Adhesive coat‑weight discipline prevents channeling and keeps the film skin continuous under flex.
- Forming & cutting. Heat‑cutting reduces fray; gussets are formed; valve sleeves, if required, are positioned for clean spout engagement.
- Seaming/Sealing. Double‑chain stitching, heat‑seal pinch, or ultrasonic bonding are selected based on leakproof targets and line speeds. Micro‑perfs or vent channels are added where the filling system needs controlled air release.
- Quality assurance. Fabric tensile, seam pull tests, drop testing, CoF measurement, and dimensional audits are routine; food‑contact claims pull in FDA 21 CFR 177.1520 and EU 10/2011 migration testing; hygiene systems align with BRCGS; overarching discipline sits under ISO 9001/14001.
- Palletization. Compression wrap, corner protection, and labeled traceability (lot/shift/date) ready the unit load for travel and audits.
Horizontal/vertical insights. Horizontally, the flow borrows tension and registration discipline from web converting and heat‑transfer know‑how from film science. Vertically, small drifts—adhesive coat‑weight, tape denier, perf density—show up downstream as fill speed changes, dust behavior, or pallet lean. Control here is cheaper than correction later.
What is the application of Poly-BOPP Bags?
Primary use cases
- Food & pet nutrition — rice, sugar, pulses, flour, kibble; reverse‑printed surfaces withstand carton rub; liners guard aroma and moisture.
- Fertilizers & agrochemicals — UV‑stabilized exteriors resist yard exposure; micro‑perfs plus valve tops keep packers quick and dust‑managed.
- Construction powders — cement, gypsum, mortar additives; sealed bottoms and tuned venting maintain speed without housekeeping spikes.
- Seeds & grains — gusseted forms improve shelf stability; matte outer CoF enhances pallet grip in tall stacks.
- Specialty chemicals & pigments — ultrasonic seams minimize stitch‑line leaks with ultra‑fines; anti‑slip lacquers protect stacks in mixed freight.
Data reinforcement. Category listings coalesce around 5–50 kg capacities; reverse‑printed films sustain high‑fidelity branding through long distribution legs without label peel or ink transfer.
Case analysis. In coastal humidity, a fertilizer blender moved to Poly‑BOPP Bags with a 40 μm liner. Caking claims fell, warehouse sweep‑loss logs improved, and pick accuracy rose after artwork upgrades simplified SKU recognition.
Comparative study. Versus kraft multi‑wall, laminated woven builds maintain wet strength and resist vermin damage; versus PE film, they yield superior drop resilience and more durable print, at similar or lower total system cost when housekeeping is counted.
What is the application landscape of Poly-BOPP Bags? (Procurement & Operations View)
Filling lines. Match open‑mouth or valve‑top to spout geometry and to the powder’s de‑aeration profile. Where fines <75 μm dominate, prefer sealed bottoms or add liners; align micro‑perf density with the packer’s air management so speed rises without dust.
Logistics. Choose outer CoF deliberately: lower for carton slide, higher for pallet grip. Use gussets to improve cube and corner guards to resist rub. For 25‑kg formats, align base and height with pallet patterns like 5×8 or 6×7 on 1,100×1,100‑mm skids to stabilize stacks.
Regulatory. Declare food‑contact where relevant under FDA 21 CFR 177.1520 and EU 10/2011; maintain hygiene and system certificates (BRCGS, ISO 9001/14001). For EU lanes, keep REACH SVHC statements on inks and adhesives current.
System view. Packaging is a node among many—dust collection, conveyor wear, climate control. Well‑specified Poly‑BOPP Bags lower the burden everywhere else by containing fines, preserving cube, and resisting scuff.
Key Specifications & Compliance Matrix (Typical, Field‑Verified Ranges)
Note: Ranges reflect common converter data; finalize against your product’s bulk density, humidity profile, and filler model.
| Parameter | Typical Options / Ranges | Technical Notes |
|---|---|---|
| Capacity | 5–50 kg | Align to density & pallet pattern |
| Fabric GSM | 60–120 g/m² | Higher GSM → greater tear & seam strength |
| Weave density | 10×10 to 14×14 (EPI×PPI) | Governs strength & sifting resistance |
| BOPP thickness | 18–35 μm | Reverse‑print for rub resistance |
| Liner | LDPE/HDPE 25–80 μm | Moisture & odor control |
| Closure | Double‑chain stitch / heat‑seal pinch / ultrasonic | Sealing choice drives leakproofness |
| Printing | Flexo/gravure up to 6–8 colors | Photo‑grade graphics under film |
| Outer CoF | 0.30–0.45 | Balance conveyor slide vs. pallet grip |
| UV stabilization | Optional 200–500 h | Yard storage resilience |
| Width × Length | 300–600 mm × 400–1,100 mm (typical) | Dimensional tolerance ~±5 mm |
| Compliance | GB/T 8946‑2013, GB/T 8947‑2013, FDA 21 CFR 177.1520, EU 10/2011, ISO 9001/14001, BRCGS, REACH | Provide DoC & lot traceability |
Integrated Solution Architecture (From Sub‑Arguments to a Whole)
Problem framing. Buyers don’t purchase film and fabric; they purchase clean fills, consistent pallets, and brand equity that survives transport. Treat Poly‑BOPP Bags as an engineered subsystem rather than a decorative wrapper.
Subsystem synthesis.
- Material stack (woven PP + BOPP + optional liner) sets barrier and mechanical baselines.
- Seam/closure technology (stitched vs. heat/ultrasonic) closes the leak paths your SKU prefers.
- Print & surface tuning (reverse print, matte/gloss CoF) preserves graphics and pallet stability.
- QA & compliance (GB/T 8946/8947, FDA/EU, ISO 9001/14001, BRCGS, REACH) converts production runs into audit‑ready records.
- Operations fit (top format, venting, pallet pattern) keeps throughput high without housekeeping penalties.
Outcome. Specify these levers as one recipe and Poly‑BOPP Bags turn bag‑level precision into system‑level efficiency—fewer leaks, faster cycles, sharper shelves—exactly the trifecta modern supply chains reward.
Poly-BOPP Bags, also known as Poly-BOPP sacks or BOPP Woven Bags, have become an essential packaging solution across various industries. These bags combine the strength and durability of woven polypropylene with the excellent printability and moisture resistance of Biaxially Oriented Polypropylene (BOPP) film. At VidePak, we understand that the needs of different markets vary significantly, and that’s why we offer a wide range of customization options for our Poly-BOPP Bags. By providing tailored solutions, we ensure that our bags not only meet but exceed the specific requirements of our clients, whether they are in the agricultural, chemical, or retail sectors.
The Versatility of Poly-BOPP Bags
Poly-BOPP Bags are renowned for their versatility and superior performance. The combination of woven PP fabric and laminated BOPP film creates a packaging material that is both strong and visually appealing. The BOPP layer allows for high-quality printing, making these bags ideal for branding and marketing purposes. Additionally, the laminated surface provides excellent moisture resistance, making Poly-BOPP Bags a preferred choice for products that need protection from the elements, such as fertilizers, animal feed, and grains.
At VidePak, we specialize in producing Laminated Woven Bags that are tailored to the specific needs of our clients. Our Poly-BOPP Bags are available in a range of sizes and designs, and we offer a variety of customization options to ensure that each bag meets the unique demands of its intended market. Below, we explore some of the key customization features that VidePak offers to enhance the functionality and appeal of our Poly-BOPP Bags.
Custom Valve Openings for Enhanced Efficiency
One of the most requested customization options for Poly-BOPP Bags is the addition of a custom valve opening. Valve bags are particularly useful for industries that require efficient and dust-free filling of products like cement, flour, or chemicals. The valve allows for easy filling without the need for additional sealing, as the weight of the contents automatically seals the bag. This feature not only improves the efficiency of the packaging process but also minimizes product loss and contamination.
VidePak’s custom valve openings can be tailored to the specific requirements of the product being packaged. We offer various types of valves, including internal and external options, and we can adjust the size and placement of the valve to ensure optimal performance. Whether the product needs to be filled manually or using automated machinery, our custom valve Poly-BOPP Bags provide a reliable and efficient packaging solution.
Custom Handles for Easy Handling
For products that are frequently moved or handled by end-users, custom handles are an essential feature. Poly-BOPP Bags with custom handles offer improved convenience and usability, making them ideal for retail environments or products that are sold directly to consumers. Handles can be added to the top, sides, or even the bottom of the bag, depending on the intended use and the weight of the contents.
VidePak provides a variety of handle designs, including loop handles, die-cut handles, and reinforced handles for heavier loads. Our custom handle options are designed to enhance the user experience by making the bags easier to carry and manage. For example, loop handles can be sewn into the bag’s seams for added strength, while die-cut handles can be integrated into the bag’s design for a sleek, low-profile appearance. By offering multiple handle options, we ensure that our Poly-BOPP Bags are not only functional but also user-friendly.
Custom Openings and Closures for Flexibility
Another important customization option is the type of opening or closure used in the Poly-BOPP Bag. Depending on the product and the industry, different types of openings may be required to ensure ease of use and product safety. VidePak offers a range of custom openings and closures, including zip-lock closures, heat-sealed openings, and open-mouth designs that can be easily sewn or sealed after filling.
For example, products that require frequent access, such as animal feed or garden products, may benefit from a zip-lock closure that allows the bag to be resealed after each use. On the other hand, products that are shipped in bulk may require an open-mouth design that can be quickly sealed using a sewing machine. By offering a variety of custom openings and closures, we provide our clients with the flexibility to choose the solution that best fits their operational needs.
Custom Shapes and Sizes for Optimal Fit
The size and shape of Poly-BOPP Bags can be critical factors in ensuring that the packaging is both efficient and effective. VidePak offers extensive customization in terms of bag dimensions, allowing clients to specify the exact size and shape that best suits their products. Whether the need is for a compact, square-bottom bag that maximizes shelf space or a large, flat bag for easy stacking, we can produce Poly-BOPP Bags that fit the bill.
Our custom size options are particularly valuable for products that need to fit into specific storage or shipping configurations. For example, agricultural products that are stacked in storage may benefit from square-bottom bags that provide stability and prevent shifting. Alternatively, products that are shipped in pallets may require custom-sized bags that maximize the use of pallet space. By tailoring the size and shape of our Poly-BOPP Bags, we help our clients optimize their logistics and reduce shipping costs.
Custom Thickness for Durability
The thickness of the material used in Poly-BOPP Bags plays a significant role in determining the bag’s strength and durability. Different products require different levels of protection, and at VidePak, we offer customization of material thickness to meet these varying needs. Thicker bags provide greater resistance to punctures and tears, making them ideal for heavy or abrasive materials, while thinner bags offer cost savings and flexibility for lighter products.
Our clients can choose from a range of thickness options, depending on the specific requirements of their products. For example, a client in the construction industry might need extra-thick bags to hold sharp or heavy materials, while a client in the retail sector might prefer thinner bags that are easier to handle and store. By offering custom thickness options, VidePak ensures that our Poly-BOPP Bags provide the right balance of strength and cost-effectiveness.
Custom Printing for Branding and Marketing
One of the standout features of Poly-BOPP Bags is their excellent printability, which allows for high-quality, multi-color printing directly on the bag’s surface. This capability is ideal for branding and marketing purposes, as it allows companies to showcase their logos, product information, and promotional messages in a visually appealing manner. VidePak offers a wide range of custom printing options, from simple one-color logos to complex, full-color designs that cover the entire bag.
Our advanced printing technology ensures that the colors are vibrant and long-lasting, even in challenging environmental conditions. Whether the bags are exposed to sunlight, moisture, or rough handling, the printed designs remain clear and attractive. This makes custom-printed Poly-BOPP Bags an excellent choice for companies looking to enhance their brand visibility and appeal to consumers. Additionally, the ability to customize the design of the bags allows our clients to differentiate their products in competitive markets, creating a unique and memorable brand presence.
VidePak’s Commitment to Quality and Customization
At VidePak, we are dedicated to providing high-quality, customized packaging solutions that meet the specific needs of our clients. Our Poly-BOPP Bags are manufactured using state-of-the-art equipment and the finest materials, ensuring that each bag delivers exceptional performance. We understand that different markets have different requirements, and that’s why we offer a wide range of customization options, from custom valve openings and handles to custom shapes, sizes, thickness, and printing.
Our commitment to quality extends beyond the manufacturing process. We work closely with our clients to understand their unique needs and provide tailored solutions that help them achieve their business goals. Whether our clients need bags that offer superior moisture resistance, enhanced durability, or eye-catching designs, VidePak has the expertise and capability to deliver.
As a leader in the packaging industry, VidePak is proud to offer Poly-BOPP Bags that not only meet but exceed the expectations of our clients. Our comprehensive customization options ensure that each bag is perfectly suited to its intended use, providing reliable performance and enhancing brand value. By choosing VidePak’s Poly-BOPP Bags, businesses can be confident that they are investing in a packaging solution that is both functional and impactful.
