Waterproof Woven Bags: The Advantages in Modern Packaging

What are Waterproof Woven Bags?

Waterproof Woven Bags are engineered flexible packages that merge the tensile strength of oriented polymer textiles with moisture‑blocking interfaces—extrusion coatings, lamination films, or integrated liners—to protect dry goods through rain, condensation, and humidity cycling. In purchasing files and technical standards they are also described as water‑resistant PP woven sacks, laminated woven poly bags, coated woven polypropylene bags, moisture‑proof woven sacks, and weatherable woven bags. The central proposition is deceptively simple yet operationally decisive: keep the rugged, puncture‑tolerant behavior of woven tape fabrics while stopping liquid water ingress and minimizing vapor diffusion so that contents remain dry from fill line to point of use.

What distinguishes Waterproof Woven Bags from ordinary woven sacks is the systematic closure of porosity wherever water looks for a path—in the fabric interstices, along seams, at bottom folds, through valve hardware, and around closures. Typical constructions follow a mono‑polyolefin logic (polypropylene fabric plus polypropylene‑family coatings) for compatibility with #5 recycling streams where available; hybrid stacks (such as BOPP/PP laminates or PE liners) appear when performance, graphics, or line speed justify them. Because modern logistics expose bags to forklift abrasion, pallet rain, chilled rooms, and coastal humidity, the waterproofing function has become a first‑order design lever rather than an aftermarket patch.

The materials of Waterproof Woven Bags

Designing Waterproof Woven Bags is not a game of stacking more layers; it is an exercise in purposeful minimalism. Each chosen material must justify its role, its cost, and its influence on end‑of‑life pathways. The following building blocks carry most of the workload: woven polypropylene fabric as the structural backbone, extrusion coatings that close porosity, lamination films that add billboard‑quality print and hydrophobic skin, optional liners to interrupt seam wicking, and surface physics controls that keep pallets stable when wet. Every choice intertwines with machinability and with the real ingress pathways that dominate whole‑bag performance.

1) Woven polypropylene fabric (structural backbone)

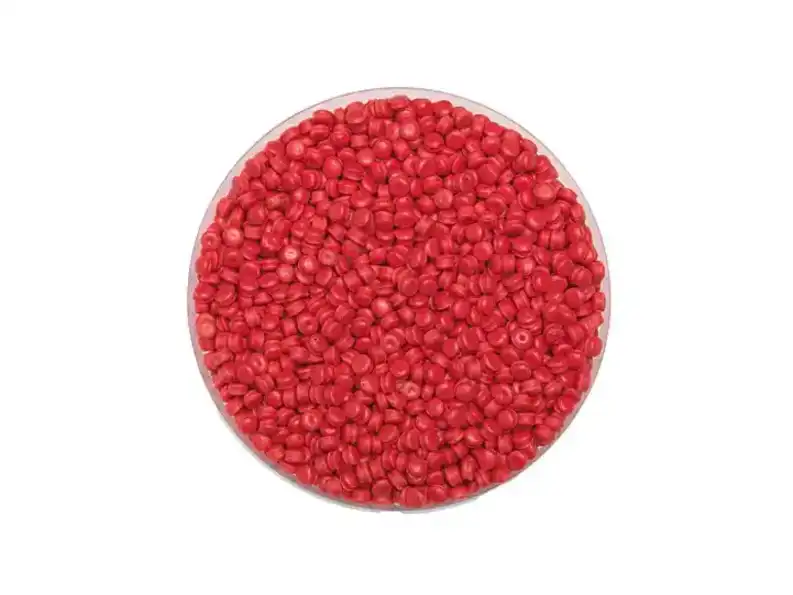

Resin and tapes. Isotactic polypropylene (PP) homopolymer dominates because it pairs low density (~0.90 g/cm³) with high modulus after draw. A sheet is extruded, slit into tapes, and drawn roughly six to eight times to multiply tenacity and creep resistance; tapes are woven on circular or flat looms. Typical basis weights for waterproof builds range 70–120 g/m² for small sacks and 160–240 g/m² for FIBC‑scale formats.

Why it matters. The fabric carries the mechanical load, resists puncture from crystalline or granular contents, and provides a dimensionally stable substrate for coatings or laminates. Balanced MD/TD tensile reduces barrel bulge, which preserves seam geometry under pallet compression and limits bruise‑initiated tears in drop tests.

Cost lever. Fabric GSM is the dominant mass and cost driver. Every 5 g/m² trimmed across millions of units compounds into meaningful savings, but down‑gauging must be tempered by seam‑efficiency thresholds (≥70% of fabric tensile) and corner robustness. In other words: economize, but not at the expense of safety and warranty claims.

2) Extrusion coatings (porosity closure and wet barrier)

Function. Extrusion‑coated polypropylene—or polyethylene where specified—forms a continuous film over the weave, sealing inter‑yarn pores and reducing capillary wicking. Coat weight, often 20–35 μm per side where applied, correlates with bag‑level water vapor transmission (WVTR) uniformity, wet coefficient of friction (COF), and print holdout. Because coatings also smooth the surface topography, they reduce yarn fuzz and dusting, a benefit in food storage and retail backrooms.

Additives. HALS for UV durability, slip/antiblock for machinability, anti‑fog where chilled rooms are expected, and antiblooming packages to preserve surface energy for printing and sealing. Coating is not merely a shell; it is tuned chemistry that mediates both water and line performance.

3) Lamination films (BOPP/CPP/PE) for print and hydrophobic skin

Function. A reverse‑printed BOPP film laminated to the fabric supplies a scuff‑resistant, glossy or matte billboard face that resists rain and splash. Clear or pearlescent BOPP (20–35 μm) is common; cast PP (CPP) or PE skins may be selected when low‑temperature seals are needed on form‑fill‑seal equipment. The lamination step is also where designers decide whether to hide graphics beneath film for long‑haul abrasion resistance or to surface print for short‑run economy.

Trade‑off. Lamination significantly improves appearance and surface waterproofing but can complicate recycling if dissimilar materials or solvent‑based adhesives are used. Polyolefin‑compatible tie layers and solventless systems mitigate those trade‑offs while keeping odors and migration under control for food‑adjacent SKUs.

4) Inner sealant or liner (optional but decisive)

Function. Insert liners—LDPE/LLDPE 25–80 μm or PP‑based coex—address the dominant ingress path in sewn sacks: edge wicking at stitch lines. Cuff‑sealing the liner beneath the stitch interrupts capillary channels, dramatically improving bag‑level moisture performance without thickening the outer faces.

Design cues. Choose PP‑based sealants to keep a mono‑PP narrative for #5 streams; choose PE when lower seal‑initiation temperature and extra toughness dictate. Always specify heat‑seal curves and require peel‑mode verification (cohesive preferred) on coupons welded with the actual packer parameters, not only generic lab curves.

5) Threads, seams, and reinforcements

Seam strategy. Double‑fold chain stitch remains common for open‑mouth sacks; block‑bottom and hot‑air‑welded constructions are used where dust and moisture control are paramount. Bottom‑fold geometry and stitch density govern both seam efficiency and leak risk. Designers should treat the seam as a fluid pathway to be engineered—not as an afterthought to be patched.

6) Surface physics: COF control and anti‑slip

Why it matters. Wet pallets are an everyday failure mode. Silica‑filled anti‑slip micro‑stripes on the outer face raise inter‑bag friction (kinetic COF 0.30–0.40 typical), stabilizing stacks without heavy interleaf. The goal is a tuned corridor: slick enough to travel on conveyors, grippy enough to stand tall on rainy docks.

What are the features of Waterproof Woven Bags?

Waterproof Woven Bags succeed when features translate into measurable results on docks, in warehouses, and at retail. The capabilities below are tied to mechanisms and indicators so they can be managed, not merely admired.

What is the production process of Waterproof Woven Bags?

1. Resin preparation and tape drawing. Extrude PP sheet, slit into tapes, draw ~6–8×. Control width and gauge; brittle splits at this stage seed seam failures downstream.
2. Weaving. Produce tubular or flat fabric at target GSM and pick density with balanced MD/TD tensile to avoid barreling and to preserve laminate flatness.
3. Coating or lamination. Extrusion coat PP/PE (20–35 μm) or laminate printed BOPP; map coat weight across the web; verify adhesion and pinhole thresholds.
4. Printing. Reverse print CMYK/spot with low‑migration systems; add registered matte windows for scanners; verify ΔE color control and rub resistance.
5. Liner integration (if specified). Insert PP/PE liners (25–80 μm) and cuff‑seal beneath the stitch; document heat‑seal curves and peel mode using production parameters.
6. Forming and seaming. Cut to length; fold bottoms (single/double, block‑bottom); stitch or hot‑air weld; integrate valve sleeves or reclosable features where needed.
7. Feature integration. Anti‑slip stripes, tear notches, handles, zippers (for retail), serialization (QR/Datamatrix) tied to process lots and test maps.
8. Quality control. Fabric GSM, seam efficiency, COF (ASTM D1894), WVTR (ASTM F1249) at bag level, film tensile (ASTM D882), dart impact (ASTM D1709), haze/gloss (ASTM D1003/D2457), and filled‑bag drop tests. Maintain Declarations of Compliance where food‑adjacent.

What is the application of Waterproof Woven Bags?

• Food staples and dry bulk ingredients. Rice, sugar, pulses, flours, and salts benefit from laminated faces and liners; matte scanner windows support rapid stock moves.
• Fertilizers and soil amendments. UV‑stable coated fabrics and valve options reduce dust and caking while enduring yard exposure.
• Construction materials. Cement, gypsum, and pigments need puncture resistance plus wet‑season stack stability on open yards.
• Pet food and feed. Scuff‑resistant branding survives warehouse abrasion; reclosable features support back‑room use.
• Retail club formats. Large display sacks with waterproof faces withstand forklift scuffs and occasional outdoor staging.

Systems thinking for “Waterproof Woven Bags: The Advantages in Modern Packaging”

To deliver what the headline promises, we explore five interacting subsystems—Barrier × Seam, Mechanics × Pallet Stability, Hygiene × Line Speed, Information Integrity × Retail Reality, and Stewardship × Policy—and then integrate them into a blueprint. The aim is not merely to list properties, but to connect causes to effects so that changes on the plant floor predict changes in field outcomes.

Subsystem A — Barrier × Seam Architecture

Observation. Film‑level barrier numbers often overpredict bag performance. Mechanism. Seam pathways, fold radii, and low coat‑weight zones dominate ingress. Action. Map WVTR by region; cuff‑seal liners; raise coat weight at fold radii; validate cohesive peel in seals and document seal windows on the actual packer.

Subsystem B — Mechanics × Pallet Stability

Observation. Down‑gauging fabric saves resin but can increase topple risk. Mechanism. Corner bruises and compression creep drive failures, especially in humid seasons. Action. Reinforce bottom folds, raise local GSM at corners before increasing global GSM, tune COF with micro‑stripes, and run dwell compression tests that emulate real routes.

Subsystem C — Hygiene × Line Speed

Observation. Lower SIT sealants widen process windows and reduce rework. Mechanism. Cooler jaws and stronger hot‑tack protect print and seals on high‑throughput lines. Action. Build heat‑seal maps (temperature × dwell × pressure); verify dyne after storage; adopt inline print‑vision for register and barcode checks.

Subsystem D — Information Integrity × Retail Reality

Observation. Scanners fail on glare; paper labels peel in damp air. Mechanism. Gloss‑heavy floods and incompatible adhesives reduce readability. Action. Use reverse print; add matte registers; weld PP labels or serialize under film; run in‑store lighting tests before scale‑up.

Subsystem E — Stewardship × Policy

Observation. Extended producer responsibility regimes penalize mixed materials and vague claims. Mechanism. Mono‑PP designs simplify declarations and mass‑per‑bag reporting. Action. Publish polymer breakdown; avoid incompatible labels; separate clean production scrap from post‑use returns; confirm local #5 acceptance.

Standards, certifications, and test methods (2024–2025)

• Material and food‑contact (where relevant). FDA 21 CFR §177.1520 (olefin polymers); EU Regulation No. 10/2011 with overall migration limit of 10 mg/dm² and specific migration limits as applicable; Good Manufacturing Practice under 21 CFR §174.5 and EU 2023/2006.
• Management systems. ISO 9001:2015 (quality), ISO 14001:2015 (environment), ISO 45001:2018 (OH&S), plus FSSC 22000 v6 where packaging sites also serve food or health sectors.
• Performance/QC methods. ASTM D882 (film tensile), ASTM D1709 (dart impact), ASTM D1894 (COF), ASTM F1249 (WVTR), ASTM D3985 (OTR where relevant), ASTM F88/F88M (seal strength), together with filled‑bag drop and stack protocols that mirror actual routes.

Engineering tables — parameters & details

Design playbook — practical choices & trade‑offs

• Clarity vs. opacity. Use clear or white BOPP with windows for retail visibility; use pearlescent or limited metallization only where light protection is essential, with recycling impacts disclosed.
• Seam strategy. Stitching is robust yet porous; cuff‑seal liners or adopt hot‑air welded bottoms when WVTR and dust control are decisive. Characterize peel modes and leak paths with targeted tests.
• Anti‑slip tuning. Target COF 0.30–0.35; validate under wet and dry conditions. Micro‑stripes typically outperform bulk sprays in consistency and cleanliness.
• UV package sizing. Map outdoor staging dwell and size HALS accordingly; over‑dosing wastes money, under‑dosing invites brittle fabric and faded print.
• Recyclability & simplicity. Favor mono‑PP structures; avoid paper/foil labels; keep inks beneath film; publish mass per bag for EPR.

Field failures — diagnostics & correctives

• Caking despite strong film specs. Likely seam ingress or warm filling and condensation. → Cuff‑seal liners; enforce cool‑down before bagging; map WVTR at seams and fold radii.
• Scuffed graphics. Surface print without protective film. → Reverse print under BOPP; increase varnish hardness; validate rub testing before launch.
• Pallet slump in wet season. Wet COF too low; fabric creep. → Increase anti‑slip density; verify wet COF; modest GSM increase at corners if needed.
• Edge leaks in rain. Incomplete fold sealing. → Raise coat weight at fold radii; hot‑air weld bottom; inspect stitch line for capillarity.
• Barcode misreads. Glare through film. → Matte register; enlarge quiet zones; test under real store lighting and scanner angles.

Worked specifications — editable templates

A reasoned outline of the title’s promise

1. Define the platform: Waterproof Woven Bags merge woven mechanics with moisture‑blocking layers to protect goods in real logistics, not just in lab tests.
2. Derive features from structure: coatings and laminates close pores; liners block seam wicking; tuned COF stabilizes wet pallets; UV packages preserve fabric and print.
3. Map to use cases: food staples, fertilizers, construction materials, pet food, and club formats—each with distinct moisture and handling profiles.
4. Anchor with standards: migration limits for food‑adjacent polymers; ASTM/ISO tests for films, friction, WVTR, seals, and drop/stack performance.
5. Integrate with systems thinking: Barrier × Seam; Mechanics × Pallet; Hygiene × Speed; Information × Retail; Stewardship × Policy.
6. Operationalize: specification templates, QC matrices, seam/liner SOPs, and WVTR/COF dashboards that procurement teams can audit.

Quick reference matrices
