Kraft Paper Woven Bags: Tracking Technological Evolution, Customization, and Sustainable Impact

Understanding Kraft Paper Woven Bags In Modern Packaging Systems

In contemporary industrial and retail supply chains, Kraft Paper Woven Bags occupy a distinctive niche. They are neither purely paper sacks nor purely plastic woven bags. Instead, they are hybrid packaging structures that merge a natural kraft paper exterior with a high-strength woven polypropylene (PP) or similar fabric core. This composite architecture allows packers and brand owners to avoid a painful trade-off: they no longer have to choose between the rugged durability associated with woven plastics and the warm, sustainable aesthetic associated with kraft paper.

At their heart, Kraft Paper Woven Bags are engineered unit-load containers designed for powders, granules, pellets, and other dry bulk goods. The woven PP substrate supplies tensile and tear strength; the kraft paper face delivers stiffness, printability, and a visually appealing canvas; the adhesive or lamination layer ties these components into a single wall; optional internal liners add barrier performance where needed. In practice, this means that one family of packaging can be used to move cement, fertilizer, feed, sugar, seeds, or specialty chemicals while still projecting a coherent, brand-centered look to buyers and end users.

From a systems point of view, Kraft Paper Woven Bags form an interface between three domains. They connect high-speed filling lines in factories, dense storage systems in warehouses and ports, and perception-driven decisions in the marketplace. A fertilizer manufacturer may choose this format to withstand stacked pallets in a humid port. An animal feed brand may adopt it to signal natural ingredients and quality. A cement producer may rely on it to run valve packers efficiently while minimizing dust and breakage. Different motivations, one structural idea: a paper-laminated woven sack engineered for both performance and perception.

Material Architecture And Layer Functions Of Kraft Paper Woven Bags

The distinctive behavior of Kraft Paper Woven Bags under load, during printing, and in changing climates is rooted in their layer-by-layer construction. These bags are not just paper wrapped loosely around a plastic inner shell. They are composite laminates in which each layer is selected, dimensioned, and oriented for a specific function. The performance of the whole structure arises from the interaction of these layers, much like the way beams, columns, and cladding interact in a building.

The woven polypropylene core

At the mechanical core of most Kraft Paper Woven Bags lies a woven fabric produced from polypropylene tapes. Polypropylene is a semi-crystalline polyolefin valued for its low density, favorable tensile strength, and resistance to many chemicals and moisture. In a typical process, virgin PP resin is dried, melted in an extruder, cast as a thin film, slit into narrow tapes, and then drawn at controlled temperature to align polymer chains. This drawing step transforms a relatively soft plastic sheet into high-modulus tapes with substantially increased tensile strength and reduced elongation.

These tapes are woven on circular or flat looms into a fabric whose weight (grammage), weave density, and width are tuned to the target application. A bag designed to carry 10 kilograms of a gentle agricultural product does not need the same core strength as a 50 kilogram sack of dense cement or mineral powder. By choosing fabric grammage in the range typical for industrial bags, manufacturers strike a balance between mechanical security, bag weight, and cost per unit. In all cases, the woven core of Kraft Paper Woven Bags is responsible for bearing most of the mechanical stress generated in filling, lifting, stacking, and transport.

The kraft paper outer layer

Surrounding the woven structure is the kraft paper outer surface. Kraft paper is produced from long-fibered pulp using a chemical pulping process that preserves much of the native strength of cellulose fibers. The result is a paper with excellent tear resistance for its basis weight, good folding endurance, and a surface that accepts printing inks readily. Depending on the brand image and product segment, manufacturers may select brown (unbleached) kraft, white (bleached) kraft, or specialized grades that include a percentage of recycled fiber.

In Kraft Paper Woven Bags, the kraft paper layer fulfills several roles at once. It acts as the visual interface with customers, showcasing logos, color blocks, and product information in a way that feels familiar and environmentally considerate. It increases surface stiffness and contributes to the squareness of the filled sack, helping pallets stay tidier. It also adds a fiber-based protective skin that can absorb light scuffing without exposing the underlying plastic tapes. For retail-visible applications such as premium animal feed or branded construction materials, this paper face is often the difference between a commodity sack and a packaging asset that communicates value.

The lamination or bonding layer

Linking the woven substrate and the kraft paper shell is the bonding system, typically an extrusion-coated film or lamination layer made from polyethylene or polypropylene. In extrusion coating, molten polymer is cast as a very thin film directly between paper and fabric, then pressed and cooled to fuse the materials into a single composite web. In adhesive lamination, a pre-formed film is bonded to one or both layers using heat and pressure. In either case, the lamination achieves three critical objectives: it secures adhesion between paper and fabric, it closes many of the pores in the woven substrate, and it establishes a controllable barrier to moisture and dust.

Optional liners and functional additives

For demanding products, the three-layer system can be supplemented with a separate internal liner. A loose or form-fit polyethylene liner may be inserted into the Kraft Paper Woven Bags during conversion or filling. This liner provides a primary barrier against water vapor and oxygen, which is essential for hygroscopic powders, certain chemical additives, and food-grade goods. By decoupling mechanical strength (outer composite) from barrier performance (inner liner), converters and users gain the freedom to customize each dimension without redesigning the entire bag.

Additives embedded in the woven core, lamination, or liner further refine performance. Ultraviolet stabilizers protect the woven PP from embrittlement during outdoor storage. Anti-slip agents or textured coatings on the paper surface increase friction between stacked bags. Anti-static additives help dissipate electric charge when filling fine powders, reducing the risk of sparks in flammable atmospheres. Each additive package is selected with a clear use case in mind, so that Kraft Paper Woven Bags behave predictably from factory floor to final destination.

Key Functional Features And Performance Advantages

The value of Kraft Paper Woven Bags becomes clearer when we analyze how they perform at each stage of the packaging journey. From filling lines to warehouses and retail environments, they bring together attributes that rarely coexist in single-material solutions. Understanding these attributes in detail helps engineers and buyers decide when this hybrid structure is the right choice over multiwall paper bags, pure PP woven sacks, or film-only bags.

Mechanical strength and damage resistance

Compared with traditional multiwall paper sacks, Kraft Paper Woven Bags deliver higher tensile and tear strength for a given overall weight. The woven PP core has a remarkable ability to distribute mechanical loads along warp and weft tapes. When a bag is dropped from a pallet, dragged across a rough floor, or compressed under stacked pallets, the fabric takes the stress that would otherwise be concentrated in paper plies. This results in fewer burst failures, fewer open seams, and fewer punctures from sharp particles.

From a risk-management angle, this resilience matters. Product lost from burst sacks is not only a cost in material and labor; it can become a safety issue if cement dust, fertilizer granules, or chemical powders spread across floors and loading docks. By reducing failure rates, Kraft Paper Woven Bags indirectly support cleaner environments, lower housekeeping costs, and better safety statistics.

Barrier performance and product protection

Barrier needs vary widely. Some products, such as cement or certain fertilizers, must be protected from moisture to maintain their flowability and chemical performance. Others, like fresh grains or flour, must be shielded from external contamination while still allowing minimal breathing to avoid condensation. The laminated construction of Kraft Paper Woven Bags allows designers to tune moisture vapor transmission rates, dust tightness, and gas exchange through lamination thickness, polymer choice, and optional venting or perforation patterns.

Printability and brand expression

One of the most visible advantages of Kraft Paper Woven Bags is their ability to act as branded billboards without sacrificing robustness. Paper provides an excellent substrate for flexographic, offset, or gravure printing, enabling crisp text, fine details, and broad color coverage. The tactile nature of kraft paper communicates authenticity, quality, and environmental awareness, even before customers read a single word. For premium animal feed, organic fertilizers, specialty flours, and retail-visible building materials, this visual and tactile message is often central to positioning.

In addition to logos and product graphics, the kraft surface of Kraft Paper Woven Bags offers room for regulatory information, safety pictograms, and digital identifiers such as barcodes or QR codes. Clear printing helps warehouse staff, transport operators, and end users identify the right grade quickly. As supply chains become more digital, the ability to print reliable machine-readable codes on a stable surface becomes a practical advantage that supports traceability, stock management, and quality assurance processes.

Shape stability and pallet behavior

Stacking behavior is another area where Kraft Paper Woven Bags demonstrate their hybrid strengths. Pure plastic woven sacks, especially uncoated ones, are flexible and can bulge under load, creating rounded stacks that encroach on aisles and reduce storage density. Multiwall paper bags can stack neatly, but they may deform or lose strength in humid environments. The composite wall of kraft paper laminated onto woven fabric brings together stiffness and resilience. Filled bags tend to retain more rectangular profiles, which translates into straighter pallets, better cube utilization, and improved compatibility with racking systems.

By specifying appropriate bag dimensions and surface friction, operators can configure pallets that interlock in stable patterns. Anti-slip finishes on the kraft face help layers stay aligned under vibration and braking forces, while the woven core restrains creep and bulging over time. As a result, Kraft Paper Woven Bags support denser, safer storage, whether in open warehouses, automated high-bay systems, or sea containers.

Perceived sustainability and communication power

Packaging is not only a mechanical device; it is also a communication medium. Customers and regulators increasingly expect visible signs that companies are taking environmental responsibility seriously. Here, Kraft Paper Woven Bags offer a powerful combination: they show an immediately recognizable fiber-based surface yet maintain the long-life and protective benefits of plastics where required. This duality allows brand owners to communicate a sustainability narrative, especially when the paper comes from certified sources and the plastic components are designed to be recyclable in established polyolefin streams.

Production Process And Process Control For Kraft Paper Woven Bags

The manufacturing of Kraft Paper Woven Bags resembles a carefully choreographed sequence in which paper, plastic, and adhesive layers are formed, tested, merged, and finally converted into functional sacks. Each step can strengthen or weaken the final performance. For this reason, converters like VidePak treat the process as an integrated chain rather than a series of isolated operations.

Raw material selection and incoming inspection

The journey starts with raw materials. For the woven core, VidePak sources virgin polypropylene resin from large petrochemical producers with stable, documented quality. Each batch is examined for melt flow index, density, contamination, and color tone. Deviations at this stage can propagate into inconsistent tape properties later, so rejecting out-of-spec resin is an early safeguard for the structural integrity of Kraft Paper Woven Bags.

Kraft paper reels arrive from reputable mills with certificates specifying basis weight, moisture content, tensile strength, and bursting strength. Incoming inspection verifies that real values sit within the narrow bands that conversion lines are designed to handle. Films and lamination polymers intended for extrusion coating are also sampled to check rheological behavior and compatibility. Additives batches, from UV stabilizers to slip modifiers, are weighed and verified against internal formulations. Only after these checks do materials move to production, ensuring that Kraft Paper Woven Bags start from a stable foundation.

Tape extrusion and weaving on high-performance lines

Tape extrusion transforms PP resin into the tapes that will later be woven. Resin is dried, melted, filtered, and extruded as a thin film, which is then slit into narrow ribbons. These ribbons pass through a series of heated rollers where they are drawn to the target width and thickness. On VidePak lines built around equipment from Austrian Starlinger and German W&H, parameters such as melt temperature, draw ratio, and line speed are automatically monitored and adjusted. The outcome is a population of tapes with tightly controlled denier and mechanical properties.

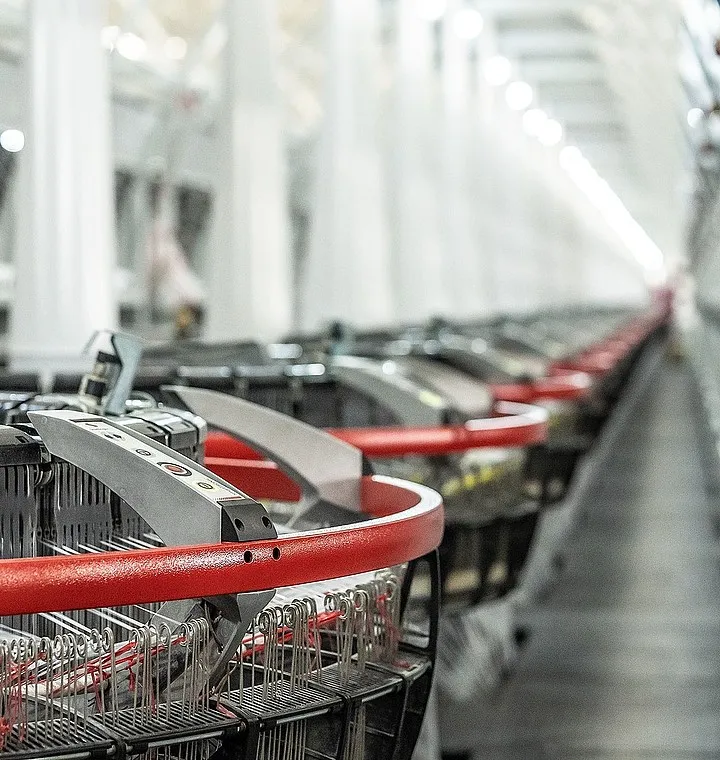

Weaving uses these tapes as warp and weft. Circular or flat looms interlace them into fabric with the specified weave density. Online sensors detect broken tapes, missing picks, or fabric width drift. Operators respond quickly to alarms, minimizing off-grade material. Because Kraft Paper Woven Bags depend on their woven core to resist tears and punctures, tight control of weaving conditions is essential. Small variations in fabric grammage or width can translate into measurable differences in strength and bag dimensions.

Paper preparation and printing

In parallel with woven fabric production, kraft paper reels are conditioned and, when required, printed. Paper humidity is stabilized so that it will not warp, curl, or crack during lamination. Printing lines apply brand graphics, text, regulatory symbols, and codes. Because the printing must remain legible after lamination, folding, and handling, ink systems are chosen for flexibility and adhesion. Registration accuracy is especially important for products where graphics must align across the bag front and back once folded and formed.

Lamination and composite web formation

The lamination line is where paper and woven fabric become a single composite. In extrusion coating, molten polymer is deposited between paper and fabric at the nip point between rollers. The pressure and cooling rate cause the polymer to solidify as a film, bonding the layers. In adhesive lamination, a pre-formed film may be introduced between the layers with controlled adhesive, then pressed and cured. Critical variables include line speed, melt temperature, nip pressure, and chill roll performance. If these are tuned correctly, Kraft Paper Woven Bags emerge with a laminate free from voids, wrinkles, or delamination.

Slitting, sack conversion, and valve construction

Once the composite web is produced, it is slit to the widths required for individual bag designs and rewound into rolls. Sack conversion lines then cut, fold, and seam these webs into open-mouth sacks or valve bags. For open-mouth versions, bottoms may be sewn or pasted, and tops left open for filling and later closing by stitching, taping, or sealing. For valve bags, specialized forming stations create side or corner valves that allow high-speed filling and partial self-sealing as the product compresses.

Once again, VidePak leans on advanced machinery from Starlinger and W&H. Automated control of cut length, folding dimensions, and seam placement ensures that finished Kraft Paper Woven Bags are consistent from piece to piece. That consistency is crucial for efficient running on customer filling lines, where mis-sized bags can cause jams, misreads in weight-checkers, or dust issues.

Quality assurance and final testing

At the end of the production chain, quality assurance teams confirm that all parameters converge toward specification. Dimensional checks verify width, length, gusset depth, and valve dimensions. Mechanical tests measure tensile strength, tear resistance, seam strength, and burst performance. Drop tests and top-load compression tests simulate common handling and stacking scenarios. Valve leakage tests examine dust control and sealing under internal pressure. Only when these checks are passed do lots of Kraft Paper Woven Bags move to packing and shipping.

Engineering Parameters And Typical Specifications

Behind every family of Kraft Paper Woven Bags lies a set of engineering parameters. These parameters can be adjusted, combined, and traded off against each other to align with the realities of a specific product, route, or market. A structured view of these variables helps packaging engineers and procurement teams understand why one bag performs better than another in their own operations.

None of these parameters can be optimized in isolation. A heavier paper may improve appearance and stack stiffness but must be supported by a woven core capable of bearing the added mass and loading patterns. A higher barrier lamination is useful in coastal climates but must be evaluated against condensation risks and local recycling practices. When engineering Kraft Paper Woven Bags, VidePak and its customers treat these variables as a tightly coupled system.

Applications Of Kraft Paper Woven Bags Across Industries

The hybrid nature of Kraft Paper Woven Bags makes them suitable for a wide range of industries where bulk goods must be packed, stored, transported, and sometimes displayed. Looking at key sectors reveals how the same structural concept can answer different operational questions.

Agriculture and fertilizers

Seed companies, fertilizer producers, and agricultural input distributors rely on sacks that can survive rough handling in warehouses, on trucks, and on farms. Kraft Paper Woven Bags provide the strength needed to handle high-density granules and powders while the paper exterior offers room to print agronomic instructions, dosage charts, and safety guidance. In seasonal markets where bags may be stored in mixed indoor–outdoor conditions, UV-stabilized woven cores and appropriate laminations help maintain performance until the last bag is emptied.

Construction materials and cement

In the construction sector, Kraft Paper Woven Bags have become closely associated with cement, dry mortar, tile adhesives, grouts, and gypsum-based products. Valve bag formats allow high-speed filling on rotary packers, while the woven core withstands the abrasive nature of cementitious powders and the high compressive loads of stacked pallets. The kraft surface can be printed with strong visual identities that make it easy to distinguish between similar-looking powder products at a busy job site or retailer.

Chemicals and industrial minerals

Producers of pigments, calcium carbonate, talc, plastic additives, and other industrial minerals often need bags that combine leak resistance, puncture resistance, and clear labeling. Kraft Paper Woven Bags serve this need by providing mechanical resilience through the woven PP core and a printable paper face for hazard pictograms, handling instructions, and regulatory statements. In certain applications, an internal liner further protects sensitive materials from ambient moisture or contamination while the outer bag handles logistics stress.

Food, feed, and specialty consumer products

Food and feed applications bring additional requirements: hygiene, food-contact safety, and consumer-facing aesthetics. When combined with food-grade liners and compliant inks, Kraft Paper Woven Bags can safely carry flour blends, sugar, rice, pulses, and animal feed. Premium pet food brands, in particular, have embraced kraft paper woven packaging as a way to signal natural ingredients and care for animal welfare. The kraft surface supports rich imagery and storytelling, while the woven core quietly ensures that heavy, sometimes oily kibble reaches shelves without incident.

Other specialized uses

Beyond these major industries, Kraft Paper Woven Bags appear in packaging for biomass fuels such as wood pellets, charcoal, and briquettes; for certain waste streams that require strong, labeled containment; and for niche powders and granules where both mechanical security and a professional appearance are required. Across all these applications, the recurring theme is the need to convert loose bulk material into stable, communicative unit loads.

Health, Safety, And Regulatory Considerations

Any discussion of Kraft Paper Woven Bags that stopped at mechanical and aesthetic performance would be incomplete. Today, packaging must demonstrate compliance with a tightening web of safety and environmental regulations. Companies must consider not only whether a bag will survive the journey, but also whether it interacts with its contents and its environment in acceptable ways.

Product safety and food-contact compliance

For food and feed applications, regulators impose strict limits on the migration of substances from packaging into products. This means that the kraft paper, lamination polymers, inks, and adhesives used for food-grade Kraft Paper Woven Bags must comply with relevant legislation. Where direct contact is not allowed or not desired, internal liners certified for food contact provide an additional barrier, creating separate functional zones inside a single package: an outer composite that hosts branding and logistics handling, and an inner liner that protects the food or feed itself.

Worker safety and mechanical reliability

Worker safety is closely tied to the mechanical reliability of bags. If a pallet of cement or fertilizer collapses because of weak sacks, injuries can result from falling loads or slips on spilled material. Drop tests, stacking tests, and seam-strength measurements are therefore not abstract laboratory exercises; they are safeguards for the people who move, store, and use the products. The woven core and composite structure of Kraft Paper Woven Bags is engineered to provide a margin of safety beyond normal operating conditions, ensuring that occasional mishandling does not immediately translate into catastrophic failure.

Environmental responsibility and life-cycle thinking

Environmental responsibility spans sourcing, use, and end-of-life. Many buyers seek Kraft Paper Woven Bags made with paper from sustainably managed forests and with plastic components that can be recycled where suitable infrastructure exists. The laminated composite does introduce complexity for recycling, yet the mechanical strength of the bags often makes them reusable in secondary applications before disposal. Life-cycle assessments frequently show that preventing product loss has a larger environmental benefit than marginal differences in bag mass, especially for energy-intensive commodities such as cement or fertilizer. Well-designed kraft paper woven packaging helps on both fronts: reducing waste while signaling responsible choices.

Systems Thinking: Kraft Paper Woven Bags In The Value Chain

To fully appreciate Kraft Paper Woven Bags, it is useful to view them not as isolated items but as elements in a longer chain. They influence, and are influenced by, filling efficiency, warehousing strategies, transport risks, and brand experiences. A change in bag design can ripple through this chain in unexpected ways, positive or negative.

On the filling line, bag stiffness and valve construction influence speed and cleanliness. In warehouses, shape retention and friction characteristics drive stack stability and space utilization. In transport, the resilience of Kraft Paper Woven Bags under vibration, humidity, and loading cycles affects damage rates and claims. On store shelves or contractor yards, the kraft exterior and printed graphics transmit brand values and practical information. At end-of-life, the choice of materials and design for disassembly affects how easily the packaging can re-enter material cycles or be disposed of responsibly.

Design Strategies And Case-Oriented Perspectives

Because they are composite and highly customizable, Kraft Paper Woven Bags lend themselves to tailored design strategies. Different industries, and even different product lines within the same company, can draw on the same structural platform while adjusting parameters to suit specific needs. Practical case scenarios help illustrate how this works in the real world.

Coastal cement producer seeking lower breakage

A cement producer operating near a coastal region experiences frequent bag failures in the logistics chain: sacks rupture in humid port warehouses, leading to dust, product loss, and worker complaints. By shifting from conventional multiwall paper sacks to Kraft Paper Woven Bags with a heavier woven core, more robust lamination, and optimized side valves, the producer can re-balance strength and barrier performance. Pilot shipments allow the team to monitor breakage rates, dust levels, and customer feedback. If breakage drops dramatically and cleanup costs fall, the overall system benefits outweigh the slightly higher packaging cost per ton of product.

Premium animal feed brand aligning packaging with values

A premium pet food brand wants packaging that reflects its focus on natural ingredients and animal health. Plain polywoven sacks look overly industrial, while traditional paper bags struggle with durability in distribution centers. By choosing Kraft Paper Woven Bags with a matte kraft exterior, high-resolution printing, and ergonomic bag sizes for retail consumers, the brand can reconcile image and performance. A food-grade inner liner protects the kibble from oxygen and moisture. The resulting package feels authentic to shoppers, runs smoothly on automated filling lines, and tolerates the repeated handling of retail logistics.

Fertilizer distributor serving mixed customer segments

A fertilizer distributor supplies both large farms and garden centers. Industrial customers demand strong 50 kilogram sacks optimized for palletized transport, while garden centers favor smaller, visually appealing packs. By building a range of Kraft Paper Woven Bags on the same material platform but varying dimensions, print themes, and filling formats, the distributor simplifies procurement and stock management. Warehouses and transport lanes handle a coherent family of sacks, while end customers encounter packaging tuned to their expectations regarding handling and visual impact.

Future Directions For Kraft Paper Woven Bags

Looking ahead, the evolution of Kraft Paper Woven Bags will continue to be shaped by three broad forces: sustainability expectations, digitalization of supply chains, and advances in processing technology. These forces do not pull in opposite directions; rather, they create a new design space in which hybrid packaging can do more with fewer resources.

On the sustainability side, research into lighter yet stronger woven fabrics and improved kraft formulations is expanding the range of possible weight reductions without compromising safety. Better compatibilizers and recycling practices may improve post-use recovery of paper–poly composites in some regions. Design-for-reuse strategies, where Kraft Paper Woven Bags enjoy a second life in agricultural or industrial settings before disposal, can further extend their utility and reduce overall environmental footprint.

Digitalization offers another avenue of change. Serialized QR codes or other identifiers printed on kraft surfaces can link each bag to digital records of batch data, production time, and logistics history. This enriches recall management, anti-counterfeiting efforts, and customer engagement, especially in high-value or regulated sectors. The kraft exterior of Kraft Paper Woven Bags is well-suited to hosting such codes without glare or distortion.

Finally, progress in equipment from suppliers such as Starlinger and W&H continues to raise the ceiling on what converters can achieve. More precise control of temperatures, tensions, and line speeds enables tighter tolerances, more sophisticated valve designs, and higher-quality laminations. For VidePak and its partners, this means that the next generation of Kraft Paper Woven Bags can be even more finely tuned to the interplay of strength, barrier performance, brand expression, and sustainability that modern markets demand.

2025-11-14
