What Are Transparent Woven Bags?
transparent woven bags are industrial packages engineered from polypropylene (PP) tapes that are drawn for strength, woven for toughness, and finished for clarity. The fabric can be left uncoated when breathability is desired or laminated with clear polyolefin faces when optical visibility and abrasion life are priorities. Unlike monolayer film sacks that tear under corner stress, a woven chassis behaves like a lightweight truss: it spreads load, absorbs drops, and resists creep during pallet dwell. The signature promise is elegantly simple—see the product without surrendering robustness. In automated plants, transparent woven bags arrive as pre‑made sacks or as roll web for form‑fill‑seal (FFS) lines; dosing, filling, and closure become a measured rhythm rather than a daily gamble.
To keep purchasing, engineering, and marketing aligned, the same architecture often travels under different names. Common aliases for transparent woven bags include:
- clear PP woven bags
- see‑through woven polypropylene sacks
- transparent polypropylene woven packaging
- BOPP‑laminated transparent woven bags
- woven bags with transparent windows
- transparent raffia bags
- clear laminated woven sacks
- transparent FFS woven roll bags
- visibility‑window PP woven bags
Different labels, one intent: let operators verify grade, color, or contamination at a glance while shipments remain strong, stackable, and clean.
Why Transparent Matters in an Automated World
Automation rewards repeatability. So does trust. When a line leader sees stable cycle times and a buyer sees exactly what they are getting, friction disappears. transparent woven bags live at that intersection—mechanically reliable for equipment, visually honest for humans. Does visibility really change outcomes? It does. Disputes about color or mix fall; QC at receiving docks accelerates; retail shoppers make faster decisions. Meanwhile, the woven backbone keeps pallets square and drop‑resistant, so transparency doesn’t come at the cost of durability.
Low seal initiation temperatures and generous hot‑tack allow faster jaw cycles on FFS lines, turning minutes into margins.
Antistatic blends near the mouth reduce fines that seed peel‑backs. Clear faces make contamination visible before it travels.
Inspectors see grade, hue, or pellet size through the package. Fewer “open to check” events; fewer repacks; fewer claims.
Material Architecture: From Resin to Radiance
Every gram in transparent woven bags earns its keep by neutralizing a failure mode: hazy windows, scuffed graphics, seam peel‑backs, drop splits, or pallet creep. The architecture below is modular; pick the fewest parts that solve your real risks.
Woven PP Chassis

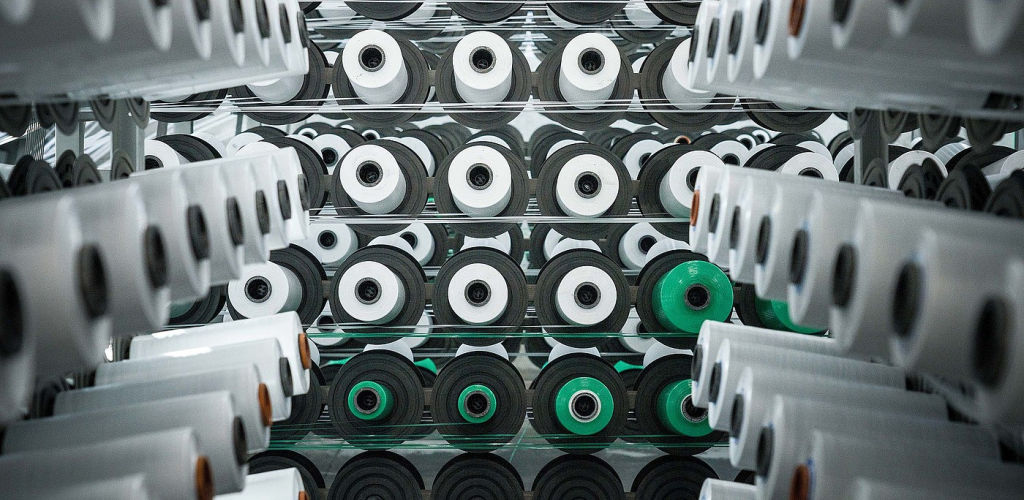

PP pellets are extruded into films, slit into tapes, drawn to align chains, then woven into fabric. Typical denier lives between 900 and 1200; fabric mass often ranges 120–220 g/m². This chassis carries the mechanical load—tensile, tear, puncture—so the clear face doesn’t have to.
Clear Faces: BOPP and PE
Gloss or controlled‑matte BOPP delivers clarity and print fidelity; clear LDPE/mLLDPE coatings supply low SIT and hot‑tack for speed. Hybrids are common: matte PE zones behind codes reduce glare while glossy BOPP elsewhere shows the product.
| Layer / Part | Typical Material | Primary Function | Optical Role | Cost Sensitivity |
|---|---|---|---|---|
| Structural tube | Woven PP 120–220 g/m² | Tensile & tear backbone | Behind the window | High |
| Outer face | Clear BOPP 15–25 μm | Scuff resistance; print surface | Major | Moderate |
| Inner sealant | LDPE/mLLDPE 18–40 μm | Low SIT & hot‑tack | Indirect | Low–Moderate |
| Tie/adhesive | Polyolefin‑compatible | Bond without haze | Critical | Low |
| Optional liner | LDPE/LLDPE 50–100 μm | MVTR control | None | Low–Moderate |
Mechanical and Optical Behavior: What Survives the Route
Clarity without strength is marketing; strength without clarity ignores the brief. The winning behavior of transparent woven bags is the duet: the fabric absorbs drops and abrasion; the face preserves visibility and print; the seam closes cleanly even when fines try to interfere.
Drops, Tears, and Corners
Edge and corner impacts focus stress. Woven PP redistributes load across tapes and interlaces. Rounded window corners and stiffer BOPP grades prevent star‑crack initiation at the sightline.
Haze and Rub
Long conveyors scuff faces. Hard over‑varnish or tougher BOPP keeps the window clear. Adhesives must not bloom; otherwise clarity fades with time rather than miles.
Signature Features That Matter on the Floor
Features count only when they silence alarms and cut claims. Below are the traits of transparent woven bags that show up in OEE, not just on a brochure.
Flat, square rolls for FFS; repeatable cut length; mouths that accept spouts without fuss; seams that close at speed.
QC at a glance; retail trust without opening; fewer mis‑ships because contents and label corroborate each other.
Woven load paths mean right‑weighting is possible; grams are earned—not guessed—through SPC and trials.
| Attribute | Typical Window | What Tunes It |
|---|---|---|
| Fill weights | 5–50 kg | Web width, cut length, bulk density |
| Line speed | 18–40+ bags/min | Seal window, dosing discipline |
| Drop survival | 1.0–1.5 m (flat/edge/corner) | Fabric GSM, base fold, window radius |
| Optical haze | < 5–8% on clear zones | Film, adhesive, nip control |
| Barcode first‑scan | ≥ 98% across DCs | Contrast bands, varnish hardness |
Production Logic: Prevention, Control, Verification
Quality is not discovered; it is manufactured. VidePak anchors extrusion, weaving, and coating/lamination on Starlinger platforms (Austria) and runs printing, slitting, and winding on Windmöller & Hölscher systems (Germany). Those badges mean stable temperatures, tensions, nips, and register—the boring kind of stability that quietly pays for itself.
Front‑End: Raw Material Selection & Incoming QA
- Virgin PP for tapes: targeted MFI, low ash, neutral odor; lot‑level certificates verified with MFI and gel counts.
- Clear films: BOPP/PE with gauge tolerance, dyne retention, slip level in spec; haze measured pre‑lamination.
- Adhesives/tie layers: non‑blooming, optically clean, bonded on the actual substrate—not surrogate lab films.
- Inks/varnishes: ΔE color control, rub resistance; glare management for code bands.
Core Segments & Control Points
| Segment | Primary Goal | Control Points | Why It Matters |
|---|---|---|---|
| Tape extrusion & draw (Starlinger) | Uniform denier & strength | Melt temp, quench, draw ratio | Backbone of tensile/tear |

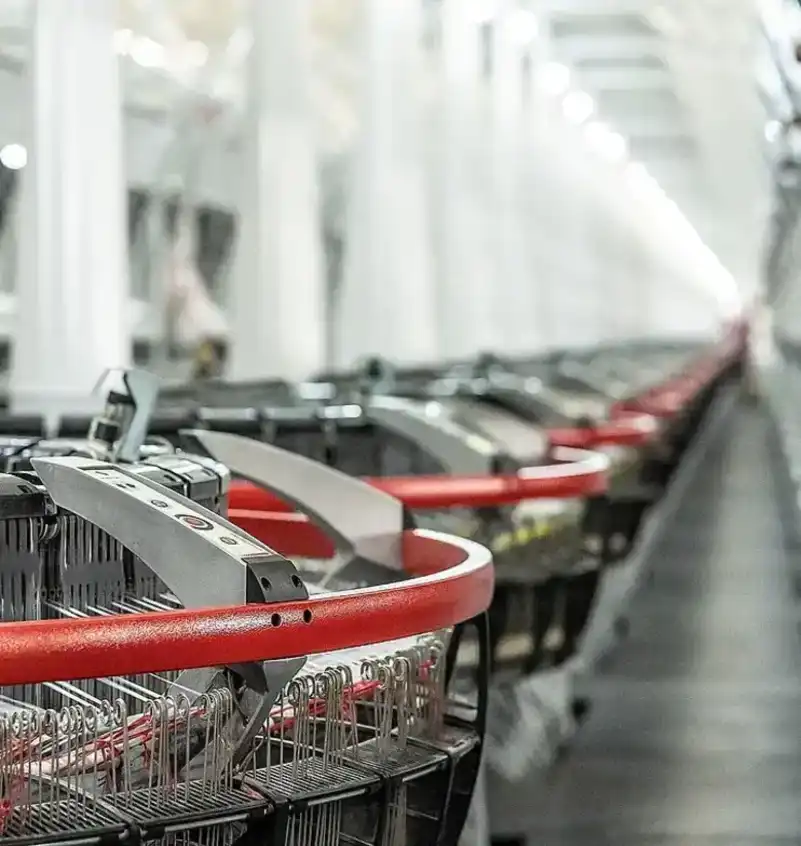

| Weaving | Stable fabric GSM | Picks/inch, loom tension | Uniformity; fewer weak paths |
| Coating/lamination (Starlinger) | Adhesion without haze | Nip temp/pressure, coat weight | Optics and curl control |
| Printing (W&H) | Readable identity | Register, ΔE, corona retention | Traceability that survives |
| Slitting & winding (W&H) | Flat, stable rolls | Tension profiles, edge quality | Uptime at the FFS |
Back‑End: Inspection & Release
- In‑process: denier checks, coat weight, peel adhesion, dyne, COF, on‑line seal pulls, cut‑length control.
- Final: tensile (warp/weft), drop tests by orientation, optical haze, AQL cosmetic (speck counts in windows), MVTR when claimed, pallet lean, barcode first‑scan rates.
- Traceability: pallet IDs map to resin lots, film lots, settings, operators; non‑conformances open CAPA with owners and deadlines.
Applications: Where Transparency Pays
Where visibility is value and toughness is non‑negotiable, transparent woven bags excel. From staple foods to fertilizers to colorful aggregates, the window turns product into proof while the woven skeleton carries the load.
| Sector | Typical Build | Why It Works |
|---|---|---|
| Staple foods (rice, beans) | BOPP clear full face + matte code bands | Product is the hero; codes remain readable |
| Pet & fish feed | Matte PE clear + hard coat | Low glare at retail; abrasion life |
| Fertilizers | Window + liner + robust base | Visual QC; moisture control; pallet stability |
| Resins & pellets | Window + antistatic inner | Instant identity check; cleaner mouths |
| Colored sands/aggregates | Full‑panel clarity + reinforced base | Selection by sight; puncture resistance |
Need a concise recap of mechanical advantages native to woven PP fabric? Explore this related guide on key properties of woven PP fabric and map them to your transparent specifications.
Quality Governance: How VidePak Holds the Line
Quality is a system, not a slogan. VidePak manages it with four pillars that auditors can follow and operators can trust.
Standards‑Aligned Methods
Design, production, and testing follow recognized practices and documented SOPs; equipment is calibrated; records are traceable.
Virgin Raw Materials
PP, BOPP, PE, tie layers, inks, and additives come with lot‑level certificates. Incoming sampling turns paperwork into numbers—MFI, haze, dyne, COF, moisture.
Equipment That Holds
Starlinger (extrusion/weaving/lamination) and W&H (printing/slitting/winding) keep distributions tight so designs can be right‑weighted safely.
Layered Inspections
Incoming, in‑process, final, and retention sampling build a feedback loop; CAPA is action, not theater.
System Thinking: Tensions and Resolutions
Honest specifications acknowledge trade‑offs—then resolve them with trials and metrics rather than wishful thinking.
Transparency vs Strength
Large windows concentrate stress; round the corners; choose stiffer BOPP; add low‑profile base reinforcement where loads collect.
Speed vs Seal Integrity
Metallocene‑rich inner blends broaden hot‑tack; chevron jaws distribute pressure; vacuum assist removes fines at the seam.
Abrasion Life vs Optical Beauty
Hard coats and matte code bands keep faces readable after conveyors; reserve gloss where it truly pays at retail.
Moisture Control vs Breathability
Liner only when humidity and dwell demand; otherwise let wrap and seal integrity do the work to avoid condensation traps.
Cost vs Risk Posture
Out‑gram the bill against field failure costs; choose the cheapest recipe that survives your route with statistical margin.
Seal & Window Engineering: Small Choices, Large Effects
Seals and windows are where success concentrates. A clean seam at speed; a window that stays clear and crack‑free—together they turn a specification into a reputation.
| Element | Good Practice | Operational Payoff |
|---|---|---|
| Inner chemistry | LDPE for low SIT; mLLDPE for hot‑tack | Higher speeds without peel‑backs |
| Jaw geometry | Chevron or flat with relieved corners | Even pressure; tolerance to fines |
| Window geometry | Rounded corners; avoid stress risers | No star‑crack initiation |
| Contamination control | Antistatic near mouth; vacuum at jaws | Cleaner seams; steadier OEE |
Risk Register and Countermeasures
| Risk | Symptom | Likely Cause | Countermeasure |
|---|---|---|---|
| Top‑seal peel‑back | Opens after discharge | Low hot‑tack; dust inclusion | Adjust dwell/pressure; change inner blend; add jaw vacuum |
| Window star‑cracks | Fine radial lines from corners | Sharp radii; thin facer | Round corners; choose stiffer BOPP; micro‑reinforce base |
| Scuffed face | Dull panels post‑conveyor | Low‑hardness varnish | Hard coat; matte bands on high‑wear lanes |
| Telescoping rolls | Edge drift at unwind | Tension profile errors | Re‑profile winding; stiffer cores; climate storage |
| Moisture gain | Caking; set failures | Weak seals; no liner | Add liner; improve wrap; raise seam integrity |
KPIs for Continuous Improvement
Pareto by cause—seal, optics, print, base—and chase the loudest lever first.
Overlay with jaw temperature and dwell to locate safe speed margins.
Measure with warehouse scanners, not lab readers; real logistics dictate truth.
Benchmark immediately after lamination and after aging; optics must last, not just launch.
Case Vignettes
Retail rice in high‑humidity markets. Switched from opaque poly sacks to transparent woven bags with clear BOPP faces and matte code bands. Returns fell as buyers verified grain length and grade before purchase; liners were used only for monsoon routes.
Pet‑food specialty line. Full‑panel transparency turned vibrant pellets into packaging art. Abrasion complaints dropped after a hard‑coat varnish upgrade; first‑scan rates climbed above 98% across DCs.
Fertilizer distributor. Windowed designs plus antistatic inner layers enabled quick visual QA on receiving docks. Dust at seams dropped with jaw vacuum and metallocene‑rich blends; pallet rebuilds declined.
From RFQ to Routine: A Practical Playbook
- Map the route: climate, dwell, handling, outdoor storage realities.
- Profile the product: particle size/shape, fines %, color sensitivity, hygroscopicity.
- Choose the stack: fabric GSM, window size/shape, face type, inner blend, liner yes/no, base reinforcement.
- Engineer the seam: SIT, hot‑tack, dwell/pressure, jaw geometry; dust control at the seam line.
- Design identity: contrast bands for codes; glare control; color ΔE tolerances that survive conveyors and wrap.
- Pilot at scale: thousands of units on real lines; record OEE, reject Pareto, drop passes, haze drift, first‑scan rates.
- Freeze and train: lock the recipe and settings; teach the why—not just the what—so operators can keep the gains.
Sustainability with Proof, Not Posture
Real sustainability is measured. With transparent woven bags, the largest lever is often product‑loss prevention. Fewer broken bags and fewer mis‑ships preserve more embedded carbon than most marginal resin tweaks. Next comes right‑weighting via tight process control, then mono‑polyolefin stacks where recycling streams actually exist. PCR can be introduced cautiously in facers or liners where regulations allow—after odor and gel screening.
| Lever | Benefit | Trade‑Off | Mitigation |
|---|---|---|---|
| Down‑gauge fabric | Less resin per bag | Reduced drop margin | Tighter SPC; worst‑case drop validation |
| Mono‑polyolefin faces | Recycling alignment | Lose exotic coatings | Matte PE + strong graphics |
| PCR in facers/liners | Virgin reduction | Odor/gel risk | Stepwise trials; filtration; odor mastering |
| Liner only where needed | Avoid blanket overbuild | Requires route mapping | Segment SKUs by climate risk |
Glossary for Fast Alignment
| Term | Working Definition | Why It Matters |
|---|---|---|
| Hot‑tack | Seal strength while seam is still hot | Enables faster closer cycles |
| SIT | Temperature at which sealant starts to fuse | Sets the speed ceiling |
| MVTR | Moisture vapor transmission rate | Predicts caking/condensation risk |
| Dyne level | Surface energy after treatment | Governs print/laminate adhesion |
| GSM | Grams per square meter | Proxy for fabric mass and drop margin |
Keyword and Phrase Map
For clarity and discoverability, this page weaves related phrases around the anchor term. The anchor is transparent woven bags, supported by: clear PP woven bags see‑through woven polypropylene sacks transparent polypropylene woven packaging BOPP‑laminated transparent woven bags woven bags with transparent windows transparent raffia bags clear laminated woven sacks transparent FFS woven roll bags visibility‑window PP woven bags automation‑ready transparent woven bags high‑clarity woven polypropylene sacks.
2025-10-26
- What Are Transparent Woven Bags?
- Why Transparent Matters in an Automated World
- Material Architecture: From Resin to Radiance
- Mechanical and Optical Behavior: What Survives the Route
- Signature Features That Matter on the Floor
- Production Logic: Prevention, Control, Verification
- Applications: Where Transparency Pays
- Quality Governance: How VidePak Holds the Line
- System Thinking: Tensions and Resolutions
- Seal & Window Engineering: Small Choices, Large Effects
- Risk Register and Countermeasures
- KPIs for Continuous Improvement
- Case Vignettes
- From RFQ to Routine: A Practical Playbook
- Sustainability with Proof, Not Posture
- Glossary for Fast Alignment
- Keyword and Phrase Map
- 1. ESG in Action: How VidePak Redefines Responsible Manufacturing
- 2. Automation Meets Clarity: The Technology Behind Transparent PP Bags
- 3. Global Compliance: Meeting Regional Standards with Agile Design
- 4. VidePak’s Manufacturing Edge: Scale Meets Customization
- FAQs: Addressing Key Client Queries
- Technical Specifications
- References
“Can packaging be both sustainable and technologically advanced?” asked a procurement manager at a recent logistics conference. The answer is a resounding yes—through transparent woven polypropylene (PP) bags engineered with ESG-aligned automation. These bags merge visibility, durability, and ethical production to meet modern supply chain demands while reducing environmental footprints.
1. ESG in Action: How VidePak Redefines Responsible Manufacturing
Environmental, Social, and Governance (ESG) reporting has shifted from optional to imperative. VidePak’s 2024 ESG report highlights three pillars of commitment:
1.1 Solar-Powered Production
- 2MW Rooftop Solar Array: Generates 2.6 GWh annually, covering 60% of factory energy needs. This reduces CO₂ emissions by 1,800 tons/year—equivalent to planting 75,000 trees.
- Closed-Loop Material Use: 98% of PP scraps are recycled into new bags via Starlinger’s recoSTAR systems, aligning with the EU’s Circular Economy Package.
1.2 Empowering Communities
- Education Initiatives: Partnering with NGOs, VidePak sponsors 200+ children in rural China and Vietnam, covering tuition and digital learning tools.
- Fair Wage Programs: Workers earn 25% above regional averages, with annual skills training certified by SA8000 standards.
1.3 5S Lean Management
- Safety First: Zero accidents in 2023, achieved through automated guided vehicles (AGVs) and AI-powered hazard detection.
- Efficiency Gains: 5S practices reduced material waste by 18% and boosted output by 22% at VidePak’s Jiangsu plant.
Case Study: A German retailer achieved a 15% reduction in carbon taxes by switching to VidePak’s solar-made transparent bags for organic grain packaging.
2. Automation Meets Clarity: The Technology Behind Transparent PP Bags
Transparent woven PP bags offer real-time content visibility, critical for QA checks and automated sorting. VidePak’s laser-perforated micro-weave technology achieves 92% light transmission—surpassing traditional laminated films.
2.1 Precision Weaving for Strength and Transparency
- Fine-Yarn Engineering: 80-denier PP threads woven at 14×14 strands/inch balance clarity with 50 N/cm² tensile strength (exceeding ISO 527-3).
- Anti-Fog Coatings: Nano-layer treatments prevent condensation, ensuring readability in cold storage (-20°C to 25°C).
Performance Comparison
| Parameter | Traditional Opaque Bags | VidePak Transparent Bags |
|---|---|---|
| Light Transmission | 0% | 92% |
| Tensile Strength | 45 N/cm² | 50 N/cm² |
| Recyclability | 70% | 100% |
2.2 Smart Automation Integration
- RFID Tagging: Embedded chips enable real-time tracking, reducing lost shipments by 30%.
- Robotic Palletizing: AGVs handle 1,200 bags/hour with <0.1% misalignment rates.
3. Global Compliance: Meeting Regional Standards with Agile Design
Transparent bags must adapt to diverse regulations:
3.1 Regional Requirements
| Region | Key Standard | VidePak Solution |
|---|---|---|
| EU | EN 13432 (Compostability) | Oxo-biodegradable additives |
| US | FDA 21 CFR 177.1520 | Food-grade PP resin |
| Japan | JIS Z 1707 (Antistatic) | Carbon-fiber weaves for ESD safety |
For instance, Japanese pharmaceutical clients use VidePak’s antistatic transparent bags to prevent powder adhesion during robotic filling.
4. VidePak’s Manufacturing Edge: Scale Meets Customization
Founded in 2008, VidePak leverages 30+ years of expertise and cutting-edge infrastructure:
- Production Capacity: 100+ Starlinger looms produce 8M bags/month, with 3-day lead times for custom orders.
- Custom Printing: 8-color HD flexography for logos, QR codes, and safety icons (OSHA/ANSI compliant).
- Global Reach: Serving 80+ countries with $80M annual revenue, clients include Cargill and BASF.
Client Testimonial: A U.S. pet food brand reduced returns by 20% using VidePak’s transparent bags with moisture indicators.
FAQs: Addressing Key Client Queries
Q1: Are transparent bags suitable for UV-sensitive products?
A: Yes. Our UV-blocking variant (with 380nm cutoff) protects vitamins and chemicals, compliant with WHO storage guidelines.
Q2: Can I order small batches with custom sizes?
A: Absolutely. Minimum order: 5,000 units. Sizes range from 10×15 cm to 120×180 cm.
Q3: How do your bags support circular economy goals?
A: 100% recyclable via Starlinger’s systems, with a 12-month take-back program for EU clients.
Technical Specifications
| Parameter | Transparent PP Bags |
|---|---|
| Material | Virgin PP + Oxo-additives |
| GSM | 90–150 |
| Load Capacity | 25–60 kg |
| Printing Resolution | 1440 dpi |
| Compliance | FDA, REACH, EN 13432 |
References
- European Commission. (2023). Circular Economy Action Plan: 2023 Update.
- International Organization for Standardization. (2024). ISO 527-3: Plastics—Determination of Tensile Properties.
- VidePak ESG Report. (2024). Sustainability Through Innovation.
Explore Our Innovations:
By fusing transparency, automation, and ESG rigor, VidePak reimagines packaging as a tool for efficiency and ethical progress. Partner with us to future-proof your supply chain—where every bag tells a story of innovation and responsibility.
