Tubular FFS Films — Engineering for Speed, Shape, Safety, and Circularity

What are Tubular FFS Films?

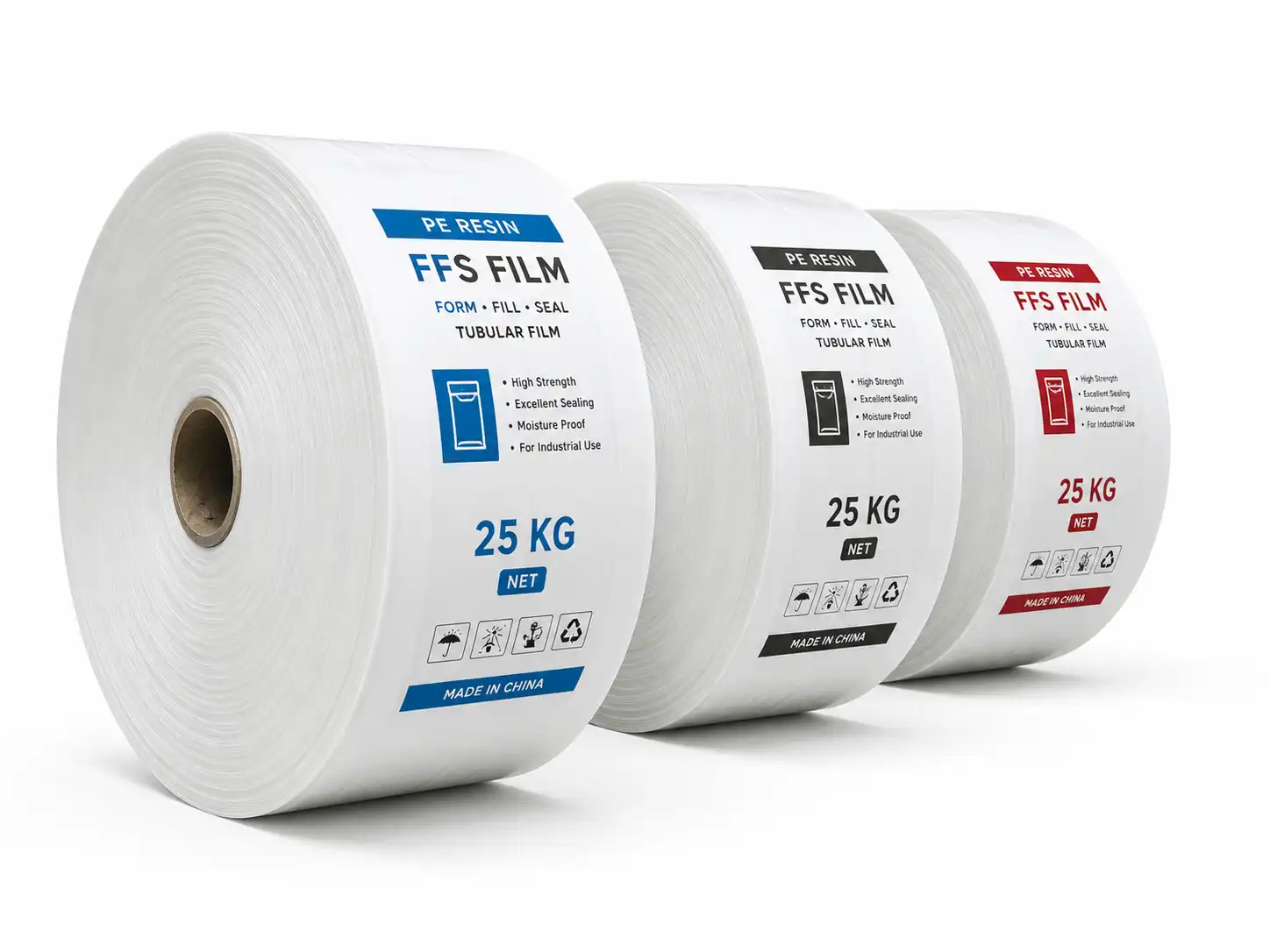

Tubular FFS Films are continuous, lay‑flat polyethylene (PE) tubes designed for automated Form‑Fill‑Seal (FFS) packaging lines. In everyday purchasing language, you may encounter them as heavy‑duty PE tubular FFS films, co‑extruded tubular film reels, LDPE/LLDPE tubular packaging rolls, or tubular PE FFS‑E films—all pointing to the same core idea: a mono‑material PE tube that is unwound, formed, filled, and sealed at high speed to create robust industrial sacks.

To see a representative product gallery and typical specifications, this anchor jumps to a public overview: Tubular FFS Films.

Features of Tubular FFS Films. The format is prized for a cluster of traits: high dart‑impact toughness for warehouse drops; controlled Elmendorf tear to prevent zipper‑like failures; reliable sealability across a broad hot‑tack window; stable lay‑flat for accurate bag geometry; printability up to six–eight colors; anti‑slip tuning through surface chemistry or embossing strips; controlled venting via engineered micro‑perforation; and the capacity to incorporate post‑industrial or post‑consumer recycled (PIR/PCR) resin while maintaining heavy‑duty performance. Thickness windows for 15–50 kg sacks commonly center on ~120–220 μm, with engineered excursions from ~80–300 μm depending on product physics and line setup.

How Tubular FFS Films are produced. Resins—LDPE for seal and toughness, LLDPE (often octene‑based) for tensile and tear, and measured HDPE for stiffness/puncture—are compounded with slip/anti‑block and, where relevant, PCR/PIR. A multi‑layer blown‑film die extrudes a bubble that is cooled, collapsed to a lay‑flat tube, and wound. Conversion options include in‑line emboss lanes (textured strips that raise friction where bags touch), laser or needle micro‑perforation for de‑aeration, and surface treatments for print adhesion. Each reel is finished to the specified OD/core for quick splices on FFS machines.

Where Tubular FFS Films are used. The format serves a wide field of dry, flowable materials: polymer pellets and powders, fertilizers, salts and minerals, cement/lime/fillers, animal feed and seeds, grains and rice, chemical granules and flakes. In each lane, the same promise holds: fast cycles, compact pallets, clean seals, and rugged sacks that travel.

Why Tubular FFS Films keep winning on modern lines

When a plant manager asks, “Why not stitched paper? Why not pre‑made bags?” the answer rarely fits on one line. Speed matters, shape matters, safety matters—and these goals are not naturally aligned. Tubular FFS Films align them through design, not luck. Consider the recurring pain points across warehouses: pallets creep because surfaces are slick; bags bloat because air cannot escape; seals fail because the material’s hot‑tack window is narrow; graphics scuff before the forklift arrives. A tube engineered from the resin up can attack these frictions together.

Problem → Solution → Result.

• Pallet stability suffers when film‑to‑film friction is too low. Solution: textured embossing strips and controlled COF skins. Result: tall stacks that behave like columns, not domino lines.
• Slow compaction and inflated bags appear when air is trapped. Solution: targeted micro‑perforation lanes outside seal tracks. Result: shorter fill‑to‑seal times, squarer sacks, clean seals.
• Seal failures arise when inner skin chemistry mismatches jaw temperature and dwell. Solution: inner layer tuned for hot‑tack and seal strength, verified at line speed. Result: sift‑proof seams at throughput.
• Inconsistent bag geometry follows poor lay‑flat control. Solution: calibrated bubble cooling and gauge control. Result: predictable former entry and neat pallets.

To engineers this feels obvious. To finance, it reads as fewer re‑stacks, fewer returns, and fewer hours lost to rework.

Architecture and manufacturing logic behind Tubular FFS Films

Layer roles (skin–core–skin). A three‑layer co‑ex is common: outer skin for COF and print anchorage; core as the load‑bearing spine; inner skin for seal initiation and hot‑tack. Change one and you influence the others. Raise HDPE to fight puncture, and you may raise seal temperature. Add more slip in the outer skin, and you may reduce pallet friction. Work the recipe, then lock the “golden window.”

Resin choices with intent. LDPE brings melt flow and forgiving seals. LLDPE—particularly octene‑based—delivers tensile/tear without embrittlement at cold temperatures. HDPE contributes stiffness and puncture resistance but must be moderated to protect seal strength. PCR/PIR content adds circularity and can be used safely with recipe tuning.

Bubble control. Cooling, frost‑line height, and web tension set lay‑flat and gauge profile. Stability here is not glamour; it is geometry insurance for every bag the line will ever make.

Emboss and perforation as post‑process tools. Emboss lanes raise COF only where needed, preserving glossy print panels; micro‑perfs vent air invisibly. Both can be added in‑line, both must steer clear of seal tracks, and both should be declared on the drawing the way an architect declares load‑bearing walls.

Tubular FFS Films with embossing strips—mechanism, options, measurements

What the strip does. Smooth PE, by nature, can slide. A narrow textured lane interrupts that slide. The micro‑texture increases real contact area and breaks up slip‑planes formed by processing lubricants. In practice, operators notice fewer shingled layers on conveyors and reduced pallet creep after vibration.

Design decisions.

• Stripe placement. One central lane for belt grip; twin mirror lanes to maximize bag‑to‑bag friction on pallets.
• Texture geometry. Diamonds cross‑hatches and dot fields are common; deeper textures raise friction yet reduce gloss locally—keep them outside hero artwork.
• Lane width. 10–20 mm for belts, 20–40 mm for tall stacks that need serious grip.
• COF targets. Set method and face pairs (e.g., sled‑plane, film‑to‑film, film‑to‑board). Many operations aim for ≥0.5–0.6 static on the strip, ≥0.3–0.4 on panels; publish both.

Measurements that matter. Log strip/panel COF per lot, then correlate with pallet audits (layer shift in mm after vibration cycles). Track drop‑dart to ensure texturing didn’t introduce stress concentrators. The number you want is fewer re‑stacks and fewer incident tickets.

Tubular FFS Films with micro‑perforation—physics and practice

Why venting is needed. Granules and powders drag air into the bag during dosing. If the seal closes before that air escapes, the bag inflates, resists compacting, and may even stress the top seam.

Two routes to tiny holes.

• Laser micro‑perforation melts through with a pulsed beam, often leaving smooth‑rimmed holes around ~80–120 μm, tight in diameter variance.
• Needle micro‑perforation uses a pin roller—simple, robust, slightly rougher edges, broader diameter variance, often economical.

Dialing the pattern. Engineers think in diameter, density, and zoning. Pellets want sparse lanes behind the fill plume. Powders demand denser grids but still away from seals and high‑stress radii. Open area can stay tiny (hundredths of a percent) and still transform compaction time.

Outcomes to verify. Faster fill‑to‑seal cycles, lower post‑vibration bag height, fewer top‑seal inclusions, less dusting compared to coarse macro‑perfs. Validation uses pressure‑decay traces during compaction and simple leak screens (talc/vacuum boxes). For hygroscopic SKUs, pair micro‑perfs with operational moisture control.

Environmental performance—how Tubular FFS Films fit a circular design brief

Mono‑PE as a strategic choice. A single polymer family eases sorting and recycling. Tubular FFS Films stay inside PE, so embossing and micro‑perfs do not change recyclability. PCR can be introduced responsibly: staged ramps (e.g., 10 → 20 → 30%), tighter filtration, and reinforcement of toughness via LLDPE adjustments.

Design‑for‑recycling practices. Prefer natural/white films, use compatible ink systems, declare additives in documentation, and avoid materials that complicate recycling streams. The film that performs on the line and on the pallet should also perform in the bale.

Documentation that travels. Food‑adjacent uses often require Declarations of Compliance against plastics rules; environmental audits expect alignment with design‑for‑recycling guidelines and, increasingly, market‑specific EPR labeling. The same discipline that makes a line run fast makes audits pass calmly.

System thinking—decompose Tubular FFS Films into solvable sub‑problems

Product physics → vent strategy. Is the SKU a coarse pellet, a flaky granule, or an ultrafine powder? That answer picks hole diameter and density, and whether a valve funnel or vibration assist is mandated.

Pallet mechanics → friction strategy. What height do you stack? What routes do you ship? This defines COF targets and whether to add twin stripes for bag‑to‑bag grip.

Line integration → seal strategy. What is the bar profile and dwell at speed? Tune the inner skin for hot‑tack and make perf‑free gutters non‑negotiable.

Compliance → paperwork strategy. DoCs for food contact where relevant; site systems for quality and hygiene; environmental claims supported with recognized guidance.

Circularity → resin strategy. PCR levels that your product and your market can absorb, without erasing the safety margin on dart/tear and seal strength.

Synthesis. The complete specification reads like a contract with physics: a laminate recipe, feature coordinates, seal windows, COF targets, and test methods that—together—predict behavior from unwinder to warehouse to retailer.

Data‑forward comparisons that place Tubular FFS Films in context

Versus pre‑made bags. Rolls cut changeover time and scrap when SKUs share geometry; the line creates the bag on demand, reducing inventory of separate bag SKUs. Rolls also deliver tighter registration between print and forming hardware.

Versus stitched paper. Paper brings tactile charm but suffers in humidity and high‑drop corridors. Tubular FFS Films deliver higher puncture resistance at lower mass and resist rain without extra layers. Where aesthetic paper “feel” is essential, hybrid routes exist, yet for pure speed and durability the tube leads.

Versus woven poly valve sacks. Valve sacks excel for ultrafine powders at extreme strengths. Tubular FFS Films rival them for many pellets and blends while offering simpler mono‑material recycling and tighter film‑based seals.

Specification table—anchor values for Tubular FFS Films

Attribute	Typical Window	Design Intention
Thickness (μm)	120–220 for 15–50 kg; 80–300 on request	Balance drop/tear, seal window, material use
Lay‑flat width (mm)	350–650; wider by project	Match former, dosing mass, and pallet footprint
Gusset depth (mm)	60–120 (M‑gusset/flat)	Build a square, robot‑friendly cross‑section
Roll OD / Core	1000–1500 mm OD; 3″/6″ cores	Fit automatic splicers; manage changeover intervals
Printing	Up to 6–8 colors; matte/gloss	Protect brand panels; keep art off emboss lanes
Embossing strips	1–2 lanes; 10–40 mm; diamond/cross‑hatch	Raise strip COF to ~≥0.5–0.6 for pallet safety
Micro‑perforation	Laser/needle; ~80–120 μm; density by SKU	Shorten compaction; avoid seals and stress radii
COF targets	Panel μs/μk tuned; strip static ≥0.5 typical	Stabilize pallets without jamming formers
QA test methods	D1894 COF; D1709 dart; D882 tensile; D1922 tear; F1306 puncture	Make performance measurable and repeatable
Additives	Anti‑block, slip, anti‑static, UV	Tune handling; declare for recycling and food‑contact reviews
Recycled content	0–50% PCR/PIR (validated by SKU)	Circularity gains with recipe‑tuned toughness
Food contact (if relevant)	EU 10/2011; FDA 21 CFR 177.1520	Support audits with DoCs and migration summaries

A practical RFQ blueprint for specifying Tubular FFS Films

Start with the failure you cannot afford. Pallet slips? Write COF targets and stripe coordinates. Inflated bags? Define micro‑perf diameter, density, and zones. Both? Combine features, test in steps.

Write the numbers, not adjectives. Seal window (°C and dwell), lay‑flat (mm), thickness (μm), strip width (mm), COF (panel/strip; method), micro‑perf (μm and holes/cm²), roll OD/core, and print lanes. Adjectives describe; numbers decide.

Run A/B line trials. Hold all else equal and change one variable. Measure cycle time, post‑vibration bag height, seal inclusions, pallet creep, transit damage, and rework hours. Plot the deltas.

Lock the documentation. A one‑page drawing that marks perf‑free gutters and emboss lanes; DoCs for food contact where in scope; design‑for‑recycling statements tied to recognized guidance; site certificates in an appendix.

Iterate for cost after stability. Once the system behaves, test a controlled −10 to −20 μm downgauge or a PCR step. Protect minimum dart/tear and seal metrics; keep the line window intact.

Worked examples—two contrasting Tubular FFS Films applications

Polymer pellets (25 kg at 1,400 bags/h). The line fought residual air and occasional top‑seal inclusions. Adding a 100 μm laser micro‑perf lane behind the fill plume (≈15 holes/cm²) and twin 20 mm emboss strips shortened fill‑to‑seal time ~7%, lowered pallet height ~6%, and cleared seal defects without measurable dusting. Barrier was unchanged for pellets; art stayed crisp because emboss lanes sat outside print.

Mineral powder blend (40 kg at 900 bags/h). Summer heat softened smooth skins and columns drifted. Moving to 200 μm, widening twin emboss lanes to 30 mm, and targeting strip static COF ≥0.6—plus localized 100 μm micro‑perfs away from seals—cut pallet creep below threshold, lifted fill rate ~8%, and tightened post‑vibration height by ~10%. Print scuff did not rise; lanes remained off‑art.

Quality plan and lab‑to‑line correlations for Tubular FFS Films

COF mapping. Test panel‑to‑panel, strip‑to‑strip, and panel‑to‑belt/board. Record static and kinetic. If your stretch‑wrap pre‑stretch is high, re‑measure surfaces after simulated wrapping; surface energy changes.

Impact and puncture. D1709 screens drop toughness; pair with F1306 slow‑rate puncture to approximate fork tips and pellet corners. Energy‑to‑break often predicts real damage better than tensile alone.

Tear and seals. D1922 (tear) and hot‑tack/peel across the bar profile set the run window. Keep perf‑free gutters under the bars; log seal defects per 10,000 bags.

Micro‑perf QC. Optical microscopy for diameter; image analysis for density; pressure‑decay vs. compaction time for effectiveness; talc or dye leak as a fast screen for powders.

Transport simulation. Vibration + compression cycles at hot and cold set points, because both COF and toughness move with temperature. Record layer shift and topple probabilities.

Frequently asked questions about Tubular FFS Films

Will embossing scratch graphics? Not when lanes are kept off the main print panels and applied with controlled pressure after printing. Gloss/matte balance remains under your art director’s control.

Do micro‑perfs weaken the bag? At the tiny open areas used for de‑aeration, structural effects are minimal; holes must avoid stress radii and seal tracks. Laser rims can even reduce crack propagation vs. coarse vents.

Can we run high PCR without losing speed? Yes—with staged ramps, tighter filtration, and recipe tuning to recover dart/tear and sealability. Validate at line speed, not just on the bench.

How do we make recyclability claims credible? Keep mono‑PE, declare additives and inks, align with recognized guidance, and document. The claim is the paper trail, not a slogan.

What single metric best predicts pallet safety? Layer shift in mm after standard vibration cycles, correlated with COF readings. When shift falls, re‑stacks and incidents follow.

Introduction — What Are Tubular FFS Films?

Tubular FFS Films are continuous, lay‑flat polyethylene (PE) tubes engineered for automated Form‑Fill‑Seal packaging lines that convert a film roll directly into an industrial sack. In purchasing catalogues, you will also find Tubular FFS Films described as heavy‑duty PE tubular FFS films, co‑extruded tubular PE rolls, LDPE/LLDPE tubular packaging reels, and tubular PE FFS‑E films. A representative overview is here: Tubular FFS Films.

Features of Tubular FFS Films. High dart‑impact toughness for warehouse drops; controlled Elmendorf tear to prevent zipper‑like failures; wide hot‑tack/heat‑seal window for fast cycles; stable lay‑flat to keep bag geometry square; printability up to 6–8 colors; optional anti‑slip embossing strips; engineered micro‑perforation for de‑aeration; UV/anti‑static options; and compatibility with PCR/PIR blends while retaining heavy‑duty performance.

How Tubular FFS Films are made. PE resins (LDPE/LLDPE/HDPE in tuned ratios) are compounded with slip/anti‑block and, where relevant, recycled content; a multi‑layer blown‑film die forms a bubble that is cooled, collapsed, and wound as a lay‑flat tube. In‑line modules add textured embossing strips and pattern‑controlled micro‑perforation while keeping seal tracks pristine. Rolls are trimmed, inspected, and packed for high‑speed splicing.

Where Tubular FFS Films are used. They serve dry, flowable goods that demand strength, sealing integrity, and pallet stability: polymer pellets and powders, fertilizer, salt and minerals, cement/lime/fillers, animal feed and seeds, grains/rice/flour, and chemical granules/flake.

Problem Framing — Why Plants Choose Tubular FFS Films

Industrial logistics repeat the same story: pallets shift, bags bloat, seals fail, graphics scuff. Paper sacks dislike humidity; pre‑made bags multiply SKUs and changeovers. Tubular FFS Films answer these tensions as a single system. Horizontally, the format fuses materials science (PE layer design), graphics (print/varnish), automation (forming jaws, dosing, hot bars), and logistics (COF and stacking). Vertically, it connects resin → tape/bubble → lay‑flat → forming → pallet → route, ensuring every step inherits and reinforces the last. The guiding question is simple: how can one roll run faster, stack safer, and waste less?

Method — Architecture and Options of Tubular FFS Films

A three‑layer co‑ex (skin–core–skin) is typical. The outer skin sets COF and anchorage for inks; the core carries dart and tear; the inner skin initiates seals at practical jaw temperatures. Embossing strips add friction where bags touch each other or belts without dulling the entire panel. Micro‑perforation (laser or needle) vents entrained air so the sack compacts quickly and seals cleanly. Resin choices follow intent: LDPE for forgiving seals, LLDPE (often octene‑based) for tensile/tear, moderated HDPE for stiffness/puncture; PCR/PIR can be staged in responsibly. Print lanes avoid emboss areas; perf‑free gutters avoid seal zones. QA closes the loop with COF, dart, tear, puncture, and seal‑strength checks.

Results — What Changes on the Line and the Pallet

When the stack is tuned, Tubular FFS Films shorten fill‑to‑seal time, lower bag height after vibration, and decrease top‑seal inclusions. Pallets become columns rather than dominoes as strip COF rises and panel COF is held inside a “sweet zone.” Graphics endure because reverse prints hide ink under film; operators endure less because changeovers shrink and rework falls. The financial translation is direct: more saleable output per hour, fewer claims per shipment.

Discussion — Horizontal and Vertical Reasoning in Practice

Horizontal reasoning. Materials science explains why a 20–26 μm seal‑initiation skin can widen the hot‑tack window; printing chemistry explains why reverse‑printed films resist rub; logistics explains why a static COF ≥0.5 on an embossing strip prevents layer creep. Combine the domains and the format behaves like an instrument, not a guess.

Vertical reasoning. Start at the polymer and climb to the pallet: resin blend → bubble stability → lay‑flat → mouth geometry → seal window → pallet friction → transit behavior. Each rung constrains the next; each decision propagates downstream. Tubular FFS Films succeed when these rungs are measured, not assumed.

System Decomposition — Sub‑Problems, Sub‑Solutions, Integration

De‑aeration. Powder and flake trap air. Sub‑solution: micro‑perforation with hole diameter (~80–120 μm), density (holes/cm²), and zoning (behind the fill plume, away from seals). Integrated effect: faster compaction, cleaner seals, squarer stacks.

Pallet stability. Smooth PE can slide. Sub‑solution: twin embossing strips (10–40 mm) aligned with bag‑to‑bag contact; specify static/kinetic COF and face‑pairs (film‑to‑film, film‑to‑board). Integrated effect: lower layer shift in vibration tests and fewer returned pallets.

Seal reliability. Seals fail when inner skin chemistry mismatches bar profile. Sub‑solution: tune seal‑initiation temperature and hot‑tack; publish °C and dwell, not adjectives. Integrated effect: sift‑proof seams at speed.

Graphic durability. Scuff ruins retail‑facing sacks. Sub‑solution: reverse print; keep embossing strips outside hero art; consider matte/gloss balance. Integrated effect: billboard‑grade panels that survive material‑handling.

Circularity. Mono‑PE eases sorting; PCR adds recycled content. Sub‑solution: staged PCR ramps with recipe tuning and filtration; declare additives and inks in documentation. Integrated effect: films that run fast and bale well.

Specification Table — Anchor Values for Tubular FFS Films

Attribute	Typical Window	Design Intention
Thickness (μm)	120–220 for 15–50 kg; 80–300 on request	Balance drop/tear, seal window, and freight mass
Lay‑flat width (mm)	350–650; wider by project	Match former size, dosing mass, pallet footprint
Gusset depth (mm)	60–120 (M‑gusset/flat)	Build a square, robot‑friendly cross‑section
Roll OD / Core	1000–1500 mm OD; 3″/6″ cores	Fit automatic splicers; manage change intervals
Printing	Up to 6–8 colors; matte/gloss	Protect brand panels; keep art off emboss lanes
Embossing strips	1–2 lanes; 10–40 mm; diamond/cross‑hatch	Raise strip COF to ≥0.5–0.6 for pallet safety
Micro‑perforation	Laser/needle; ~80–120 μm; density by SKU	Shorten compaction; avoid seals and stress radii
COF targets	Panel μs/μk tuned; strip static ≥0.5 typical	Stabilize pallets without jamming formers
QA methods	D1894 COF; D1709 dart; D882 tensile; D1922 tear; F1306 puncture	Make performance measurable and comparable
Additives	Anti‑block, slip, anti‑static, UV	Tune handling; declare for DfR and food‑contact
Recycled content	0–50% PCR/PIR (validated)	Circularity gains with recipe‑tuned toughness
Food contact (if relevant)	EU 10/2011; FDA 21 CFR 177.1520	Support audits with DoCs and migration summaries

Mini Case Comparisons — Pellets, Powders, and Blends with Tubular FFS Films

Pellets (e.g., polymer, salt). Pain point: residual air inflates bags and contaminates the top seal. Method: a sparse 100 μm micro‑perforation lane behind the fill plume; twin 20 mm embossing strips for conveyor and pallet grip. Result: shorter cycles, lower post‑vibration height, clean seals. Discussion: barrier impact is negligible for non‑hygroscopic pellets; operators appreciate the calmer line.

Powders (e.g., fertilizer, fillers). Pain point: pallet creep in summer and dust at seams. Method: widen embossing strips to 25–30 mm and set strip static COF ≥0.6; add denser micro‑perforation zones away from seals. Result: stable columns, faster compaction, fewer seal inclusions. Discussion: slight gauge increase (e.g., 180–220 μm) often pays for itself in reduced rework.

Blends (granule + fine). Pain point: mixed flow behavior confuses the line. Method: keep Tubular FFS Films at mid‑gauge with targeted perf lanes and balanced COF; validate using vibration + compression tests at hot/cold set points. Result: predictable stacking across seasons. Discussion: the hybrid SKU benefits most from numbers on the spec, not adjectives on the box.

Quality & Compliance — Making Tubular FFS Films Auditable

Publish COF targets with the test method; track dart/tear and puncture alongside seal‑window temperatures and dwell. If bags contact food or food‑adjacent goods, maintain Declarations of Compliance for EU 10/2011 and FDA 21 CFR 177.1520. Align recyclability claims with recognized guidance (APR/RecyClass) so procurement, quality, and sustainability speak the same language. When Tubular FFS Films are specified this way, audits move quickly because numbers answer questions before meetings are scheduled.

References (selected, non‑CNC)

1. ASTM D1894 — Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting.
2. ASTM D1709 — Standard Test Methods for Impact Resistance of Plastic Film by the Free‑Falling Dart Method.
3. ASTM D882 — Standard Test Method for Tensile Properties of Thin Plastic Sheeting.
4. ASTM D1922 — Standard Test Method for Propagation Tear Resistance of Plastic Film and Thin Sheeting by Pendulum Method.
5. ASTM F1306 — Standard Test Method for Slow Rate Penetration Resistance of Flexible Barrier Films and Laminates.
6. European Commission Regulation (EU) No 10/2011 on plastic materials intended to come into contact with food; and (EC) 1935/2004.
7. U.S. FDA 21 CFR 177.1520 — Olefin Polymers for food contact applications.
8. APR Design® Guide for Plastics Recyclability — PE Film & Flexible Packaging.
9. RecyClass Design for Recycling Guidelines — Polyethylene Flexible Packaging.
10. Selected supplier datasheets and marketplace listings for heavy‑duty tubular PE FFS films (lay‑flat 350–650 mm; thickness ~120–220 μm; embossing/micro‑perforation options).
