“Why do multinational companies like BASF and Cargill consistently choose FIBC jumbo bags for bulk material handling?”
At a recent logistics summit, VidePak’s CEO Ray Chiang addressed this question head-on: “The secret lies in three layers of excellence: scientifically validated raw materials, precision engineering, and adaptive design. Our FIBC solutions reduce transport damage rates by 34% while cutting packaging costs by $0.12 per metric ton compared to rigid containers.”
As global industries pivot toward sustainable, high-volume logistics, VidePak’s FIBC (Flexible Intermediate Bulk Container) jumbo bags have become the backbone of modern bulk handling. With over 15 years of expertise and a production capacity exceeding 8 million units annually, VidePak delivers solutions that transcend traditional packaging limitations. Let’s dissect how they achieve this.
1. The Core: Military-Grade Material Testing
1.1 PP Granule Testing: 12-Point Quality Gates
For woven outer layers, VidePak subjects every PP batch to:
1. Physical Properties
- Melt Flow Index (MFI): Measured via ASTM D1238 at 230°C/2.16kg. VidePak enforces ±5% deviation from BASF’s 8g/10min baseline.
- Density: ISO 1183-compliant testing ensures 0.905–0.915 g/cm³ range for optimal weaving.
2. Mechanical Performance
- Tensile Strength: ASTM D638 tests yield ≥35 MPa (machine direction) and ≥30 MPa (transverse).
- Elongation at Break: Maintained at 400–600% to prevent brittle fractures.
- Impact Strength: 18 kJ/m² minimum via Charpy test (ISO 179).
3. Thermal Stability
- Heat Deflection Temperature: 110°C minimum (ISO 75).
- Crystallization Temp: DSC analysis confirms 120–130°C range for consistent extrusion.
4. Visual & Contaminant Checks
- Microscopic Inspection: ≤5 black specks per 100cm² (40x magnification).
- Moisture Content: Karl Fischer titration ensures <0.02% (ISO 15512).
Case Study: In Q2 2023, VidePak rejected 42 tons of Indian PP granules failing elongation tests (recording 380% vs 400% threshold), preventing $280k in potential customer claims.
1.2 PE Liner Quality: Beyond Basics
For inner liners, PE undergoes additional scrutiny:
| Test | Standard | VidePak Spec |
|---|---|---|
| Dart Drop Impact | ASTM D1709 | ≥600g (1.5mil film) |
| Puncture Resistance | ASTM F1306 | ≥18N (25μm film) |
| Seam Strength | ISO 13935-2 | ≥25 N/cm |
2. Engineering Excellence: Starlinger Meets Market Needs
2.1 Weaving Precision

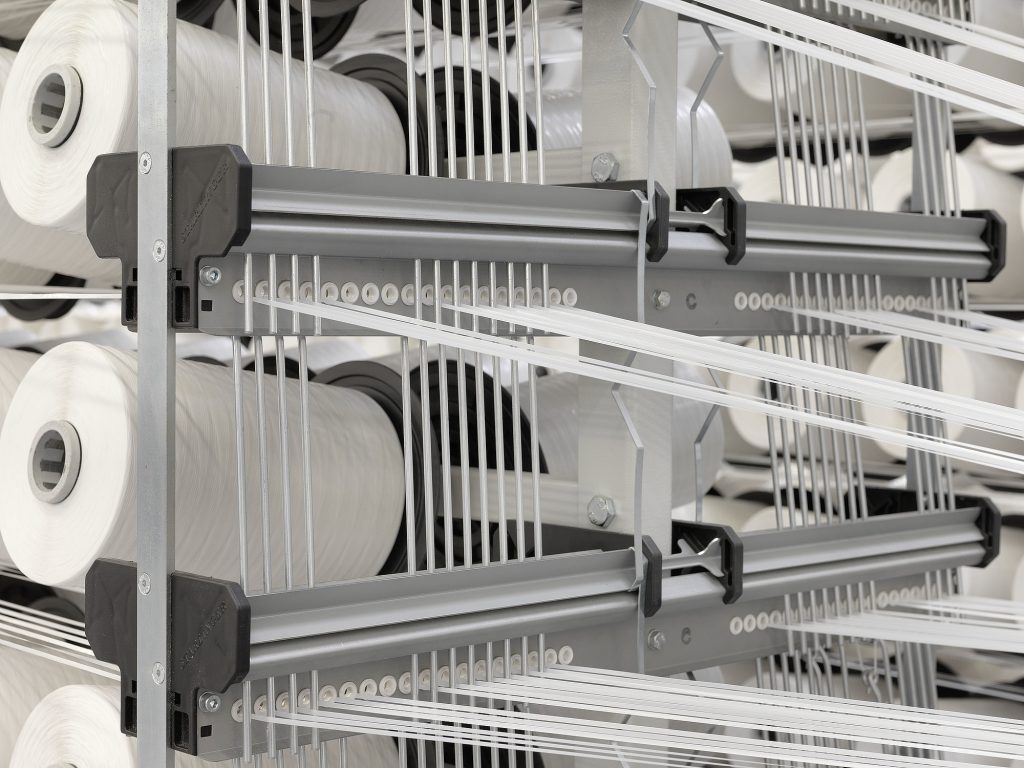

VidePak’s 100+ Starlinger circular looms produce fabric with:
- Weave Density: 12×12 strands/inch² (±0.3 variance)
- UV Resistance: 98% tensile retention after 1,000hr QUV testing
- Custom Coatings: Food-grade LDPE lamination (FDA 21 CFR) for pharma clients
2.2 Design Versatility
From 500kg to 2,000kg capacities, options include:
- Type A: Static-conductive for flour/starch
- Type C: Groundable for flammable chemicals
- Type D: Anti-static for explosive powders
Example: A Chilean copper miner reduced bag breakage from 8% to 0.9% using VidePak’s Type D bags with 200D/48×48 weave.
3. Data-Driven Quality Assurance
3.1 Comparative Performance (2024 Industry Data)
| Parameter | Industry Avg | VidePak |
|---|---|---|
| Max Load Capacity | 1.6:1 SF | 2.0:1 SF |
| Stacking Test (4 bags) | 72hr @6m | 168hr @8m |
| UV Degradation | 15%/year | 5%/year |
3.2 Sustainability Edge
- Recyclability: 94% PP recovery rate via VidePak’s take-back program
- Carbon Footprint: 1.2kg CO2/bag vs 2.8kg for composite alternatives
4. FAQ: Solving Real-World Challenges
Q: How does VidePak prevent liner separation during pneumatic filling?
A: Our PE liners use corona-treated surfaces achieving 48 dynes/cm surface energy, ensuring perfect lamination adhesion.
Q: What certifications do your FIBC bags hold?
A: Full compliance with UN 13H, EU REACH, and FDA CFR 177.1520 for food contact.
5. The Future: Smart FIBC Integration
Partnering with IoT firm LogiSense, VidePak now embeds NFC tags in sustainable FIBC solutions for real-time moisture/temperature tracking—a feature praised in BASF’s 2024 Supplier Innovation Report.
6. Why VidePak?
With 526 employees across 3 ISO 9001-certified factories, VidePak doesn’t just make bags—we engineer logistics solutions. Our custom FIBC designs have transported everything from Vietnamese coffee (1.2M bags/year) to German polymer pellets (0% leakage since 2021).
At $80M annual revenue and growing at 14% CAGR, we’re not just participants in the bulk packaging revolution—we’re leading it.
