Multiwall Paper Bags: Understanding Their Types, Structure, and Market Adaptation

What Are Multiwall Paper Bags? Definitions, Scope, and Why Names Matter

Multiwall Paper Bags are engineered, multi‑ply shipping containers designed for powders, granules, and small particulates in the 5–50 kg class. They combine two or more plies of kraft paper with optional films or liners and are finished by pasting, pinching, or sewing. Their defining purpose is simple but exacting: protect the product, present the brand, and perform across filling, storage, and transport without surprises. Depending on market and filler technology, buyers also encounter allied terms such as Kraft Multiwall Paper Bags, Multi‑ply Paper Sacks, Pasted Valve Paper Bags, POM (Pasted Open Mouth) Bags, PBOM (Pinch‑Bottom Open‑Mouth) Bags, Sewn Open Mouth Paper Bags, Valve Paper Sacks, Block‑Bottom Paper Sacks, and Multiwall Paper Valve Bags with PE liner. Different names, shared intent: predictable protection under real‑world abuse.

What Is the Product, Really? A Plain‑Language Anatomy of Multi‑ply Paper Sacks

At the simplest level, a Multi‑ply Paper Sack is a laminated structure that acts like a small machine. Each ply has a job; each job removes a failure mode. The outer ply prints and resists scuff. Middle plies give tear‑path control and column stiffness. The inner ply provides glue holdout and, when required, a bondable surface for films. Beyond paper, optional liners and coatings manage vapor and odor, while the bottom geometry (block‑bottom vs. pillow) decides how pallets behave in compression and transport.

Because the bag is open to many configurations, the same family supports very different outcomes: high‑speed filling (via Pasted Valve Paper Bags with micro‑perforations), neat seam edges and low wicking (via PBOM), cost‑efficient manual filling (via POM), and rugged simplicity (via Sewn Open Mouth Paper Bags). Market adaptation is not a slogan—it is a set of levers you can actually pull.

The Material of Multiwall Paper Bags: Constituents, Properties, and Cost Logic

Treat the bill of materials as a map of risks. Each material answers a question: Will the bag stand up straight? Will it de‑aerate during fast filling? Will it hold off humidity long enough to prevent caking? Will the seam wick water after an unexpected downpour? Below we translate those questions into layer‑by‑layer choices.

1) Kraft paper plies. Long‑fiber softwood kraft supplies tear strength and column stiffness; hardwood additions smooth the face for high‑fidelity flexo. Typical outer ply is 90–110 g/m²; inner plies vary 60–100 g/m², depending on duty. Certifications (FSC/PEFC) are increasingly requested to document fiber stewardship and chain of custody.

2) Liners and barrier films. LDPE/LLDPE/MDPE liners at 20–80 µm attack moisture uptake (lower WVTR), keep fines contained, and allow inner heat‑sealing. Form‑fit liners improve cube and reduce pleat crumpling. When oxygen or aroma control joins moisture as a threat, EVOH‑containing coextrusions or metallized layers may be specified for niche SKUs, though most Multi‑ply Paper Sacks rely on moisture management rather than oxygen barrier.

3) Adhesive and tie systems. Solvent‑less polyurethane dominates for low VOC and durable creep resistance; solvent‑based PU remains a precision tool for difficult bonds at speed (with solvent recovery where installed). Extrusion lamination (PP/PE tie) can double as a pore‑closing skin where splash resistance and COF control are needed.

4) Surface recipes and auxiliaries. Anti‑slip coats tune COF to keep pallets stable under vibration and tilt while still releasing cleanly from wrap. Over‑print varnish guards graphics; anti‑static aids reduce dust plumes at the spout; micro‑perfs enable valve fills to de‑aerate smoothly.

5) Seams, bottoms, and geometry. Pasted Valve Paper Bags employ a multi‑fold block‑bottom with an internal valve; PBOM uses a hot‑melt strip to fold‑and‑seal the top without stitches; POM pastes after fill; SOM sews, ideally with laminated crepe tape to minimize stitch‑hole wicking. Block‑bottom geometry squares the base for better cube and compression behavior.

What Are the Features of Multiwall Paper Valve Bags with PE liner? Capabilities and Trade‑offs

The feature set is best understood by pairing properties with loss modes. When you see a property, ask yourself: which failure disappears?

• Stack‑ready rigidity: Paper panels resist buckling, keeping a clean cube. The loss mode removed is topple and corner crush during transport and warehouse staging.
• Impact forgiveness: Multi‑ply walls and gussets absorb shocks better than single‑ply films. The loss mode removed is split seams from incidental drops.
• Print fidelity: High‑line‑screen flexo on kraft or gravure on top films delivers brand accuracy; varnish keeps it readable. The loss mode removed is scuffed‑off instructions that invite misuse.
• Tunable permeability: Micro‑perfs and valves vent air to prevent bag ballooning; liners lower WVTR. Loss modes removed: slow fills and caking due to moisture uptake.
• COF control: Anti‑slip coats hit the window where pallets neither surf nor tear wrap. The loss mode removed is container drift and tilted stack collapse.
• Route‑aware resilience: PBOM and taped SOM fight stitch‑hole wicking; liners blunt humidity swings. The loss mode removed is wet‑seam failures after rain or fogging events.

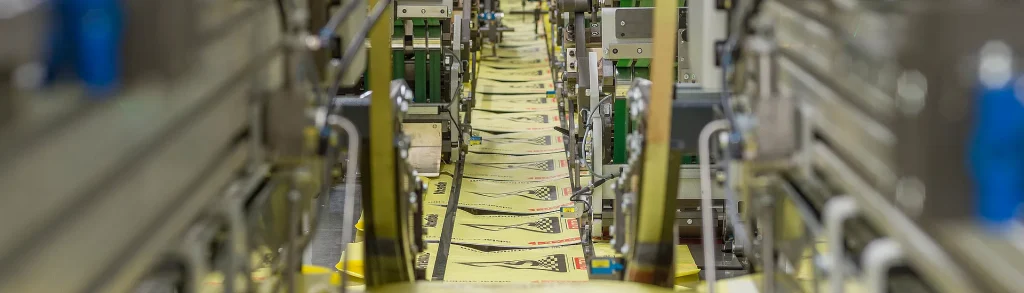

The Production Process of Kraft Multiwall Paper Bags: Front‑End → Core Line → QA Release

Reliable outcomes come from disciplined inputs, precise machines, and ruthless tests. VidePak equips lines from Austria and Germany—specifically high‑precision platforms from Starlinger and W&H (Windmöller & Hölscher)—so that grammage, tension, and registration numbers in the lab become behaviors on the pallet.

Front‑end (incoming): paper checked for basis weight, moisture, Cobb; films and liners checked for melt index, SIT and hot‑tack; adhesives for solids and viscosity; inks for adhesion and rub; auxiliaries for COF baselines and micro‑perf patterns. Every lot is barcoded and retained.

Core converting: print → laminate/paste → tube and gusset → bottom formation (valve, PBOM, POM, SOM) → valve patching → liner insertion and lip prep → bundle & bale. Web tension and coat‑weight maps are controlled; registration deviations are trended.

Back‑end QA: coat weight and peel in‑process, then lab WVTR at agreed temperature/RH, drop tests both dry and conditioned‑wet, stacked compression (including creep over 72–168 h), COF windows, valve leakage and vent performance, seam wicking by splash/hydrostatic challenge. Release adds dimensions, mass, color delta, and AQL for cosmetics.

Applications for Multi‑ply Paper Sacks: Mapping Use‑Cases to Architectures

Different contents, different routes, different priorities. The design space is large, but the patterns are repeatable.

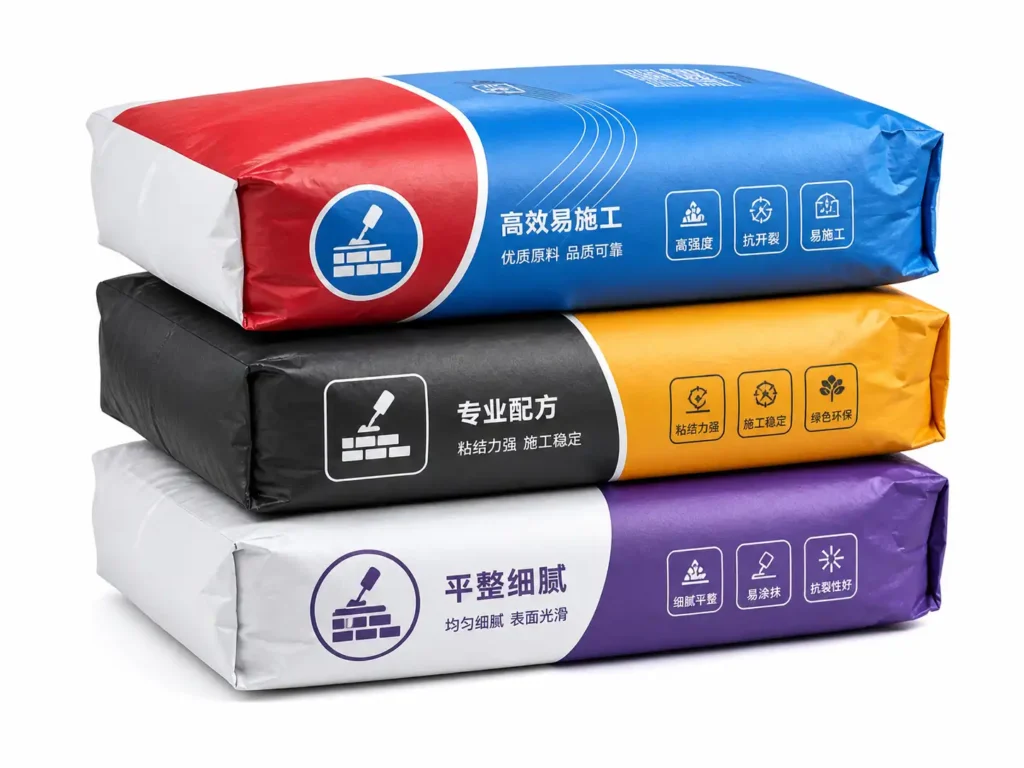

• Cement additives and dry mortars: prefer Pasted Valve Paper Bags with micro‑perfs for fast de‑aeration, block‑bottom for cube, liner for monsoon routes.
• Chemicals & minerals (CaCO₃, TiO₂, silica, pigments): PBOM on splash‑risk routes (heat‑sealed pinch top kills stitch wicking); liners for hygroscopic grades.
• Fertilizers & salts: Sewn Open Mouth Paper Bags with laminated tape are cost‑effective inland; near coasts, step up to PBOM with a liner.

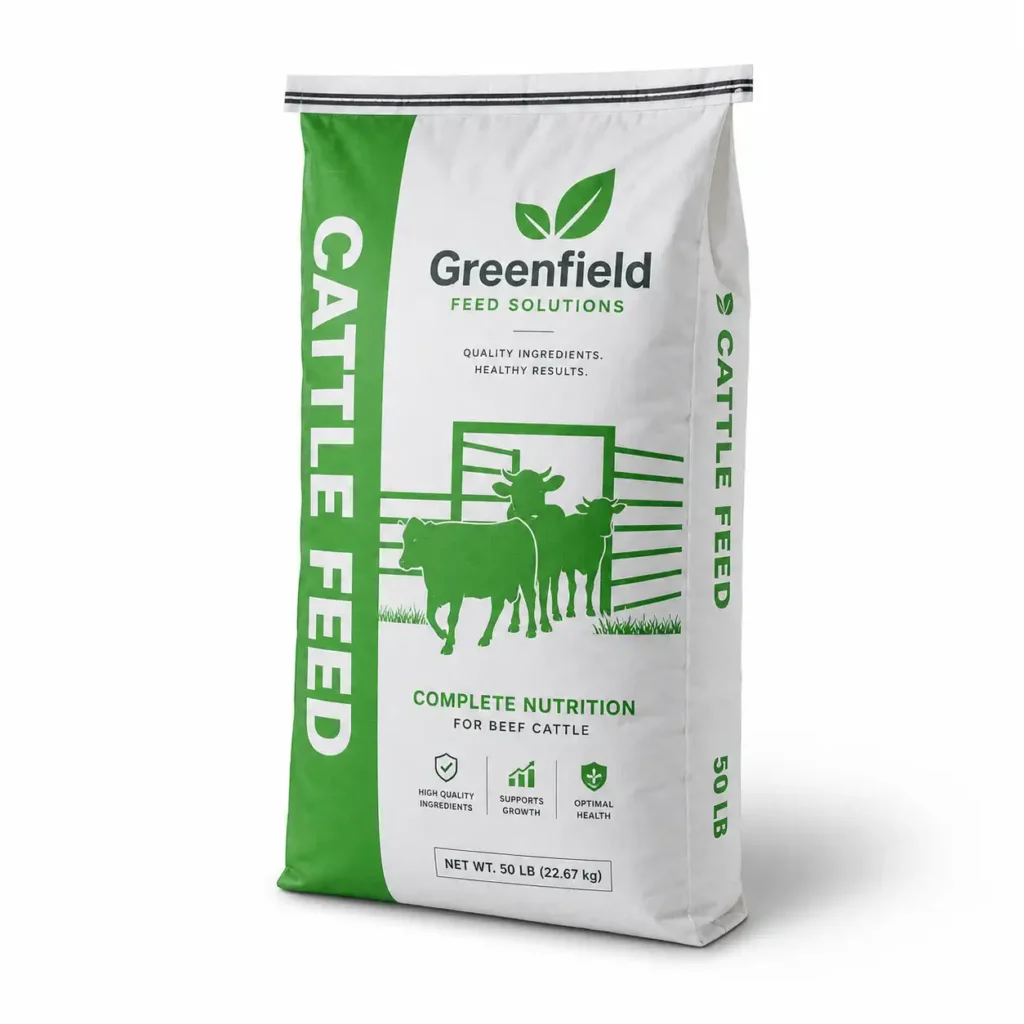

• Animal nutrition & pet food: Kraft Multiwall Paper Bags with premium print and varnish; liners for aroma/fat control.
• Seeds & agri‑inputs: paper for brand feel, UV‑aware inks; liner optional per climate.
• Specialty foods & additives: EVOH/met films if oxygen and aroma limits are tight; PBOM for neat retail edges.

How VidePak Controls and Guarantees Quality

Step 1 — Standards literacy and deployment. Methods align with mainstream frameworks: film/laminate permeation (e.g., WVTR at specified T/RH), paper sampling, burst/tear standards, and customer SOPs for drop/stack and venting.

Step 2 — Sourcing discipline. Virgin film/liner resins from major producers; kraft with documented chain of custody where requested; adhesives/inks from qualified suppliers with COAs; masterbatch screening for active content and dispersion.

Step 3 — Best‑in‑class equipment. Converting on Starlinger and W&H platforms ensures tension control, coat‑weight precision, and registration accuracy—mechanical fundamentals that turn lab targets into pallet outcomes.

Step 4 — Closed‑loop inspection. Incoming → in‑process → finished goods, barcode traceability, lot‑linked retains, routine trending of WVTR, seam peel, COF, compression, and periodic wet‑condition tests. Complaint forensics tie back to retains rather than memory.

System Thinking for Multiwall Paper Bags: From Sub‑Problems to a Single Coherent Spec

To adapt to markets, break the decision into smaller questions, answer each honestly, then recombine. Here is a practical decomposition used by packaging engineers who measure first and argue later.

Sub‑problem A — Barrier definition. Are we fighting humidity in storage, splash in yards, or oxygen/aroma? Levers: liner thickness and type; PBOM vs. taped SOM; micro‑perfs for de‑aeration; optional EVOH/met film for aroma. Metric: WVTR at T/RH and a pass/fail wicking test.

Sub‑problem B — Mechanical profile. What abuse is likely (fork snatch, vibration, stacking)? Levers: ply sequence, block‑bottom geometry, reinforcement patches, anti‑slip COF. Metric: drop heights, puncture, compression with time‑dependent creep.

Sub‑problem C — Process fit. Valve or open mouth? Manual or auto? Levers: valve architecture, micro‑perfs, hot‑melt systems for PBOM, liner heat‑seal cycles. Metric: fill rate at reject threshold, seal peel at process temperature, dust counts at the spout.

Sub‑problem D — Compliance and data trail. Food‑adjacent? Fiber stewardship? Hazard icons? Levers: food‑contact declarations, FSC/PEFC chain‑of‑custody, QR/lot coding. Metric: auditable COAs and label accuracy.

Sub‑problem E — Economics and sustainability. Where does an extra ply or liner pay back? Where not? Levers: right‑sizing grammage, seasonal liner toggles, solvent‑less adhesives, wrap recipes matched to COF. Metric: claims avoided, scrap %, kWh/t laminate, g CO₂e per tonne delivered intact.

Engineering Guidance, Rules of Thumb, and Practical Targets

WVTR targeting. For hygroscopic mineral powders on mixed‑climate routes, a 30–50 µm liner often halves moisture gain versus unlined builds; in monsoon corridors, 50–70 µm can pay for itself via reduced caking and claims.

COF windows. 0.35–0.45 typically balances pallet stability with wrap release. Too slick invites sliding; too grippy tears wrap and scuffs print.

Drop testing. 0.8–1.2 m drops reflect real forklift mishaps; conditioned‑wet drops reveal seam weaknesses hidden by dry tests.

Compression and creep. Validate to the actual stack height (often 2.2–2.5 m) and dwell times (72–168 h). Instantaneous tests miss real risk.

Seam design. Pasted valve multi‑folds distribute stress; PBOM heat‑seal removes stitch‑hole wicking as a variable; sewn + laminated tape is a cost‑savvy middle ground.

Print durability. Over‑varnish on kraft extends rub life; where retail‑grade abrasion is severe, consider a printable top film while retaining paper feel elsewhere.

Technical Tables for Multiwall Paper Bags: Parameters, Materials, Processes

Real‑World Scenarios: Turning Needs into Numbers

Scenario A — 25 kg dry mortar, monsoon route. Pick: Pasted Valve Paper Bags (block‑bottom), outer 100 g/m², middle plies for stiffness, liner 40 µm, micro‑perfs, anti‑slip COF ≈ 0.38. Checks: WVTR ≤ 0.5 g/m²·day @ 38 °C/90% RH; wet drop 0.8 m pass; 72 h compression at high RH.

Scenario B — Coastal fertilizer prills. Pick: PBOM with 30–40 µm liner; taped corners; anti‑slip surface. Checks: splash/wicking test; pallet slide test on tilt table; seal peel at process temperature.

Scenario C — Pet food (retail‑facing). Pick: Kraft Multiwall Paper Bags with premium print and varnish, form‑fit liner 50 µm; block‑bottom. Checks: COF window, rub cycles, odor migration, seal integrity.

Scenario D — Minerals (warehouse only). Pick: POM or SOM without liner; up‑gauge middle ply; anti‑scuff varnish. Checks: drop/puncture; compression; print rub resistance.

Failure Modes & Countermeasures (FMEA Snapshot)

Procurement Specification Template (Editable)

Why VidePak: Equipment, People, Process

Equipment pedigree. High‑precision converting and printing on Starlinger and W&H platforms hold tension, registration, and coat weight inside tight bands. That mechanical discipline shows up as repeatable seams, reliable barrier, and clean cube on pallets.

People & methods. Engineers map loss modes (humidity, dust, wicking, slide) to materials and geometry, so you avoid both over‑ and under‑spec. Data, not slogans, drives revisions.

Data‑driven QA. Routine trending of WVTR, seam peel, COF, compression, and drop; lot‑linked retains; complaint forensics connected to real samples rather than recollection. Predictability is the product.

Human Habits That Keep Block‑Bottom Paper Sacks Honest

Calibrate scales daily. Verify seam formation at shift start. Check COF weekly against wrap tension settings. Walk the yard after rain and cut a sample to inspect seam wetting. Photograph inbound pallets and annotate corner drift or scuff patterns. Break one pallet per quarter in QA to audit compression and creep under the current stack plan. Archive retains and trend WVTR and seam peel by lot. These rituals are not glamorous; they are the most reliable way to turn engineered intent into boringly good outcomes.

Comparative Landscape: Where Multiwall Paper Bags Win—and Where They Don’t

Against woven PP sacks, Multiwall Paper Bags typically offer superior print fidelity and friendlier handling feel but give up some wet‑route resilience unless a liner and seam strategy are specified. Against film‑only heavy sacks, they gain column stiffness and non‑tacky surfaces but trade away some puncture tolerance. Against simple monolayer paper bags, they deliver an order‑of‑magnitude jump in seam strength and tear resistance for a modest mass penalty. The right choice is brutally functional: measure the loss you fear, then buy the property that removes it.

Route‑ and Season‑Specific Adjustments for Kraft Multiwall Paper Bags

A rational program evolves with the calendar. In humid seasons or coastal depots, enable a thicker liner, move from SOM to PBOM on sensitive SKUs, and schedule wet‑condition drop/stack audits. In dry seasons or warehouse‑only legs, scale back grammage and liner thickness to control cost. This seasonal toggling is not indecision—it is market adaptation grounded in physics.

A Note on Sustainability and End‑of‑Life for Multi‑ply Paper Sacks

Hybrid structures complicate end‑of‑life when liners are used, yet they often prevent far greater environmental loss by protecting high‑energy‑intensity contents (pet foods, specialty chemicals, admixtures). A credible sustainability narrative therefore pairs material choices with avoided‑waste math: grams of material vs. kilograms of product saved. Practical steps—right‑sizing grammage, solvent‑less adhesives, solvent recovery for solvent‑based lines, scrap segregation, clear recyclability and disposal guidance—move the conversation from ideology to outcomes.
