Valve Bags: Versatile Packaging Solutions for Flood Control and Beyond

What are Valve Bags and why are they used so widely?

Valve Bags are pre‑formed industrial sacks equipped with a purpose‑built fill opening—a valve sleeve—that couples directly to automated or semi‑automated packers. During the last seconds of filling, product densification and internal head pressure help close the sleeve; geometry, friction, and—when specified—adhesives or heat/ultrasonic seals complete the closure. In practice this means fast fills, less airborne dust, and neater pallets for powders and granules typically ranging from 10 kg to 50 kg per unit. The appeal is as simple as it is powerful: move material quickly, keep the floor clean, and ship square loads.

Across plants and geographies, the same platform is described by different labels—each hinting at geometry, substrate, or regulatory context. To reduce ambiguity on cross‑functional teams, here is a concise alias map with plain‑English cues:

1. Valve sacks — the generic, shop‑floor name emphasizing the integrated sleeve.
2. Pasted valve bags — multi‑wall paper constructions with glued side seams and a pasted valve.
3. Block‑bottom valve sacks — square‑base formats that stack flatter and resist bulging.
4. PP woven valve bags — polypropylene raffia bodies (often coated or laminated) with valve mouths.
5. AD*STAR‑type bags — patented PP woven, block‑bottom valve sacks widely adopted for cement.
6. BOPP laminated valve bags — woven PP bodies laminated with oriented PP film for crisp graphics and moisture control.
7. PE valve bags — mono‑material polyethylene sacks whose valves can be heat‑sealed for tamper evidence.
8. Internal‑valve bags — compact designs with the sleeve inside the body; cleaner at high speeds.
9. External‑valve bags — the sleeve projects outward; simple and compatible with a broad range of packers.
10. Self‑sealing valve sacks — the closure is achieved by geometry and product pressure alone.

Why do these names persist? Because Valve Bags live at the crossroads of materials (paper, PP woven, PE), machinery (impeller, air, auger), and priorities (dust control, moisture management, pallet shape). Vocabulary shifts with sector and site—but the intent is constant: a durable, fast, clean package for fine solids.

Materials and structure in Valve Bags: what each layer does, where it sits, and why it matters

Think of Valve Bags as a modular system rather than a single material. Bodies, bottoms, valves, and liners can be mixed and matched to meet a performance brief—speed, strength, moisture control, hygiene, or recyclability—while respecting cost and manufacturing realities. Below, each substrate is unpacked in terms of function, properties, and trade‑offs.

Where, finally, do the parts sit in the load path? The body takes tensile loads and resists abrasion; the valve mates to the packer, releases air, and seals the opening; bottoms and seams deliver cube and corner toughness; liners add barrier and cleanliness without imprisoning air. When these parts are treated as one system, Valve Bags can be tuned to demanding profiles—rapid fill, long stack time, damp climate—without resorting to blunt weight increases.

Standout traits of Valve Bags: speed, cleanliness, and control working together

Why do engineers keep choosing Valve Bags after run‑offs, audits, and trial shipments? Because the same design solves several problems at once. Consider these operational advantages as a linked set rather than a menu:

• Fast, controlled filling — Valve sleeves couple tightly to packer spouts. Air leaves through engineered micro‑perfs or through‑valve venting so the product densifies quickly with minimal dust. Modern lines routinely fill 25–50 kg in a few seconds.
• Self‑closure and dust mitigation — Densification and head pressure help the sleeve close; optional patches or heat seals provide transport‑grade integrity. Cleaner fills mean safer operators and lower housekeeping cost.
• Stable stacking and high cube — Block‑bottom footprints and tuned panel stiffness keep pallets square, limit overhang, and survive long storage.
• Substrate flexibility — Paper for print warmth and breathability; PP woven for wet weather and abrasion; PE for heat‑sealable hygiene. The choice is contextual, not ideological.
• Broad product compatibility — Cement, lime, gypsum, fertilizers, pigments, feed, de‑icing salt—each gets a variant with appropriate venting and barrier.
• Line integration — Geometry aligns to spout diameters and de‑aeration profiles; recipe‑based packer controls make repeatability routine.
• Traceability — Durable marks, barcodes, and document pockets link each unit to its bill of materials and quality data.

How Valve Bags are produced: substrate lines, conversion steps, and quality gates

Different substrates follow different routes, but the logic repeats: make the sheet or fabric, form the tube, configure the valve, close the bottom, mark and test. The difference between a good bag and a great bag is control—of parameters, of documentation, of change.

1. Paper valve sacks — Sack‑kraft plies are printed and tubed, with pasted valves added and block‑bottoms formed. Vent maps and micro‑perfs are tuned to the packer and product. QA checks dimensions, valve fit, adhesive penetration, and drop performance.

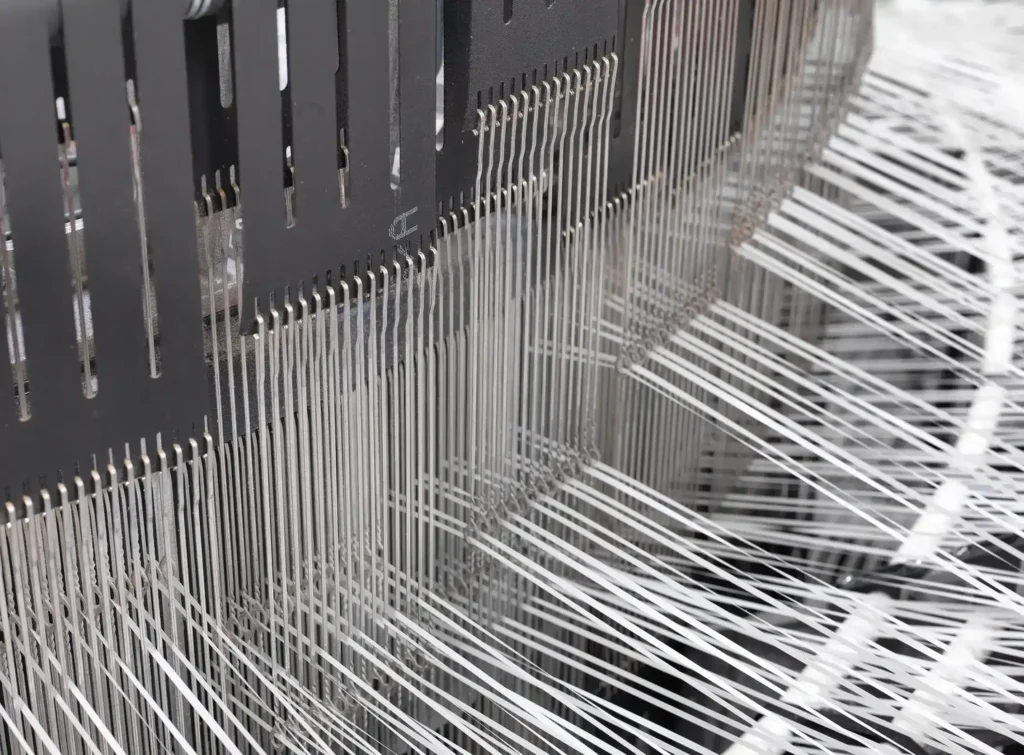

2. PP woven valve sacks — PP resin is extruded, slit, and drawn into tapes; fabrics are woven to target PPI/EPI; coatings or BOPP laminations are applied. Conversion integrates valves, forms block‑bottoms via heat/ultrasonic seals or compatible pastes, and prints graphics. QA validates fabric tensile, seam/patch integrity, drop performance, and valve compatibility.
3. PE mono‑material valves — Blown films are gusseted and tubed; PE sleeves are inserted and heat‑sealed; laser or pin perforation provides venting. QA verifies seal strength, leak‑tightness under vibration, and drop/stack outcomes.

Where Valve Bags excel: industry profiles, payloads, and field realities

The same virtues—fast fills, clean decks, square pallets—apply in everyday logistics and in emergency response. Use‑case clarity drives substrate choice and valve geometry.

• Cement and building materials — Cement, mortar, plaster, lime, fly ash. Priorities: fill speed, dust control, burst resistance, pallet stability. Paper and PP woven dominate; block‑bottoms are preferred.
• Aggregates and flood‑response sand — Rapid filling on portable packers; block‑bottom geometry builds stable barriers. Moisture exposure favors PP woven or moisture‑resistant paper with liners.
• Fertilizers and agricultural inputs — Urea, NPK, seeds, feed. Venting balance and barrier are key; liners are added as required.
• Chemicals and pigments — Carbon black, TiO₂, CaCO₃, resins. Dust suppression and, where necessary, conductive pathways reduce hazard.
• Food ingredients — Sugar, salt, flour, whey, starches. Hygiene and traceability are central; PE liners or PE bodies excel when moisture is a risk.
• De‑icing salts and absorbents — Hygroscopic loads put barrier first; mono‑PE with heat‑sealed valves simplifies leakage control.

Title lens: why “Valve Bags: Versatile Packaging Solutions for Flood Control and Beyond” fits the moment

The wording juxtaposes urgency (flood control) with routine (beyond). Both benefit from the same disciplines: speed without chaos, durability without dead weight, moisture management without compromise. In staging yards, crews must fill thousands of sand units quickly; in cement plants, hundreds of pallets move daily. In both theaters, Valve Bags thrive because they convert a messy problem into a repeatable process—fast couplings, controlled venting, self‑closing sleeves, and block‑bottom stability.

Systems view: decomposing Valve Bags into controllable subsystems

When a bag fails, the autopsy often fingers one culprit: a brittle tape, a short stitch, a sparse weave. Realistically, several factors conspired. Treat performance as five coupled subsystems and translate hypotheses into controls.

From subsystem controls to a coherent Valve Bags specification

A useful specification reads like a contract with physics. It converts decisions into numbers everyone can verify—engineering, production, QA, and procurement alike.

Color table: materials used in Valve Bags and why they are chosen

Color table: tests and targets used to qualify Valve Bags

Field failures in Valve Bags and fast corrective levers

Three ready‑to‑adapt specification blueprints for Valve Bags

A) 25 kg cement in PP woven block‑bottom valve sack

• Body: PP woven 95 g/m² with coated print face; denier and PPI/EPI per cement standard.
• Bottom: Block‑bottom with reinforced fold radii; corner patches validated by edge drops.
• Valve: Internal PP sleeve sized to impeller nozzle; self‑sealing geometry plus hot‑melt patch.
• Print: BOPP laminate or high‑holdout coating; abrasion‑resistant inks.
• Tests: seam efficiency ≥ 85% of panel; drops 1.0 m; stack 3× height for 7 days; valve sifting check.

B) 20 kg flood‑response sand in moisture‑resistant paper valve bag

• Body: 3–4 ply sack kraft with moisture‑resistant outer; micro‑perfs tuned to flow.
• Bottom: Block‑bottom; anti‑slip faces to help quick wall building.
• Valve: External sleeve for portable packers; optional peel‑and‑seal patch.
• Tests: drops 0.8–1.0 m; stack/creep at barrier heights; short rain simulation.

C) 25 kg hygroscopic salt in mono‑PE valve bag

• Body: LLDPE/MDPE coex, 110 μm nominal, gusseted.
• Valve: PE sleeve heat‑sealed post‑fill for tamper evidence.
• Liner: Not required.
• Tests: leak‑tightness under vibration; stack at 30 °C/60% RH; drop and seal strength checks.

Filling machinery compatibility for Valve Bags: choosing the right partner machine

Match the packer to the product—and remember that recipes matter as much as hardware. Small changes in impeller RPM or air pressure can rival large changes in perf area.

• Impeller packers — High throughput for fine powders; use sleeve friction and perf density to balance densification and air release.
• Air packers — Fluidize cohesive powders; manage venting to prevent sifting while clearing air paths.
• Auger packers — Positive displacement for granular or tricky blends; slower but precise; check sleeve wear and spout fit.

Logistics and climate: the last meter of Valve Bags performance

• Pallet patterns and wrap tension — Over‑tight wraps deform panels; under‑wrap invites collapse. Validate patterns per climate and route.
• Outdoor staging — For flood‑preparedness stockpiles, weather covers, UV‑stabilized materials, and inspections keep units deployment‑ready.
• Fork‑tine contact — Base patches or sacrificial slips reduce punctures in aggressive corridors; train operators and mark keep‑out zones.

Language and keyword placement for discoverability around Valve Bags

To maintain clarity while aiding search, the following terms appear contextually: valve bags, valve sacks, pasted valve bags, block‑bottom valve sacks, PP woven valve bags, BOPP laminated valve bags, AD*STAR‑type bags, PE valve bags, internal valve sleeves, external valve sleeves, self‑sealing valve geometry, micro‑perforations, dust‑proof valve, impeller packer, air packer, auger packer, construction‑grade valve sacks, cement valve bag, flood‑response sand valve bag, moisture‑resistant paper valve sacks, mono‑material PE valve packaging, drop test for valve sacks, stack/creep test for valve bags, pallet stability for valve packaging, and de‑aeration patterns.

Field playbook for Valve Bags: steps you can apply now

1. Define the product: bulk density, granulometry, moisture behavior, combustibility.
2. Map the route: filler type, required output (bags/hour), climate, storage duration, and shocks.
3. Choose the substrate: paper vs PP woven vs mono‑PE; add liners or coatings only when the data demands it.
4. Engineer the valve: internal vs external sleeve, sleeve length and friction, perf map, and closure method.
5. Lock the geometry: block‑bottom when cube matters; reinforcement at fold radii; seam program matched to substrate.
6. Instrument the trials: drop orientations, top‑load/creep durations, valve leak checks with vibration.
7. Codify the spec: functional targets, sampling plans, traceability, and requalification triggers.
8. Train the line: packer recipes, spout clamps, cleaning, and troubleshooting; document the few critical moves.
9. Monitor in the wild: QR/barcodes tied to BoM and test data; quarterly complaint reviews.

Frequently asked questions about Valve Bags (engineer’s edition)

Are valve bags suitable for flood control? Yes. Pre‑filled sand units stack quickly thanks to block‑bottom geometry and self‑closing valves. For large berms, crews often complement them with big‑bag barriers; both formats work together.
Do PP woven valve bags recycle? Many are mono‑PP and compatible with PP streams where accepted; ensure inks and adhesives are compatible. Paper can enter fiber streams if free of films and contamination; PE bodies are typically recyclable with polyolefins.
What makes valves self‑sealing? Sleeve length, angle, and friction plus the pressure pulse during densification; patches or heat seals add assurance for long hauls.
Is a liner always necessary? No. Use liners for barrier or cleanliness; otherwise, coatings/perfs and good valve engineering often suffice.
Why do bags leak dust after travel but not after fill? Vibration and thermal cycles walk fines toward the sleeve. Geometry and closure reinforcement are first; perf density and aeration recipes follow.

Engineering annex for Valve Bags: venting, cube math, moisture, compliance, and forensics

Venting science: how micro‑perfs and valve geometry cooperate

• Air paths: through‑valve venting (the spout acts as a chimney), through‑face perfs (distributed pinholes), and through‑ply venting (offset plies create channels). The goal is to evacuate air at the pace of product ingress.
• Perf sizing: start with bulk density and volumetric flow. Cohesive powders prefer denser arrays of small perfs; large perfs lift sifting risk.
• Sleeve friction and length: high enough to resist back‑slip as the bag settles, low enough to allow clean spout exit; length such that the sleeve end rests inside the body under stack pressure.

Palletization math: translating stiffness into cube

• Footprint: match block‑bottom dimensions to pallet patterns (for example, 5×10 on 1200×1000 mm, or 7×7 on 48×40 in for 25 kg). Avoid overhang.
• Layer stability: use alternating or interlocking patterns; anti‑slip faces allow lower wrap tensions.
• Creep planning: verify long‑term stacks at operating temperatures; reinforce bottoms before adding mass.

Moisture management and climate

• Paper: moisture‑resistant outers, dispersion coats, or PE lamination; ensure vent paths remain effective.
• PP woven: PP coating or BOPP lamination; specify UV packages for sun exposure.
• PE: outstanding barrier; rely on gussets and block‑style bases to tame bulge.

Regulatory and compliance snapshot

• Food contact: use compliant papers, inks, and polyolefins; implement foreign‑body prevention and clean‑down SOPs.
• Recyclability and claims: aim for mono‑material where practical; keep a technical file that documents inks, adhesives, and actual recovery pathways.
• Markings and traceability: handling pictograms and lot IDs should survive wiping and handling.

Failure forensics: reading the clues

• Valve vs seam leaks: valve leaks dust the print face near the mouth; seam leaks follow stitch lines. Under magnification, torn fibers versus adhesive failure point to cause.
• Corner fractures: often originate at fold radii; check reinforcement alignment.
• Brittle tape signatures: shiny fracture faces and low elongation indicate over‑drawn PP tapes or cold embrittlement.

Worked example: flood staging with rapid sand fills

• Product: kiln‑dried sand, bulk density ~1600 kg/m³.
• Goal: 12 bags/min on portable impeller packers; 20 kg ± 0.2 kg; minimal dust.
• Bag: paper valve sack, 3‑ply (80/80/80 g/m²), block‑bottom; external sleeve for easy coupling.
• Valve: 140 mm length, medium friction; hot‑melt patch; 0.8 mm micro‑perfs across two faces.
• Trials: tune aeration and RPM per OEM; measure time‑to‑mass and post‑fill dust; iterate perf density until dust and fill time meet targets with negligible sifting.
• Deployment: palletize 5×10; moderate wrap tension; UV‑protected covers; seasonal stock rotation.

Life‑cycle and sustainability notes

• Paper: renewable fiber and established recovery; barrier choices can complicate recycling—document the trade.
• PP woven: high strength at low mass; mono‑PP builds can enter PP recycling where infrastructure exists.
• PE: mono‑material simplicity; straightforward polyolefin recovery; watch mass versus stiffness.

Glossary for cross‑functional teams

• AD*STAR — a well‑known PP woven, block‑bottom valve sack architecture used widely for cement.
• Auger packer — a screw‑based packer; slower, very precise.
• Baffle — internal structure restraining bulge; common in big‑bags, analogous goals in small sacks via block‑bottoms.
• Creep — time‑dependent deformation; key for long‑term stacks.
• De‑aeration — removal of entrained air to densify product during fill.
• Micro‑perforation — tiny holes evacuating air without releasing product.
• Self‑sealing valve — geometry that closes under product pressure without secondary sealing.
