Woven Bags with PE Liner: Advanced Technology for Superior Packaging Solutions

Across industrial powder logistics, Woven Bags with PE Liner describe a composite sack engineered to solve a recurring trio of problems: strength during rough handling, moisture control over unpredictable routes, and clean, scannable labeling at the point of use. The outer shell is a woven polypropylene (PP) fabric tuned for tensile and tear; the inner skin is a polyethylene (PE) liner tuned for water‑vapor discipline and hygiene; the conversion flow—printing, lamination or coating, forming, bottoming, and finishing—binds the assembly into a package that fills fast, stacks square, and opens cleanly on site. In practice, this format moves cement and dry mortars, calcium carbonate and silica, fertilizers and feed blends, starches and sugars where allowed, and a long tail of commodity powders that dislike rain yet demand speed.

Because catalogs, tenders, and plant vocabulary differ by region and machinery, decision makers encounter a cluster of near‑synonyms. They all gesture at the same archetype—a woven poly shell with a poly liner—but the naming conventions can obscure equivalence. For clarity, here is a compact alias map.

To specify Woven Bags with PE Liner intelligently, it helps to treat the structure as a system with roles and handoffs. The woven fabric carries the mechanical load; the liner manages moisture and cleanliness; adhesives, threads, and coatings make the interface work; printing brings instruction and identity; and small surface treatments—varnish bands, antistatic packages, UV stabilizers—push performance from adequate to robust. Below, the assembly is decomposed into parts so that tweaks in one place translate predictably into outcomes elsewhere.

A useful mental model: the shell provides strength; the liner secures moisture; closures and seams translate both into real‑world reliability; printing and varnish make information usable. A change in one dial—denier, gauge, coating—reverberates through all four roles.

Performance is not a brochure adjective; it is the absence of downtime. On a real filling line, Woven Bags with PE Liner are judged by speed, cleanliness, stack behavior, and the survival of small but vital text. The traits below recur in plants that run them well.

• Strength‑to‑weight that shrugs off forklift nicks and corner abrasion, protecting contents without bloating tare mass.
• Moisture discipline from the liner, independent of shell coating, sustaining hygroscopic powders during long dwell or monsoon lanes.
• Clean fills and accurate weights thanks to liner mouth heat sealing and tuned venting that releases entrained air without dust plumes.
• Brick‑like stance from block‑bottom conversions that pack densely on pallets and resist topple in transit.
• Readable panels after handling; varnish bands manage glare and COF so instructions and codes remain scannable.
• Mono‑polymer logic—PP shell plus PE liner—that can be separated for recycling where streams exist; programs can even print separation instructions.
• Customization spans antistatic liners, UV packages, anti‑skid zones, and specific valve sleeve geometries that harmonize with the filler.

From polymer to shipping bundle, the process is a relay. If one station drops the baton—winding tension, print registration, adhesive cure—another station stumbles. The outline below calls out where decisions most affect cost, speed, and quality.

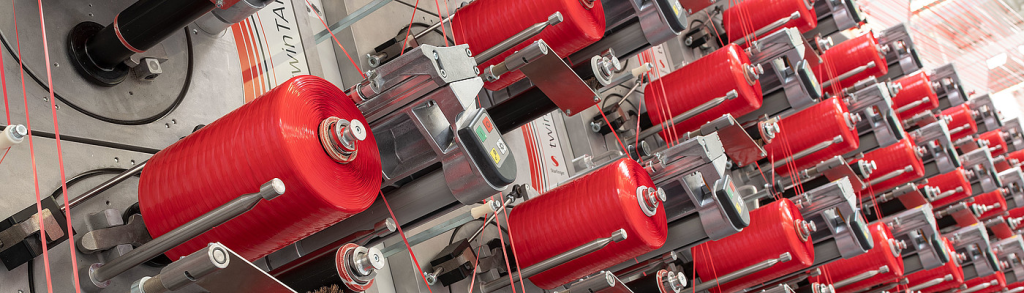

1. PP tape extrusion & draw Cast PP film is slit to tapes and drawn 5–7×; winding discipline reduces loom stoppages and keeps uniform width under temperature swings.
2. Weaving & optional coating Circular or flat looms weave at the chosen pick density; inline coaters can apply 15–30 g/m² coatings that close interstices and anchor print.
3. PE liner extrusion Blown film lines convert LDPE/LLDPE blends into lay‑flat or form‑fit tubes; antistatic packages are dosed where combustible dust is a risk.
4. Printing & panel prep Coated shells receive flexo print; registration marks are added for print‑to‑cut alignment; panels are cut for front, back, gussets, bottoms, and valve components.
5. Liner insertion and fixation Liners are inserted and secured. For open‑mouth variants, liner lips extend for heat sealing; for valves, liner geometry matches the sleeve to prevent ballooning.
6. Forming & bottoming Block‑bottom folders and pasting heads shape a rectangular base; sewing or pinch‑seal completes the mouth, depending on route.
7. Quality checks Seam pull, liner seal integrity, drop/stack trials, WVTR sampling, and readability of QR and small text are verified before palletization.
8. Palletization & docs Bundles are wrapped and labeled; a pallet pattern sheet travels with shipments so warehouses stack safely and consistently.

The format shines whenever moisture is an enemy, dust control matters, and pallets must stand tall while information stays readable. Typical domains include chemicals and minerals, construction powders, agriculture and feeds, and selected food‑adjacent ingredients where regulations permit. Selection should combine product physics, route climate, and line constraints, not habit or marketing claims.

The phrase from the headline is earned, not assumed. In Woven Bags with PE Liner, the “advanced” quality comes from integration: structural textile engineering harmonized with polymer film science and conversion discipline. Teams that design these bags well think in systems, not parts, and they validate with trials, not slogans. The following logic map mirrors this mindset, moving from physics to planning and back to metrics.

Synthesis routine: profile physics (A), lock equipment limits (B), set mechanics (C), choose barrier package (D), finalize labeling (E), embed stewardship (F), validate compliance (G), then pilot for OEE (H). Adjust with data, not debate.

Clarity beats loyalty. Multiwall paper (with specialty coatings) plays well in fiber‑only recovery streams on short, temperate routes; BOPP‑laminated film‑on‑fabric shines for maximal print fidelity without an inner liner; heavy‑duty PE form‑fill‑seal (FFS) tubes dominate when ultra‑low WVTR and high automation are the primary constraints. Still, when hygroscopic powders must survive mixed climates with modest automation, Woven Bags with PE Liner deliver a forgiving operating window with strong cube efficiency and readable panels.

Unit price tempts, but operations win or lose on speed, scrap, and returns. In most trials, small dimensional and surface tweaks to Woven Bags with PE Liner—liner mouth geometry, antistatic level, OPV friction bands—unlock more throughput than shaving a gram of fabric. Meanwhile, moisture discipline avoids returns that dwarf any per‑bag savings. Instrument the gains and defend the grams that pay their keep.

Product powder/granule; PSD; bulk density; hygroscopicity; MIE if combustible dust. Format block‑bottom valve or open‑mouth; gusseted as needed. Shell PP woven, 90–150 g/m²; coated/uncoated; UV hours. Liner lay‑flat or form‑fit; 60–150 μm; antistatic level; barrier options. Mouth valve sleeve geometry or pinch‑seal spec; liner heat‑seal window. Perforation map for de‑aeration. Labeling quiet zones; QR; varnish bands to control glare and COF. Performance drop/stack targets; WVTR proxy; scan‑rate acceptance. End‑of‑life shell/liner separation guidance; recycling labels and, where feasible, take‑back instructions.

For a closely related format used when ultra‑low WVTR and high automation rule the decision, see the overview of polyethylene heavy‑duty FFS bags, which provides a useful counterpoint when evaluating Woven Bags with PE Liner against fully automated form‑fill‑seal systems.

Ask the direct questions. What fails first—the seam, the liner seal, or the print? If you shave 20 μm of liner, do you save grams or buy returns? Will a matte OPV band lift scan rates under bright warehouse lights? The dials on Woven Bags with PE Liner are simple to turn—fabric basis weight, weave density, liner gauge, antistatic level, valve geometry—and the feedback is immediate on the floor. Turn one. Test. Observe. Adjust. Then document the lesson so the next shift inherits skill, not luck.
