“Chemical packaging isn’t about containment—it’s about creating a molecular fortress,” says Ray, CEO of VidePak, during a plant tour. “Our BOPP woven bags with PE liners reduce leakage by 98% for clients handling corrosive acids, while aluminum foil laminates block UV degradation in photo-sensitive compounds.” This report analyzes how BOPP woven bags address chemical packaging challenges through material science, structural design, and compliance—leveraging VidePak’s 30+ years of expertise and Starlinger’s automated production lines.
1. Strategic Packaging Solutions for Chemicals
1.1 Lamination vs. Inner Liners: Barrier Performance Analysis
Chemical compatibility dictates barrier choices:
- PE Liners: Ideal for non-volatile liquids (e.g., detergents), offering 0.5–1.0 g/m²/day water vapor transmission rates (WVTR) at 20% cost savings versus foil.
- Aluminum Foil Laminates: Essential for volatile solvents (acetone, toluene), achieving <0.01 g/m²/day WVTR and 99.9% UV blockage.
| Material | Thickness | Chemical Resistance | Cost ($/m²) |
|---|---|---|---|
| PE Film | 50–80 µm | Acids, Alkalis | 0.15–0.30 |
| Aluminum Foil | 7–12 µm | Solvents, Oils | 0.50–0.80 |
Case Study: A South Korean agrochemical firm reduced pesticide oxidation by 70% using VidePak’s BOPP/Alu/PE tri-layer bags, validated per ASTM F1980 accelerated aging tests.
1.2 Closure Systems: Precision vs. Cost
- Heat-Sealed Valves: Prevent dust leakage in powdered additives (e.g., titanium dioxide), with 5:1 safety factor stitching.
- Sewn Open Mouth (SOM): Cost-effective for bulk fertilizers, supporting 1,000 kg loads at $0.10/unit.
VidePak’s Block Bottom Valve Bags, produced on Starlinger CX6 machines, automate filling at 40 bags/minute—critical for just-in-time chemical logistics.
2. Material Selection & Regulatory Compliance
2.1 BOPP Film Engineering
VidePak’s BOPP 3500 resin (MFR 3.5 g/10 min) balances tensile strength (2,800 N/5 cm) and chemical inertness, complying with:
- EU REACH: <0.1% heavy metal migration.
- US EPA 40 CFR 261: Passes TCLP leaching tests for hazardous waste containment.
Anti-static coatings (surface resistivity 10⁶–10⁹ Ω/sq) prevent ignition in combustible dust environments per ISO 80079-36.
2.2 Multi-Wall Configurations
- 2-Ply BOPP + Kraft: For hygroscopic compounds (e.g., calcium chloride), reducing moisture uptake by 60%.
- 3-Ply BOPP/PE/Alu: Blocks oxygen ingress (<0.1 cc/m²/day) in antioxidant-sensitive polymers.
3. Operational Efficiency & Sustainability
3.1 Automated Production at Scale

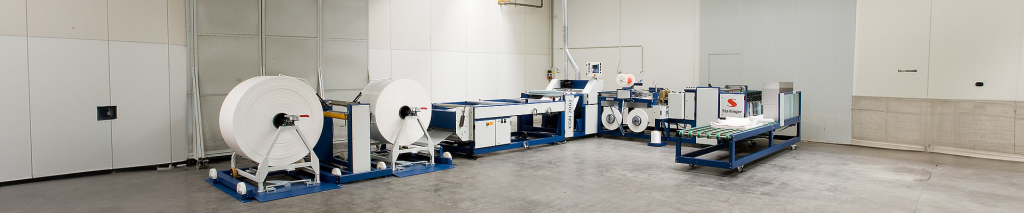

With 30 lamination machines and 16 extrusion lines, VidePak achieves:
- Tolerance Control: ±0.02 mm film thickness uniformity, critical for acid-resistant seams.
- Printing Precision: 10-color gravure printing at 1440 dpi for OSHA/GHS compliance labels.
Case Study: A 2024 partnership with a German paint manufacturer utilized FFS tubular bags to automate 25kg filler operations, reducing labor costs by 55%.
3.2 Recyclability Initiatives
VidePak’s EcoCycle BOPP integrates 30% post-industrial recycled content while maintaining 2,500 N/5 cm tensile strength—certified per ISO 14044 LCA standards.
FAQs: BOPP Bags in Chemical Packaging
Q1: How to prevent BOPP delamination in acidic environments?
A: Use corona-treated PE liners (48–52 dyne/cm surface energy) for enhanced adhesion, tested per ASTM D2578.
Q2: What’s the lifespan of aluminum foil laminates?
A: 18–24 months outdoors, with <5% reflectivity loss under 500 kWh/m² UV exposure.
Q3: Are anti-static bags reusable?
A: Yes—VidePak’s VoltShield series withstands 10+ cycles while maintaining <10⁻⁸ Ω/sq resistivity.
Conclusion
The future of chemical packaging lies in smart barriers—VidePak’s R&D team is prototyping pH-sensitive films that change color upon leakage. As Ray summarizes: “In chemicals, every molecule matters. Our bags ensure none go rogue.”
