What is Custom Printed BOPP Woven Bags?
Custom Printed BOPP Woven Bags are composite packaging structures that combine a tensile polypropylene (PP) woven substrate with a reverse‑printed biaxially oriented polypropylene (BOPP) film. In procurement lists and regional catalogs you will also find them described as BOPP‑laminated PP woven sacks, custom BOPP woven polypropylene bags, or photo‑quality woven bags. The concept sounds simple—protect the product like an industrial sack while presenting the brand like a retail billboard—but the execution requires precision: inks are printed on the inner face of the BOPP, sealed under the film, then extrusion‑laminated to the woven fabric. The outcome is a package that looks premium yet behaves ruggedly: it fills cleanly, closes securely, stacks solidly, and arrives with graphics still vivid after transit.
From a technical vantage point, Custom Printed BOPP Woven Bags sit where polymer science, textile mechanics, and print engineering overlap. Tape drawing aligns PP molecular chains, raising specific strength; weaving constructs an orthogonal mesh that shares load paths; lamination bonds film and fabric while moderating moisture; reverse printing protects ink systems from scuff and solvent rub. Consider a lateral comparison: multi‑wall paper projects a natural story but absorbs moisture in coastal humidity; mono‑film PE FFS tubes race on high‑speed lines yet can creep in tall stacks; unlaminated woven sacks take abuse but undersell the brand. Custom Printed BOPP Woven Bags reconcile these trade‑offs—graphics that sell, structures that survive, costs that hold. For readers mapping the category, see how Custom Printed BOPP Woven Bags relate to the broader PP‑woven family.
Vertical thinking clarifies causality: resin → tape → fabric → finish → print → lamination → conversion → QA → pallet. Alter a parameter upstream—draw ratio, mesh density, coat weight—and the effect is felt downstream as seam behavior, stack stability, or color fidelity. This chain of custody is why specifiers treat Custom Printed BOPP Woven Bags as engineered systems rather than decorated containers.
What is the features of Custom Printed BOPP Woven Bags?
A feature only matters when it prevents a failure. Read each characteristic of Custom Printed BOPP Woven Bags as a countermeasure—to seam pop, pallet slide, moisture creep, color drift.
Photo‑grade, in‑film graphics. Reverse‑printed BOPP (typically 18–25 µm, in matte or gloss) carries halftones, microtext, and saturated solids with precision. Because the artwork is encapsulated behind the film, imagery resists abrasion and solvent rub in warehouses, on forklifts, and at retail. Registered matte/gloss effects add tactile contrast without adding layers.
Woven backbone for load and puncture. PP tapes (commonly 700D–1000D) are woven to meshes such as 8×8–14×14, yielding fabrics in the 65–120 g/m² class. The orthogonal architecture shares stress between warp and weft so a tear that tries to run meets resistance at each crossing. Creep is curtailed, drop performance improves, angular granules struggle to punch through.
Tunable barrier, handling, and stack behavior. A PE/PP extrusion coat (≈ 18–30 g/m²) both bonds layers and tempers humidity uptake. Surface engineering—anti‑slip emboss or spray—targets a COF ≈ 0.5–0.7, the zone where pallets stand tall without over‑wrapping. UV‑stabilized packages preserve film clarity and fabric strength in sun‑lit yards.
Closures that fit the filler. Open‑mouth designs pair with manual and semi‑auto sewing lines; valve variants suit gravity, air, or impeller packers when dust control and speed dominate. Mouth folds (single/double), stitch density, thread material (PP/HDPE), and seam architecture (chain vs. lock) tune leak paths and seam efficiency. EZ‑open tape can provide consumer‑friendly access without sacrificing transit integrity.
Compliance without compromise. Food‑contact‑appropriate inks and low‑odor solvent systems support regulated categories. Security elements—microtext, serialized QR, tamper patterns—can be integrated into the Custom Printed BOPP Woven Bags artwork without affecting mechanical performance.
Viewed laterally against alternatives, paper sacks tell a warm story but wilt in humidity; mono‑films seal perfectly yet stretch on tall stacks; plain woven sacks endure but under‑communicate. Custom Printed BOPP Woven Bags speak loudly and carry a strong spine. Viewed vertically across the lifecycle, the features align with gates: incoming QC (mesh/GSM/peel), printing (registration, ΔE), lamination (adhesion), conversion (seam strength), filling (de‑aeration), warehousing (COF & creep), retail (scuff & colorfastness). A promise at each gate; a design response for each promise.
What is the production process of Custom Printed BOPP Woven Bags?
Production is choreography; defects are missed steps. For Custom Printed BOPP Woven Bags, the steps are interdependent and time‑sensitive.

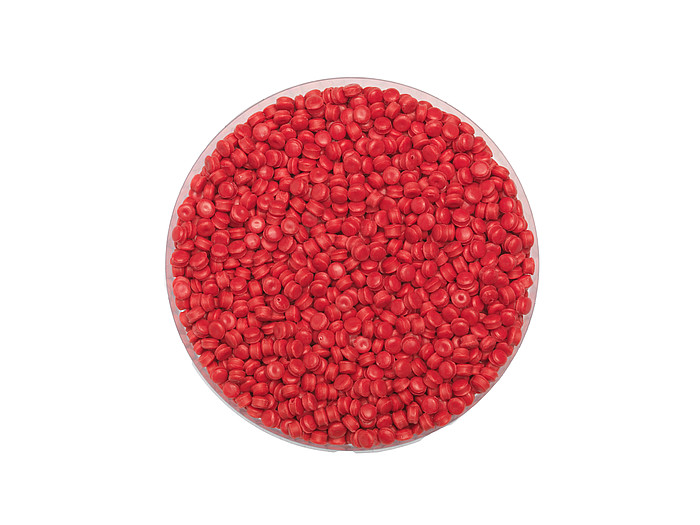

1) PP tape extrusion & drawing. Virgin PP is extruded into a film, slit into narrow tapes, and hot‑drawn to align polymer chains. Draw ratio fixes tensile strength and elongation; die gap, quench rate, and anneal temperature stabilize crystallinity and tape width. The goal is not just strength but uniform strength across kilometers of web.
2) Weaving on circular looms. Over 100 circular looms interlace warp and weft to the target mesh (e.g., 8×8–14×14). Balanced tension reduces skew and yields a flat fabric—a prerequisite for accurate lamination register and clean conversion. Irregular weave shows up later as print banding or bag lean; prevention starts here.
3) BOPP reverse printing. High‑linecount gravure or CI flexo prints the BOPP on its inner surface. Color management (ΔE tracking) keeps hues faithful; registration control holds microtext, barcodes, and fine icons in place. Finish choices—high gloss for impact, controlled matte for premium restraint, or registered combinations—are set in this station.
4) Extrusion lamination. A PE/PP melt curtain (≈ 18–30 g/m²) bonds the printed BOPP to the woven substrate under heat and pressure. Adhesion windows are monitored: too cool starves bonds; too hot distorts fabric or mutes film gloss. Peel strength and laminate appearance are the truth‑tellers.
5) Conversion & finishing. Laminated webs are tubed, gussets formed, and bottoms sewn or folded (block‑bottom/open‑mouth/valve). Anti‑slip emboss, EZ‑open features, and reinforcement patches integrate here without upsetting seam geometry. Mouth fold geometry, needle profile, and stitch density are tuned like instruments so the closure carries its share without becoming a failure path.
6) Quality assurance. Routine tests verify fabric tensile/tear, lamination peel, seam integrity, COF, dimensional tolerances, print quality, and filled‑bag drop performance. Stability—lot after lot—is what turns an approved proof into a predictable pallet.
VidePak executes this flow on top‑tier platforms from W&H (Germany) and Starlinger (Austria). With 16 extrusion lines, 100+ circular looms, and 30+ lamination/printing machines, we keep adhesion, registration, and stitch performance inside narrow, documented windows. Process windows are not paperwork—they are how repeatability is earned in Custom Printed BOPP Woven Bags.
What is the application of Custom Printed BOPP Woven Bags?
Applications are where design meets forklift. Because Custom Printed BOPP Woven Bags blend visual polish with mechanical grit, they show up anywhere packaging must sell and survive.
Pet food & animal nutrition. Photographic imagery explains recipes and protein stories; puncture‑resistant woven cores protect kibble; optional PE liners retain aroma and oils. Bags must look good on aisle six and arrive intact from dock sixty.
Rice, grains, flour & sugar. Square stacks and strong seams are table stakes; optional micro‑perfs de‑aerate hot fills; clear regulatory panels and origin marks print sharply on BOPP faces that resist scuff in store handling.
Fertilizers, seeds & agro‑inputs. UV‑stabilized builds tolerate outdoor exposure; coated interiors control dust; graphics stay legible after field distribution. Valve formats reduce airborne dust and raise line speed in nutrient plants.
Minerals & chemicals. Salt, calcium carbonate, titanium dioxide—abrasive, sometimes hygroscopic, often dense. Laminated faces limit scuff; moderated moisture uptake reduces caking during marine transport.
Charcoal & wood pellets. Abrasion‑tolerant weaves, reinforced bottoms, and anti‑slip faces support tall, safe pallets. High‑contrast graphics carry safety and regulatory details with clarity and permanence.
Global lanes—from the US and Europe to Brazil/South America, Southeast Asia, Japan/Korea, Central Asia, MENA, East & South Africa—impose UV load, humidity spikes, temperature swings, and mechanized handling. Custom Printed BOPP Woven Bags respond with tunable levers: mesh/GSM for tear paths, coating weight for humidity, UV packages for sunlight, COF for stacking, and valve vs. open‑mouth for dust control and speed. For teams comparing premium print routes, the laminated path is the obvious companion—see Custom Printed BOPP Woven Bags for film‑first details.
Typical Parameters for Custom Printed BOPP Woven Bags
Ranges below reflect widely available, real‑world specifications. VidePak offers application‑specific customization.
| Parameter | Typical Range / Option | Notes (for Custom Printed BOPP Woven Bags) |
|---|---|---|
| Structure | BOPP film // PE/PP extrusion coat // PP woven fabric | Reverse‑printed BOPP laminated to woven PP |
| BOPP film thickness | 18 – 25 µm (matte or gloss) | Photo‑quality face; scuff‑resistant |
| Fabric mesh | 8×8 – 14×14 | Strength/printability balance |
| Fabric weight (GSM) | 65 – 120 g/m² | Selected by fill weight & drop targets |
| Tape denier | 700D – 1000D | Correlates with tensile & puncture resistance |
| Lamination coat | 18 – 30 g/m² (PE/PP) | Adhesion & moisture moderation |
| Bag width | 350 – 600 mm | Wider bodies for 40–50 kg class |
| Bag length | 500 – 1100 mm | Tuned to bulk density & filler setup |
| Bottom style | Sewn, block‑bottom, or valve | Line speed & dust‑control dependent |
| Printing | Gravure up to 8–10 colors; CI flexo up to 6 | Reverse‑printed, registration‑controlled |
| COF (stacking) | ≈ 0.5 – 0.7 | Anti‑slip emboss/spray to target value |
| UV stability | 200 – 400 hours (typical packages) | Outdoor exposure profile dependent |
| Liner options | Loose/tubular PE 20–40 µm | Aroma/moisture control for powders |
| Load capacity | 10 – 50 kg | Depends on GSM, seams, & safety factor |
Why VidePak
Founded in 2008, VidePak’s core team brings 30+ years of woven‑packaging expertise and a workforce of 568 employees. We manufacture Custom Printed BOPP Woven Bags alongside valve and kraft‑paper woven ranges using 100% new raw materials to stabilize mechanical properties and color outcomes. Our footprint spans the US, Europe, Brazil & South America, Southeast Asia, Japan, Korea, Central Asia, the MENA region, East & South Africa, and our platform—W&H and Starlinger equipment, 16 extrusion lines, 100+ circular looms, 30+ lamination/printing machines—delivers repeatable adhesion windows, tight registration, and robust seam integrity at scale. Annual sales of USD 80 million reflect long‑term partnerships built on data, discipline, and dependable pallets.
If your brief is to command shelf attention, protect product through long routes, and keep pallets stable, specify Custom Printed BOPP Woven Bags with VidePak. Share your current dimensions, fill weights, and handling conditions—we’ll engineer a like‑for‑like match or a measured upgrade and provide the test data to prove it.
- What is Custom Printed BOPP Woven Bags?
- What is the features of Custom Printed BOPP Woven Bags?
- What is the production process of Custom Printed BOPP Woven Bags?
- What is the application of Custom Printed BOPP Woven Bags?
- Typical Parameters for Custom Printed BOPP Woven Bags
- Why VidePak
- Why Custom Printed BOPP Woven Bags Are Essential
- Advanced Manufacturing Techniques for BOPP Woven Bags
- Closure Designs and Their Applications
- How to Select the Best Method and Design?
- Advantages of Custom Printed BOPP Woven Bags
- Innovations in BOPP Woven Bags
- Technical Specifications
- Frequently Asked Questions (FAQs)
- Related Resources
- Conclusion
- Typical Parameters for Custom Printed BOPP Woven Bags
Custom printed BOPP woven bags are an essential solution for modern packaging, offering unmatched durability, advanced customization options, and tailored manufacturing processes, including various closure and sealing methods, to meet industry-specific requirements with precision.
Why Custom Printed BOPP Woven Bags Are Essential
Custom printed BOPP woven bags have become a cornerstone in industries such as agriculture, construction, and retail. Their combination of strength, adaptability, and visual appeal positions them as the preferred choice for businesses requiring reliable and attractive packaging solutions. By leveraging advanced manufacturing techniques, these bags provide tailored features to suit specific applications.
Advanced Manufacturing Techniques for BOPP Woven Bags
Sewing and Sealing Methods: Choosing the Right Fit
- Traditional Sewing
- Material: High-strength polyester or nylon threads.
- Density: 3–8 stitches per inch, depending on load requirements.
- Best For: Durable solutions for bulk goods like grains and fertilizers.
- Heat Sealing
- Process: Uses thermal bonding to create seamless closures.
- Advantages: Superior moisture protection and a tamper-proof finish.
- Best For: Food-grade products like coffee beans and rice.
- Ultrasonic Welding
- Process: High-frequency vibrations bond materials with precision.
- Advantages: Eco-friendly and ideal for delicate or high-value goods.
- Best For: Premium applications requiring clean and consistent seals.
Closure Designs and Their Applications
Custom printed BOPP woven bags offer several closure designs, each catering to unique requirements:
| Closure Type | Description | Applications |
|---|---|---|
| Open Top | Simple, requires manual or automated sealing. | Bulk materials like seeds, grains, and aggregates. |
| Valve Top | Self-sealing under pressure, reducing contamination risks. | Cement, fertilizer, and other powdered materials. |
| Heat Sealed Top | Provides an airtight, tamper-proof closure with excellent moisture resistance. | Ideal for food-grade applications, such as rice, flour, and coffee. |
| Sewn Top | Uses reinforced stitching for enhanced durability. | Heavy loads such as sand, industrial powders, and animal feed. |
How to Select the Best Method and Design?
- Assess Product Needs
- Moisture Sensitivity: Opt for heat-sealed or valve tops to prevent moisture ingress.
- Weight: For heavier products, sewn tops with reinforced stitching are recommended.
- Consider Transportation and Storage
- Valve tops enable spill-free handling and stacking efficiency.
- Uniform heat-sealed tops facilitate better container utilization.
- Budget and Customization
- Traditional sewing is cost-effective for general uses.
- Ultrasonic welding provides premium finishes but is more suitable for specialized applications.
Advantages of Custom Printed BOPP Woven Bags
- Exceptional Durability
- Crafted from woven polypropylene with BOPP lamination, these bags are resistant to tears and punctures.
- Customizable Branding
- High-definition printing in CMYK and Pantone color systems enhances brand visibility.
- Options for matte or glossy finishes add to their visual appeal.
- Environmental Sustainability
- Recyclable materials and innovative production methods align with global eco-friendly initiatives.
- Versatility Across Industries
- Tailored sizes, closures, and finishes ensure they meet the needs of various sectors, from agriculture to retail.
Innovations in BOPP Woven Bags
- Eco-Friendly Materials
- Manufacturers are increasingly incorporating recycled polypropylene and biodegradable additives, reducing environmental impact.
- Smart Sealing Technologies
- Ultrasonic welding and advanced heat sealing offer stronger, more precise closures, minimizing waste and improving functionality.
- Enhanced Lamination
- New techniques improve moisture resistance and allow for higher resolution graphics, creating a competitive edge.
- Integrated Tracking Features
- QR codes and RFID tags embedded in bags improve supply chain visibility and traceability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Woven Polypropylene with BOPP Lamination |
| Printing Options | High-definition printing, up to 8 colors |
| Bag Weight | 50–120 g/m² |
| Closure Options | Open Top, Valve Top, Heat Sealed, Sewn Top |
| Load Capacity | 5–50 kg |
| Customization | UV-resistant coatings, perforations, anti-slip textures |
Frequently Asked Questions (FAQs)
Q1: What differentiates heat sealing from ultrasonic welding?
Heat sealing is ideal for creating airtight and moisture-resistant closures. Ultrasonic welding provides precision and eco-friendliness, best suited for high-end applications.
Q2: How do I select the best closure type for my product?
Valve tops are ideal for powdered goods, while open tops work well for bulk materials. Heat-sealed closures provide superior protection for food-grade items.
Q3: Are BOPP woven bags recyclable?
Yes, these bags are recyclable and can include eco-friendly materials, meeting sustainability goals.
Q4: Can the printing on these bags fade over time?
No, advanced lamination and UV-resistant coatings ensure long-lasting, vibrant printing.
Q5: What industries benefit the most from BOPP woven bags?
Agriculture, construction, retail, and food processing sectors widely use these bags due to their durability and customization options.
Related Resources
- Discover the role of moisture-proof woven bags in efficient packaging: Moisture-Proof Woven Bags – Essential Solutions for Waste Management.
- Learn how custom printed woven bags elevate branding and logistics: Custom Printed Woven Bags – Navigating Global Market Demands.
Conclusion
Custom printed BOPP woven bags offer unparalleled flexibility and reliability for industries requiring high-quality packaging. From advanced sewing methods to various closure designs, these bags provide tailored solutions to protect products and enhance branding. With continuous innovation in materials and sealing techniques, BOPP woven bags remain at the forefront of sustainable and efficient packaging technologies.
