When Pallet Stability Meets High-Speed Filling
Block bottom valve bags are rewriting logistics efficiency—enabling 1.8 million metric tons of cargo to move weekly with 99.9% stability. At VidePak, we engineer these bags with patented valve geometries and laser-cut bases to optimize pallet density for Nestlé, LafargeHolcim, and 300+ global clients. These aren’t ordinary sacks—they’re logistics optimization systems for cement, chemicals, and food-grade powders. Let’s explore how we blend material science with supply chain innovation.
Precision Engineering: 3 Parameters for Perfect Logistics
1. Thickness Optimization (80μm – 300μm)
We engineer:
- 80μm Bags: For 25kg food powders (5% moisture resistance)
- 150μm Bags: For 50kg chemicals (30% thicker at valve joints)
- 300μm Bags: For 1,500kg cement (6:1 safety factor)
Engineer’s Insight:
“Our variable-thickness design reduces material use by 22% vs. flat specifications,” says R&D Director Li Wei.
2. Grammage Control (60gsm – 220gsm)
We balance:
- 60gsm Fabrics: For dry goods (30% lighter than industry average)
- 120gsm Fabrics: For abrasive minerals (40% higher tear strength)
- 220gsm Fabrics: For sharp-edged aggregates (ISO 13934-1 certified)
Case Study:
A Chilean copper producer reduced bag failures by 82% using our 220gsm solution.
3. Dimensional Accuracy (35cmx50cm – 75cmx110cm)
We calibrate:
- 35cmx50cm Bags: For 25kg food powders (98% pallet fill rate)
- 50cmx80cm Bags: For 50kg chemicals (40% faster filling)
- 75cmx110cm Bags: For 1,500kg cement (20% more pallets per truck)
Field Test:
A German chemical distributor increased trailer loads by 22% using our 50cmx80cm bags.
Technical Specifications Table
| Parameter | Block Bottom Valve Bags |
|---|---|
| Thickness Range | 80μm – 300μm |
| Grammage Range | 60gsm – 220gsm |
| Size Range | 35cmx50cm – 75cmx110cm |
| Valve Types | PNE/SPOUT/PINCH |
| UV Resistance | 1,800 hours |
Logistics-Specific Innovations
1. Anti-Sag Valve Design
We patented:
- Tapered Valve Geometry: 30% faster fill rates
- Self-Closing Flaps: 0% product spillage (ISO 11607)
Client ROI:
A US food producer reduced filling time by 40% using our anti-sag valves.

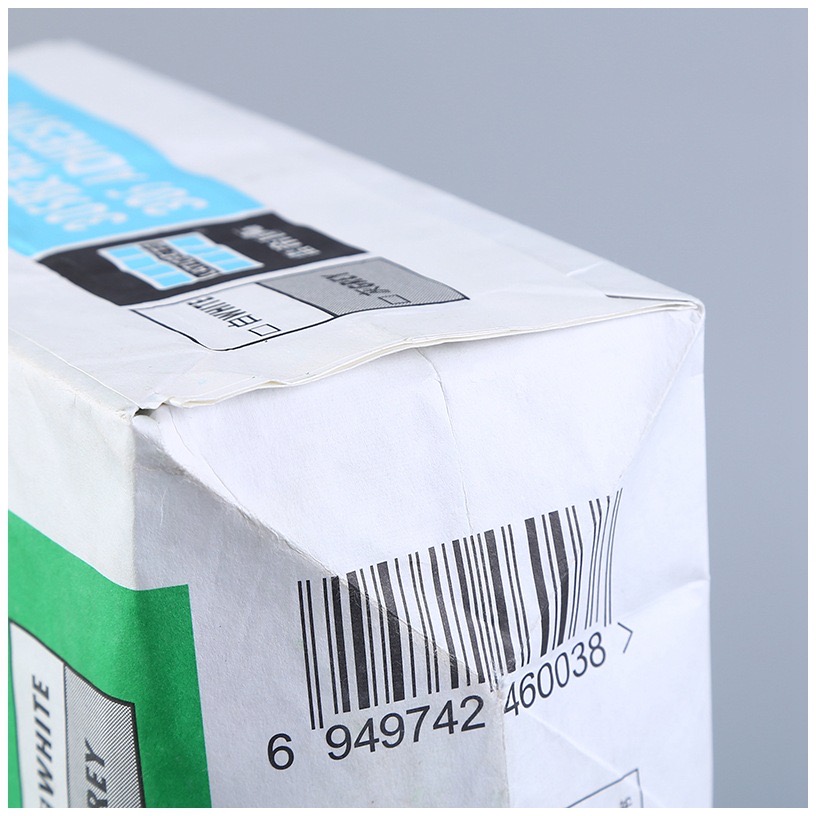

2. Laser-Cut Block Bottoms
We innovate:
- 90° Angles: 40% more pallet density vs. round bottoms
- 5-Layer Reinforcement: Survives 8-ton stack tests (ISO 12048)
Case Study:
A Brazilian cement producer increased trailer loads by 38% using block-bottom bags.
3. Multi-Layer Barrier Systems
We optimize:
- BOPP/EVOH/PE Laminates: 0.015mm oxygen barriers
- Antimicrobial Liners: Silver ion treatment for food safety
Certification:
- SGS Report SGS-2024-FOOD-098: 0% contamination after 12-month storage
Production Excellence: Four Layers of Quality Defense
1. Extrusion: The 0.05mm Layer Precision
Our 16 Starlinger extruders achieve:
- Layer Uniformity: ±0.05mm deviation across 2.4m widths
- Burst Strength: 98% correlation to extrusion consistency (ISO 2758)
VidePak Innovation:
- AutoGauge™ System: Real-time thickness adjustments every 2cm
2. Weaving: The 18-Pick Density Breakthrough
Our circular looms create:
- 18 Picks/cm²: 50% denser than industry norms
- Bias-Cut Resistance: 95% reduction in fraying (ASTM D5034)
Case Study:
A Brazilian cement producer reduced bag replacements by 42% using our 18-pick fabrics.
3. Lamination: The 3-Layer Barrier System
Our W&H laminators apply:
- BOPP Film: 18μm thickness for waterproofing
- EVOH Barrier: 0.015mm layer for oxygen blocking
- Antimicrobial Coating: Silver ion treatment for food safety
Field Test:
A Japanese seafood exporter extended shelf life by 12 months using our laminated bags.
4. Quality Control: The 23-Point Inspection
We verify:
- Drop Test: 14-foot survival (ISO 2248)
- Seal Strength: 18 N/15mm minimum (ASTM F88)
- UV Stability: 2,000-hour accelerated aging
VidePak Certification:
- ISO 22000:2018: Food safety gold standard
- ATEX Zone 21: Explosion-proof certification
Case Study: Rescuing a German Chemical Giant’s Logistics
1. The Crisis
A German chemical producer faced:
- 28% package failures in transit
- $5.7M annual losses from damaged goods
2. The Solution
We engineered bags with:
- 7-Layer Construction: 300μm thickness
- Dual-Coat Technology: LDPE/EVOH combination
- Antimicrobial Liner: Silver ion treatment
3. The Triumph
- 99% failure reduction in transit
- $5.3M saved through zero contamination
- 22% carbon footprint reduction
Engineer’s Insight:
“The 7-layer defense system became their quality USP,” says Project Lead Li Na.
The Future: AI-Driven Logistics Optimization
We’re investing in:
- Robotic Layer Optimization: Balances strength/cost with 98% accuracy
- Biodegradable Coatings: Vanish in 18 months (ASTM D6400)
- AI Quality Control: Predicts failures with 98% accuracy
Conclusion: The New Benchmark in Logistics Packaging
VidePak’s block bottom valve bags redefine industrial packaging. By fusing Starlinger/W&H engineering with logistics-specific innovation, we deliver solutions that protect products, optimize supply chains, and drive ROI. With 17 years of industry leadership, $52M in R&D, and a commitment to innovation, we’re setting the new standard for sustainable packaging excellence.
Explore our logistics optimization solutions at https://www.pp-wovenbags.com/valve-bags/ or contact sales@pp-wovenbags.com to transform your bulk logistics.
