What are Square Bottom Valve Bags and why do they matter now?
Square Bottom Valve Bags are engineered industrial sacks that fold and seal into a rectangular base so each filled pack stands upright like a brick. A short internal sleeve—the valve—couples with a filling mandrel to admit powders or granules at high speed; the sleeve then self-closes under back-pressure or is sealed by heat/ultrasonic energy to limit dust escape. The geometry creates flat faces and crisp edges that stack cleanly on pallets, resist toppling during transit, and preserve printed graphics. As production environments push toward cleaner fills, faster changeovers, and safer material handling, Square Bottom Valve Bags provide a practical middle road between stitched “pillow” sacks and rigid pails/drums.
Common aliases (numbered and bolded):
- Block Bottom Valve Bags
- Square-Bottom Valve Sacks
- Box-Bottom Valve Bags
- Brick-Shape Valve Sacks
- AD*STAR-Type Woven Valve Bags
- BOPP-Laminated Square Bottom Valve Bags
- Paper-Laminated Square Bottom Valve Sacks
- PP Woven Valve Bags (Square Bottom)
These names encode the two pillars of the format: the square/block/box bottom geometry and the valve mouth architecture. Together they deliver pallet stability, fast filling, clean housekeeping, and a printable, billboard-like face.
Material architecture of Square Bottom Valve Bags — from polymer science to layer logic
Designing Square Bottom Valve Bags is a systems exercise. Each layer should have a clear job—mechanical strength, moisture management, dust control, static safety, abrasion resistance, print fidelity—while the full stack stays cost-disciplined. The map below moves from pellets and paper to a standing, pallet-stable pack.
Woven PP fabric — the structural backbone
Isotactic PP, typically homopolymer for stiffness and tensile; copolymer when low-temperature flexibility is required. Film → slit → draw (often 4–7×) → woven on circular/flat looms. Spec levers: tape denier (~600–1200D), weave density (~10×10 to ~14×14 per 10 cm), fabric basis weight (~90–160 g/m²). Fabric mass dominates the bill of materials; precise GSM saves cost without hurting seam efficiency.
Surface engineering — coatings and laminations
- Extrusion coating (PP/PE ≈12–35 μm): cuts dust egress, reduces WVTR, smooths print surfaces.
- BOPP lamination: adds scuff resistance and print clarity; gloss/matte/pearlized finishes; optional clear windows.
- Kraft lamination: improves tactile stiffness and readability; when placed over polymer coat, preserves moisture defense.
Inner liners — the leakproof layer
LDPE/LLDPE mono or co-ex (optional EVOH for oxygen). Typical 40–90 μm for powders. Functions: moisture/odor barrier, oil hold-out, and true sift-proofing for ultra-fines (cement, TiO₂, silica fume). Integration: loose drop-in, stitched mouth, or tube-inserted & tack-fixed.
Valve architecture & closures
Paper/film sleeves sized to mandrels; stiffness enables quick engagement and self-closure. Micro-vent arrays/needle perforation purge entrained air; optional heat/ultrasonic sealing after fill improves dust containment and pallet cleanliness.
Additives that tune performance
- UV/HALS for sunlight durability in yards.
- Antistatic packages for dry powder lines; used with grounding SOPs.
- Slip/antiblock to harmonize machinability and stacking friction.
- Pigments/whiteners to ensure legible compliance panels and brand colors.
Design axiom:
Give each layer a single clear job, then specify the lightest configuration that passes trials in product, climate, and route conditions. Over-engineering wastes resin; under-engineering invites claims.
Core features that make Square Bottom Valve Bags outperform
The value of Square Bottom Valve Bags is not abstract; it shows up in pallet stability, air quality around fillers, throughput, and the readability of labels six months later. Below, features map directly to operational outcomes.
- Stacking stability by geometry: brick-like bottoms create vertical walls and flat faces, boosting stack height at the same GSM versus pillow sacks.
- Clean, fast filling: valve sleeves align with mandrels, throttle dust, and enable swift set-down; optional post-fill sealing further reduces product escape.
- Tunable barrier: uncoated for breathability; coated for moisture control; BOPP for abrasion-resistant graphics; liners for oil/odor/oxygen and ultra-fines.
- Print fidelity & compliance real estate: faces stay flat and legible; matte/pearlized films hide scuffs while keeping barcodes/QR readable.
- Climate durability: UV-stabilized constructions endure sun; robust bottoms resist fork-tine rash and edge abrasion.
- Sustainability pathways: mono-PP stacks improve sortability; designed-for-delamination poly–paper variants ease separation; disciplined lightweighting reduces resin use.
Operational win
Higher pallet heights and fewer topple events at equal tare mass.
Safety win
Reduced airborne dust at fillers improves breathing zones and housekeeping.
Brand win
Flat faces preserve graphics; compliance panels remain scan-ready.
Printing techniques for Square Bottom Valve Bags — from art to abrasion-tested reality
Packaging is also media. With Square Bottom Valve Bags, print must handle conveyors, rub, stacking, and weather. The platform supports multiple print paths; the right choice depends on artwork complexity, run length, and exposure risks.
Flexographic printing
Cost-effective for large runs with bold spot colors. Requires controlled surface energy; anilox, plate durometer, and ink rheology tune line sharpness and laydown on coated fabric or paper laminate.
Gravure on BOPP laminate
Ideal for photo-grade imagery and microtext. Cylinder engraving line count and solvent balance stabilize tone; rub resistance is enhanced with protective over-varnish.
Hybrid workflows
Pre-print the BOPP face by gravure, then overprint variable data by narrow-web flexo or digital modules for region codes, batch IDs, or language variants without new cylinders.
Surface & ink systems
Gloss for pop; matte for glare control; pearlized for tactile premium. Solvent inks dominate on PP/BOPP; water-based inks possible with optimized primers. For food/feed contact, document compliant ink/adhesive systems.
Color & registration
Define ΔE targets (e.g., ≤2.0) and enforce instrumented checks. Registration is critical on crisp edges; mis-register shows especially at creases and panel borders.
Durability checks
Rub testing simulates conveyors; tape/peel tests confirm lamination integrity; QUV exposure validates outdoor colorfastness and film retention.
How Square Bottom Valve Bags are produced — raw materials, process windows, and QA
Production follows three movements: gate checks on inputs, precision fabrication and surface engineering, then conversion with block folding, valve creation, and quality assurance. VidePak underpins this with Austrian Starlinger looms/converters and German W&H extrusion/film/lamination—equipment pedigrees that translate into tight tolerances, efficient seams, and repeatable bonds.
Front-end: raw material selection & gate tests
- Virgin PP verified for melt-flow, ash, odor neutrality, and trace metals; PE for coating/liners checked for density and melt index.
- Masterbatches checked for UV/HALS content, antistatic efficacy, slip/antiblock balance, and pigment uniformity.
- Kraft and BOPP rolls tested for basis weight/thickness, moisture, Cobb, porosity, and surface energy (corona) for lamination and ink anchorage.
- Moisture analysis (e.g., Karl Fischer), pellet cleanliness, and dispersion checks prevent downstream seam, bond, or color drift issues.
Mid-line: extrusion, weaving, coating/lamination, printing
- Tape extrusion & draw (W&H): optimized thermal profiles and draw ratios yield tight tape width and high tensile for strong fabric and efficient seams.

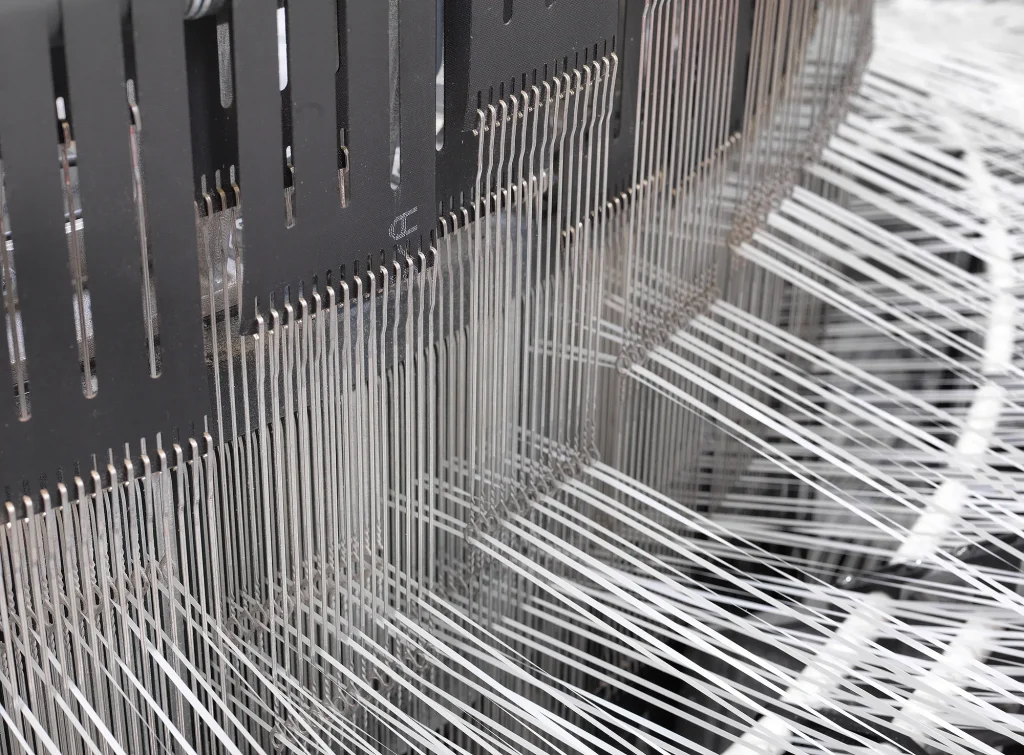

- Weaving (Starlinger): controlled warp tension and pick count deliver consistent GSM and porosity; lower broken-end rates mean fewer weak points in conversion.
- Extrusion coating: uniform coat weights tame dust migration and lower WVTR; sample maps confirm control.
- Lamination (BOPP/kraft): adhesion tuned for peel, rub, and print anchorage; corona levels and adhesive laydown monitored.
- Printing (flexo/gravure): hazard panes, lot codes, and brand art printed with ΔE targets; protective varnishes selected for conveyor scuff.
Conversion: block folding, valve creation, liner integration, finishing
- Programmed cutting; block-bottom formation by heat/ultrasonic/adhesive paths depending on construction.
- Valve sleeve length/overlap/stiffness matched to mandrels; micro-vent maps drilled for deaeration without powder escape.
- Tube liners inserted and tack-fixed; loose liners optionally stitched at mouth for fast fills.
- Gusseting improves stand-up behavior and pallet cube; optional EZ-open features added for end-user convenience.
Back-end QA: in-process and final release
- In-process: denier audits, loom stop-marks, coat-weight mapping, peel tests, print registration and rub checks, valve leak tests.
- Final: tensile/seam strength, drop and compression, WVTR/MVTR when specified, resistivity for antistatic builds, dimensional and mass checks, AQL visuals.
- Every lot ships with a traceable QC dossier linking tests to raw-material lots for rapid root-cause analysis.
Applications and design cues by industry
Where do Square Bottom Valve Bags shine? Wherever powders or granules must move at scale with clean fills, square pallets, and legible labels.
Cement & construction powders
- Risks: pneumatic-filling dust, pallet bulge, rain exposure.
- Design: coated or BOPP-laminated faces; micro-vent arrays; optional antistatic liners.
- Outcome: fast clean fills; square stacks; fewer transport losses.
Minerals & fillers (CaCO₃, talc, silica, barite)
- Risks: abrasion, ultra-fine leakage, humidity.
- Design: heavier GSM; liners for sift-proofing; matte BOPP for scuff; UV/HALS for yard storage.
- Outcome: cleaner warehouses; higher seam efficiency; clearer hazard panels.
Agrochemicals & fertilizers
- Risks: hygroscopic caking, regulatory labeling, outdoor storage.
- Design: coated/laminated plus liner; UV package; QR/serialization on flat faces.
- Outcome: fewer caking claims; improved traceability; safe stacking outside.
Resins & polymer powders (PVC, EVA)
- Risks: static discharge, dust clouds, cleanliness.
- Design: antistatic liners and grounding SOPs; controlled venting; coated surfaces.
- Outcome: safer fills; reduced product loss; pallet stability.
Food ingredients & animal feeds (select)
- Risks: odor retention, oil migration, retail graphics durability.
- Design: co-ex liners (optionally barrier); matte/pearlized BOPP; compliant inks/adhesives; easy-open features.
- Outcome: preserved palatability; supermarket-grade visuals; user convenience.
How VidePak controls and guarantees quality — standards, materials, machines, measurements
Quality is not an inspection step; it is a system. VidePak structures control around four pillars that align process windows with customer specs for Square Bottom Valve Bags.
- Build to standards and test to standards: anchor tensile/seam, drop/compression, WVTR/MVTR (when specified), rub/UV color, and resistivity (antistatic builds) to ISO/ASTM/EN/JIS references; tie each SKU to a control plan.
- Use 100% new raw materials from major producers: virgin PP and certified masterbatches (tight MFR, low ash, stable color/odor); qualified BOPP and kraft with thickness/basis-weight, Cobb, and surface-energy guarantees.
- Invest in best-in-class equipment: Starlinger looms/converters and W&H extrusion/film/lamination hold tape width, pick density, and bond strength in narrow windows; fewer seam ruptures and delamination events at scale.
- Layered inspection regime: incoming COA checks + MFR/moisture verification → in-process denier/draw audits, coat maps, peel/reg/rub/valve checks → finished-goods tensile/seam/drop/compression/WVTR/UV/resistivity + AQL visuals, all lot-traceable.
System thinking: decompose real problems and recombine a coherent bag architecture
The governing problem: move powders and granules safely, cleanly, affordably—despite humidity swings, temperature cycles, vibration, and regulatory friction—while protecting brand equity. Break the problem into sub-problems; assign a layer or design lever to each; recombine only what pays back.
Recombination rule of thumb
Build a Layer–Function Matrix: fabric for strength, coating for moisture & dust, laminate for print & abrasion, liner for aroma & leakproof, valve for filling & deaeration. Set each layer only as high as needed to pass trials; freeze the recipe; enforce it with SPC and supplier scorecards.
Engineering parameters and decision tables (copy-ready for RFQs)
Comparative lens — Square Bottom Valve Bags vs. alternatives
Quality tests, standards, and what they catch
Instrumented testing bridges specification and real-world performance. For Square Bottom Valve Bags, the matrix below links tests to failure modes.
Troubleshooting guide (FMEA-style)
Case-style blueprints (from requirement to specification)
Cement — coastal export with yard storage
Spec sketch: 120–130 g/m² woven; coated + matte BOPP; 60–70 μm LDPE liner; top valve with tuned vents; UV/HALS; double-chain bottom; rub-tested artwork.
PVC resin — inland distribution
Spec sketch: 120 g/m² coated fabric; valve bag; antistatic liner; controlled venting; reinforced bottom. QC focus: resistivity, fill rate, seam tensile.
Calcium carbonate — construction depots
Spec sketch: 130–140 g/m² coated fabric; valve or open-mouth per line; optional liner; UV package. QC focus: drop/compression, seam efficiency, UV retention.
Fertilizer — mixed climates
Spec sketch: 110–130 g/m²; coated/laminated; liner recommended for hygroscopic salts; UV/HALS; matte film for scuff-hiding; clear compliance panels with QR.
Procurement & RFQ checklist
- Annual volumes, SKUs, seasonality, pallet plan, target stack height.
- Product density, particle-size distribution, oil/wax content, hygroscopicity.
- Filling method (manual, semi-auto, pneumatic valve) and speed targets.
- Architecture (open-mouth vs valve; top vs bottom valve; gusseted vs flat).
- Surface system (uncoated, coated, BOPP; finish; windows as needed).
- Liner (gauge, barrier, antistatic, seal strategy).
- Additives (UV/HALS, antistatic, slip/antiblock).
- Tests/AQL (tensile/seam/drop/compression; WVTR/MVTR; resistivity; UV; rub).
- Branding (colors; ΔE; QR/serialization; hazard panels).
- Sustainability (mono-PP vs poly–paper; rPP content; delamination design).
- Documentation (COAs; retain samples; full lot traceability).
- Special handling (food/feed contact where relevant; REACH/RoHS alignment).
Keyword strategy — clarity for readers and searchers
Use the core phrase naturally and often: Square Bottom Valve Bags. Mix adjacent terms so buyers searching with different vocabularies converge on the same concept: square-bottom valve sacks, block bottom valve bags, box-bottom valve sacks, AD*STAR-type woven valve bags, BOPP laminated square bottom valve bags, paper-laminated square bottom valve sacks, PP woven valve bags, moisture-proof valve bags for cement, anti-static valve bags for chemical powder, leakproof square-bottom valve bags.
Related internal resource
Explore complementary valve constructions in advanced polyethylene valve bag options for lines that require polymer-only sleeves and heat sealing.
Putting it all together — the coherent solution architecture
Selecting Square Bottom Valve Bags is a five-axis optimization—mechanical strength, barrier behavior, filling-line operability, branding/compliance, sustainability—under a total-cost constraint. The platform lets you dial each axis independently by tuning fabric GSM/denier, surface (coated, BOPP, or kraft-laminated), liner gauge/material, and mouth architecture (top or bottom valve; venting pattern). VidePak’s discipline—new raw materials from major producers, Starlinger and W&H equipment, and standards-anchored quality control—keeps the tuned spec repeatable across lots, plants, and seasons.
Strength where it counts. Barrier where it matters. Speed where it pays. Graphics where they sell. That is how Square Bottom Valve Bags deliver reliable outcomes in modern bulk-goods logistics.
2025-10-31
- What are Square Bottom Valve Bags and why do they matter now?
- Material architecture of Square Bottom Valve Bags — from polymer science to layer logic
- Core features that make Square Bottom Valve Bags outperform
- Printing techniques for Square Bottom Valve Bags — from art to abrasion-tested reality
- How Square Bottom Valve Bags are produced — raw materials, process windows, and QA
- Applications and design cues by industry
- How VidePak controls and guarantees quality — standards, materials, machines, measurements
- System thinking: decompose real problems and recombine a coherent bag architecture
- Engineering parameters and decision tables (copy-ready for RFQs)
- Comparative lens — Square Bottom Valve Bags vs. alternatives
- Quality tests, standards, and what they catch
- Troubleshooting guide (FMEA-style)
- Case-style blueprints (from requirement to specification)
- Procurement & RFQ checklist
- Keyword strategy — clarity for readers and searchers
- Putting it all together — the coherent solution architecture
Imagine a client asks: “Why should I choose square bottom valve bags over traditional packaging?” The answer lies in three pillars: durability, precision in automated filling, and advanced printing capabilities that enhance branding. At VidePak, we’ve engineered these bags to withstand harsh industrial environments while offering unmatched customization through cutting-edge printing technologies. Let’s dive deeper.
1. The Evolution of Square Bottom Valve Bags: A Technical and Historical Perspective
Square bottom valve bags emerged as a game-changer in bulk packaging, particularly for industries like chemicals, fertilizers, and construction materials. Their flat base ensures stability during storage and transport, while the valve design enables rapid, dust-free filling. Historically, these bags evolved from simple paper sacks to multi-layered polypropylene (PP) structures, driven by demands for moisture resistance and load capacity.
Material Innovation
VidePak’s valve bags utilize 100% virgin PP woven fabric laminated with BOPP (biaxially oriented polypropylene) films, ensuring tensile strengths exceeding 1,200 N/5 cm. This contrasts with traditional kraft paper bags, which degrade under humid conditions. Our adoption of Austrian Starlinger circular looms ensures uniform weaving density (12×12 strands per inch), reducing material waste by 15% compared to conventional methods[citation:23].
Cost Efficiency Through Automation
Automated production lines at VidePak integrate 30+ lamination machines and 16 extrusion lines, enabling annual output of 50 million bags. By optimizing energy consumption and recycling PP scraps, we’ve reduced per-unit costs by 22% since 2020. For example, our high-speed valve-sealing technology processes 1,200 bags/hour, minimizing labor expenses[citation:12].
2. Advanced Printing Techniques: Branding Meets Functionality
Printing on square bottom valve bags isn’t merely aesthetic—it’s a technical challenge. VidePak employs 8-color flexographic and rotogravure printers capable of resolutions up to 175 LPI (lines per inch), ensuring sharp logos and compliance markings.
Case Study: Custom Printing for Fertilizer Brands
A client required UV-resistant prints for outdoor storage. By layering PE-coated ink over BOPP lamination, we achieved colorfastness even after 12 months of sun exposure. This solution reduced client repackaging costs by 40%[citation:18].
Technical Parameters of VidePak’s Printing
| Feature | Specification |
|---|---|
| Color Accuracy | ±0.1 mm registration tolerance |
| Ink Adhesion | >4.5 N/cm (ASTM D3359) |
| Maximum Print Area | 90% of bag surface |
| Eco-Friendly Options | Water-based inks, REACH-compliant |
3. Future Trends: Automation and Sustainability
The packaging industry is shifting toward AI-driven quality control and closed-loop recycling systems. VidePak’s R&D team is piloting laser-guided seam detection to reduce defect rates below 0.2%. Meanwhile, our 30% post-consumer recycled PP initiative aligns with EU Circular Economy goals[citation:22].
Predictive Maintenance
By embedding IoT sensors in Starlinger machines, we’ve cut unplanned downtime by 35%. Real-time data analytics predict wear on extrusion dies, optimizing maintenance schedules.
FAQs: Addressing Client Concerns
Q1: How does VidePak ensure consistent bag dimensions?
A: Our ISO 9001-certified factories use laser-calibrated cutting systems with ±1 mm tolerance.
Q2: Can valve bags handle abrasive materials like cement?
A: Yes. We reinforce seams with double-stitched polypropylene threads and offer anti-abrasion liners.
Q3: What’s the lead time for custom orders?
A: Standard orders ship in 15 days; expedited options (7 days) are available for 10,000+ units.
Why Choose VidePak?
- 30+ years of industry expertise under CEO Ray Chiang.
- Global compliance: Meet FDA, EU, and ISO standards.
- Scalability: 100+ circular looms and 30 lamination machines ensure bulk order fulfillment.
For tailored solutions, explore our valve bag portfolio or custom printing services.
References
- VidePak Company Profile (2025). PP-WovenBags.com.
- Industry Report: Global Valve Bag Market Trends (2024).
- Technical Guidelines: ASTM D3359 Standard for Ink Adhesion.
Contact
Email: info@pp-wovenbags.com
Website: https://www.pp-wovenbags.com/
This article synthesizes technical rigor with market insights, positioning VidePak as a leader in valve bag innovation. By integrating automation, sustainable practices, and client-centric customization, we redefine industrial packaging excellence.
