Form-Fill-Seal Woven Bags: Enhancing Warehouse Efficiency with Custom Stripe Options

H2: What is Form-Fill-Seal Woven Bags? Definition and Common Aliases

Form-Fill-Seal Woven Bags are a specialized family of polypropylene (PP) woven sacks that align with automated or semi-automated packaging lines where forming (or tube feeding), filling, and sealing proceed in a single, orchestrated motion. They are not simply sturdier versions of manual sacks; they are interface designs between granular physics and machinery. Where a conventional bag is lifted to a sewing head and stitched shut, Form-Fill-Seal Woven Bags present a heat-sealable inner surface that accepts hot-air, impulse, ultrasonic, or heat-bar closure, delivering a cleaner, tighter mouth and a more predictable geometry. In practice you will hear the same solution referenced by different names—FFS woven sacks, FFS PP woven bags, heat‑sealable woven sacks, heavy‑duty woven FFS packaging—because different industries came to the same conclusion from different contexts: automation rewards bags that behave like components, not like improvisations.

The phrase “custom stripe options” signals that these packages are not only containers but also carriers of visual information. Woven-in yarn-dyed stripes or durable printed bands act as low-latency signals for humans and machines: fast SKU segregation in a dim aisle, machine-vision anchors in dusty work cells, color-based kanban for cross-dock orchestration. Think of the stripe as a headline you can read from fifteen meters away. When labels fail—crumpled, dusted, peeled—the stripe remains. And because it is woven or broadly printed, it resists abrasion better than small adhesive decals.

From a systems perspective, Form-Fill-Seal Woven Bags sit at a three-way intersection: (1) traditional sewn PP woven sacks known for tensile and tear robustness, (2) PE film FFS tubular rolls prized for sealing hygiene and high-speed closure, and (3) paper valve sacks valued for breathability and print charm. The FFS woven approach borrows strength and puncture tolerance from tapes, adopts sealing convenience from films, and maintains branding versatility through flexographic print or BOPP lamination. In other words, it synthesizes rather than substitutes. That synthesis matters because modern warehouses reward consistency, and consistent inputs come from packages that are structural, sealable, legible, and indexable all at once.

Is the category confined to one style of line? Not at all. Some plants deploy fully automated FFS lines that form or feed tubes, weigh, fill, de-aerate, and seal at cadence; others retrofit semi-automated stations—bag feed by operator, seal by machine—to capture hygiene and speed without overhauling everything. In either setting, Form-Fill-Seal Woven Bags serve as the mechanical handshake between a product’s flow behavior and the line’s tolerance window. Done right, the handshake is firm, repeatable, and economical.

For readers mapping the landscape of woven options, a concise orientation sits here—Form-Fill-Seal Woven Bags—as a wayfinding link into broader PP woven formats. Anchor on that as you consider whether FFS sealing, gusset geometry, and color stripes should be the next standard across your lanes.

H2: What is the features of Form-Fill-Seal Woven Bags? A systems view with data reinforcement, case analysis, and comparative study

Features are often listed as disconnected bullets—fabric GSM, lamination, antiskid coating, perforation—but the real value emerges when you see how each parameter couples to the rest of the system. Form-Fill-Seal Woven Bags derive their performance not from single metrics but from the coherence of many small decisions, each tuned to physics, machinery, and workflow.

Structural mechanics and geometry. Woven PP tape fabric (commonly 60–120 g/m² for 10–50 kg formats) provides high tensile strength and tear propagation resistance while limiting long-term creep. That matters when bags are stacked five or six layers high: the columns must bear load without slow belly formation that encroaches into aisle space. Coatings in the 15–30 g/m² range and inner sealing films around 30–60 μm create a smooth, seal-friendly interface for hot-air or ultrasonic systems. Side gussets engineer a brick-like shape for stable pallet columns. Micro-perforations relieve trapped air during fast fills; without them, a bag can balloon, reject a tight seal, and slump unpredictably. Each choice modifies load paths and airflow; together they sculpt how the bag behaves under impact, compression, and vibration.

Data reinforcement. Supplier catalogs frequently cite flat widths of ~300–600 mm and cut lengths of ~500–1100 mm for 10–50 kg packs. On properly configured FFS-capable lines, practical sealing cadences of ~900–1,800 bags/hour are achievable, contingent on product de-aeration and seal-window tuning. These are not vanity numbers; they are regime markers: which jaw, which dwell, which temperature range will give you peel strength while tolerating stray dust? Surface COF targets around 0.35–0.55 are selected for pallet programs; too slick and layers skate, too grippy and layers resist rework positioning. In practice, you measure and adjust; you do not wish and hope.

Case analysis. A fertilizer packout running 25 kg bags on mixed pallets adopted controlled gusset widths (to maintain brick faces) and an antiskid top coat. Forklift turns became quieter because layers no longer slid relative to each other; stretch-wrap cycles dropped from six to four without a rise in load claims. Meanwhile, replacing sewing-only closures with a sealing layer cut fugitive dust at the mouth—a small change with outsized effects in housekeeping labor and audit scores. The line felt calmer not because operators worked harder, but because the package stopped sabotaging them.

Comparative study. Against PE film-only FFS sacks, Form-Fill-Seal Woven Bags deliver superior puncture resistance and shrug off rough contact with hooks, pallets, and dock plates. Against conventional sewn woven sacks, FFS sealing reduces thread fray and lint, improves hygiene around the mouth, and plugs directly into OEE-driven automation. Against paper valve sacks, woven FFS typically wins on moisture resilience and tear strength, while paper retains an edge in breathability and certain print aesthetics. The conclusion is not that one format abolishes the others; it is that your product’s rheology, logistics, and compliance perimeter decide which attributes you must favor.

Warehouse information design via custom stripes. The stripe is a signal system hiding in plain sight. A 10–30 mm chromatic band—woven-in or printed—maps color to SKU, recipe, or hazard level. On a long aisle, scanners cannot help you, but human vision can. With camera-enabled WMS, the stripe becomes a robust machine-vision anchor resistant to dust film, condensation, or scuffing that might defeat small labels. In mixed-SKU pallets, a wrong-color bag stands out at once: exception detection at the speed of peripheral vision. Standardize the palette by product family and you compress training cycles for new crews while shrinking mis-picks.

More data, same story. Operations teams commonly report double-digit reductions in picking errors after adopting color-coded packaging cues. Pallet audits show faster anomaly spotting and smoother FIFO enforcement when production-day blocks adopt distinct stripe hues. Even in low-tech environments—no cameras, no beacons—the stripe is a cheap sensor, an analog redundancy layer for digital plans.

Safety and compliance posture. Form-Fill-Seal Woven Bags can be configured for food-contact with resin and liner documentation aligned to FDA 21 CFR 177.1520 and EU 10/2011; they can run under ISO 9001:2015 QMS, with hygiene programs mapped to ISO 22000 or HACCP principles where relevant. For static control, antistatic masterbatch targets surface resistivity bands in the 10^9–10^12 Ω/sq neighborhood, a practical window for many dry powders under IEC 61340-aligned plant practices. Transit integrity draws on test families such as ASTM D5276 (drop), ISTA 3A profiles (transport simulation), ASTM D1894 (coefficient of friction), and ASTM D1709 (dart impact for sealing films). These anchors keep claims arguments short and RMA cycles shorter.

Sustainability and cost-to-serve. The woven base enables down‑gauging with lower risk than film-only sacks, because tapes handle puncture and tear loads gracefully. Clean heat-sealed mouths curb dusting on pallets, which reduces wrap usage, edge-guard consumption, and sweep labor. Mono‑material PP variations (PP woven base + PP-rich sealing layer) simplify recycling streams; where PE layers are performance-critical, coextrusion blends can be selected for seal window and end-of-life constraints. Sustainability here is not a sermon; it is a daily reduction in dunnage and a future reduction in disposal friction.

H2: What is the production process of Form-Fill-Seal Woven Bags? From resin to ready load

Turning polymer pellets into reliable Form-Fill-Seal Woven Bags is a choreography of conversions, each translating microscopic order into macroscopic predictability. If any station skips its steps, the defect will hide until the worst moment—when your line is running hot and a seal fails on the palletizer.

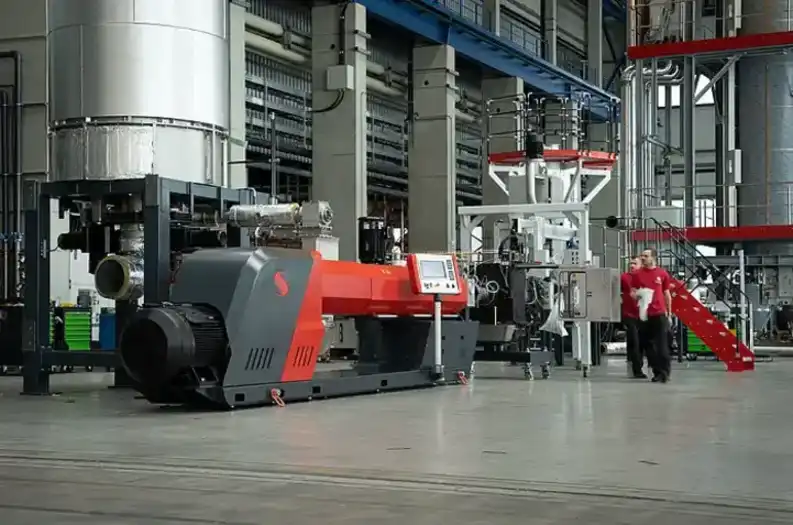

Extrusion and tape orientation. Polypropylene pellets are extruded into thin slits and drawn into tapes; draw ratios and thermal profiles align polymer chains to secure tensile strength while managing crystallinity for cold resistance. Melt Flow Index (MFI) selection balances extrusion ease against downstream strength. Tapes that are under-drawn can neck; tapes that are over-drawn embrittle. The right ratio writes future seams.

Weaving and fabric control. Circular or flat looms convert tapes into base fabric. Warp and weft tensions are tuned to avoid bias; too little and you invite wrinkles, too much and you warp dimensions. Typical fabric weights for Form-Fill-Seal Woven Bags run ~60–120 g/m² for 10–50 kg sacks. Where outdoor staging is expected, UV stabilizers are dosed into tapes to meet exposure classes in the 200–300 kLy range to resist embrittlement. Loom audits watch for skips, broken ends, and uniform pick density—small aberrations that turn into big headaches when a filled bag meets a dock plate.

Coating/lamination and sealing layer creation. A PP/PE coextrusion or LDPE sealing film is applied on the inner face. Coating weight must be enough to deliver seal integrity yet flexible enough to fold without cracking. The sealing window—temperature, pressure, dwell—is not arbitrary: hot-air systems may target 220–260 °C with 0.4–0.8 s dwell for typical films, while ultrasonic sealing can operate at lower thermal loads but demands cleaner mouth edges. Optional antiskid top coats lift the COF so pallet layers resist lateral motion during forklift acceleration or braking.

Printing and stripe implementation. Flexographic printing (up to roughly eight colors) delivers regulatory and branding marks. If shelf appeal is paramount, BOPP lamination enables rotogravure art with photographic fidelity. The “custom stripe options” are executed either as yarn-dyed tapes woven into the fabric—durable, scuff-resistant, colorfast—or as overprinted bands that are easy to re-color for seasonal or regional variants. Stripe width typically sits between 10 and 30 mm for long-distance legibility; placement relative to bag edges is held within tight tolerances so machine-vision systems can lock onto predictable coordinates.

Conversion: cutting, gusseting, and forming. Fabric is cut to length with hot knives or ultrasonics to seal edges and suppress yarn fly. Side gussets are formed to a specified depth to lock in brick-like stacking. Tubes may be circular or back-seamed; the mouth geometry is set to the forming set and filling spout of the host FFS machine. Conversion tolerances are not decoration. A few millimeters of drift multiplied by five layers and four corners yields pallet chaos.

Sealing trials and quality control. Process engineers lock in the sealing temperature, pressure, and dwell time for the chosen film and contamination profile. Peel strength is measured at the mouth; drop resistance is validated using ASTM D5276 from heights appropriate to 10–50 kg formats; seal integrity after conditioning (temperature and humidity) is verified because warehouses are not climate-controlled thought experiments. Coefficient of friction (ASTM D1894) is checked against pallet patterns; dimensional checks confirm that tessellation plans (for example, 5×8 on 1000×1200 mm pallets for 25 kg SKUs) will work in practice.

Compliance documentation and release. Food-contact builds carry migration test reports referencing FDA 21 CFR 177.1520 and EU 10/2011; ESD-managed builds record surface resistivity and plant bonding/grounding checks aligned with IEC 61340 practices. System certificates—ISO 9001:2015 as a baseline, optionally ISO 22000 for food chains and ISO 14001 for environmental management—complete the dossier. You are buying bags, yes, but you are also buying paperwork that makes audits end quickly.

Traceability and serialization. Where defects or recalls must be containable, lot-level serialization and retained samples allow rapid isolation. In high-mix warehouses, barcode or QR codes for batch tracking coexist with the large chromatic stripe for distance identification—a dual-channel design that serves scanners up close and humans afar.

H2: What is the application of Form-Fill-Seal Woven Bags? Industry scenarios and selection logic

Applications are simply physics meeting policy on a schedule. Form-Fill-Seal Woven Bags succeed where their attributes map onto recurring operational constraints.

Food and ingredients. Sugar, salt, flour, starches, and grains lean on sealing-layer hygiene to minimize mouth dusting and pest ingress. Optional micro-perforations accelerate deaeration without surrendering to ballooning. Color stripes differentiate grades—fine vs coarse, fortified vs standard—so that pickers do not have to parse small print in low light. For export pallets, antiskid finishes and tight gussets support higher, safer columns so each TEU ships product, not air.

Chemicals and resins. Polyolefin pellets and masterbatches impose high puncture and abrasion loads during conveying and loading. Form-Fill-Seal Woven Bags with antistatic additives mitigate charging at chutes and weighers; stripe conventions encode polymer family by hue so dock crews can sort at a glance. The mouth seal blocks pellet escape—minor loss per bag becomes major loss per quarter—while seam robustness prevents hooks and nails from initiating catastrophic tears.

Fertilizers and soil amendments. Hygroscopic blends demand moisture barriers; sealing layers and coated fabric limit ingress. High-COF surfaces resist pallet slippage in hot sheds where wraps lose bite. Color stripes can map NPK blends by recipe to accelerate QA sampling and avoid cross-loads that ruin field trials or farmer trust.

Cement and mineral additives. Dense powders punish weak corners. Woven fabric resists tear initiation; brick-like gussets preserve pallet geometry under dynamic loads. Heat sealing limits mouth leaks that dust nearby electronics and conveyor bearings. In depots where cement dust is a given, the case for a clean mouth is as much about machine life as it is about housekeeping pride.

Pet food and feed. For 10–25 kg formats, BOPP-laminated Form-Fill-Seal Woven Bags fuse shelf appeal with line compatibility—glossy print on the outside, sealable film on the inside. Oxygen or aroma barrier liners protect product quality; stripes can separate species or formulations to prevent mis-feeds that generate costly returns and reputational drag.

Selection logic. Start with rheology: free-flowing or cohesive, hygroscopic or stable, dusty or granular? Rheology guides perforation and seal strategy. Move to handling: are jaws, conveyors, and palletizers gentle or brutal? Handling informs COF and gusset depth. Overlay compliance: food contact documents, ESD band, transport tests. Finally, embed information design: choose stripe hue, width, and placement that align with both WMS and human eyes. The correct configuration is never invented; it is discovered by mapping constraints to attributes.

Three quick portraits. A sugar packer replaced sewn sacks with FFS woven, added micro-perfs, and chose a higher-melt sealing layer that tolerated brief dust contamination; line speed increased and rework plummeted. A petrochemical distributor used blue and green stripe conventions for polyethylene vs polypropylene; mis-shipments fell and cross-dock cycle time improved. A cement additive supplier adopted antiskid stripes and higher COF coatings, switching from six to four wraps per pallet with no increase in claims. Three industries, three constraints, one connective tissue: a bag that makes the rest of the system easier.

H2: Systems thinking in action: decomposing and recombining into a single solution

A warehouse is not a laboratory. It is an ecosystem. To specify Form-Fill-Seal Woven Bags intelligently, treat them as elements in a feedback loop: package → line → pallet → truck → depot → opener → waste stream → data trail. When you decompose, each subsystem exposes its knobs; when you recombine, you set the whole orchestra to tempo.

Subsystem A — Structure. Fabric GSM sets the wall; gusset depth sets the face; coating weight sets the seal canvas; antiskid sets the friction budget. Pull any lever and the others move. Increase GSM to drive tensile margin and your fold behavior stiffens; stiffer folds alter pallet settling; altered settling changes layer counts and wrap needs. Therefore, structure tuning has to be coupled to pallet pattern trials, not left to intuition.

Subsystem B — Closure. LDPE and PP/PE coextrusions each bring a seal window and a contamination tolerance. Hot air, impulse, and ultrasonic systems each trade off thermal profile, speed, and sensitivity to dust at the lips. If your plant runs starch one day and mineral fillers the next, you want a sealing technology that forgives stray powder without sacrificing peel strength. The closure is both a gate and a gasket; if it fails, all the upstream quality evaporates at the mouth.

Subsystem C — Information. The stripe is a human-vision channel; the barcode is a machine channel; the WMS is the coordination layer. When all three are aligned—color mapping in the training guide matches camera-QC templates matches WMS rules—mis-picks and dockside hesitations collapse. A stripe that is twenty millimeters wide and consistently placed is not fashion; it is an API that the human brain can parse at walking speed.

Subsystem D — Compliance. Food-contact documentation ends arguments before they start. ESD bands tied to IEC 61340 practices keep invisible sparks from becoming visible fires. Transport tests (ASTM/ISTA) head off insurance debates about drops and vibrations. Compliance is not a delay to production; it is the shortest path through an audit.

Subsystem E — Operations. Line speed, deaeration strategy, seal dwell, pallet pattern, wrap program—each adds or subtracts slack from the system. Training closes the loop: teach crews what a healthy seal looks like, what stripe misplacement is acceptable, which COF feels safe on a ramp. In mature programs, operators contribute to the spec because they are the first to see drift.

Synthesis. The integrated SKU family is a set of Form-Fill-Seal Woven Bags standardized on footprints, gusset rules, COF windows, stripe codes, and compliance packets. You do not buy bags; you buy fewer line stops, clearer docks, faster audits, and calmer crews. Efficiency, when real, feels like silence—the absence of surprises.

H2: Key parameters and technical anchors (text table)

The table below consolidates parameters widely used when specifying Form-Fill-Seal Woven Bags. Treat them as guardrails rather than commandments; site trials should confirm what paper proposes.

Numbers are summaries of experience; experience is a library of surprises tamed. Use the table to start, then walk the floor, measure the outcomes, and adjust.

H2: Buyer-ready configuration template (example)

Below is a single, coherent configuration that many plants can adopt as a baseline. Treat it as a scaffold for local trials rather than a frozen edict.

Keyword. Form-Fill-Seal Woven Bags (FFS PP woven sacks with heat‑sealable inner layer).

Size and form. 460 mm flat × 870 mm cut length; side‑gussets 80 mm each; fabric 85 g/m² PP woven tape; coating 20 g/m²; LDPE sealing film 40 μm. These dimensions are designed to yield a compact brick that tessellates on a 1000×1200 mm pallet in a 5×8 pattern at 25 kg.

Performance. Nominal 25 kg at bulk density 0.9–1.1; target surface COF 0.45 to balance slide vs grip; micro‑perfs for venting during high-speed fills; pass ASTM D5276 1.0 m drop in conditioned and unconditioned states. Add edge crush checks to predict column life in the warehouse climate you actually have, not the one you wish for.

Electrostatics. Antistatic additive targeting 10^10–10^11 Ω/sq surface resistivity; periodic plant bonding/grounding checks embedded in IEC 61340-aligned control plans. Pair with operator training on handheld resistance meters; measure, don’t guess.

Hygiene. Resin and liner documentation aligned to FDA 21 CFR 177.1520 and EU 10/2011; production under ISO 9001:2015 with hygiene program mapped to ISO 22000 principles. Implement positive release on migration tests for food-contact SKUs and retain samples per batch for traceability.

Information design. Two woven stripes: 20 mm blue on front, 20 mm green on back; palette coordinated with WMS SKU codebook and camera-QC templates. Stripe coordinates held within ±3 mm so machine-vision doesn’t chase a moving target.

Operations. Hot-air sealing window ~220–260 °C; dwell ~0.4–0.8 s; jaw pressure tuned to film. Palletize 5×8 layers with a four-wrap stretch target under controlled pre-stretch; corner boards optional except for rough lanes. Teach crews to spot seal whitening and zippering as early indicators of excessive heat or contaminated lips.

ESG. Prefer mono‑material paths (PP base with PP‑rich seal blend) where recycling streams require it; where LDPE performance is definitive, document end-of-life paths. After pilot runs, down‑gauge GSM or film thickness only if drop/tear margins still clear safety buffers; saving grams that cost damages is the wrong economy.

Adopt, adapt, and then standardize. When everyone—from packer to picker to planner—recognizes what a good bag looks like, the warehouse stops debating packaging and starts hitting targets.
