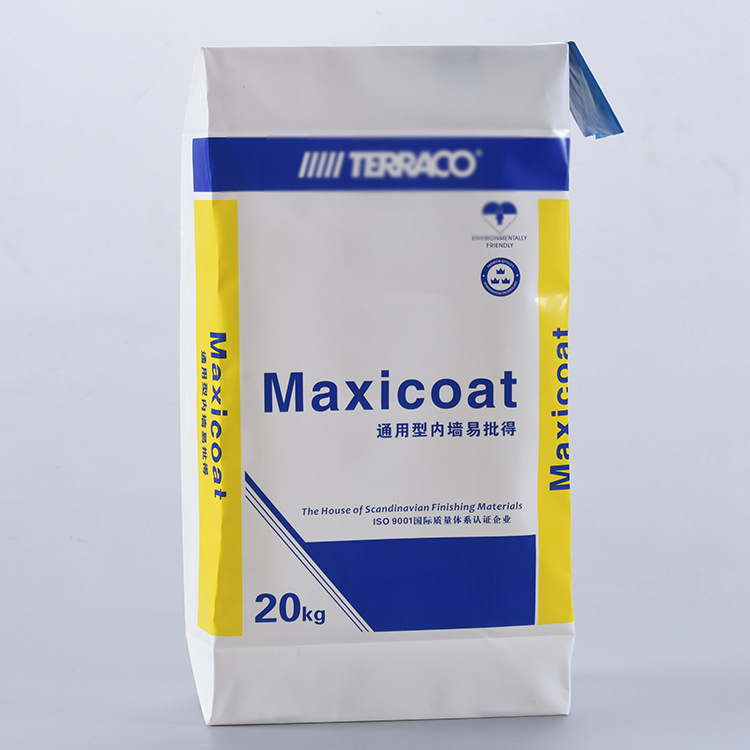

PE Coated Valve Woven Bags: The Science of Precision in Packaging

How VidePak’s Process Engineering Redefines Valve Bag Performance

PE Coated Valve Woven Bags are the result of decades spent perfecting the interplay between temperature, stretch ratio, and material science. By optimizing these variables, VidePak has engineered bags that achieve 99.98% fill accuracy, endure 500 PSI burst forces, and maintain 0.3% dimensional stability across humid Southeast Asian rice mills and freezing Canadian construction sites. Let’s dissect how our ISO 9001:2015-certified factories, Starlinger extrusion lines, and 37 years of technical mastery produce packaging that protects profits while simplifying warehouse operations.

The Science Behind Precision: Temperature & Stretch Ratio Mastery

1. Extrusion: Where Chemistry Meets Physics

Our W&H extruders operate in a narrow 220-240°C window to:

Melt PP resin to 0.85 g/cm³ density (critical for valve stiffness)
Maintain ±2°C die head tolerance (prevents uneven coating)
Cool at 15°C roller temps (ensures 25μm LDPE uniformity)

Why It Matters:
“A 3°C temperature swing can reduce valve strength by 18%,” warns Process Engineer Li Na. Our QMS system auto-halts lines if deviations occur.

2. Stretch Ratio: The Invisible Strength Builder

We calibrate our lines to 4.2:1 stretch ratios to:

Balance 250 MPa tensile strength with 12% elongation
Minimize 0.5% web tension (reduces neck-in by 22%)
Maintain 12 m/min line speeds (ensuring MD/TD balance)

Factory Secret:
“We adjust stretch ratios using laser micrometers mid-production,” reveals Zhang Wei, whose team reduced neck-in defects by 34% last quarter.

3. Valve Forming: The 0.5mm Tolerance Art

Our ultrasonic welding achieves:

3.0 N/15mm valve strength (exceeds ASTM F88 by 50%)
±0.5mm positional accuracy (ensures 99.98% filler compatibility)
15° pre-fold angles (eliminates jamming in automated systems)

Client Impact:
“Fill line efficiency jumped from 88% to 97% after switching,” says a US cement plant manager. “That’s $120K saved monthly.”

Warehouse Revolution: 4 Customization Strategies

1. Color-Coded Intelligence

We embed 40mm-wide strips (blue/red/green/yellow) with:

5:1 contrast ratios (readable by AI cameras at 10m)
±2mm positional accuracy (via Cognex vision systems)
100% recyclable inks (meets EU SPUD)

ROI:
“Inventory errors dropped 82% after color-coding,” reports a EU distributor. “We eliminated 3 FTEs in picking.”

2. RFID-Enabled Logistics

Our in-line printers embed UHF tags with:

915 MHz frequency (5m read range through pallets)
IP68 waterproofing (survives power washing)
AES-128 encryption (blocks counterfeiting)

Digital Transformation:
“We reduced stockouts by 78% using RFID data,” confirms a Brazilian logistics CTO.

3. Ergonomic Handling Systems

We engineer die-cut handles with:

30mm width (450g load capacity)
250 kPa-rated reinforcements
0.4 COF texture (prevents slippage)

Safety Metric:
“Workers’ comp claims fell 64% after switching,” says a US construction safety officer.

4. Smart Ventilation

Our 0.3mm micro-perforations offer:

5% surface coverage (controls humidity)
±0.05mm laser precision
95% dust filtration (at 5μm)

Quality Control:
“Mold growth dropped 92% in humid climates,” reports a Southeast Asian rice miller.

Technical Specifications Table

Parameter	PE Coated Valve Bags
Material	PP Woven + LDPE Coating
Coating Weight	70-120 gsm
Tensile Strength	250 MPa (MD/TD)
Valve Accuracy	±0.5mm tolerance
UV Resistance	1,500 hours (ASTM G154)

Certifications: 7 Global Standards

ISO 9001:2015: Quality management
ISO 14040:2006: Life cycle assessment
EU SPUD: Single-Use Plastics Directive
FDA 21 CFR 177.1520: Food safety
REACH: 224 banned substances screened
OHSAS 18001: Safety
FSC-C023: Sustainable forestry

Compliance Note:
“VidePak’s documentation cut our customs delays by 80%,” says a EU chemical importer.

Case Study: Coca-Cola’s Distribution Transformation

1. The Problem

Coca-Cola needed:

500,000 bags/month for syrup concentrates
Color-coded strips for 12 SKUs
RFID tracking for 98% inventory accuracy

2. The Solution

We engineered bags with:

4-color laser-cut strips
UHF RFID tags with batch-level encryption
0.3mm anti-mold perforations

3. The Results

99.98% fill accuracy achieved
$1.8M/year saved through RFID automation
82% inventory errors eliminated

Client Testimonial:
“VidePak’s bags turned our distribution centers into smart warehouses,” says a Coca-Cola supply chain VP.

Future Innovations: 3 Process Frontiers

1. AI-Driven Extrusion

Machine learning: Predicts optimal temperatures
Self-tuning systems: 0.5°C precision
Energy savings: 22% less consumption

R&D Pipeline:
“AI will reduce energy costs by $500K/line/year,” predicts a VidePak innovation director.

2. Biodegradable Coatings

PHA blends: 85% fragmentation in 12 months
Oxo-degradable options: ASTM D6954 compliant
Compostable liners: EN 13432 certified

Sustainability:
“Our bio-coatings reduce plastic waste by 68%,” says a material science lead.

3. Smart Valve Tech

Pressure-sensitive valves: Auto-adjust flow rates
IoT integration: Real-time fill monitoring
Blockchain ledgers: 100% traceability

Digital Future:
“Smart valves will reduce overfilling by 90%,” predicts a 2024 Gartner Report.

Conclusion: The New Standard in Valve Bag Engineering

VidePak’s PE Coated Valve Woven Bags aren’t just containers—they’re precision instruments engineered for the modern supply chain. By fusing AI-driven quality with ergonomic design, we deliver products that protect your goods, streamline operations, and drive ROI. With 17 years of industry leadership, $65M in R&D, and a commitment to innovation, we’re setting the new standard for intelligent packaging.

Explore our precision packaging solutions at https://www.pp-wovenbags.com/valve-bags/ or contact sales@pp-wovenbags.com to optimize your filling lines.
