Kraft Paper Bags Laminated with Woven Fabric: Understanding Design, Styles, and Applications

What Are Kraft Paper Bags Laminated with Woven Fabric? Scope, Function, and Everyday Names

Kraft Paper Bags Laminated with Woven Fabric are multi‑layer sacks that pair a printable kraft paper exterior with a structural woven polymer substrate. The hybrid design unites two worlds often treated as opposites: the natural, matte, brand‑friendly look of paper and the rugged, stack‑stable mechanics of woven poly fabrics. In practice, this family of bags protects dry and semi‑dry goods—flour and sugar, seeds and feed, pigments and minerals, cement and gypsum, pet food and DIY materials—through repeated handling cycles, pallet compression, and long warehouse dwell times.

To communicate clearly with buyers and auditors across regions, the same construction appears under several everyday names. Common synonyms include:

1. Kraft Paper Bags Laminated with Woven Fabric
2. Kraft Paper PP Bags
3. Kraft Paper PP Sacks
4. Kraft Paper Woven Bags
5. Paper Valve Woven Bags
6. Block‑Bottom Paper Woven Bags
7. Pinch‑Bottom Paper Woven Bags

Why not pure paper? Why not plain plastic film? Multiwall paper sacks look natural but lose wet strength in humid yards and can slump under long compression. Monolayer film sacks can be strong but are prone to zipper‑like tear propagation and glossy appearances that clash with eco‑centric brands. The laminate hybrid is engineered to reconcile these trade‑offs using a layered architecture and well‑chosen process windows.

The Material of Kraft Paper Bags Laminated with Woven Fabric: Layers, Roles, and Costs

A practical laminate typically contains three functional strata: a printable kraft paper face, a woven polymer fabric core, and an optional inner film or coating for hygiene, dust control, or selective barrier. Each layer contributes distinct properties and costs; together they form a stack that translates brand intent into real‑world performance.

Outer kraft paper: what it is and why it matters

Kraft paper is produced via sulfate pulping, yielding long fibers with high intrinsic strength. Common basis weights for print faces range from 70 to 120 g/m². White (bleached) kraft supports vivid color reproduction; brown (unbleached) kraft signals a natural, grounded aesthetic that many food and DIY brands favor. Moisture sensitivity is its main weakness, yet lamination to a woven core and the optional presence of an inner film mitigate that risk in real operations.

Cost follows pulp markets. The principal cost drivers in press rooms are not paper alone but artwork coverage, color count, plate changes, and over‑varnish choices. Where anti‑slip is necessary for pallet stability, leaving unvarnished kraft bands in inter‑layer contact zones can be more effective than increasing fabric GSM.

Woven fabric core: the mechanical backbone

The core comprises oriented polymer tapes—most commonly polypropylene (PP), sometimes high‑density polyethylene (HDPE)—woven on circular looms into tubular or flat fabric. Draw ratios during tape production align polymer chains, raising tensile strength and reducing creep. Denier (tape mass per unit length), tape width, and picks‑per‑inch (PPI) become the primary levers for stiffness, puncture tolerance, and base porosity. Under pallet compression, this core is the quiet hero: it keeps cube, prevents bulge, and carries the seam load path.

Inner films and coatings: cleanliness, barrier, and sealability

Inner faces can be extrusion‑coated LDPE/LLDPE/HDPE, or a loose/attached liner. These layers manage dust, improve chute hygiene, and enable heat‑sealable closures—especially relevant for Pinch‑Bottom Paper Woven Bags and Paper Valve Woven Bags. Perforated liners permit controlled vapor exchange where warm‑filled goods might otherwise condense. For food‑adjacent SKUs, low‑odor ink systems and migration‑safe coatings are standard practice.

Adhesion mechanics: how the stack stays one

Extrusion lamination predominates: a molten poly layer—often LDPE plus a tie resin—bonds paper to fabric under precise coatweight, nip pressure, and temperature setpoints. Wet‑glue or hot‑melt variants serve specialty cases where heat exposure must be minimized. Moisture in the paper at lamination is a critical variable: too high and bonds weaken; too low and the sheet becomes brittle and wrinkly. Good lamination manages both chemistry and moisture to maintain peel strength without sacrificing foldability.

What Are the Features of Kraft Paper Bags Laminated with Woven Fabric?

The feature set is not a marketing wish list; it is a collection of practical capabilities that repeatedly show up in plant metrics: fewer stoppages, fewer claims, straighter stacks, cleaner graphics. Below are the distinguishing attributes and why they matter.

• Strength‑to‑weight efficiency: Oriented tapes deliver high tensile strength at modest GSM, reducing unit mass without sacrificing safety margins.
• Stack integrity and low creep: The woven core resists long‑term deformation, keeping pallets plumb through 30–90 days of dwell time.
• Impact and puncture tolerance: Corners, guide rails, and fork tips become less catastrophic; minor incidents stay minor.
• Print quality and brand presence: Kraft faces support fine halftones, matte effects, and low‑glare retail aesthetics.
• Controlled moisture exchange: With perforated liners or selective vents, warm‑filled goods can off‑gas without leaking dust.
• Closure flexibility: Paper Valve Woven Bags handle high‑speed lines; Pinch‑Bottom and open‑mouth styles support tidy seals on manual/semi‑auto lines.
• Audit‑friendly testing: Mechanical, rub, and air‑exchange tests align with ISO/ASTM/EN/JIS families, streamlining vendor approval.
• Circularity pathways: Reduced spoilage is the biggest sustainability win; separation or mono‑poly inner stacks support regional recycling logistics.

What Is the Production Process? From Raw Materials to Finished Sack

Quality is baked in long before a bag reaches the press. The process flows from incoming materials through tape extrusion and weaving, into lamination, conversion, venting, and printing, and ends with structured assurance. The through‑line is repeatability—because repeatability is reliability.

Front‑end selection and tests

• Paper: Basis weight, Cobb water absorption, moisture profile, visual defects. White vs. brown chosen for brand and rub behavior.
• Polymers and additives: Virgin PP/HDPE, UV masterbatches for yard dwell, antistatic for powders, slip/antiblock for smooth forming.
• Films and liners: Gauge, dart impact, seal curves, and organoleptic checks for food‑adjacent SKUs.
• Adhesives/ties: Melt index and bond peel targets; compatibility with both substrates validated.

Tape extrusion and weaving

Films are slit into tapes and drawn at controlled ratios to align chains. Uniform denier and low gel counts reduce loom breaks. Circular looms interlace warp and weft at target PPI; sensors watch for broken ends and width drift. Fabric flatness today is print registration tomorrow.

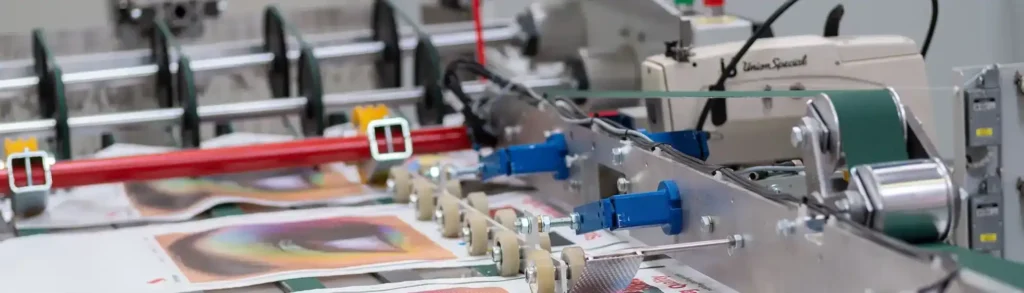

Extrusion lamination, conversion, and printing

A molten poly layer bonds paper and fabric at specified coatweight and nip pressure while paper moisture stays within a narrow band. Conversion then cuts length, forms gussets, and selects a closure route—open‑mouth, Pinch‑Bottom, Block‑Bottom, or Paper Valve Woven. Multi‑color flexography on the kraft face must hold registration and rub resistance across long runs. Venting—via micro‑perforation or perforated liner—can be inserted for warm fills that would otherwise condense.

Back‑end quality governance

Sampling plans cover denier, GSM, coatweight, dimensions, seam strength, drop and compression, print rub, and—where specified—UV exposure equivalence. Data rolls into SPC charts; CAPA closes loops when trends drift. Barcoded lots and retained samples preserve traceability from supplier gate to shipment dock.

Where Are They Used? Sector‑by‑Sector Applications

Because the structure can be vented, sealed, printed, and shaped in several ways, it serves a wide portfolio of products across food, agriculture, minerals, chemicals, construction, DIY, and e‑commerce.

• Food staples: Wheat flour, maize meal, sugar, rice, and salt. Hygiene and rub resistance matter; controlled venting protects against caking after warm fills.
• Pet food: White kraft faces with scuff‑resistant varnish and inner liners to manage grease and aroma.
• Agriculture: Seeds, fertilizers, and feed supplements. UV‑stabilized cores tolerate open‑yard storage; antistatic liners reduce powder cling.
• Building materials: Cement, gypsum, mortar mixes. Block‑Bottom Paper Woven Bags deliver cubic stability and tight pallets.
• Chemicals and minerals: Pigments, calcium carbonate, silica, and salts. Seam integrity and dust control take precedence.
• Retail DIY and garden: Soil, bark, and pellets where natural aesthetics plus toughness sell the product.

If your operation is exploring dedicated manufacturing capacity, see this related resource on factory‑grade kraft paper woven bag lines for upstream considerations around equipment, staffing, and audit readiness.

How to Control and Guarantee Quality: A Four‑Pillar Method

1. Standards‑aligned production and testing: Specifications and test plans map to ISO/ASTM/EN/JIS families—tensile, seam, drop, compression, air‑exchange, print rub, UV—so multinational buyers can audit consistently.
2. All‑new raw materials from major producers: Virgin resins and certified masterbatches; kraft paper from audited mills; incoming checks on MFI/density (polymers) and basis weight/moisture (paper).

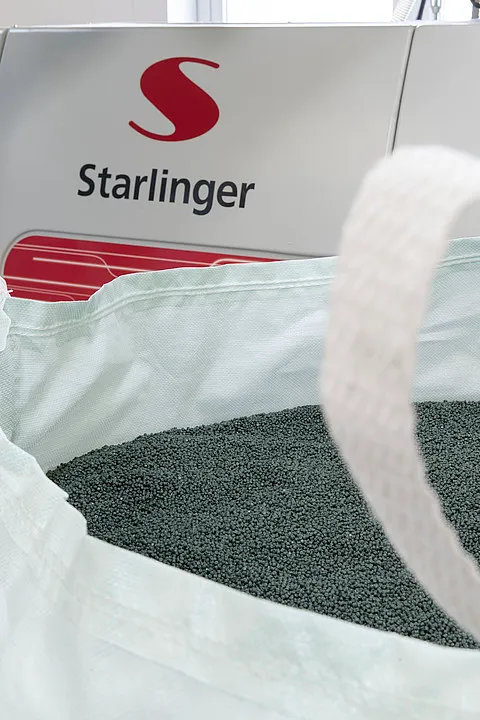

3. Best‑in‑class equipment: Starlinger (extrusion, weaving, conversion) and W&H (printing, coating/lamination) reduce variability and mis‑registration, improving first‑pass yield.
4. Complete inspection workflow: Incoming inspection → in‑process SPC on denier, GSM, coatweight, registration → final AQL with destructive tests → shipment audits with CAPA where needed.

System Thinking: Break the Problem, Solve the Parts, Integrate the Whole

The engineering conversation is typically a set of recurring sub‑problems that echo across categories. Address each deliberately, then integrate.

• Condensation and caking — Target air exchange via micro‑perforation or perforated liners; keep the kraft face unperforated for pristine print.
• Stack stability versus cost — Right‑size denier/PPI and improve seam geometry instead of automatically increasing GSM; leverage the Block‑Bottom style for cubic stability.
• Print durability versus pallet friction — Place varnish on billboard zones; leave kraft micro‑texture on inter‑layer contact bands to lift friction without extra GSM.
• Hygiene and food‑adjacent odor — Choose low‑odor ink systems, compliant coatings, and track residual solvents; use liners for fatty foods.
• Automation throughput — Tighten dimensions and coefficient of friction; ensure valve sock geometry matches spout and clamp style.

Integrated, these moves make Kraft Paper PP Bags and Kraft Paper PP Sacks not only strong and attractive but also predictable on the line—where predictability equals capacity and capacity equals cost control.

Specification Windows and Practical Tables

Comparative Lens: Where the Laminate Excels

Procurement and RFQ: What Suppliers Need to Know

• Product description: particle size, hygroscopicity, bulk density, and dust behavior.
• Bag geometry: finished dimensions, net weight, style (Paper Valve Woven Bags, Block‑Bottom, Pinch‑Bottom, open‑mouth).
• Air‑exchange target and tolerance, with rationale (pallet height, seasonal humidity).
• Pallet program: bags per layer, layers per pallet, maximum stack height, expected dwell time.
• Filling line: valve diameter, spout geometry, clamp style, target speed, coefficient of friction windows.
• Compliance: food‑contact expectations, antistatic class, labeling, and ink restrictions.
• Environment: UV exposure, warehouse temperature cycles, transport distances.
• Branding: color count, matte/gloss zones, rub resistance requirements.
• Trials: pilot lot size, acceptance tests, corrective criteria.

Storage and Handling: Quiet Habits that Pay Dividends

• Keep pallets shaded and dry; even UV‑stabilized laminates prefer minimal sun.
• Respect stack height to limit creep; use edge boards and tie‑sheets to hold cube.
• Radius edges on guides and forks to prevent point punctures; audit conveyor transfers for abrasion hotspots.
• Rotate stock (FIFO) to reduce cumulative UV and heat exposure.
• Validate seam and varnish performance at low temperatures for winter logistics.

Innovation Watchlist: What’s Next for the Category

Expect incremental but compounding gains: modified draw systems that hold ductility at lower draw ratios; leaner UV packages with longer protection; antistatic systems stable across broad humidity; digitally assisted perforation with camera feedback to hold airflow within ±10% of target; and QR‑based traceability that records storage and exposure history so quality is documented, not inferred.

Practical Spec Templates (Illustrative)

These templates anchor cross‑functional discussions; adjust to your climate, pallet geometry, and line speed.

FAQ: Operations‑Oriented Answers

Are these bags breathable by default? No. Air exchange is engineered through inner perforation or selective venting. Many foods and minerals need minimal venting plus dust control.

Can they live outdoors? Yes, if the woven core is UV‑stabilized and varnish/inks are specified appropriately; shade storage is still best practice.

Are they recyclable? Post‑industrial streams are straightforward. Post‑consumer pathways vary by region; the single largest sustainability win is reduced spoilage and safer pallets.

Which format is fastest on high‑speed filling? Paper Valve Woven Bags typically deliver the best throughput once valve specs and coefficient of friction are dialed in.

Pinch‑Bottom or Block‑Bottom? Choose Pinch‑Bottom for tight, clean seals on fine powders; choose Block‑Bottom for cubic palletization and retail display.

Glossary: Terms to Keep Close
