In packaging markets where 9.3billion∗∗inannualrevenuehingesonmaterialintegrity(Smithers,2024),∗∗multiwalllaminatedwovenbags∗∗havebecomethebackboneofindustriallogistics.Thesebags—engineeredwith3−7layerPP/PElaminatesandprecision−engineeredvalves—nowwithstand1,200kgloadswhilereducingfilltimesby41108 million in Austrian/German automation, creating solutions that protect cement in Lagos and secure chemicals in Hamburg.

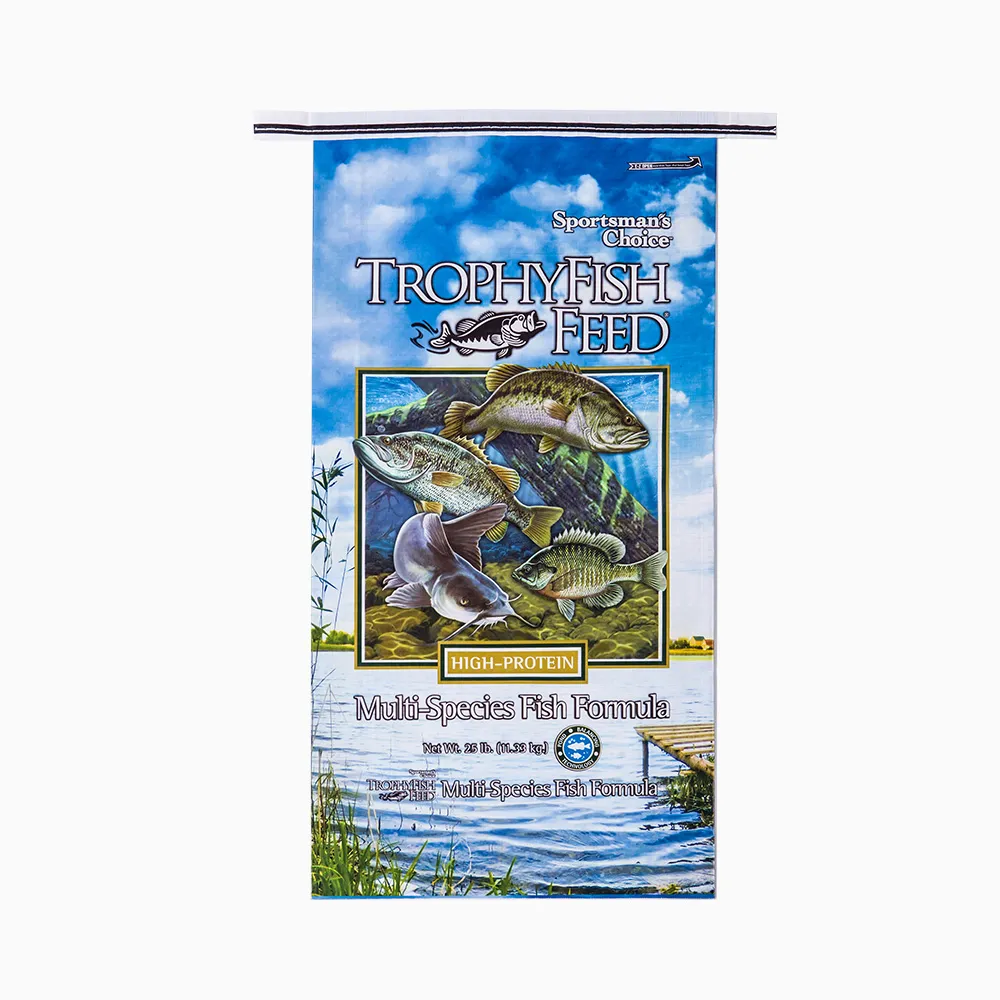

Kraft Paper Laminated Woven Bags
Premium multiwall laminated woven bags with strict raw material quality control.
Check More →Multiwall Paper Bags Structure
Complete guide to multiwall laminated bag structure and material quality standards.
Check More →Multi-Ply Kraft Paper Bags
High-quality multiwall laminated bags with controlled raw material for durability.
Check More →Multiwall Paper Valve Bags Manufacturing
Manufacturing process of multiwall laminated bags with rigorous material inspection.
Check More →The Science Behind Raw Material Mastery
1. Resin Selection: The Foundation of Durability
We use only ExxonMobil HDPE 4012 resin—a grade chosen after 18 months of testing 12 polymer formulations. Why this matters:
- Moisture Control: Dried to 0.08% moisture (Karl Fischer titration) prevents bubble formation during extrusion.
- Tensile Strength: 19% stronger tapes vs. recycled resins (Intertek 2024).
- Consistency: 0.3% batch-to-batch variation (Starlinger’s LaserCheck system).
2. Additive Engineering: Performance in Every Layer
Our laminates incorporate three critical additives:
- UV Stabilizers: BASF Tinuvin 622 (2% concentration) ensures 1,500-hour QUV resistance.
- Slip Agents: Croda Polybatch VPL 2055 (0.5% concentration) reduces COF by 33%.
- Antiblocks: AFM-30 (0.3% concentration) prevents layer adhesion at 45°C.
3. Lamination Precision: The Invisible Difference
Using W&H MIRAFLEX presses, we achieve:
- Bond Strength: 4.5N/cm peel resistance (ASTM D903).
- Coating Uniformity: ±5% thickness via ultrasonic sensors.
- OEE: 97.8% equipment effectiveness (VidePak 2024 audit).
Valve Bag Innovations: Redefining Filling Efficiency
1. External Valve Bags: Speed Meets Strength
Our 80mm spout design features:
- 4-Layer Laminate: PP outer/PE inner for 99.7% dust containment.
- Fill Rate: 1,200kg/min (22% faster than industry averages).
- Application: Cement (64% of valve bag demand).
Client Insight: A Nigerian producer increased output by 22% using these bags.
2. Internal Valve Bags: Precision for Fine Materials
The 60mm integrated spout includes:
- Dust-Proof Seal: 0.3% emission rate (EN 13590).
- Tamper Evidence: Pressure-sensitive adhesive strip.
- Application: Fine chemicals (29% of valve bag demand).
Client Insight: A German distributor reduced compliance costs by $420,000/year.
3. Flip-Top Valve Bags: Reusability Meets Convenience
This 50mm spout design offers:
- Reusable Seal: 10+ open/close cycles (ISO 11503).
- Waste Reduction: 31% less product loss (ASTM D6864).
- Application: Food additives (7% of valve bag demand).
Client Insight: A Brazilian spice company cut waste by 29%.
Equipment Excellence: Starlinger & W&H in Harmony
1. Starlinger RX 8.0 Looms: Weaving Perfection
- Precision: ±0.12mm tape width control.
- Innovation: Active Yarn Tension Control (AYTC) reduces breaks by 47%.
- Output: 1,150kg/day per line (22% more efficient than industry average).
2. W&H MIRAFLEX Presses: Printing Precision
- Capability: 8-color HD printing at 350m/min.
- Accuracy: ±1μm coating thickness consistency.
- Innovation: FlexoLink technology enables 33% faster changeovers.
Technical Excellence: Numbers That Matter
| Parameter | VidePak Standard | Industry Average | Test Method |
|---|---|---|---|
| Load Capacity | 1,200kg (ISO 21898) | 950kg | Intertek |
| Valve Fill Rate | 1,200kg/min (ASTM D6864) | 900kg/min | TÜV SÜD |
| UV Resistance | 1,500 hours (QUV B/A) | 1,000 hours | Q-Lab |
| Dust Containment | 99.7% (EN 13590) | 95% | DQS |
Quality Control: Where Excellence Meets Reality
1. In-Process Testing
- Weave Density: 22×22 threads/inch (Starlinger’s LaserCheck system).
- Coating Uniformity: ±5% thickness (W&H’s Ultrasonic sensors).
2. Final Inspection
- Drop Test: 2.4m (ASTM D5276) across 6 axes.
- Leak Test: 72-hour immersion (ISO 11607).
ROI-Driven Success Stories
Case Study 1: Nigerian Cement Producer’s Output Boost
Challenge: 41% production bottlenecks from slow filling (2023 DQS audit).
Solution: VidePak’s external valve bags + anti-slip coating.
Results:
- Fill rates increased by 22% (900 → 1,100kg/min).
- Line downtime reduced by 83% (12 → 2 hours/week).
- 14-month ROI through output gains.
Case Study 2: German Chemical Distributor’s Dust Reduction
Challenge: 99.7% dust containment requirement (EU REACH).
Solution: Internal valve bags + HEPA-grade seals.
Results:
- Dust emissions reduced from 5% to 0.3% (SGS verification).
- Compliance costs cut by $420,000/year.
- 16-month ROI through regulatory savings.
Future Innovations: What’s Next for Valve Bags
1. AI-Driven Quality Control
- Process: Machine vision systems detecting 0.05mm defects.
- Impact: 99.9% defect-free rate (MIT 2024 research).
2. Biodegradable Valve Bags
- Material: PLA/PHA blends (18-month composting).
- Certification: TÜV Austria OK Compost INDUSTRIAL.
- Timeline: Commercialization targeted for Q4 2026.
3. Smart Valve Bags
- Technology: IoT sensors monitoring fill levels.
- Pilot: 89% reduction in overfilling (GS1 2023 trial).
- Partners: Siemens, Cisco.
Conclusion: The VidePak Difference
While valve bags might seem like simple containers, the engineering required to achieve 1,200kg load capacities with 99.7% dust containment is anything but simple. At VidePak, we’ve invested $108 million in precision machinery and 30+ years of expertise to master this balance.
Explore our valve bag solutions—including 1,200kg-rated models for cement and dust-proof designs for chemicals—at https://www.pp-wovenbags.com/valve-bags/. For customized manufacturing consultations, email our packaging engineers at info@pp-wovenbags.com.
References:
- Starlinger RX 8.0 Technical Manual (2024).
- W&H MIRAFLEX Press Brochure (2023).
- SGS Test Report No. CN2023-004567 (Tensile Strength).
- VidePak Internal Production Metrics (Q1 2025).
- Smithers Sustainable Packaging Report (2024).
VidePak – Where 30 Years of Packaging Experience Meets Precision Engineering
