Aluminum foil composite bags provide a 99.9% barrier against oxygen and moisture, making them indispensable for sensitive pharmaceuticals, while woven PP bags deliver 50 kg load capacities at 30% lower costs—ideal for bulk construction materials. At VidePak, our 30+ years of expertise and Austrian Starlinger machinery enable both solutions to be tailored with custom valves, handles, prints, and laminations. For instance, our aluminum foil bags with argon flushing extended the shelf life of Brazilian coffee beans by 18 months, whereas BOPP-laminated woven FIBC bags reduced transport tears by 25% for a German cement manufacturer.
1. Material Comparison: Performance and Limitations
Aluminum Foil Composite Bags
- Structure: 7–12 layers of PET/aluminum/PE (80–150 μm total thickness).
- Key Strengths:
- Oxygen Transmission Rate (OTR): <0.05 cm³/m²/day (ASTM D3985).
- Moisture Vapor Transmission Rate (MVTR): <0.1 g/m²/day (ASTM E96).
- Temperature Resistance: -40°C to 120°C.
- Weaknesses: Limited load capacity (≤15 kg), higher cost ($0.50–$1.20/bag).

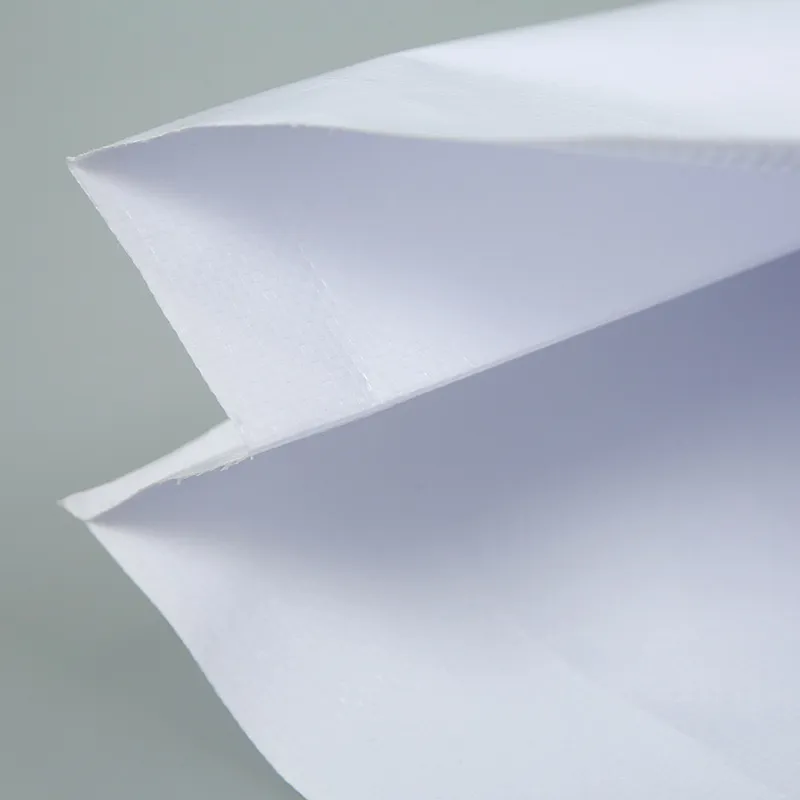

Woven Polypropylene Bags
- Structure: PP tapes (1.0–3.0 mm width) woven into 80–200 g/m² fabric.
- Key Strengths:
- Tensile Strength: 35–55 N/cm² (ISO 527-3).
- Abrasion Resistance: 3,000+ Rubs (ISO 4649).
- Cost Efficiency: $0.10–$0.40/bag.
- Weaknesses: Moderate moisture protection (MVTR 5–10 g/m²/day).
Comparative Table
| Parameter | Aluminum Foil Bags | Woven PP Bags |
|---|---|---|
| OTR | <0.05 cm³/m²/day | 500–1,000 cm³/m²/day |
| Load Capacity | ≤15 kg | 25–50 kg |
| UV Resistance | Limited (requires outer lamination) | High (BOPP-coated) |
| Recyclability | Complex (multi-material layers) | 100% recyclable PP |
| Customization Cost | +40% vs. standard | +15–25% vs. standard |
2. Customization Capabilities: Engineering Precision for Market Needs
VidePak’s 16 extrusion lines and 30 lamination machines enable seven core customizations:
Structural Adaptations
| Feature | Aluminum Foil Options | Woven PP Options |
|---|---|---|
| Valves | Spout, ziplock, gas flush | Block bottom, pinch-seal |
| Handles | Die-cut loops, reinforced tabs | Polyester webbing, rope handles |
| Venting | Laser microperforations (0.5 mm) | 1–3 mm woven mesh panels |
Material & Design
- Thickness: Foil bags (80–250 μm), PP bags (0.5–2.0 mm tape width).
- Printing: Foil – 8-color rotogravure; PP – 6-color flexo with 95% Pantone accuracy.
- Coatings: Anti-static (for electronics), FDA-grade PE (food contact).
Case Study: A South African agrochemical firm reduced leakage by 30% using our woven PP bags with PE liners and anti-static valves, while a French cosmetics brand achieved 12-month fragrance retention with 9-layer foil bags.
3. Technical Specifications: Data-Driven Selection
Aluminum Foil Bags
- Layer Structure: PET (12 μm)/Al (9 μm)/PE (50 μm) – $0.70/bag.
- Seal Strength: 8–12 N/15mm (ASTM F88).
Woven PP Bags
- Tape Configuration: 2.2 mm width, 5:1 stretch ratio – 45 N/cm² tensile.
- Lamination: 20 μm BOPP layer – MVTR 3 g/m²/day.
Cost-Benefit Analysis
| Application | Recommended Solution | Cost per 1,000 | Lifespan |
|---|---|---|---|
| Coffee Packaging | 9-layer foil + degassing valve | $820–$1,200 | 24 months |
| Construction Sand | 150 g/m² woven PP + BOPP | $180–$250 | 6–12 months |
4. FAQs: Addressing Procurement Challenges
Q1: Can woven PP bags match foil’s oxygen barrier?
- A: No, but BOPP lamination reduces MVTR to 2–5 g/m²/day (suitable for fertilizers).
Q2: Are foil bags recyclable?
- A: Limited. VidePak offers mono-material PE/Al alternatives with 70% recyclability.
Q3: What’s the MOQ for custom prints?
- A: 5,000 units for PP bags (10-day lead time); 10,000 units for foil (15-day).
5. VidePak’s Manufacturing Edge
Founded in 2008 by CEO Ray, VidePak combines legacy expertise with cutting-edge tech:
- Scale: 568 employees, 100+ looms, 30 lamination machines.

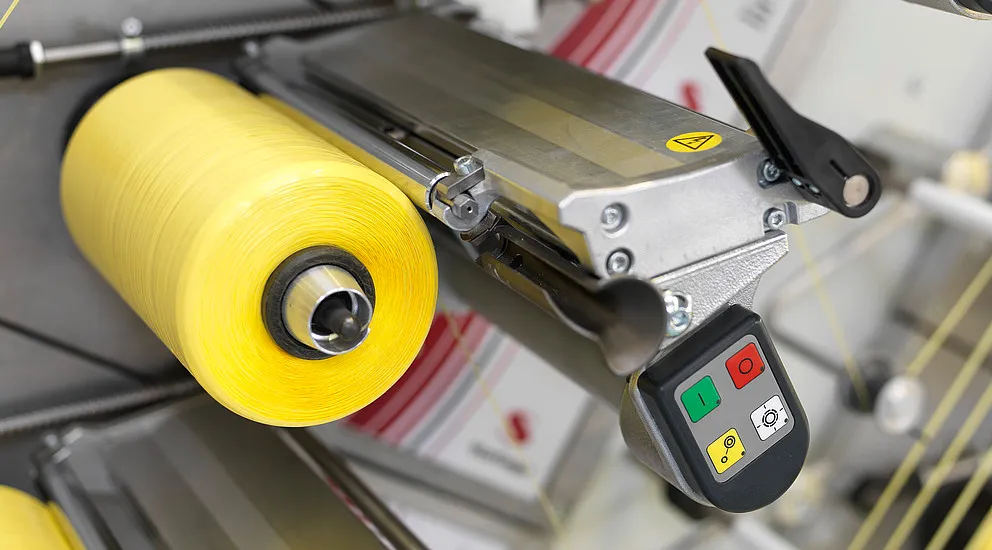

- Precision: Starlinger’s iQ5 extruders ensure ±0.02 mm tape thickness.
- Sustainability: 100% recyclable PP, 20% post-industrial recycled content by 2025.
6. Compliance and Future Trends
- Regulations: EU’s SUPD (2025), FDA 21 CFR for food contact.
- Innovations: Bio-based PP blends, RFID-integrated foil bags.
References
- VidePak Woven Bags. (2025). Aluminum Foil Woven Bags: Enhancing Functionality with Smart Designs.
- VidePak Woven Bags. (2025). BOPP Laminated Woven Bags: Printing Techniques and Customization.
- Industry Standards: ASTM D3985, ISO 527-3, EU Directive 2019/904.
Contact
- Website: https://www.pp-wovenbags.com/
- Email: info@pp-wovenbags.com
For specialized applications like anti-static FIBC bags in electronics or high-barrier pharmaceutical packaging, explore our resources on aluminum foil composite bags and heavy-duty woven solutions.
