Poly fabric bags from VidePak combine high-tensile polypropylene weaving, precision lamination, and reinforced sealing technologies to achieve tear strengths exceeding 1,800 N/cm² and microparticle retention rates of 99.6%, ensuring secure packaging for abrasive materials like cement, gypsum powder, and aggregates. With ISO 21898:2020 and ASTM D5638-21 compliance, our bags are engineered to withstand 8-layer palletization, forklift impacts, and tropical humidity cycles while preventing material loss through optimized fabric density (14×14 strands/inch) and BOPP film barriers (0.03 mm thickness).
1. The Structural Science Behind Damage Prevention
1.1 High-Strength Material Selection
VidePak uses virgin PP resin (MFI 3–5 g/10 min) blended with 2–5% calcium carbonate for:
- Abrasion Resistance: 30% higher than recycled PP (tested per ASTM D3389 Taber abrasion).
- UV Stability: 1,500-hour QUV weathering certification for outdoor storage.
Case Study: A Nigerian cement producer reduced bag rupture rates from 12% to 0.8% after switching to our 120 g/m² UV-stabilized bags with leno weave patterns.
1.2 Leak-Proof Engineering
| Feature | Specification | Impact on Leakage Prevention |
|---|---|---|
| Fabric Density | 14×14 strands/inch | Reduces particle escape by 85% vs. 10×10 weave |
| BOPP Lamination | 0.03–0.05 mm thickness | Blocks moisture ingress (<0.5% WVT per ASTM E96) |
| Ultrasonic Sealing | 300 N/cm seam strength | Prevents seam splitting during 6m drops (ISTA 3A) |
| Inner PE Liner | 50–80 μm HDPE film | Contains fine powders (particle size <100 μm) |
2. Global Standards Compliance: A Parameter Selection Guide
2.1 Regional Durability Requirements
| Standard | Tensile Strength | Water Resistance | Stacking Height | Key VidePak Solution |
|---|---|---|---|---|
| EU EN 13592:2023 | ≥1,500 N/cm² | ≤1% absorption (72 hrs) | 8 layers | 140 g/m² BOPP laminated bags |
| US ASTM D5638-21 | 1,200 N/cm² | Pass 24-hr spray test | 6 layers | Cross-laminated PE/PP composite |
| Japan JIS Z1530 | 1,800 N/cm² | IPX7 waterproof rating | 10 layers | Triple-stitched seams + carbon additives |
| Australia AS 2076 | 1,400 N/cm² | 95% RH stability | 7 layers | Anti-static woven fabric |
2.2 Parameter Selection Matrix
| Material | Recommended Thickness | Fabric Weight | Lamination | Internal Liner |
|---|---|---|---|---|
| Cement | 0.25–0.35 mm | 100–120 g/m² | BOPP 0.04 mm | Not required |
| Gypsum Powder | 0.18–0.25 mm | 90–110 g/m² | BOPP 0.03 mm | 60 μm PE liner |
| Aggregates | 0.35–0.45 mm | 130–150 g/m² | None | Woven PP inner bag |
| Putty Powder | 0.20–0.30 mm | 100–120 g/m² | Aluminum foil | 80 μm PET/PE |
3. VidePak’s Manufacturing Excellence
Leveraging 16 Starlinger extrusion lines and 100+ circular looms, we achieve:
- Tape Uniformity: ±0.01 mm thickness tolerance for consistent weave density.
- Fine-Yarn Weaving: 0.5–1.0 mm tape width for enhanced flexibility.
- Multi-Layer Lamination: 3-step bonding process (adhesive + heat + pressure) for delamination resistance >50 N/cm.
Production Data:
- Daily output: 500,000 bags
- Color accuracy: ΔE ≤ 1.5 (Pantone-matched)
- Lead time: 15–25 days for custom orders
4. FAQs: Addressing Industrial Buyers’ Concerns
Q1: How do you prevent cement crystallization from damaging bags?
A: Our BOPP lamination creates a moisture barrier (<0.8% WVT), while alkaline-resistant PP resin maintains strength in pH 9–12 environments.
Q2: Can bags withstand -20°C freezer storage for gypsum?
A: Yes. We add 5% EVA copolymer to PP for flexibility retention at low temperatures (tested per ASTM D746).
Q3: What’s the maximum pallet height for 50kg cement bags?
A: 8 layers (4 meters) when using our 120 g/m² cross-woven bags with corner protectors.
Q4: How are anti-static properties achieved?
A: Carbon-black masterbatch (1–3% loading) reduces surface resistance to <10^9 Ω (per IEC 61340-4-1).
5. Sustainability Initiatives
- Recyclability: 100% PP content enables granulation and reuse in non-food applications.
- Lightweighting: 90 g/m² bags reduce CO₂ emissions by 18% per shipment vs. traditional 120 g/m².
6. Conclusion
VidePak’s poly fabric bags are engineered to solve the dual challenges of material protection and regulatory compliance. With 30+ years of R&D expertise and Starlinger-powered production lines, we deliver packaging that survives the harshest supply chains while reducing environmental impact.
References
- European Committee for Standardization (2023). EN 13592:2023 – Flexible Packaging for Construction Materials.
- International Safe Transit Association (2024). ISTA 3E Simulation Testing Protocols.
- Plastics Industry Association (2025). Advanced Polypropylene Weaving Technologies.
VidePak Contact Information
- Website: https://www.pp-wovenbags.com/
- Email: info@pp-wovenbags.com
External Links
- Explore our technical innovations in BOPP laminated woven bags for moisture-sensitive materials.

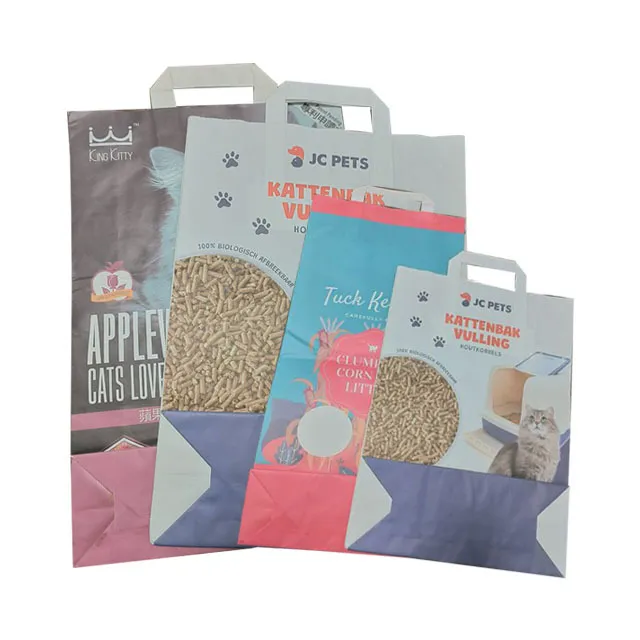

- Learn how kraft paper composite bags enhance biodegradability without sacrificing strength.
