Why Valve Bags Matter in Construction and Industrial Packaging

Valve bags are filled through a sleeve positioned at a corner of the bag, normally near the top. The filling spout enters the sleeve, product moves into the bag, and the valve then closes by internal pressure, folding, tucking, or a thermal sealing step. This format supports rapid filling while avoiding the long open mouth that must later be sewn or sealed. In cement, gypsum, mortar, tile adhesive, grout, putty, mineral powder, chemical powder, and resin applications, that difference can mean cleaner equipment, lower product loss, more regular bag shape, and better pallet use.

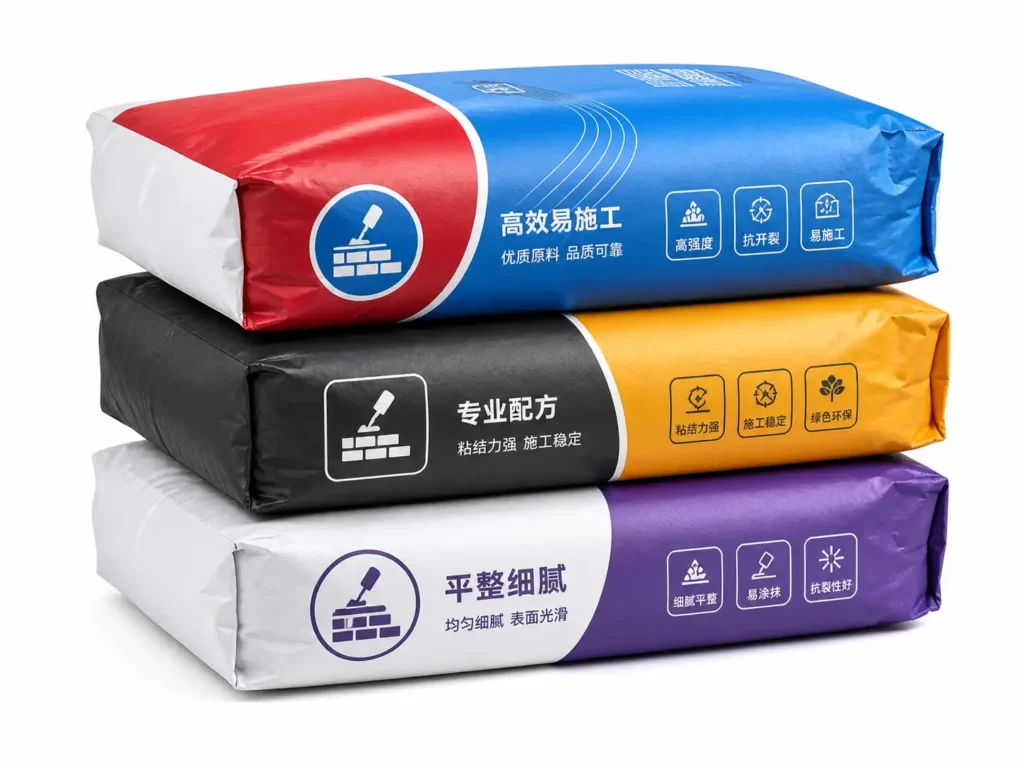

The block-bottom form adds another benefit. When dimensions, fill density, and air release are correctly matched, the filled package develops a compact, brick-like shape. A square package stacks better than a soft, rounded package; a stable pallet moves better than a leaning pallet; a clean pallet sells better than a dusty pallet. This is why valve packaging must be judged by the whole route, not only by bag price.

The Real Design Balance: Barrier Versus Breathability

Powder filling introduces air into the package. If air cannot escape, the bag can swell, fill slowly, fall from the spout poorly, or form an unstable pillow shape. If the package releases air too freely, fine product may sift and moisture resistance may fall. Good design therefore does not maximize barrier or ventilation in isolation. It balances both. Porous paper, micro-perforation, under-valve venting, mapped vent zones, coated layers, and valve geometry are selected as one system.

Three Material Families, Three Different Strengths

VIDEPAK organizes the valve-bag portfolio into three practical material families: PP valve bags, PE valve Bags, and Paper Valve Bags. All three can serve powders or granules, but they do not solve the problem in the same way. PP valve bags rely on woven tape strength and can combine low package weight with excellent resistance to tearing. PE valve Bags rely on flexible film structures and strong moisture protection. Paper Valve Bags rely on multiwall kraft construction, natural air release, familiar handling, and a paper-led appearance.

Indicative Customization Windows

For early project discussion, common engineering menus include woven PP fabric around 55–110 g/m², optional film facing in the tens-of-microns range, multiwall paper structures of two to four plies, and PE films that may be built as robust monolayer or co-extruded structures. Fill formats often range from smaller specialty packs to conventional industrial sacks around 10–50 kg. These are not universal promises; final values depend on product bulk density, drop requirement, pallet plan, filling speed, climate, and local handling.

PP valve bags: Four Valve Types for Strength, Speed, and Control

PP valve bags are built from oriented polypropylene tapes woven into a strong fabric. The fabric can remain breathable, receive a thin coating, carry a paper layer, or be laminated with printed film. This architecture gives PP valve bags a useful combination: the bag can be light in relation to the load, yet resistant to tearing, abrasion, and rough handling. For construction materials that travel through ports, open yards, regional warehouses, and job sites, this strength-to-weight balance is often decisive.

Heat Seal Valve

In heat-seal PP valve bags, the sleeve includes a sealable thermoplastic surface. After filling, controlled heat and pressure fuse the sleeve layers and create a positive closure. Depending on the line, energy may be applied by hot air, heated bars, or another validated thermal method. The value is certainty: instead of depending only on product pressure to hold the valve shut, the packer creates a measurable seal. This is useful for fine powders, moisture-sensitive products, cleaner retail packs, and routes where vibration may work loose product into an unsealed opening.

The seal is only as good as its process window. Sleeve composition, contamination in the sealing zone, temperature, pressure, and dwell time must be controlled together. Too little energy produces a weak bond; too much may thin or distort the film. For this reason, VIDEPAK recommends testing heat-seal PP valve bags with the actual powder and actual filling equipment, not only with empty laboratory samples.

Internal Valve

An internal valve sits mainly inside the bag rather than projecting as a long external sleeve. During filling, the spout opens the passage. After the bag leaves the spout, the internal flap or sleeve collapses, and product pressure helps press it against the inner wall. The design is simple, fast, and compatible with automated bag placement because no operator must fold a long extension. Industry filling guidance describes this as the most common self-closing arrangement for many valve-bag operations.

Internal-valve PP valve bags work best when the product has enough body and friction to support closure. Coarser powders and granules usually close more easily than extremely fluid or ultra-fine powders. When the product is very dusty, the design may need a tighter insert, longer overlap, added anti-sift features, or a secondary sealing option.

Tuck-In Sleeve

A tuck-in sleeve extends outside the bag after filling. The operator folds the sleeve and pushes it into the valve pocket. It is mechanical rather than welded, easy to understand, and useful when the customer wants better containment than a basic internal valve but does not have an automatic sealing unit. A thumb notch or shaped edge can improve presentation and make the sleeve easier to handle.

Tuck-in PP valve bags offer a strong practical closure, but they add a manual step. That trade-off is clear: lower equipment investment, higher labor input; flexible operation, greater dependence on operator training. For moderate-speed lines, contract packing, or products that change often, this can be a smart balance.

Poly-Lock Valve

A Poly-Lock valve uses a thermoplastic film insert in the valve opening to create a more rigid and sift-resistant passage. The film has more flexibility than a plain paper insert and can trap product more effectively as the filled bag settles. In PP valve bags, the insert can be engineered around the spout diameter, powder fineness, desired stiffness, and recycling strategy.

Poly-Lock PP valve bags are especially useful where customers want a self-closing format with stronger resistance to leakage during vibration. Correct sizing matters. If the valve is too loose, powder can sift; if it is too tight, the spout may damage the sleeve or restrict product flow. The winning specification is not “the tightest valve.” It is the valve that fills freely, releases air in a controlled way, and closes reliably after spout withdrawal.

PE valve Bags: Four Valve Types for Moisture Defense and Clean Automation

PE valve Bags are made from polyethylene film, often through multilayer co-extrusion. Different PE grades can be combined to balance stiffness, impact resistance, sealability, surface grip, and puncture performance. Printing can be placed beneath a clear outer layer, protecting graphics from abrasion and rain. These features make PE valve Bags attractive for chemicals, engineered minerals, salts, resins, masterbatch, and products that must remain clean through wet or abrasive logistics.

Internal Valve

The internal valve in PE valve Bags uses the memory and flexibility of the film to collapse after filling. Product pressure pushes the sleeve against the bag wall, while the film layers create a narrow, folded path that resists return flow. There is no long sleeve to manage and no separate closure cycle, so this option supports clean, high-speed production for free-flowing granules and many medium-fine powders.

The limitation is also simple: self-closing is not the same as hermetic sealing. Very fine, fluid, or valuable powders may migrate into the valve fold. When zero visible sifting or strong tamper evidence is required, a sealable sleeve is normally the safer choice.

Tuck-In Sleeve

Tuck-in PE valve Bags use an external film sleeve that is folded and inserted after filling. The smooth PE surface can produce a neat closure, while the extended sleeve gives the operator more material to fold than a short internal valve. This format works well on semi-automatic lines and for plants that need improved closure without investing in ultrasonic equipment.

The sleeve dimensions should match the operator’s movement as well as the spout. A sleeve that is too short can be hard to tuck; one that is too long can slow work or create a bulky corner. Small design details—thumb access, fold line, film stiffness, and pocket depth—often decide whether the closure feels easy or frustrating.

Sonic Seal Sleeve

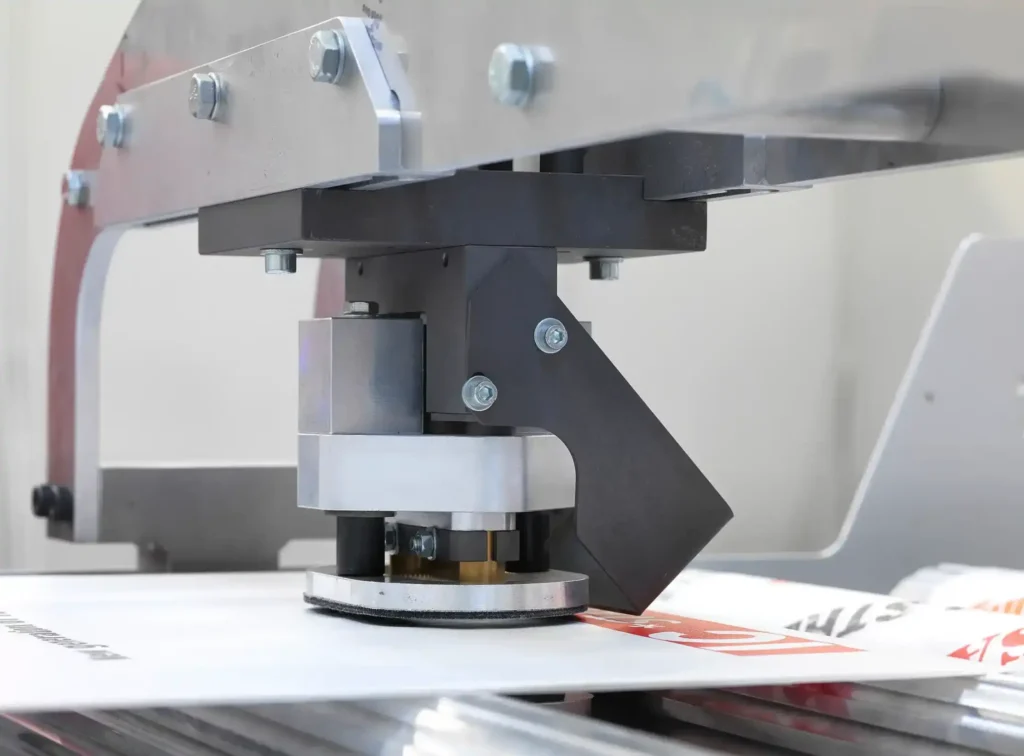

A sonic seal sleeve is an external film valve designed for ultrasonic welding. After the target weight is reached, the bag moves from the filling position to the sealing position. A horn and anvil press the sleeve, ultrasonic vibration generates localized heat, and the compatible film surfaces fuse. The result is a compact, fully closed valve with strong dust control and clear evidence that the opening has been sealed.

Sonic-seal PE valve Bags are a strong choice for very fine powders, hygroscopic materials, export routes, and automated plants where manual tucking would limit output. Yet seal-zone cleanliness remains essential. Good valve geometry guides product away from the weld area, good venting prevents pressure from pushing powder back into the sleeve, and good controls confirm that each closure received the correct energy.

Reduced Valve

A reduced valve has an opening narrower than the full top or bottom width of the bag. It is used when the filling spout is smaller, when bag geometry requires a compact valve pocket, or when the customer wants to limit the open flow path after filling. Industry valve guides note that reduced sleeves can be made from paper or polyethylene and may support fine-powder applications when correctly matched to the filler.

Reduced-valve PE valve Bags must be engineered with care. A smaller opening can improve control, but it can also reduce filling speed or increase back pressure. The right decision depends on spout diameter, product aeration, target bags per minute, and the available vent area. Smaller is not automatically cleaner; smaller and correctly balanced is cleaner.

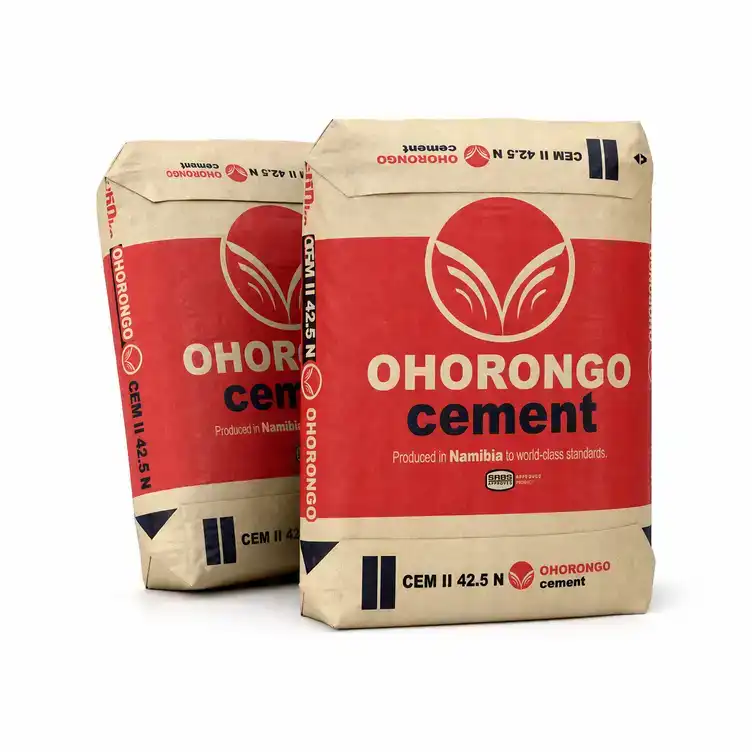

Paper Valve Bags: Three Valve Types for Fast De-Aeration and Familiar Handling

Paper Valve Bags are commonly made from two to four plies of sack kraft paper. Individual plies can be selected for strength, stretch, print quality, slip, and porosity; an optional PE film, coated paper, or liner can add moisture protection. Because paper naturally allows controlled air movement, Paper Valve Bags have a long record in cement, gypsum, plaster, mortar, food ingredients, and mineral powders.

Internal Valve

The internal valve in Paper Valve Bags is normally formed from a paper insert, a film-assisted insert, or a layered sleeve positioned inside the corner pocket. The filling spout opens the valve; after withdrawal, the sleeve flattens and the packed product presses it shut. This is economical, fast, and well suited to automated bag placers because no external fold is required.

For coarse or moderately fine products, a simple paper insert may be enough. For finer products, a film component, trap layer, longer overlap, or tighter construction may be needed. Paper porosity helps the bag release air, but the valve itself still has to stop product. Air should leave through designed paths; powder should stay inside.

Tuck-In Sleeve

Tuck-in Paper Valve Bags carry an external sleeve that is manually folded into the valve pocket after filling. Among non-welded options, this can provide very strong sift resistance because the operator creates a deep mechanical closure. The design can include a thumb notch, shaped flap, or reinforced sleeve so it opens cleanly on the spout and folds easily afterward.

The price of that control is labor. Tuck-in Paper Valve Bags are ideal where line speed is moderate, changeovers are frequent, or the plant prefers a robust manual method. They are less suitable where every second counts and the goal is full automation without operator contact.

Sonic Seal Sleeve

A sonic seal sleeve on Paper Valve Bags is normally an extended outer valve with a thermoplastic coating or film layer. The paper provides structure and presentation; the polymer surface provides weldability. After filling, ultrasonic energy fuses the inner sealable faces and creates a highly secure closure. This combination keeps the paper-led package while adding the cleanliness and automation of a welded valve.

Sonic-seal Paper Valve Bags are especially valuable for fine construction chemistry, premium ingredients, and dusty products that would otherwise creep from a self-closing paper insert. However, the valve area must remain flat and free of heavy contamination. Bag dimensions, sleeve coating, sealing energy, and air release should be validated together on the customer’s line.

How to Select the Right Material and Valve

The correct valve bag begins with the product, not with a catalog picture. Buyers should define particle size, bulk density, flow behavior, air content, moisture sensitivity, temperature at filling, contamination risk, target weight, filling method, bags per minute, pallet dimensions, storage climate, transport distance, and expected drops. Only then should the team compare PP valve bags, PE valve Bags, and Paper Valve Bags.

A Practical Selection Flow

Common Specification Mistakes

The first mistake is copying dimensions from an old bag without checking current bulk density. The second is adding a strong barrier without creating a new air-release path. The third is selecting a valve name without confirming its exact geometry. The fourth is testing empty bags but not filled bags. The fifth is optimizing each bag alone while ignoring pallet friction, stretch-wrap settings, and route vibration. In valve packaging, details do not add up; they multiply.

VIDEPAK Product Engineering, Quality Control, and Customization

VIDEPAK develops PP valve bags, PE valve Bags, and Paper Valve Bags as customer-specific packaging systems. Product work can include substrate selection, bag dimensions, bottom geometry, valve location, sleeve construction, vent mapping, barrier layers, anti-slip treatment, artwork, print protection, pallet pattern, and packing method. The goal is repeatable performance from the first bag on the filler to the last bag unloaded at the destination.

From Raw Material to Finished Pallet

For PP valve bags, production typically includes resin preparation, tape extrusion and orientation, weaving, optional coating or lamination, printing, block-bottom conversion, valve formation, finishing, and inspection. For PE valve Bags, the chain typically includes film extrusion or co-extrusion, surface treatment, printing, valve and bottom conversion, welding, perforation or vent creation, and final quality release. For Paper Valve Bags, the process typically includes paper and barrier selection, printing, multi-ply tube formation, bottom pasting, sleeve insertion, vent design, curing, and dimensional inspection.

Quality Checks That Connect to Real Failures

VIDEPAK quality plans can be built around the risks of each application: fabric or film tensile performance, paper strength, seam and bottom integrity, valve pull and closure behavior, seal strength, dimensional tolerance, print registration, color difference, coefficient of friction, filled-bag drop performance, sifting, and pallet stability. Incoming materials, in-process controls, and outgoing inspection create a traceable chain rather than a final visual check alone.

A Better RFQ Produces a Better Bag

A useful request should state the packed product, particle size, bulk density, fill temperature, target net weight, current bag size, valve and spout dimensions, bags per minute, closure equipment, storage time, climate, pallet size, stack height, transport route, print colors, and known failure points. Samples of the product and the present bag can shorten development because they turn assumptions into measurements.

PP valve bags, PE valve Bags, and Paper Valve Bags are not competing answers to one simple question. They are three engineering platforms for different combinations of strength, barrier, air release, closure, automation, appearance, and cost. With the right valve—Heat Seal, Internal Valve, Tuck-In Sleeve, Poly-Lock, Sonic Seal Sleeve, or Reduced Valve—the package becomes more than a container. It becomes part of the production line, part of the logistics system, and part of the customer’s experience.
