VIDEPAK PE Valve Bags: A High-Performance Packaging System for Powders, Granules, and Automated Filling

Industrial packaging is judged in motion, not in a showroom. A bag must open cleanly, release trapped air, close securely, resist puncture, and remain stable through filling, palletizing, storage, and transport. VIDEPAK PE Valve Bags are designed around this full operating chain. They combine a controlled valve structure with heavy-duty polyethylene film, optional embossing strip treatment, engineered micro-perforations, and multi-layer co-extrusion. The result is not simply a container. It is a packaging system in which the valve controls filling, the surface controls friction and airflow, and the co-extruded film controls strength, sealing, and consistency.

VIDEPAK publishes a practical production range for heavy-duty polyethylene packaging that includes widths of about 35–65 cm, thicknesses of about 0.10–0.25 mm, customizable lengths, printing in up to 10 colors, flat or M-gusseted sides, heat sealing, optional air valves, and welded block bottoms. The same product platform can use an embossing strip for pallet grip and micro-perforations for de-aeration, while multi-layer co-extrusion can be configured with up to nine layers. These values define a design window; the final bag must still be engineered around density, particle size, moisture sensitivity, packer speed, pallet height, and route conditions.

The Packaging System Behind PE Valve Bags

A valve bag differs from an open-mouth bag because product enters through a smaller sleeve positioned at a top corner. During filling, the sleeve fits over or into the packer spout. After the target weight is reached, internal product pressure helps flatten or close the sleeve. Depending on the valve design and the required tightness, the valve can be self-closing, tucked, heat sealed, or prepared for another closure method. For powders and small granules, that compact filling path supports cleaner handling and easier integration with automated or semi-automated packers.

In VIDEPAK PE Valve Bags, the valve is only one part of the geometry. A welded block bottom creates a broad base, while flat panels or M-gussets define the filled shape. Flat constructions favor clean faces and a controlled footprint. M-gusseted constructions add expansion volume and can accommodate products that settle into a fuller cross-section. Once filled, the block-bottom form supports upright presentation, dense pallet patterns, and more regular contact between layers. VIDEPAK identifies flat and M-gusseted formats, a welded block bottom, heat sealing, and optional venting features within its polyethylene product range.

Why the Valve, Film, and Surface Must Be Specified Together

A fast packer can place a surprising amount of air inside a sack. Fine powder carries air through the spout; low-density material holds air between particles; and the flexible bag wall expands before the product settles. If the package cannot release that air at the required rate, the bag may leave the filler rounded rather than square. A rounded bag occupies more conveyor space, creates less regular pallets, and changes stress on seams and the valve area. This is why micro-perforations cannot be selected separately from the fill rate, and why the closure cannot be selected separately from the powder.

The surface has a second job. Smooth film may move efficiently through converting equipment, but filled bags must also resist sliding when stacked. An embossing strip adds controlled texture in selected zones, increasing mechanical contact between adjacent packages without making the whole film unnecessarily rough. The film itself has a third job: it must absorb drops, resist puncture, form stable seals, and maintain gauge consistency. Multi-layer co-extrusion allows these needs to be divided across layers rather than forced into one uniform resin blend. In short: the valve manages flow, the micro-perforations manage breath, the embossing strip manages grip, and the co-extruded structure manages protection.

Material Architecture: Co-Extrusion, Co-Extruded Film, and Polypropylene

Co-extrusion is a film-making process in which two or more molten polymer streams are brought together through a die and formed as one multi-layer film. The layers emerge as one integrated structure. This matters because each layer can be assigned a clear duty. An outer layer may be designed for printing, abrasion behavior, or surface friction. A core layer may supply stiffness, tensile support, or puncture resistance. An inner layer may be selected for a broad heat-seal window. The completed co-extruded film behaves as one package, but its performance comes from several coordinated material zones.

VIDEPAK states that its heavy-duty polyethylene range is made with multi-layer blown-film technology and can reach up to nine layers. It also lists HDPE and LDPE within its tubular-film platform and describes high-performance polyethylene as the base of its heavy-duty bags. In practical engineering, polyethylene families can be blended or separated by layer to balance stiffness, impact resistance, flexibility, processing, and sealing. Independent resin data also show why such division is useful: some polyethylene film grades are positioned for stiffness and barrier in co-extrusion, while others are designed for low seal-initiation temperature, seal strength, toughness, or pinhole resistance.

The commercial value of co-extrusion is control. A monolayer film asks one blend to do everything. A co-extruded structure lets the designer separate competing needs. The outside can be tougher against warehouse abrasion while the inside remains easy to seal. The core can add body while the skins remain flexible. Additives for slip, anti-block, print treatment, or surface behavior can be placed where they work best. More layers do not automatically make a better bag; layer count must serve a purpose. VIDEPAK therefore begins with the product and line conditions, then uses co-extrusion as a tool, not as a slogan.

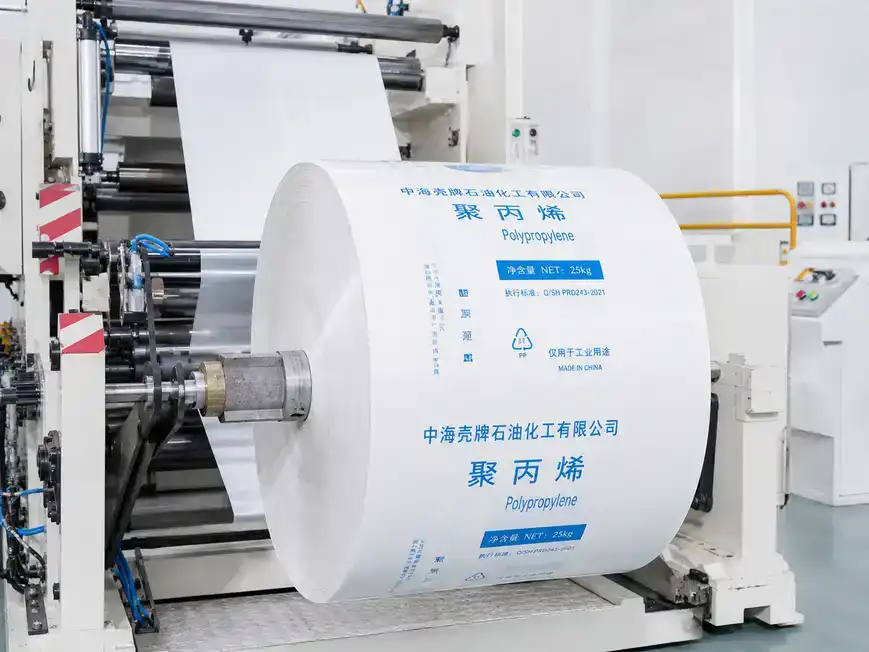

Why Polypropylene and Polyethylene Should Not Be Confused

Polypropylene is a major industrial packaging material, especially in woven sacks. In a woven Polypropylene bag, oriented tapes are interlaced into fabric, often followed by coating, lamination, printing, and valve conversion. That structure can provide high load-bearing strength and a textile-like body. It is different from the continuous polyethylene film used in VIDEPAK PE Valve Bags. The distinction covers the construction route, surface, sealing method, and performance balance.

Customers sometimes use “poly bag” as a broad phrase, which can hide this important choice. Polypropylene may be suitable when woven reinforcement, fabric stiffness, or a laminated woven presentation is central. VIDEPAK PE Valve Bags are especially relevant when the project calls for a smooth welded film package, strong moisture resistance, clean heat sealing, controlled micro-perforations, and a precisely positioned embossing strip. Neither material wins every application. The correct question is not “Is Polypropylene strong?” or “Is polyethylene flexible?” The correct question is “Which structure matches the product, packer, closure, pallet, and route?”

There can also be hybrid details in industrial packaging, but material compatibility must always be checked before welding or sealing. A Polypropylene component and a polyethylene component do not behave identically under heat. Seal temperature, dwell time, pressure, surface treatment, and layer composition must be validated as a system. For that reason, VIDEPAK treats resin selection, valve construction, and the co-extruded film recipe as connected engineering decisions.

Decision Area	VIDEPAK PE Valve Bags	Woven Polypropylene Format
Base structure	Continuous heavy-duty polyethylene film	Interlaced Polypropylene tapes, commonly coated or laminated
Primary joining method	Heat-welded construction and film-compatible valve design	Sewing, hot-air conversion, adhesive systems, or compatible sealing methods
Air-release option	Engineered micro-perforations or an optional air valve	Fabric porosity, perforation, or designed venting, depending on coating
Best selection logic	Choose when welded film, moisture protection, tailored co-extrusion, and clean surface control are priorities	Choose Polypropylene when woven reinforcement and fabric-based construction fit the handling system

Surface Engineering with Embossing Strip and Micro-Perforations

The surface of a heavy-duty bag is active equipment. It touches filling guides, conveyors, palletizer plates, neighboring bags, stretch film, forklift environments, and warehouse floors. Two of the most useful surface tools in VIDEPAK PE Valve Bags are the embossing strip and micro-perforations. They solve different problems. The embossing strip manages friction. The micro-perforations manage airflow. When both are designed correctly, one helps the bag stay put while the other helps the bag settle down.

An embossing strip is a raised or textured band formed in selected areas of the film. Rather than making the entire package coarse, the converter can place texture where bag-to-bag contact is most useful. The pattern can be adapted to the package. As filled bags press together, the embossing strip increases local mechanical engagement. That supports pallet stability, especially when the film would otherwise be smooth or when the bag surface carries printing and treatment that affect friction.

However, “more grip” is not always “better grip.” Excess friction can make bags difficult to separate at the filler, disturb automatic feeding, or create drag during conversion. The location, width, depth, and continuity of the embossing strip must therefore be tuned to the equipment and pallet pattern. Coefficient of friction can be evaluated through recognized film-test methods; ASTM D1894 addresses static and kinetic friction for plastic film and sheeting. A useful specification does not simply request “anti-slip.” It defines the required line behavior and pallet behavior, then confirms that the embossing strip supports both.

Micro-perforations are very small openings distributed in a controlled pattern. Their task is to release air trapped during high-speed filling. Fine powders can entrain large amounts of air, and the filled package may need seconds or minutes to settle. Correctly designed micro-perforations shorten that de-aeration path. The bag becomes flatter sooner, the valve area carries less temporary pressure, and the palletizer receives a more regular shape. VIDEPAK lists micro-perforations as a standard surface-treatment option and also offers an optional air valve for applications that need a different venting approach.

Yet every hole is also a path through the barrier. Too many micro-perforations, holes that are too large, or holes placed in the wrong zone can increase dust leakage or reduce protection against humidity. For moisture-sensitive powders, the venting target must be as low as practical while still supporting fill speed and bag shape. For very fine particles, the hole map may need to be paired with a filter patch, a valve adjustment, or a different filling method. This is a classic packaging balance: breathe enough, but not too much; grip enough, but not too much. The embossing strip and micro-perforations should be specified together because pallet stability depends on both friction and bag flatness.

Product Behavior	Recommended Surface Direction	Reason
Airy fine powder	Optimize micro-perforations; confirm powder retention	Faster de-aeration can improve bag shape and filling continuity
High pallet stack	Add a targeted embossing strip and validate friction	Local texture can reduce sliding between layers
Moisture-sensitive powder	Minimize micro-perforations or consider a controlled air valve	Barrier protection may be more important than maximum vent rate
Automatic bag feeding	Keep the embossing strip away from critical pickup zones	The bag must separate and feed smoothly before it needs to grip on the pallet

From Resin to Finished Bag

Reliable PE Valve Bags are created through a sequence of linked controls. The first control is the material recipe. Resin grades and additives are selected according to target stiffness, impact resistance, seal behavior, print treatment, friction, and end-use conditions. The second control is co-extrusion. Separate melt streams are stabilized, combined through the die, cooled as a blown film, and wound under controlled tension. The goal is a co-extruded tube or web with consistent thickness around the circumference and along the roll.

The third control is surface preparation and printing. Film surfaces may require treatment to support ink adhesion. Artwork, safety information, lot coding, handling symbols, and brand graphics can then be printed, with VIDEPAK publishing capability of up to 10 colors in its polyethylene range. The fourth control is functional surface conversion: the embossing strip is formed in the intended zones, and micro-perforations are applied according to the venting map. The fifth control is bag making. Film is cut, folded or gusseted, welded into the block-bottom structure, and fitted with the valve sleeve. Finally, dimensions, seams, print position, surface features, and functional performance are checked against the approved specification.

Quality control should connect laboratory evidence with line evidence. Film thickness can be measured using methods aligned with ASTM D6988; tensile behavior is covered by ASTM D882; impact strength can be assessed through ASTM D1709; propagation tear resistance is addressed by ASTM D1922; friction is addressed by ASTM D1894; and flexible-package seal strength is measured by ASTM F88/F88M. ASTM F2029 provides practices for creating laboratory heat seals and explains that total construction and thickness influence heat-sealability. These tests do not replace a filling trial, because powder flow, spout design, line speed, temperature, and settings still affect performance. They do, however, turn broad claims into measurable acceptance points.

For PE Valve Bags, the most valuable validation is a complete trial: run the bag on the intended packer, observe the valve fit, measure fill time, watch dust behavior, time the de-aeration created by the micro-perforations, inspect the welds after drops, build the planned pallet pattern, and confirm that the embossing strip gives enough stability without disturbing bag feeding. A co-extruded film can look excellent in a tensile test yet still be wrong for a particular sealing jaw. Likewise, strong seams cannot correct an over-vented bag. System testing closes the gap between material data and factory reality.

Specifications, Options, and Application Fit

VIDEPAK approaches PE Valve Bags as a configurable platform. The published range below provides a useful starting point, but each project should be reviewed against product bulk density, particle size, abrasion, moisture sensitivity, filling temperature, target weight, spout dimensions, speed, pallet pattern, storage environment, and transport risk. A 25 kg mineral powder and a 25 kg polymer pellet may have the same net weight but demand different micro-perforations, different film stiffness, and a different embossing strip layout. Weight is a number. Behavior is the specification.

Parameter	Published or Configurable Range	Selection Meaning
Width	Approximately 35–65 cm	Match packer, target weight, density, and pallet footprint
Film thickness	Approximately 0.10–0.25 mm	Balance abuse resistance, stiffness, seal behavior, and material use
Length	Customizable	Set filled height, valve position, and pallet layer pattern
Film technology	Multi-layer co-extrusion, up to nine layers	Tune the co-extruded structure for strength, sealing, and surface needs
Side format	Flat or M-gusseted	Choose a compact panel or added expansion volume
Surface	Embossing strip and micro-perforations	Coordinate pallet grip with de-aeration
Printing	Up to 10 colors	Support clear identification, instructions, coding, and brand impact
Bottom and closure	Welded block bottom, heat sealing, configurable valve	Build upright shape and closure security around the filling process

For construction powders, mineral products, and dry chemical ingredients, the main design questions are usually dust, abrasion, trapped air, seam load, and moisture. Micro-perforations can help airy powder settle, but very fine material may require smaller holes, fewer holes, or another vent design. A stronger core in the co-extruded film may help with sharp particles, while a seal-focused inner layer supports welded integrity. The embossing strip becomes important when high pallet stacks or long transport routes increase the cost of shifting.

For fertilizers, feed ingredients, seeds, polymer resins, and masterbatch, shape and flow vary widely. Pellets may vent more easily than flour-like powders but can create concentrated point loads. Irregular granules may need additional puncture resistance. Hygroscopic products may push the design toward fewer micro-perforations and a stronger moisture-protection strategy. In every case, the co-extrusion recipe should reflect actual product behavior rather than a generic industry label.

When buyers compare PE Valve Bags with woven Polypropylene sacks, the decision should include the filling line and end-of-line system. A plant already optimized for woven Polypropylene may value the familiar stiffness and handling of fabric. A plant focused on welded film, moisture control, clean surface printing, and rapid valve filling may gain more from PE Valve Bags. The packaging should fit the factory, not force the factory to fit the packaging.

Why VIDEPAK Builds Around the Complete Packaging Line

VIDEPAK was founded in 2008 and positions its business around heavy-duty industrial bags for international markets. Its published polyethylene platform combines multi-layer blown-film production, flat and M-gusseted formats, block bottoms, heat sealing, optional air valves, micro-perforations, the embossing strip, and printing up to 10 colors. The company also states that it produces and tests under ISO 9001-oriented systems and applies ASTM, EN, and JIS methods according to product requirements. These capabilities matter because consistency in PE Valve Bags comes from coordinated equipment, recipes, conversion settings, inspection, and application knowledge—not from one isolated feature.

The VIDEPAK marketing promise is therefore practical: design for the customer’s line, not only for the customer’s drawing. A dimension sheet may define width and length, yet it does not reveal how quickly a powder de-aerates. A print file may define color, yet it does not reveal where the suction cup touches the bag. A nominal thickness may define material use, yet it does not reveal whether the inner layer seals across normal temperature variation. By reviewing the whole process, VIDEPAK can align the valve with the spout, align micro-perforations with the air load, align the embossing strip with the pallet contact zones, and align co-extrusion with the mechanical and sealing risks.

This is where experience becomes visible. It appears in details: a valve sleeve that enters the packer without folding; a co-extruded film that remains stable through winding and conversion; micro-perforations that vent without turning the bag into a sieve; an embossing strip that grips after filling but still releases during automatic feeding; and a block bottom that forms a square, repeatable package. None of these details is dramatic alone. Together, they determine whether the line runs for hours or stops every few minutes.

VIDEPAK PE Valve Bags are built for customers who need more than “strong enough.” They are built for controlled filling, controlled air, controlled friction, controlled sealing, and controlled presentation. The contrast is simple and deliberate: not thicker by default, but stronger where needed; not more holes, but the right micro-perforations; not rough everywhere, but a placed embossing strip; not more layers for display, but purposeful co-extrusion; not a generic poly sack, but a validated choice between polyethylene film and woven Polypropylene.

The best industrial bag is quiet in use. It feeds. It fills. It breathes. It closes. It stacks. It arrives. That quiet reliability is the goal behind VIDEPAK PE Valve Bags—and the reason every valve, every layer, every embossing strip, and every pattern of micro-perforations is treated as part of one complete system.

How PE valve bags are manufactured

1. Film extrusion. Polyethylene resin (LDPE/LLDPE/MDPE blends) is blown or cast into mono‑ or co‑extruded film; gauge typically runs from 100–300 μm depending on product risk.
2. Surface preparation & printing. The film is corona‑treated or primed; graphics are applied by surface or reverse flexo (1–8 colors). Reverse print protects ink between layers, yielding scuff‑resistant, glossy art.
3. Tube forming & bottom welding. Film is folded and welded (heat/ultrasonic) into a tube; gussets and a block‑bottom are welded to create a flat, self‑standing base.
4. Valve construction. A PE fabric/film sleeve is inserted and sized to the packer spout ID; options include tuck‑in valves, sonic‑seal closures, or pre‑applied hot‑melt zones for post‑fill sealing.
5. Venting strategy. Micro‑perforation maps (laser/mechanical) or porous patches balance fill speed with dust control.
6. Quality gates. Film tensile and impact (e.g., method families equivalent to ASTM D882/D1709), sack drop tests (e.g., ISO 7965‑2 class), seal integrity, and coefficient‑of‑friction for pallet stability.

Where PE valve bags are used (primary uses)
Salts and minerals, industrial sands, fertilizers, resins and polymer pellets, animal nutrition (certain kibbles/premixes), energy/biomass (pellets), and select food ingredients that benefit from high moisture tolerance and robust welded seams. When outdoor storage, rain splash, or condensation is part of the route, PE valve bags often deliver a safety margin that paper formats cannot match without complex barriers.

Want a one‑page overview of formats and related heavy‑duty poly packaging? Visit the product family page here: PE valve bags.

---

---

Understanding PE valve bags Components

Introduction. PE valve bags are heavy‑duty PE Valve Sacks that load via an internal sleeve (the valve) on impeller, auger, or air packers and self‑close by product pressure or a post‑fill seal. They look simple; they are not. Every surface, fold, and hole governs flow, dust, and durability.

Method. Decompose the sack into seven functional subsystems: (1) co‑extruded film (LDPE/LLDPE/MDPE stack), (2) block bottom weld geometry, (3) valve sleeve (ID/length/stiffness), (4) micro‑perforation map, (5) surface finish (smooth/embossed/sanded), (6) print layer (surface vs. reverse), and (7) additives (UV, antistat). For each, define its role in fill speed, seal integrity, pallet stability, and scuff resistance.

Result. A shared language for engineers and buyers: when a line operator says “the mouth bounces,” we look at sleeve stiffness and pre‑crease; when QA flags corner leaks, we inspect base welds and perf placement.

Discussion. Horizontally, these subsystems intersect—valve ID affects de‑aeration window; perf density feeds dust counts; surface COF rules pallet lean. Vertically, micro‑choices (e.g., 160 vs. 200 μm gauge) ripple upward into macro‑outcomes (returns, OEE, safety).

Common Elements and Options in PE valve bags

Introduction. What are the recurring building blocks and configurable options of PE valve bags?

Method. Catalog the choices buyers most frequently specify: film gauge (100–300 μm), blend (stiff MDPE skin with tough LLDPE core), valve type (self‑closing, tuck‑in, sonic/heat‑seal), perf map (50–200 μm holes at 4–16 holes/cm²), finish (embossed/sanded for anti‑slip), and print mode (surface vs. reverse). Optional enhancements: antistatic masterbatch for fines, UV stabilizers for yard storage, recycled content targets, and serialized 2D codes.

Result. A modular palette that lets PE valve bags serve salts, sands, fertilizers, resins, and selected food powders without reinventing the format.

Discussion. Horizontally, options align with cross‑domain needs: safety (dust), logistics (COF), marketing (branding), compliance (food contact). Vertically, the decision chain runs from SKU physics → valve geometry → perf tuning → pallet behavior.

Identifying Critical Design Factors for Longevity

Introduction. Why do some PE valve bags survive months in rough yards while others fail in weeks?

Method. Stress‑map the life cycle: filling impact at the mouth, corner shocks in loading, fork abrasion at pallet edges, UV exposure outdoors, and condensation cycles. For each stressor, pair a design countermeasure: up‑gauge film for puncture, strengthen base weld bridges, specify embossed anti‑slip, add UV stabilizer, and move perf fields away from the valve seam.

Result. Lower split rates, fewer puncture claims, graphics that remain legible, and tidy stacks that don’t creep.

Discussion. Horizontal lens: mechanics (impact), chemistry (UV), and hygiene (dust) co‑determine longevity. Vertical lens: micro‑reinforcements at the seam → fewer corner leaks → less rework → improved total landed cost.

Factors to Consider When Selecting PE valve bags

Introduction. A good spec starts with physics, not price.

Method. Use a decision matrix that converts product and route data into bag parameters.

Result. The table below compresses many meetings into a one‑page map.

Discussion. Each row closes a tiny logic loop—problem, lever, expected outcome—while keeping trade‑offs explicit.

Input (Problem)	Lever in PE valve bags	Expected Outcome
Fine powders (<150 μm) aerate at fill	Smaller/offset perf fields; tuck‑in or sonic‑seal valve	Faster de‑aeration with low dust
Coarse granules (>1 mm) scuff art	Reverse print under film	Legible graphics after transit
Pallets lean in tall stacks	Embossed/sanded finish; block‑bottom weld width	Higher COF, better stack stability
Fork punctures on edges	Up‑gauge to 180–200 μm; broaden weld toes	Fewer corner ruptures
Outdoor storage (rain/UV)	Sonic‑seal valve; UV stabilizer	Lower moisture ingress; slower fade
Serialization/traceability	GS1 2D code panel; optional UHF RFID inlay	High read rates in receiving

Preventing Downtime with Timely Packaging Upgrades

Introduction. Downtime is expensive—and often bag‑driven.

Method. Run short kaizen cycles around the sack: mouth pre‑crease to improve seat‑on‑spout; shorten valve sleeve to curb dribble; retune perf density to meet a target BPM with a dust ceiling; adopt anti‑block treatment to cure double‑picks.

Result. Cleaner cut‑off, fewer mis‑seats, faster resets. Operators stop wrestling with the mouth and start trusting it.

Discussion. Horizontally, small packaging tweaks unlock machine potential. Vertically, a five‑minute sleeve trim can save hours in accumulated stoppages.

The Role of Supplier Service and Technical Support

Introduction. A sack is only as reliable as the team behind it.

Method. Expect your PE valve bags partner to provide line trials, incoming film COAs, sack drop certificates, and artwork control per recognized packaging safety schemes. Ask for change‑control logs and retained sample archives.

Result. Faster audits, no‑drama launches, and shorter root‑cause cycles when something goes wrong.

Discussion. Horizontal gain: procurement, QA, and operations share a single source of truth. Vertical gain: document discipline → predictable quality → brand protection.

Common Challenges When Re‑Specifying to PE valve bags

Introduction. Switching formats is never just a print change.

Method. Anticipate issues: static cling with fine powders, over‑perforation that “leaks speed,” valve IDs that don’t match aging spouts, stacks that slip because films are too glossy. Pre‑solve with antistat additives, conservative perf maps, sleeve/spout gauging, and embossed finishes.

Result. A smoother cutover with measurable BPM and housekeeping wins in week one, not quarter three.

Discussion. Horizontally, EHS, maintenance, and planning must see the same risk list. Vertically, early pilots → fewer emergency reprints → dependable supply.

Available Enhancements for Performance

Introduction. The base bag works; the tuned bag shines.

Method. Layer options onto PE valve bags: sonic‑seal valves for near‑hermetic closure; anti‑slip emboss for tall pallets; reverse print for scuff‑proof art; antistat for dusty ingredients; recycled content for stewardship targets; 2D codes and RFID for traceability.

Result. Higher OEE, cleaner warehouses, stronger shelf presence, and credible sustainability narratives.

Discussion. Horizontal: performance, brand, and compliance improve together. Vertical: a single inlay can collapse hours of cycle counting at the yard into minutes.

The Productivity Impact of Modern PE valve bags

Introduction. Do better sacks really move the productivity needle?

Method. Track three metrics before/after: BPM at rated accuracy, housekeeping hours per shift, and complaint rate per 10,000 bags. Attribute gains to the bag levers you changed (gauge, valve, perf, finish) to avoid confounding.

Result. Plants commonly see double‑digit dust reductions and steadier BPM when valve seating and perf maps are tuned, with fewer pallet reworks due to leaning.

Discussion. Horizontally, productivity is the sum of micro‑wins. Vertically, a single weld upgrade propagates from the packing head to the retailer aisle.

Future‑Proofing with Smart and Sustainable PE valve bags

Introduction. Regulations and retailers are pivoting to connected packaging and clearer end‑of‑life.

Method. Reserve scuff‑sheltered real estate for GS1‑format 2D codes (lot/expiry + web link) and, if your warehouse can read it, add UHF RFID inlays beneath the print layer. Keep the structure mono‑material to fit poly‑film streams where available.

Result. Faster recalls, richer product stories, and simpler recycling instructions. For a fuller view of related heavy‑duty formats, see this page: PE valve bags.

Discussion. Horizontal: IT, quality, and packaging now share one data spine. Vertical: a bag code triggers a dashboard—which triggers decisions.

What Options Do Buyers Order Most Often?

Introduction. Preferences rhyme across industries.

Method. Aggregate orders: 180–200 μm film for outdoor salts and fertilizers; reverse print for export resins; embossed anti‑slip for 1.2–1.5 m pallets; sonic‑seal valves for hygroscopic powders; antistat for dusty blends; serialized 2D codes for lot control.

Result. A practical default kit for new SKUs entering the PE valve bags family.

Discussion. Horizontally, these options cut across chemicals, agriculture, and food ingredients. Vertically, each option addresses a specific failure mode: puncture, smear, slip, or traceability gaps.

How to Keep Your PE valve bags Program Performing for Years

Introduction. Longevity is a process, not luck.

Method. Institute quarterly spec reviews (gauge, valve, perf), dual‑qualify film suppliers, retain pass/fail drop samples, and maintain artwork approval workflows. When complaints occur, trace to batch via printed 2D code and adjust a single lever at a time.

Result. Stable cost, fewer surprises, validated changes, and a calmer plant.

Discussion. Horizontally, finance and ops finally speak the same language—risk adjusted total cost. Vertically, disciplined change control compounds into brand equity.

References

1. ISO 7965‑2 — Sacks made from thermoplastic films — Drop test method.
2. ASTM D1709 — Standard Test Methods for Impact Resistance of Plastic Film by the Free‑Falling Dart Method.
3. ASTM D882 — Standard Test Method for Tensile Properties of Thin Plastic Sheeting.
4. EU 10/2011 — Plastics materials and articles intended to come into contact with food.
5. 21 CFR 177.1520 — Olefin polymers for food contact in the United States.
6. BRCGS Packaging Materials (Issue 6/7) — Artwork control and packaging safety requirements.
7. GS1 Digital Link & 2D Barcode migration resources — Guidelines for encoding GTIN + lot/expiry for connected packaging.
8. Supplier datasheets for LDPE/LLDPE/MDPE blends — Typical COF, tensile, and dart ranges used in PE valve bags engineering.
