VIDEPAK FFS Roll PE Film: High-Performance FFS PE Film for Automated Industrial Packaging

In a modern packing plant, a film roll is not simply a material supply. It is part of the production system. The right ffs roll pe film must unwind smoothly, form consistently, accept fast filling, release trapped air when needed, seal cleanly, carry clear graphics, survive drops, and remain stable after palletizing. VIDEPAK develops FFS PE Film around that complete chain of work. The base is heavy-duty polyethylene film, while options such as Co-extruded multi-layer structures, Anti-Skid surface control, and calibrated Micro-perforation allow the film to be tuned for different products and filling conditions. VIDEPAK’s published PE range includes widths of about 35–65 cm, thicknesses of about 0.10–0.25 mm, customizable length, FFS roll diameters of about 100–150 cm, printing up to 10 colors, and multi-layer structures of up to nine layers.

Product Overview: What ffs roll pe film and FFS PE Film Mean in Real Production

ffs roll pe film is continuous PE rollstock made for Form-Fill-Seal equipment. Instead of buying an empty bag, loading that bag into a separate feeding system, and then closing it in another step, the customer feeds the roll into an automatic line. The machine advances the web, creates the required bag length, fills the product, and heat-seals the package in a connected sequence. In tubular formats, the film arrives as a continuous tube, which removes the need for a longitudinal side seam in the tube itself. VIDEPAK positions its FFS PE Film for high-speed automatic filling of bulk materials such as grains, fertilizers, chemicals, polymer materials, and other industrial powders or granules.

The value of FFS PE Film becomes clear when the packaging line is viewed as one flow instead of a group of separate machines. A roll must track. A bag must open and accept product. The seal must close. Air must leave when the product carries air into the package. The surface must move through rollers without creating unnecessary drag, yet the finished bags must not slide freely on the pallet. This is why VIDEPAK combines polyethylene film engineering with Co-extruded layer design, Anti-Skid features, and Micro-perforation. One film, many jobs; one package, many stresses.

From Rollstock to a Finished Heavy-Duty Bag

At the start of the process, ffs roll pe film is a wound industrial web. At the end, it is a filled, sealed and transport-ready package. Between those two points, the film experiences bending, pulling, acceleration, contact with guides and rollers, thermal sealing, impact from the falling product, compression from other bags, and vibration during logistics. A well-made polyethylene film therefore needs more than laboratory strength. It needs predictable behavior at production speed. VIDEPAK’s public product guidance emphasizes dimensional control, multi-layer extrusion, controlled winding, optional gussets, printing, embossing and venting features because each one influences machine stability or final package performance.

The central advantage of a roll-based system is continuity. Empty-package handling is reduced because the package is created from rollstock on the same automated sequence that fills and seals it. For high-volume plants, this makes the behavior of the ffs roll pe film especially important: small variations in width, roll build, gauge, friction or seal response can repeat thousands of times. Consistency is therefore not merely a visual quality target. It is a production target.

This also explains why customers should evaluate FFS PE Film as a machine material as well as a package material. Before filling, the customer cares about unwinding, tracking, registration and seal response. During filling, the priorities shift to toughness, air release and product containment. After filling, the priorities shift again to pallet stability, moisture protection, print visibility and transport survival. The same polyethylene film crosses all three stages. A strong specification connects them rather than optimizing one stage at the expense of another.

Material Architecture: Why polyethylene film and Co-extruded Design Work Together

The foundation of VIDEPAK ffs roll pe film is PE. But “PE” is a family, not a single fixed behavior. Different polyethylene grades can contribute different balances of stiffness, flexibility, toughness and sealing response. VIDEPAK’s published technical guidance describes the use of HDPE together with lower-density polyethylene materials in multi-layer film so that a single structure does not have to force one resin to do everything. In practical terms, the polyethylene film can be built with a stronger structural center, a sealing-focused inside, and an outside engineered for print, friction and handling.

This is the logic behind a Co-extruded structure. Several molten polymer streams are brought together during extrusion to make one integrated film. The layers are formed as one web rather than being treated as separate bags later. VIDEPAK publishes Co-extruded configurations of up to nine layers for its heavy-duty PE packaging range. That does not mean every FFS PE Film should use nine layers. It means the platform gives packaging engineers room to distribute jobs across the structure, then select a practical design based on fill weight, product form, filling speed, sealing conditions, pallet pattern and transport route.

How a Co-extruded Structure Divides the Work

A simple way to understand Co-extruded polyethylene film is to think in three zones, even when the actual film has more layers. The outside is the interface with the machine, ink, warehouse and neighboring bags. The core is the mechanical engine, where stiffness and impact performance can be built. The inside is the sealing and product-contact interface. With this division of labor, a VIDEPAK ffs roll pe film can be optimized for apparently opposite needs: smooth movement but strong pallet grip, stiffness but flexibility, fast sealing but transport toughness. That balance is the point of multilayer design.

Film Zone	Main Engineering Job	What the Customer Feels on the Line
Outer surface	Print acceptance, friction control, abrasion management and handling	Cleaner graphics, controlled travel and better pallet interaction
Structural core	Stiffness, tensile balance, puncture and impact support	A package that holds shape and tolerates industrial handling
Inner surface	Heat-seal response, flexibility and product-side cleanliness	A wider practical sealing window and consistent closure when properly matched to the machine

VIDEPAK’s product literature describes this same functional split: multilayer Co-extruded film allows stiffness, toughness, sealability and surface behavior to be balanced in one polyethylene film.

Thickness is still important, but thickness by itself does not describe a complete FFS PE Film. A 150-micron film with weak sealing or unstable friction can be a worse choice than a carefully designed film at a different gauge. VIDEPAK’s published heavy-duty range is approximately 0.10–0.25 mm, or 100–250 microns, and ASTM guidance treats plastic film thickness as a key input because many mechanical test results depend on it. For a buyer, the practical question is not “What is the thickest film?” It is “What structure gives enough protection with stable machine behavior?”

That difference is important for material efficiency as well. Adding thickness can sometimes add safety margin, but adding material without fixing the actual weak point may simply raise consumption. If sealing is the weakness, the seal layer and machine settings deserve attention. If pallet movement is the weakness, Anti-Skid behavior deserves attention. If ballooning is the weakness, Micro-perforation deserves attention. If puncture is the weakness, the Co-extruded resin balance and gauge deserve attention. Thickness is one lever. It is not every lever.

For example, resin pellets generally flow well and are a natural match for automated bagging, yet small pellets can escape quickly through a damaged seal or puncture. Fine powders create a different challenge: dust containment and air evacuation become central. Fertilizers can combine heavy handling with moisture sensitivity and the need for a stable pallet. The platform remains FFS PE Film, but the engineering emphasis changes. That is exactly where a flexible Co-extruded platform adds value.

Functional Control: Anti-Skid Stability and Micro-perforation Air Release

Two small-looking details often have a large effect on industrial packaging: friction and trapped air. A smooth polyethylene film may run easily across equipment, yet smooth finished bags can slide against one another during palletizing, forklift movement or road vibration. At the same time, a powder-filled bag may trap enough air to become soft and pillow-shaped, slowing settling and reducing pallet density. VIDEPAK addresses these different problems with Anti-Skid surface engineering and Micro-perforation venting. One manages contact between bags; the other manages movement of air through the bag wall.

Friction Where It Helps, Airflow Where It Is Needed

Anti-Skid should not be understood as “make the whole film rough.” A better goal is controlled friction. VIDEPAK lists anti-slip coating, embossing strip and related surface treatments within its PE packaging options. A localized Anti-Skid embossing strip can add grip where stacked bags touch, while leaving seal areas and major print zones cleaner and more consistent. That matters because the film performs in two worlds: first it must travel through a fast packaging line; later it must sit securely in a stack. Fast on the machine, steady on the pallet. That contrast is exactly why friction needs to be engineered rather than maximized.

Coefficient of friction, often shortened to COF, gives buyers a way to discuss that behavior with measurable data. ASTM D1894 covers the determination of static and kinetic coefficients of friction for plastic film and sheeting. For VIDEPAK FFS PE Film, a COF target should be agreed according to the filler, rollers, bag orientation, pallet pattern and transport conditions rather than treated as a universal number. A very low-friction web may travel easily but create a slippery pallet; a very high-friction surface may help stacking but create machine drag. Anti-Skid is therefore a balancing tool, not a single magic value.

This balance is especially important in automatic palletizing. A pallet is not static from the moment the first bag lands. Bags are accelerated, positioned, pressed into patterns, transported by conveyor, lifted by forklift, stored in stacks and exposed to vehicle vibration. A properly placed Anti-Skid zone helps the surface of one package interact more predictably with the next. At the same time, VIDEPAK can keep important artwork and sealing areas away from unnecessary texture. The goal is controlled grip, not uncontrolled roughness.

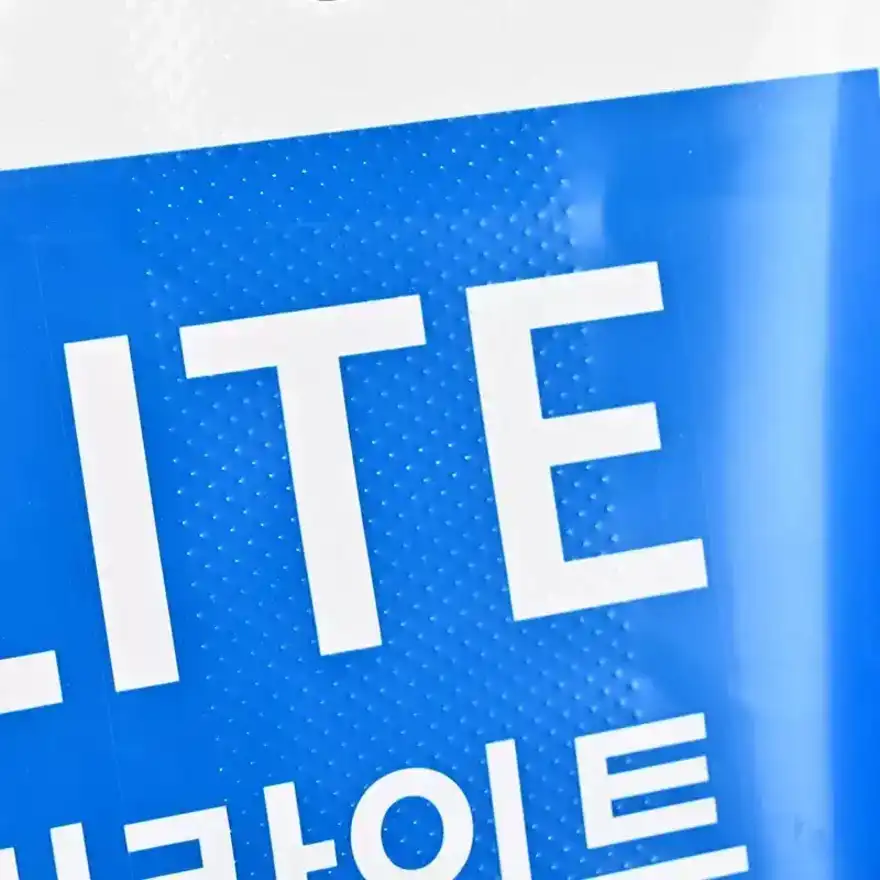

Micro-perforation solves a different problem. Fine powders and some granular products carry air into the bag during filling. If the air cannot escape quickly enough, the package can swell. A swollen bag is harder to flatten, harder to convey, and harder to build into a compact pallet. VIDEPAK describes Micro-perforation as controlled small openings used to release trapped air, especially for products that entrain air during filling. Its product guidance also warns about the trade-off: every opening that releases air changes the barrier of the polyethylene film. More venting can improve settling, but too much venting can increase moisture exposure or allow very fine product to escape.

That makes the Micro-perforation pattern an engineering variable. Hole size, number, location and distribution should be chosen around particle size, dust level, fill speed, air volume and moisture sensitivity. The correct pattern for a dense fertilizer granule may not fit a fine mineral powder. The correct pattern for a dry indoor route may not fit a product stored outdoors. A strong ffs roll pe film specification therefore asks two questions at the same time: “How quickly must air leave?” and “How much barrier must remain?”

There is also an important difference between “more holes” and “better venting.” Better venting means enough effective air-release capacity in the correct area, without turning the polyethylene film into an uncontrolled dust or moisture path. This is why VIDEPAK describes Micro-perforation as a calibrated feature. It should be developed around the packed product, not copied blindly from a previous bag.

The strongest result often comes from combining both functions. A Co-extruded FFS PE Film can provide the mechanical and sealing base; Micro-perforation can help the filled bag settle; Anti-Skid can help the settled bag resist layer movement. The sequence matters. First the product enters. Then air leaves. Then the bag takes shape. Then bags lock together more securely in a pallet pattern. The film is not doing one job four times; it is doing four jobs once, in the right order.

VIDEPAK Technical Range: Matching ffs roll pe film to the Filling Line and Packed Product

VIDEPAK’s published PE packaging range gives buyers a practical starting window for project discussion. The current product page lists approximately 35–65 cm width, 0.10–0.25 mm thickness, customizable length, 100–150 cm FFS roll diameter, up to 10-color printing, flat or M-gusset side options, surface treatments such as embossing and Micro-perforation, heat sealing, and multi-layer co-extrusion. VIDEPAK also states that its heavy-duty PE manufacturing platform can use up to nine layers. These figures are best read as capability ranges; the final ffs roll pe film should be matched to the customer’s machine, fill weight and product behavior.

Parameter	VIDEPAK Published Range / Option	Why It Matters
Width	About 35–65 cm	Must fit filler geometry, target volume and pallet footprint.
Thickness	About 0.10–0.25 mm	Affects stiffness, impact margin, sealing response and material use.
Length	Customizable	Controls headspace, bag shape and sealing area.
Roll diameter	About 100–150 cm	Must match unwind limits and influences roll-change frequency.
Printing	Up to 10 colors	Supports branding, product ID, instructions and coding zones.
Layer structure	Up to 9 layers	Lets a Co-extruded structure distribute seal, strength and surface functions.
Surface / venting	Anti-Skid embossing / Micro-perforation options	Tunes pallet friction and trapped-air release.
Side geometry	Flat or M-gusset options	Helps match bulk volume and create a more regular filled shape.

Width and gusset should be selected together. A dense product may reach the target weight with a smaller volume, while a light product may require more package volume at the same nominal kilograms. The bag must also fit the pallet. Too narrow and tall can create an inefficient pattern; too wide and short can interfere with handling or sealing. For that reason, VIDEPAK’s FFS PE Film project discussion should start with the customer’s product bulk density, target fill weight, preferred pallet size and existing filler geometry, then work backward to lay-flat width, gusset and bag length.

Roll diameter is equally practical. A larger roll can support longer runs between changes, but the customer’s unwind stand has physical and weight limits. Core size, winding tension, roll hardness and edge alignment also matter because a beautiful polyethylene film that telescopes or unwinds unevenly can still stop a packaging line. VIDEPAK’s technical process notes controlled winding as part of the path from extrusion to final FFS use. The point is simple: reliable ffs roll pe film begins before the filler and continues after sealing.

Printing is another part of technical matching. A large industrial bag is a transport package, but it is also a moving information panel. Product names, grade identification, instructions, handling marks, barcodes and brand graphics all compete for space. VIDEPAK publishes printing capability of up to 10 colors for its PE range, allowing customers to combine functional identification with stronger shelf or warehouse recognition. Yet print should never be separated from film engineering: treatment level, Anti-Skid placement, gusset position and sealing areas all influence where graphics should be placed.

Different markets therefore lead to different specifications. For plastic resins and masterbatch, clean seals, toughness and contamination control may come first. For fertilizers and salts, moisture management, impact resistance and pallet stability often move higher on the list. For minerals and fine powders, air release and dust containment may become the critical pair. For feed, grains or qualified food-contact applications, hygiene and applicable regulatory requirements must also be considered. VIDEPAK’s published application guidance covers these different dry-bulk scenarios and repeatedly emphasizes that the final film should be matched to product behavior rather than selected by nominal bag weight alone.

From Resin to Pallet: Production, Quality Control and the VIDEPAK Buying Logic

A typical VIDEPAK ffs roll pe film project moves through a connected sequence: choose PE grades and layer functions, form the Co-extruded tubular web, cool and control lay-flat dimensions, apply required surface treatment, add gussets or Micro-perforation when specified, print, wind the finished roll, and then validate it on the customer’s Form-Fill-Seal process. VIDEPAK’s published process description follows this general path from resin selection and multi-layer melt extrusion through blown-film formation, optional functional treatment, controlled winding and final bag forming, filling and heat sealing.

The process begins with material selection because every later operation inherits the behavior created during extrusion. The Co-extruded recipe determines how individual PE families and functional layers share the work. Blown-film formation then creates the tubular geometry. Cooling, thickness control and lay-flat control matter because dimensional variation can appear later as tracking problems, uneven tension, inconsistent seals or variations in bag shape. Functional steps such as Anti-Skid, Micro-perforation, gusseting and printing are then added according to the project rather than treated as universal requirements.

Quality control should follow the same system thinking. Tensile data can show how a thin film behaves under pulling load; ASTM D882 is the standard test method for tensile properties of thin plastic sheeting. Dart impact can help compare resistance to impact events; ASTM D1709 covers impact resistance of plastic film using a free-falling dart. Tear propagation can be evaluated with ASTM D1922. Seal strength can be measured using ASTM F88/F88M, and surface friction can be evaluated using ASTM D1894. These tests do not replace a real filling trial, but they convert vague terms such as “strong,” “good seal” and “not slippery” into measurable engineering language.

Quality Area	Useful Measurement	Why It Matters to FFS PE Film
Film strength	Tensile / elongation	Shows how the film responds to pulling and deformation.
Impact performance	Dart impact	Helps compare resistance to sudden impact.
Tear behavior	Propagation tear	Shows how an initiated tear may continue through the film.
Closure quality	Seal strength	Provides a measurable check on the sealed joint.
Surface behavior	Static / kinetic COF	Supports discussion of machine travel and Anti-Skid performance.

Printing deserves similar discipline. PE surfaces often need treatment so inks and coatings can wet and hold the surface consistently. ASTM D2578 covers wetting tension measurement for polyethylene and polypropylene film surfaces and notes the connection between surface treatment, wetting tension and the ability to accept inks or coatings, while also warning that wetting tension alone does not fully prove adhesion. For branded VIDEPAK FFS PE Film, this means print quality should be treated as a combination of surface treatment, ink system, artwork, roll handling and production validation, not as a color-count claim alone.

Where the finished package is intended for food contact, material selection must also follow the applicable rules of the target market rather than relying on a general “food-grade” description. In the European Union, Regulation (EU) No 10/2011 establishes specific requirements for plastic materials and articles intended to contact food, including permitted substances and migration restrictions. This is another reason to define the application before finalizing a VIDEPAK polyethylene film structure: product protection, machine performance and regulatory requirements must be considered together.

For buyers, the final decision can be reduced to one rule: specify the failure modes first. Is the main risk a weak top seal? A puncture from sharp granules? A soft bag caused by trapped air? Pallet sliding? Moisture exposure? Print scuffing? Unstable roll feeding? Once the real risk is clear, the right combination of polyethylene film, Co-extruded structure, Anti-Skid design and Micro-perforation can be chosen with purpose. VIDEPAK’s own product guidance follows this application-driven approach and states that product density, particle form, filling speed, pallet pattern, transport route and storage conditions should guide the final structure.

Customer Challenge	Film Lever to Review	Validation Focus
Bag slides on pallet	Anti-Skid location and COF	Pallet pattern, tilt, vibration and warehouse handling
Bag balloons after filling	Micro-perforation pattern	Settling time, dust loss and moisture exposure
Seal opens or leaks	Co-extruded seal layer and machine settings	Seal strength, contamination at seal and production speed
Film punctures or tears	polyethylene film blend, gauge and layer balance	Dart impact, tear, drop trial and real handling points
Roll causes line stops	ffs roll pe film geometry, winding and friction	Unwind behavior, tracking, registration and roll-change process

VIDEPAK also publishes a manufacturing scale of more than 500 million heavy-duty PE bags annually for applications from about 5 kg upward, together with options for Co-extruded PE bags and tubular films. Scale by itself does not guarantee the right specification, but it matters when customers need repeatability across many rolls and shipments. The commercial goal is not a perfect laboratory sample. It is repeatable FFS PE Film that arrives with the agreed width, gauge, winding, printing, Anti-Skid behavior and Micro-perforation configuration, batch after batch.

VIDEPAK’s published quality approach also states that raw materials are sampled by batch and that production testing can include impact, tensile and UV-weathering evaluations, with products manufactured and tested against agreed quality systems and applicable standards. For industrial customers, the useful point is not the name of a test alone; it is the connection between the test and the real failure being prevented. A tensile number should relate to handling. A friction number should relate to a pallet. A seal-strength result should relate to leakage risk. Data becomes valuable when it predicts performance.

A good industrial package is quiet. It does not attract attention by jamming the filler, leaking powder, opening at the seal or leaning on the pallet. It simply works. That is the design target behind VIDEPAK ffs roll pe film: strong where impact occurs, sealable where the jaws close, controlled where friction matters, open to air only where venting is needed. With FFS PE Film, polyethylene film becomes more than a barrier sheet; with Co-extruded architecture it becomes a layered performance tool; with Anti-Skid it becomes part of pallet stability; with Micro-perforation it becomes part of air management. Different functions, one roll. Different stresses, one system. From resin to pallet, the objective stays the same: keep the line moving and keep the product protected.

What is FFS Roll PE Film?

FFS Roll PE Film is a heavy‑duty polyethylene packaging medium supplied on rolls as seamless tubular film (or slit sheets) engineered for automated Form‑Fill‑Seal lines. On an FFS machine, the web is unwound, shaped, filled, and sealed in a single, synchronized motion, turning raw rollstock into finished, sale‑ready bags. In day‑to‑day conversations you may encounter several aliases—tubular PE FFS film, HDPE/LLDPE FFS rollstock, FFS poly tubular roll, heavy‑duty PE FFS bags—but the heart of the idea stays constant: a tough, printable, process‑friendly film designed for speed and consistency. For a quick overview of applications and configurations, see FFS Roll PE Film.

Features. The format aims at three outcomes: reliable seals, stable pallets, and predictable throughput. FFS Roll PE Film delivers low moisture ingress via heat‑sealed closures, abrasion resistance for rough handling, tailored friction for conveyors and stacking, and a corona‑receptive face for crisp flexographic print. Additive packages—antiblock, slip, antistatic, UV stabilizers (UVI)—and multi‑layer co‑extrusion unlock tunable optics, stiffness, tear balance, and electrostatic control. In short: fast lines, tidy pallets, clear labels.

Production process. FFS Roll PE Film is typically produced by blown‑film extrusion. Multiple polyethylenes (HDPE for stiffness and dart strength, LLDPE for sealability and toughness) are co‑extruded into a tubular bubble, calibrated through air‑ring and internal bubble cooling, and collapsed into layflat. After in‑line gauge control and corona treatment, the film is gusseted or slit as needed and wound into transport‑ready rolls. Downstream, an FFS bagger introduces the film to a forming tube, doses product (via net weigher or auger), de‑aerates powders, seals the bottom and top, prints codes, and discharges finished bags to palletizing and hooding. The entire route—polymer to pallet—is a single choreography.

Uses. Where do we see FFS Roll PE Film in the wild? In sectors where volume is high and the product is granular or powdery: fertilizers, plastic resins and masterbatch, salt, sugar, grains and feed, mineral fillers (calcium carbonate, barite, silica), wood pellets, construction chemicals, even ice‑melt and water‑softener salts. What unites them is not the commodity itself but the constraint set: moisture sensitivity, dust control, abrasion, line speed.

References

ISO 9001:2015 — Quality management systems.
ASTM D882 — Tensile properties of thin plastic sheeting.
ASTM D1922 — Elmendorf tear of plastic film.
ASTM D1709 — Dart impact of plastic film.
ASTM D1894 — Coefficient of friction.
ASTM F88/F88M — Seal strength.
ASTM F1249 — Water vapor transmission rate.
EN 15593 — Packaging hygiene management for foodstuffs.
JIS K 7127 — Tensile testing of plastic film and sheeting.
JIS K 7129 — Gas transmission of films and sheeting.
REACH (EC No. 1907/2006) — Chemicals regulation for EU markets.
