VIDEPAK Woven Bags with PE Liner: Strength Outside, Protection

Industrial packaging has a simple job that is difficult to perform well: protect the product, support the process, and preserve the brand. A bag may look basic, yet its performance depends on many connected details—raw-material quality, tape strength, fabric weight, liner thickness, seam design, printing accuracy, filling speed, pallet stability, storage climate, and transport conditions. When these details work together, packaging becomes a business advantage. When they do not, even a small defect can become product loss, dust leakage, customer complaints, or an interrupted filling line.

VIDEPAK develops Woven Bags with PE Liner as complete packaging systems rather than as simple sacks. The outer Woven Bags provide mechanical strength for filling, lifting, stacking, and transport. The internal PE Liner creates an independent barrier against moisture, dust, fine-particle leakage, and outside contamination. The selected Polypropylene structure supports strength at a low package weight, while the VIDEPAK Factory connects extrusion, weaving, printing, liner production, conversion, inspection, and shipment control. This dual-layer concept is widely suited to powders, granules, crystals, feed ingredients, fertilizers, minerals, food ingredients, and other dry bulk materials that need both strength and barrier protection.

Understanding VIDEPAK Woven Bags with PE Liner

Woven Bags with PE Liner combine two materials with two different but complementary duties. The outer body is produced from woven Polypropylene tapes. These tapes cross in the warp and weft directions to create a flexible fabric that distributes force across the package. Inside this fabric shell, a separate PE Liner surrounds the packed material and adds a continuous film barrier. One layer resists physical stress; the other controls the internal environment. It is not strength instead of protection, or protection instead of strength. It is strength and protection.

This structure matters because ordinary unlined Woven Bags contain small spaces between their woven tapes. Those spaces can be useful when a product must release air after filling, but they may be unsuitable for very fine powders, dusty products, moisture-sensitive ingredients, or materials that must remain isolated from the outer package. A correctly designed PE Liner covers these pathways without removing the handling benefits of the woven shell. VIDEPAK can engineer the relationship between the outer Woven Bags and the inner PE Liner according to the product, filling system, closure method, storage time, climate, and distribution route.

Customers can select a loose-inserted, fitted, stitched, tacked, glued, or specially positioned PE Liner, depending on the required bag format. A loose liner can provide a practical and economical barrier for many open-mouth applications. A fitted or attached liner offers greater positional control when the bag must open quickly, move through a filling station, or discharge without the film folding into the product flow. For valve packaging, the liner and valve area must be designed together so that protection, air release, filling speed, and closure performance remain balanced.

The result is a flexible product family rather than one fixed bag. VIDEPAK Woven Bags with PE Liner can be flat or gusseted, coated or uncoated, printed or plain, open-mouth or valve-style, and configured with sewn, heat-assisted, taped, pinch, or block-bottom features. The purpose of customization is not to add options without reason. It is to remove risk with purpose.

The Structural Role of Woven Bags

How the Woven Shell Creates Strength

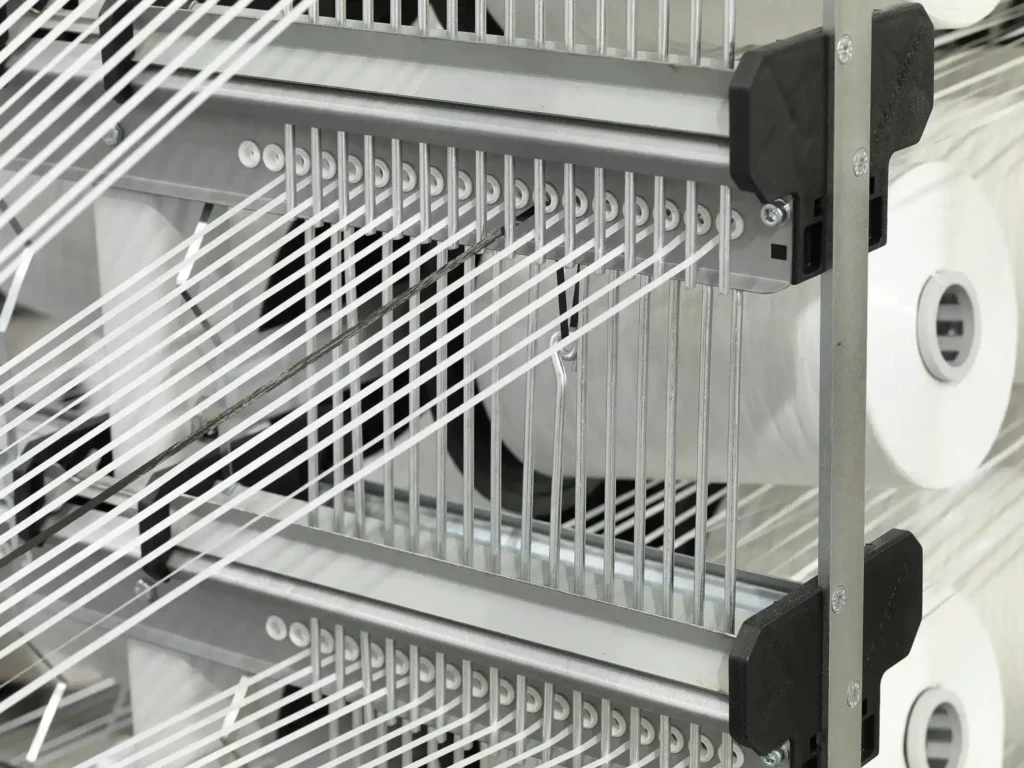

The performance of Woven Bags begins before the fabric exists. Selected Polypropylene resin is melted and formed into film, the film is slit into narrow tapes, and the tapes are drawn to improve their load-bearing properties. Circular looms then interlace the tapes into tubular fabric. This woven geometry allows stress to move across many tapes instead of remaining at one weak point. Industry equipment suppliers describe extrusion, tape stretching, annealing, circular weaving, coating, printing, and conversion as the core sequence used to produce modern woven plastic sacks.

Fabric weight is commonly expressed in grams per square meter, or GSM. A higher GSM normally means more material per unit area, but GSM alone does not guarantee a stronger bag. Tape width, tape thickness, orientation, weave density, resin consistency, seam construction, coating level, and process control also matter. A well-engineered lighter fabric may perform better than a poorly controlled heavier fabric. VIDEPAK therefore evaluates Woven Bags as structures, not as isolated numbers.

VIDEPAK publishes customizable specifications that include approximately 80–150 GSM, sizes from about 40 × 60 centimeters to 120 × 180 centimeters, and nominal filling capacities from 5 to 50 kilograms for its standard PP woven product range. These figures are representative options, not universal recommendations. The final construction must reflect product density, particle shape, filling temperature, drop height, pallet pattern, transport distance, warehouse conditions, and the customer’s safety margin.

The weave is only one part of the package. The bottom seam often receives the highest shock when a filled bag is dropped or set down quickly. The top must provide enough space for clean filling and secure closure. Gussets must open evenly. Printing must remain readable after bending and rubbing. Anti-slip treatment must provide grip without creating feeding problems. In short, the best Woven Bags are strong where they must be strong, flexible where they must be flexible, and controlled where variation would create risk.

The Protective Role of the PE Liner

Barrier Design, Liner Position, and Defect Prevention

The PE Liner is not merely an extra plastic bag placed inside the woven shell. It is the product-contact barrier within Woven Bags with PE Liner, and its design affects moisture protection, powder retention, cleanliness, filling behavior, and discharge. Polyethylene film is flexible, heat-sealable, and adaptable to different thicknesses and resin blends, making it suitable for many dry bulk products. In a composite package, the liner handles barrier duties while the outer Polypropylene fabric handles most mechanical duties.

Liner thickness must be selected rather than guessed. A light PE Liner can reduce package weight and serve products with moderate barrier demands. A thicker PE Liner can provide greater puncture margin, better resistance to rough particles, and more tolerance during insertion and filling, although unnecessary thickness may increase cost and material consumption. VIDEPAK technical content presents a broad customizable liner range of approximately 40–200 microns, while some feed applications commonly use narrower project ranges such as 80–120 microns. The correct value depends on the contents and process rather than on a single universal rule.

Fit is equally important. A liner that is too small may stretch, pull away from the corners, or break when the bag is filled. A liner that is too large may fold, twist, block the filling path, become trapped in a seam, or move during discharge. Length must provide enough allowance for closure without leaving excessive loose film. Width must match the opened volume of flat or gusseted Woven Bags. Where attachment is needed, the position and strength of stitching, tacking, or bonding must hold the liner without creating damage.

Quality assurance must therefore follow the PE Liner from resin to finished bag. Visual inspection can identify obvious folds, dirt, poor seals, or film damage, but visual checks alone are not enough. Dimensional measurement verifies width and length. Thickness sampling checks material distribution. Seal tests evaluate closure integrity. Leak or air-retention methods can help locate holes. Filling trials show whether the liner opens and settles correctly inside the outer Woven Bags. The provided VIDEPAK analysis emphasizes a preventive principle: defects should be controlled where they begin, not discovered after the finished package reaches the customer.

Barrier design must also consider air. Fine powder may trap air during filling, creating a pillow-shaped bag that is difficult to close and stack. However, uncontrolled perforation can reduce moisture and dust protection. The answer is not automatically “more ventilation” or “more sealing.” The answer is controlled air management. Depending on the product, VIDEPAK can evaluate liner venting, micro-perforation, valve structure, filling speed, deaeration time, and pallet compression as one connected system.

Why Polypropylene Is the Structural Foundation

Polypropylene is central to the performance of VIDEPAK Woven Bags because it can be converted into strong, lightweight tapes and woven into a flexible fabric. The drawing stage aligns the polymer structure within the tape, helping the tape resist force along its length. The weaving stage then combines individual tapes into a fabric that bends around products, tolerates repeated handling, and distributes load across intersecting directions. This combination of orientation and weaving is one reason Polypropylene sacks are widely used for dry industrial materials.

Material consistency is essential. Contamination, unstable melt flow, poor additive dispersion, or uncontrolled recycled content can create weak tapes, color variation, uneven stretching, or frequent tape breaks. These problems can move downstream: weak tape becomes weak fabric; weak fabric becomes weak seams; weak seams become damaged pallets. VIDEPAK states that it uses 100% virgin raw material for its standard high-strength PP woven products and applies incoming-material sampling before production. The company also describes batch testing against project requirements and relevant ASTM, EN, JIS, and ISO-based quality controls.

Additives may be selected when the application needs additional functions. UV stabilization can support outdoor exposure. Anti-slip treatment can improve pallet behavior. Color masterbatch can create a defined appearance. Processing aids can support stable extrusion. However, every additive must be considered in relation to product-contact requirements, printing, welding, recycling goals, weather conditions, and service life. Function should be added deliberately—not automatically.

Sustainability should be approached with the same discipline as strength. A bag that fails early wastes the bag and may also waste the packed product, transport space, labor, and energy. Therefore, responsible design begins with using enough material to perform safely, but no unnecessary material. It continues with accurate dimensions, controlled production waste, efficient palletization, clear disposal guidance, and structures that suit available recycling routes. Industry equipment developers are advancing production and recycling systems for woven PP packaging, but actual recyclability still depends on collection, separation, local infrastructure, inks, coatings, attachments, and contamination after use.

Inside the VIDEPAK Factory

A reliable package is the product of a reliable process. The VIDEPAK Factory brings the major manufacturing stages under coordinated quality control, allowing the outer Woven Bags and inner PE Liner to be developed as one system. VIDEPAK states that its production platform includes 16 extrusion lines, more than 100 circular looms, and more than 30 lamination and printing machines. Its published PP woven product information also presents a production capacity of 300 million pieces and identifies 2008 as the year of Factory establishment.

The scale of a Factory is useful only when it is connected to process discipline. More machines without control can produce more variation. For this reason, the VIDEPAK Factory links specifications, approved samples, raw-material records, operating parameters, in-process inspection, finished-product testing, packing instructions, and shipment identification. The objective is repeatability: the first bag, the middle bag, and the last bag should all reflect the approved requirement.

During tape extrusion, temperature, output, stretching, cooling, and winding must remain stable. Tape width and thickness affect fabric weight and strength. During weaving, loom settings influence tape count, fabric width, weave consistency, and the presence of broken or missing tapes. During liner-film extrusion, die condition, air balance, cooling, winding tension, and resin quality influence film thickness and seal behavior. Modern extrusion and circular-loom systems are designed to improve precision, productivity, and process stability, which supports consistent woven packaging when matched with trained operation and maintenance.

Printing is another functional stage, not just decoration. Clear graphics communicate product identity, handling instructions, batch information, safety notices, and market requirements. Ink adhesion, registration, color consistency, barcode space, and rub resistance must be considered alongside coating and fabric texture. A beautiful image that becomes unreadable during distribution has not completed its job. VIDEPAK can coordinate printing with the construction of the Woven Bags, reducing the risk that artwork placement conflicts with gussets, seams, valves, or closing areas.

Conversion brings every component together. Fabric is cut to length, gussets are formed where required, the PE Liner is inserted or attached, and the bottom is sewn, taped, sealed, folded, or formed according to the selected style. At this stage, small alignment errors can have large effects. A seam that is slightly too close to an edge may reduce strength. A liner that extends into the needle path may be punctured. A gusset that does not open evenly may create a twisted filled bag. The VIDEPAK Factory therefore uses first-piece confirmation and in-process checks to detect variation before it expands through the production lot.

Finished-bag testing should reflect real service conditions. ASTM D5034 and ASTM D5035 describe recognized methods for measuring the breaking force and elongation of fabrics, while other test programs may evaluate tearing, seam strength, drop performance, dimensions, UV resistance, coating adhesion, and liner integrity. ISO 9001 provides a framework for a quality-management system focused on consistent output, customer requirements, process control, and continual improvement. The value of a standard is not the name printed on a document; it is the daily control that the standard encourages.

Applications and Specification Guidance

VIDEPAK Woven Bags with PE Liner are suitable for products that create two simultaneous demands: the package must survive physical handling, and the contents must remain separated from moisture, dust, or leakage pathways. Typical markets include animal feed, premixes, food ingredients, grains, sugar, flour, starch, fertilizer, mineral powders, polymer granules, chemical ingredients, construction additives, pigments, salts, and other dry flowable materials. Suitability for a specific product must always be confirmed through material review, regulatory review where applicable, and representative filling and transport tests.

The specification process should begin with the packed product, not with a previous bag drawing. Product density determines volume. Particle shape affects puncture and leakage risk. Moisture sensitivity influences liner thickness and sealing. Filling equipment determines the opening and closure. Pallet dimensions influence bag proportions. Outdoor storage may require UV stabilization. Retail presentation may call for a block bottom or higher-definition printing. A successful specification moves from product to process, from process to package, and from package to proof.

Before mass production, reference samples or custom mock-up samples can help confirm the construction. A reference sample demonstrates general material, sewing, printing, and workmanship, while a custom mock-up reflects the customer’s actual dimensions, artwork, materials, liner, and finishing details. VIDEPAK states that it offers both approaches, with custom samples used to confirm production details before a bulk order.

Testing should then move beyond an empty bag. Fill the bag with the actual product or a technically suitable substitute. Observe how the PE Liner opens. Measure the filling time. Check air release. Close the package with the intended equipment. Drop it in representative orientations. Stack it on the real pallet. Apply stretch wrap or a hood if used. Store it under relevant temperature and humidity. Open and discharge it. The most useful test is not the easiest test; it is the test that resembles reality.

Why Global Buyers Choose VIDEPAK Woven Bags with PE Liner

VIDEPAK offers more than the separate supply of Woven Bags and a PE Liner. It offers coordination between them. Fabric dimensions can be matched to liner dimensions. The closure can be matched to the filling line. Surface friction can be matched to the pallet plan. Printing can be matched to the seams and gussets. Inspection can be matched to the application risk. This integration reduces the gaps where packaging problems often begin.

The VIDEPAK Factory combines established production experience, large-scale manufacturing equipment, customizable construction, and multi-stage quality control. VIDEPAK reports using advanced European production equipment, virgin raw materials for its standard high-strength woven products, incoming-material sampling, and testing related to impact, tensile performance, UV weathering, dimensions, and other agreed requirements. Its opening options include sewn open mouth, valve, pinch-bottom, pasted open mouth, self-opening, gusseted, and drawstring configurations, while bottom options include folded seams, block bottoms, sealed pinch bottoms, and taped or reinforced constructions.

Yet equipment and options are only the beginning. The final value is practical: fewer damaged bags, cleaner filling areas, more stable pallets, clearer identification, better protection from moisture, and greater confidence when goods travel across regions and climates. A strong package protects the product. A well-designed package also protects schedules, reputations, and customer relationships.

From the first resin check to the final shipment count, every stage serves the same purpose: making sure the package performs when performance matters. During filling. During closing. During stacking. During transport. During storage. And, finally, in the hands of the customer.

Woven bags have become indispensable in various industries due to their strength, durability, and versatility. One specific type that has garnered widespread attention is woven bags with PE liners. These bags are primarily used for packaging goods that require extra protection from moisture, contaminants, or even mechanical damage. Industries ranging from agriculture to chemicals and food packaging rely on woven sacks with liners to safeguard their products.

In this article, we will explore what woven bags with liners are, how they are manufactured, and the most common quality issues found in these bags. In addition, we will discuss how stringent testing methods, including those used by companies like ours, ensure that the bags meet all required specifications. We perform comprehensive tests on factors like thickness tolerance, edge finish, tensile strength, impact resistance, UV resistance, and environmental compliance to guarantee the high quality of woven bags with PE liners.

What Are Woven Bags with PE Liners?

Woven bags with liners consist of a woven polypropylene or polyethylene outer layer and a flexible PE (Polyethylene) liner inside. The woven outer layer provides structural strength, while the PE liner adds an extra layer of protection, particularly against moisture and other contaminants.

• Outer Layer: The outer part of the bag is made from woven polypropylene (PP) or high-density polyethylene (HDPE). This material offers high tensile strength, making the bag durable and resistant to tearing.
• Inner Layer (PE Liner): The PE liner is either sewn or inserted into the bag, creating an additional barrier against water vapor, dust, and chemicals. Liner PE bags are particularly effective for packaging goods like fertilizers, grains, and chemicals that require protection from moisture.

Aluminum liner bags are a similar variant, where the inner liner is made from aluminum foil instead of polyethylene. These bags are used for products that require additional protection from light, air, and extreme temperatures, such as pharmaceuticals and sensitive chemicals.

Common Quality Issues in Woven Bags with PE Liners

As versatile as woven bags with PE liners are, they are not without their challenges. In the manufacturing process, several quality issues can arise that compromise the integrity of the product. Understanding these issues is essential to ensure the effectiveness of these bags and their ability to perform in different environments.

1. Thickness Tolerance

The thickness of both the woven fabric and the PE liner must be consistent throughout the bag. Variations in thickness can lead to weak spots that might tear or allow moisture to penetrate the liner. Our company ensures that the thickness tolerance is strictly controlled through state-of-the-art testing equipment.

2. Uneven Cutting and Jagged Edges

Poorly cut bags with jagged or uneven edges can weaken the overall structure of the bag. This issue occurs when the cutting equipment is not calibrated correctly or when the cutting blades are dull. We conduct tests to ensure that the cut is clean and uniform, reducing the chances of tearing or unraveling.

3. Color Consistency and Dyeing Quality

Woven sacks with liners are often dyed in various colors to match customer specifications or brand requirements. Inconsistent color or poor dyeing can result in aesthetic issues and sometimes even weaken the structural integrity of the material. Our facilities perform comprehensive color variance tests to ensure consistent color across batches.

4. Grammage (Weight) Tolerance

The grammage or weight of the woven fabric is another important quality metric. Bags with inconsistent weights may lack the required strength, making them more prone to failure during use. We conduct weight tolerance tests to ensure that every batch of bags meets the specified weight range, ensuring product durability.

5. Tensile Strength and Elongation

One of the most critical factors in determining the quality of woven bags with PE liners is their tensile strength and elongation properties. A bag with low tensile strength will tear easily, while one with inadequate elongation will not be flexible enough to withstand the stress of transportation and handling. Our testing protocols include checking both the tensile strength and elongation properties of both the raw material (tapes) and the finished bags.

Table 1: Main Points and Key Sections
Section
Introduction
Types of Woven Bags with Liners
Common Quality Issues
Our Company’s Testing Process
Impact Resistance
UV Resistance and Aging
Environmental Testing
Conclusion

6. Impact Resistance

Woven bags with liners are often subject to rough handling during loading, unloading, and transportation. If the bag is not impact-resistant, it can tear or the PE liner can rupture, exposing the contents to external elements. We test the impact resistance of both the woven fabric and the PE liner to ensure that the bags can withstand the physical stresses they will encounter in the field.

7. UV Resistance and Aging

Woven bags with PE liners are often exposed to the sun for extended periods, especially when used in industries like agriculture or construction. Without adequate UV resistance, the material will degrade quickly, losing strength and integrity. To address this, we conduct UV resistance tests, ensuring that the bags can withstand prolonged sun exposure without significant degradation.

In addition to UV resistance, it is crucial to evaluate the aging properties of both the woven fabric and the liner. Over time, materials can become brittle or lose flexibility, especially when subjected to varying environmental conditions. Our aging tests simulate long-term exposure to the elements, ensuring that the bags remain effective throughout their expected lifespan.

8. Environmental Compliance and Sustainability

In today’s environmentally conscious market, there is increasing demand for packaging solutions that are not only functional but also sustainable. Liner PE bags are recyclable, and our company goes to great lengths to ensure that our manufacturing process adheres to environmental regulations. We test for environmental compliance by evaluating the recyclability of the materials used, ensuring minimal environmental impact.

Our testing process also includes checking for the presence of harmful chemicals, ensuring that the bags meet regulatory standards for eco-friendliness and safety.

Our Comprehensive Testing Procedures

Ensuring the highest quality in woven bags with liners requires rigorous testing at every stage of the production process. Below is an overview of the testing measures we implement to guarantee the durability, strength, and environmental compliance of our products.

Test	Purpose
Thickness Tolerance Testing	Ensures consistent material thickness across the bag
Cut Quality and Edge Finish	Verifies clean and uniform cutting to prevent weak spots
Color Consistency Testing	Ensures even color distribution and aesthetic quality
Weight (Grammage) Testing	Confirms that the fabric weight meets specified tolerances
Tensile Strength and Elongation	Measures the strength and flexibility of both the raw material and finished product
Impact Resistance	Ensures the bag can withstand rough handling and transportation
UV Resistance	Verifies that the bags can endure prolonged sun exposure
Aging Tests	Simulates long-term exposure to environmental conditions
Environmental Compliance	Ensures that the materials used are eco-friendly and recyclable

Future Directions for Woven Bags with Liners

With growing emphasis on sustainability and efficiency, the future of woven bags with liners will likely include innovations in both materials and production methods. Advancements such as biodegradable liners, improved recyclability, and more efficient manufacturing processes will help reduce the environmental impact of these products while maintaining their durability and strength.

One emerging trend is the use of aluminum liner bags for more specialized applications, such as pharmaceuticals and high-end food products. These bags offer unparalleled protection against light and air, making them ideal for sensitive goods. However, there is also a growing push for hybrid solutions, where PE and aluminum liners are combined for maximum effectiveness.

In addition, automation in quality testing is poised to play a significant role in the future of the industry. Automated testing systems can provide real-time feedback on parameters such as thickness, tensile strength, and impact resistance, allowing manufacturers to maintain consistent quality while reducing human error.

Summary

Woven bags with PE liners offer unmatched durability and protection in various industrial applications. However, quality control remains a crucial aspect of their production. From thickness tolerance to tensile strength, manufacturers must ensure that every bag meets stringent quality standards to maintain its structural integrity and functional properties.

Our company stands out in the industry by conducting comprehensive tests on factors like edge finish, color consistency, UV resistance, and environmental compliance. By addressing the most common quality issues and employing rigorous testing procedures, we ensure that our woven fabric bags with liners are durable, sustainable, and capable of meeting the diverse needs of our clients.
