The Product Architecture Behind VIDEPAK FIBC

VIDEPAK designs flexible intermediate bulk containers for dry, flowable solids such as powders, granules, flakes, seeds, minerals, resins, fertilizers, construction materials, and food ingredients. Industry guidance describes FIBCs as flexible woven containers that are mechanically handled by integral lifting devices and commonly customized for filling, discharge, barrier performance, and handling. Typical product loads are often in the 500–2,000 kg range, although the final safe working load must always be established by the approved design, test data, product density, and handling plan.

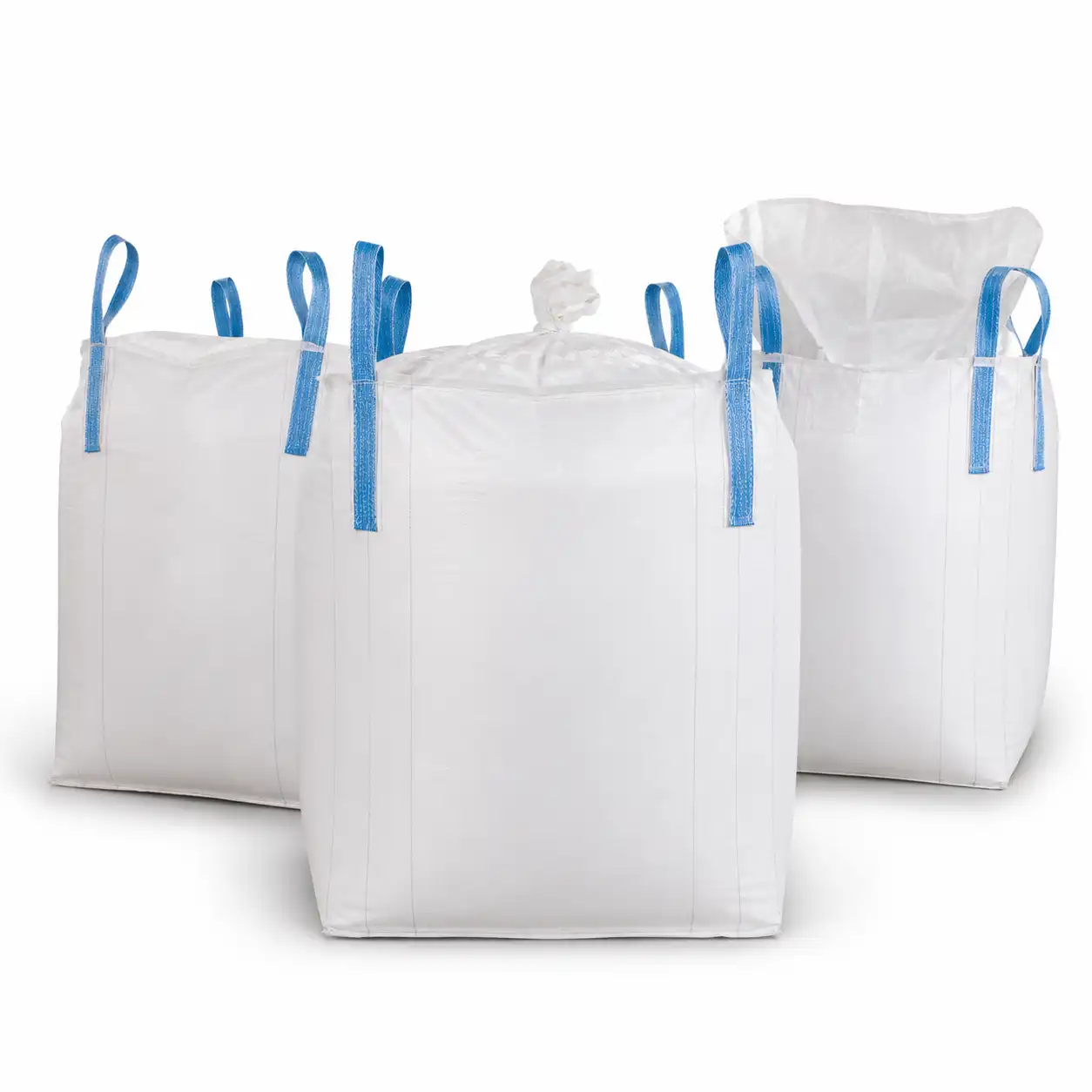

In VIDEPAK’s product range, the same basic container may be called Jumbo Bags, Bulk Bags, or Ton Bags. The names vary by market; the engineering task does not. Each unit combines woven polypropylene fabric, lifting loops, seams, a selected inlet, a selected outlet, and optional additions such as coating, a polyethylene liner, baffles, sift-resistant sewing, document pockets, or electrostatic control. VIDEPAK lists U-panel, circular, four-panel, and baffle constructions, together with four-loop and tunnel lifting handling options.

This fabric–form–function relationship is the core of VIDEPAK’s product analysis. A wide inlet may improve loading speed but reduce containment. A narrow outlet may improve dosing but slow a cohesive powder. A square baffle body may improve container use but requires careful liner and flow-window design. The strongest-looking option is not always the best option, and the cheapest option is not always the lowest-cost option. The correct design balances speed with control, access with protection, and simplicity with repeatability.

Top Opening Systems: How the Product Enters

VIDEPAK’s main top choices are open top, duffle top, flap top, and Filling spout. Industry guidance confirms that top selection should be based on filling method, available equipment, required packaging rate, dimensional limits, product behavior, and electrostatic or flammable conditions. Inlet geometry changes access, dust release, product exposure, operator movement, and the ease of connecting to a filler.

open top: maximum access and minimum closure

An open top FIBC has a fully accessible upper opening and no integral top closure. It is the most direct format: position the bag, support the loops, load the product, and move the filled unit according to the approved handling method. Because there is no skirt, panel, or spout to connect or close, the open top is efficient for coarse, irregular, or non-dusty products loaded by shovel, loader bucket, wide chute, grab, or conveyor.

The commercial strength of the open top is its simplicity. It usually needs fewer components and fewer operator steps. Its operating weakness is also its simplicity: after filling, the material remains relatively exposed unless a separate cover, liner closure, or external protection is used. For soil, rocks, landscaping material, scrap, construction debris, and large mineral pieces, this exposure may be acceptable. For fine food powders, dusty chemicals, hygroscopic products, or clean production areas, it may be a poor fit. VIDEPAK therefore treats the open top as an access-first design, not a universal low-cost default.

duffle top: wide filling with a closeable skirt

A duffle top adds a lightweight tubular skirt around the full upper opening. During filling, the skirt can be pulled open so the usable access is almost as broad as the bag body. After filling, the operator gathers and ties the skirt. This gives the duffle top a valuable middle position: more access than a narrow spout, more protection than an uncovered open top.

The duffle top suits operations that use several filling chutes, have changing outlet sizes, handle coarse or mixed particle sizes, or need visual access during loading. Typical applications include seeds, beans, feed, plastic regrind, aggregates, granular chemicals, minerals, and other products that fill easily but still need a practical closure for transport. It is forgiving. That matters when plant equipment is not standardized.

However, “closeable” does not automatically mean “dust-tight.” A gathered skirt can leave folds and air paths, and a wide opening may release displaced air quickly during fast filling. If dust containment is critical, VIDEPAK may recommend coated fabric, sift-resistant seams, a liner, dust extraction, or a different inlet. The duffle top is flexible, but flexibility must be supported by process controls.

flap top: a cover without changing the basic fill path

A flap top uses a fabric cover panel that folds across the top opening and is secured after filling. Depending on the final drawing, the flap may cover a broad opening or protect a closed inlet beneath it. VIDEPAK positions the flap top for customers who need faster, simpler access than a full skirt but want more protection against incidental contamination, light weather exposure during controlled handling, or product movement in transit.

The flap top is especially useful where operators already load through a broad chute and do not want to gather a tall skirt after every cycle. It can reduce closure time, keep the top surface tidier, and support clear label or document placement. Yet it should not be confused with a sealed barrier. For fine powders, strict hygiene, or moisture-sensitive material, the flap normally works best with a properly closed liner or another engineered containment layer. A flap top protects; it does not by itself create a closed transfer connection.

Filling spout: controlled connection to filling equipment

A Filling spout is a cylindrical inlet sewn into the top panel and sized to the customer’s filling head, chute, or clamp collar. It concentrates the product path, allows the bag to connect more closely to equipment, and can reduce dust and spillage when the dimensions and closure method are correct. The spout can be tied or otherwise secured after filling. For automated or semi-automated lines, the Filling spout often delivers the best repeatability because each bag presents the same defined interface to the filler.

The Filling spout is well suited to cement, starch, flour, fine minerals, resins, masterbatch, fertilizer, and powdered chemical products. It supports cleaner filling, more stable weighing, and easier dust extraction. The trade-off is tolerance. A spout that is too short may not clamp safely; one that is too long may fold and restrict flow; one that is too narrow may choke a fluffy or lumpy product. For this reason, VIDEPAK asks for filler-nozzle diameter, required spout length, clamp method, venting arrangement, fill rate, and headroom before finalizing the drawing.

Bottom Systems: How the Product Leaves

Bottom design has a direct effect on discharge speed, flow control, dust release, residual product, operator position, and the type of receiving equipment required. VIDEPAK’s core options are flat bottom, duffle bottom, and discharge spout, with additional protective flaps, safety closures, or conical forms available where the process demands them. Industry guidance identifies controlled discharge, discharge method, desired rate, spout dimensions, headroom, hoist design, and electrostatic conditions as key selection factors.

flat bottom: sealed simplicity for one-way handling

A flat bottom is a closed base without an integral emptying outlet. It gives the bag a simple, robust lower structure and is often selected when the receiver plans to tip the container, vacuum the contents, or cut the base with an approved long-handled device inside a protected discharge station. The flat bottom can be economical and structurally direct because it avoids an extra outlet assembly.

The flat bottom fits one-way movements of sand, stone, waste, scrap, and products discharged into a process that already uses a cutting system. It is less suitable where the customer needs controlled dosing, reclosure, clean connection to a hopper, or repeated partial emptying. Cutting is normally irreversible. It can also place the operator near the discharge zone unless the plant uses a properly designed support and remote method. Industry safety guidance states that a lifted FIBC should be secured over a support and that people must not stand or place body parts under an unsecured suspended bag.

discharge spout: controlled, connectable, and repeatable

A discharge spout is a cylindrical outlet built into the bottom panel. It may use ties, a star closure, a petal closure, an iris-style control device, or a protective outer flap, depending on the customer’s process. When the bag is placed above a hopper or feeder, the discharge spout can be opened in stages and connected to a receiving sleeve, helping control flow and limit dust.

This design is the strongest general-purpose choice for powders, pellets, grains, food ingredients, chemicals, and minerals that must enter a mixer, silo, screw feeder, or process vessel. A smaller discharge spout can improve dosing but may slow cohesive material. A larger discharge spout increases flow but may reduce control. The correct diameter and length depend on particle size, bulk density, moisture, bridging tendency, required discharge time, and the receiving connection. VIDEPAK therefore engineers the outlet around product flow—not around a standard dimension used by habit.

For fine material, the discharge spout is often paired with coated fabric, sift-resistant seams, a liner outlet, and a dust-control docking system. For hygiene-sensitive applications, a form-fit liner can align with the outlet and reduce folds where product may remain. Industry guidance notes that form-fit liners can support improved filling and more complete discharge, while coatings and filler cord can reduce sifting through seams.

duffle bottom: full opening for speed and difficult material

A duffle bottom uses a full-width skirt or releasable base that opens across most or all of the bag bottom. Once the closure is released, the product drops rapidly. This makes the duffle bottom useful for coarse granules, damp agglomerates, clumpy products, biomass, regrind, feed, and other materials that may bridge in a narrow outlet.

The main advantage is speed. The main risk is speed. A duffle bottom offers limited metering once fully opened, so the discharge station must be large enough to receive the surge, and dust capture must be designed for the sudden movement of material and air. The closure sequence also matters: an outer protective panel, safety tie, or staged release can help the operator prepare the bag before full flow begins. VIDEPAK recommends a duffle bottom when fast, nearly complete emptying is more important than fine dosing.

Protective and special bottom options

A protective bottom flap can cover a tied discharge spout, shielding it from dirt, accidental snagging, and handling damage. A conical bottom can guide material toward the center and help products that tend to remain in corners, although the full result still depends on product cohesion and the receiving frame. These additions increase component count and sewing work, but they can reduce product loss and improve line fit. In good FIBC engineering, extra fabric is justified only when it removes a real operating problem.

Top-and-Bottom Application Matrix

A top and a bottom should never be selected independently. The inlet answers the question “How do we load?” The outlet answers “How do we empty?” The best configuration creates a smooth path from the first hopper to the final receiver. The table below summarizes common combinations for VIDEPAK Jumbo Bags, Bulk Bags, and Ton Bags.

For a dusty powder line, the strongest pairing is often Filling spout plus discharge spout. The flow path can be connected at both ends, and the liner can be formed around both openings. For a mixed-size agricultural product, duffle top plus discharge spout offers easier filling and practical flow control. For demolition waste, open top plus flat bottom may be sufficient. For wet clumps or bulky regrind, duffle top plus duffle bottom provides the widest path in and the widest path out.

Visual selection flow

Materials, Construction, and Typical Parameters

Top and bottom options cannot perform well if the body, loops, liner, and seams are poorly matched. VIDEPAK begins with product density and target net weight, then uses the required volume to establish footprint and height. Industry guidance recommends considering bulk density, safe working load, particle size, moisture, barrier needs, flow behavior, static build-up, filling temperature, food requirements, pharmaceutical requirements, and dangerous-goods status before the design is fixed.

Coated fabric can reduce sifting and incidental moisture entry, while uncoated fabric allows more air movement. A liner adds another barrier between the product and the woven shell. A simple tubular liner is cost-effective, but a form-fit liner follows the bag shape and can align more accurately with a Filling spout and discharge spout. For fine powders, VIDEPAK may combine coating, liner, and sift-resistant seams because no single layer solves every leakage path.

Baffles are internal fabric panels that limit outward bulging and help the filled FIBC remain more square. This can improve pallet presentation, warehouse alignment, and container-space use. However, the baffle openings must allow the product to spread evenly, and the liner must be designed so it does not block those flow paths. For customers ordering Jumbo Bags as part of a container-optimization project, body shape can be as important as nominal capacity.

Safety, Standards, and Quality Control

A reliable FIBC Bags Supplier must convert the commercial specification into a testable product. ISO 21898 covers construction, design, type testing, and marking for FIBCs used with non-dangerous goods, while electrostatic selection is addressed through IEC 61340-4-4. Dangerous-goods applications may require UN performance requirements and the relevant transport rules. EFIBCA guidance also emphasizes that selection should consider product weight and type, filling temperature, number of cycles, filling method, transport, storage, discharge, food requirements, dangerous goods, and electrostatic characteristics.

VIDEPAK’s quality approach should begin before sewing. Resin and tape properties influence tensile performance; weaving consistency affects fabric behavior; cutting accuracy affects finished dimensions; sewing controls how forces move into loops and seams; and outlet assembly controls leakage and release. Inspection should therefore include material checks, dimensions, seam condition, loop placement, top and bottom geometry, closure parts, liner fit, print content, label content, and final packing.

Electrostatic risk requires special attention because moving powders can generate charge during both filling and discharge. Type A offers no electrostatic protection. Type B is designed to prevent certain high-energy propagating brush discharges but is not groundable. Type C uses conductive elements and must be grounded during use. Type D uses dissipative fabric and is designed to work without grounding under its approved conditions. The correct type depends on powder ignition sensitivity, flammable gas or vapor, dust atmosphere, liners, coatings, and operating controls; it cannot be selected from product name alone.

Marking and traceability are equally important. Labels should identify the approved safe working load, safety factor, construction reference, manufacturer or supplier details, production information, applicable standards, and handling symbols. For dangerous goods, the required UN markings and test references must be controlled. A professional FIBC Bags Supplier keeps drawings, specifications, labels, test reports, and production records aligned so that the bag delivered is the bag that was approved.

VIDEPAK Selection Workflow and Commercial Value

VIDEPAK approaches an inquiry as a process study. First, define the product: bulk density, particle distribution, moisture, flow, temperature, sensitivity, and contamination limits. Second, define the load: net weight, bag volume, pallet footprint, container pattern, and stacking plan. Third, define the interfaces: filling-head dimensions, available headroom, hoist or forklift method, discharge-frame dimensions, required emptying time, and dust extraction. Fourth, define the safety envelope: single-trip or approved reuse, electrostatic type, food-contact needs, and dangerous-goods status.

Only after those inputs are clear should the top and bottom be selected. An open top is right when unrestricted access has more value than closure. A duffle top is right when a wide mouth and a practical tie-off must coexist. A flap top is right when a fast cover is needed without a tall skirt. A Filling spout is right when connection, containment, and repeatability lead the decision. At the bottom, a flat bottom is right for simple one-way release, a discharge spout is right for controlled transfer, and a duffle bottom is right for rapid full opening.

This method gives buyers more than a product list. It gives them a reasoned specification. Better fit can reduce line stoppages, spilled material, dust cleaning, slow knotting, incomplete discharge, unstable pallets, and last-minute equipment modifications. The bag becomes easier to buy because the acceptance points are visible: dimensions, tolerances, closure details, liner arrangement, safe working load, label, tests, and packing method.

As a specialized FIBC Bags Supplier, VIDEPAK’s role is to connect customer language with engineering language. “We need faster loading” may point to open top or duffle top. “We need less dust” may point to Filling spout, coated fabric, and a liner. “We need complete emptying” may point to a larger discharge spout, a conical base, or duffle bottom. “We need better container use” may point to baffles and a revised footprint. Each answer starts with the process, not the catalog.

VIDEPAK Jumbo Bags, Bulk Bags, and Ton Bags are therefore best understood as configurable bulk-handling systems. The top receives. The body carries. The bottom releases. When those parts are selected together, the result is not merely a bag that holds one ton; it is a controlled link between production, logistics, storage, and use. That is the standard a capable FIBC Bags Supplier should meet—and the value VIDEPAK is positioned to deliver.
