Product Analysis of PP Woven Bag Structures and Manufacturing Logic

In industrial packaging, shape is never just shape. It is filling speed, leakage control, pallet stability, shelf effect, freight efficiency, and after-sales risk, all folded into one visible result. For a professional PP Woven Bags manufacturer, the real product is not only the bag itself; it is the match between resin, tape, fabric, lamination, conversion method, and the filling line used by the customer. That is why Gusset, Block Bottom, Pinch Bottom, Hemmed Open Mouth, and Double Fold Double Stitch Bottom are not small finishing choices. They are structural answers to different market needs.

Table compiled from VIDEPAK product pages and technical manufacturing notes, together with converting-line descriptions from industrial machinery suppliers.

The shared manufacturing backbone behind every structure

Before one bag becomes a Gusset bag or a Block Bottom bag, it begins the same way. Polypropylene resin, usually selected for stiffness and strength, is blended with a small additive package such as antioxidants, UV stabilizers, slip agents, antiblock agents, and, when needed, antistatic components. The melt flow rate is chosen to match tape extrusion speed, and the compound is then fed into the extrusion line. In short: resin first, geometry later. That order matters, because unstable raw material cannot be fixed by a clever bottom seam.

The resin is melted in an extruder, pushed through a flat die into film, cooled, slit into narrow tapes, and then drawn in a heated zone so the polymer chains align and gain strength. VIDEPAK’s technical process guide describes extrusion temperatures around 150–220°C, initial sheet thickness around 0.3–0.8 mm, tape widths commonly around 2–5 mm, and draw ratios commonly around 5–7×, all of which directly affect denier, tensile behavior, and creep. This is the real beginning of bag performance. The bag may look simple later, but its strength was decided here, upstream, where the tape learned how to carry load.

This process map follows VIDEPAK’s published end-to-end manufacturing sequence and product conversion logic.

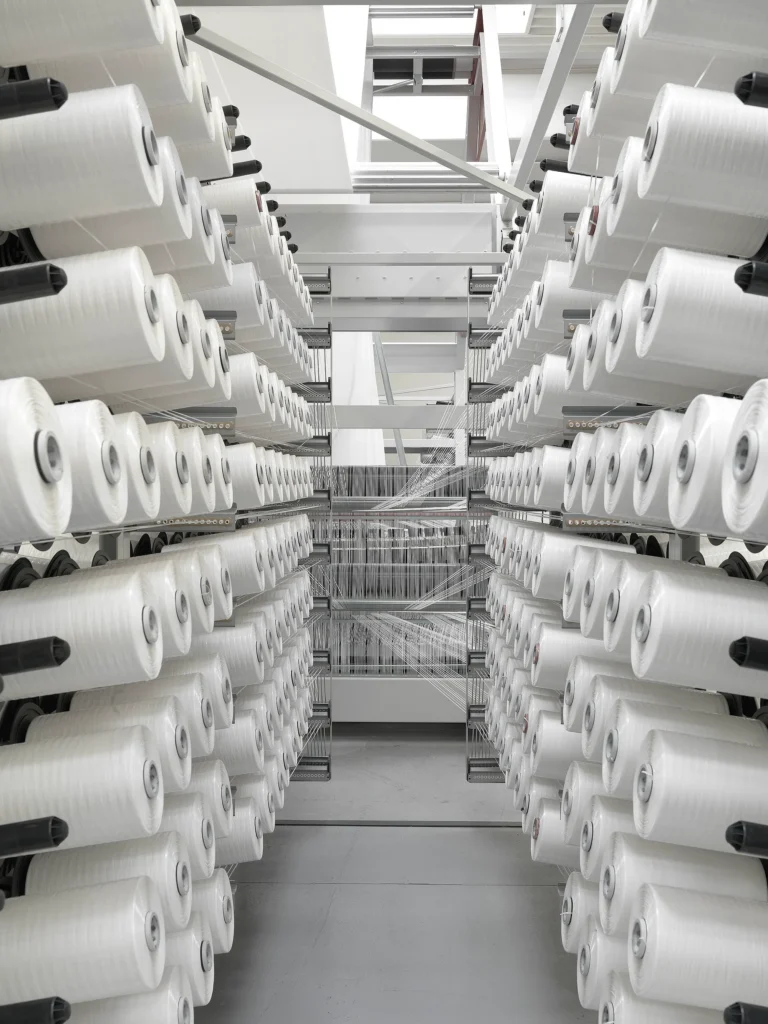

After drawing, the tapes are woven into fabric, most often on circular looms for tubular fabric and sometimes on flat looms for panel-based conversions. Typical woven fabric for industrial bags sits in the broad range of about 60–200 g/m² depending on duty level. VIDEPAK’s product pages place common commercialization ranges around 80–150 GSM for general PP woven bags, while open-mouth bags often sit in a mainstream zone around 70–120 g/m² and heavier duty formats can rise further. Mesh, denier, and coating are then tuned to the load, the product flow behavior, and the barrier target.

From there, the line splits. Some fabrics remain breathable and uncoated. Some are extrusion coated with PP or PE to gain moisture resistance and sealability. Some are laminated with reverse-printed BOPP film to deliver sharper graphics, better scuff resistance, and a smoother converting surface. That lamination decision is crucial later, because sewn bottoms, hot-air sealed bottoms, and pinch-sealed closures do not ask the same things from the substrate. One structure wants fabric softness, another wants sealable skin, a third wants the visual polish of a retail pack. Same backbone. Different finish. Different purpose.

How each bag structure is actually made

Making the Gusset

A Gusset is a side-folded geometry added to the tube or panel so the bag can open into a more box-like shape when filled. In market terms, it improves cube efficiency and makes the bag look fuller and more stable. In converting terms, it is a precision folding job. VIDEPAK notes that Gusset structures improve volume efficiency and produce a more box-like filled sack; its product pages also position the gusseted type as the expandable option in the line.

Manufacturing usually follows one of two paths. In a reel-to-reel path, the printed or unprinted fabric roll passes through a dedicated gusset line where a twist device and gusset-forming unit create the side folds continuously before final cutting. In an inline piece-conversion path, the roll is unwound with EPC control, a mark sensor reads the print register, micro-perforation can be added if needed, infrared-assisted forming creates the Gusset, and then the body is cut, bottom-folded, sewn, counted, and stacked. Machinery suppliers describe gusset depths around 50–90 mm and processing widths that cover mainstream industrial sack formats.

What is shared with other structures? The same woven substrate, the same dimensional control, the same cutting and stacking logic. What is different? The folding zone is now a quality gate of its own. If the left and right folds are uneven, the bag loses its shape, the print drifts away from the visual center, and the downstream bottom seam no longer sits square. For a marketing-driven package, that is not a small defect. It is a brand defect.

Making the Block Bottom

A Block Bottom bag aims for one clear result: a flat rectangular base that lets the bag stand upright, stack neatly, and present clean front and side panels. VIDEPAK describes Block Bottom as a self-standing design with better stacking stability and palletisation efficiency, and its product portfolio places this structure in both open-mouth and valve-oriented industrial formats. That makes Block Bottom not only a technical structure, but also a retail and warehouse structure; it improves the first glance and the last mile at the same time.

The manufacturing route is more demanding than a simple sewn bag. Machinery suppliers for PP woven conversion lines describe a sequence with unwinding, perforation, servo feeding, color-mark sensing, cross-cutting, bottom opening, bottom close forming, and bottom patch forming, all tied together by hot-air sealing systems. These lines are explicitly designed for coated PP woven and BOPP-laminated woven substrates, which is logical: the structure depends on a sealable surface and accurate bottom geometry. In some lines, the same platform can make both Block Bottom valve sacks and Block Bottom open-mouth sacks.

So what is different here? With a Block Bottom, the bottom is not merely closed. It is engineered. Panels must open, fold, align, and lock into a square footprint. When that footprint is correct, the bag self-stands and uses pallet space better. When it is wrong, the bag may lean, wrinkle, or lose stacking confidence. In a plain sewn sack, a few millimeters of variance may be tolerated. In a Block Bottom, those few millimeters can become visible instability. Geometry is unforgiving. Geometry is also persuasive.

Making the Pinch Bottom

A Pinch Bottom bag is built around sealed geometry rather than stitched geometry. VIDEPAK’s technical materials describe pinch-bottom open-mouth logic as one where the manufacturer side is sealed during conversion and the customer side is later sealed after filling by activating a pre-applied adhesive or heat-seal system. Its BOPP laminated bag analysis further notes that Pinch Bottom structures are often selected when dust-proof or near-airtight performance is needed for powders, flour, sugar, or chemicals.

In practice, modern woven PP Pinch Bottom conversion starts with flat or side-gusseted laminated fabric. Machine makers describe fully automated systems that first form a tube from flat fabric, then separate pre-perforated bag sections, and finally seal the bottom by hot air; other suppliers note that the pinch-sealed bottom can be formed with hot air or hot glue. The material choice is not random. BOPP-laminated woven PP gives the structure tear resistance, low weight, and a high-quality printable surface, while the sealed end avoids needle holes.

Compared with a sewn format, the Pinch Bottom route demands tighter control over seal chemistry, seal dwell, edge preparation, and bag section perforation. Yet it also pays back in cleaner appearance and better leak resistance. Put differently: the sewn bag says “strong enough.” The Pinch Bottom bag says “strong, clean, and controlled.” That difference matters in higher-value feed, food-adjacent, and branded industrial categories where dust leakage and poor shelf face quickly become commercial problems.

Making the Hemmed Open Mouth

The Hemmed Open Mouth structure looks modest, but it solves a real operating problem. A cut woven edge can fray, snag, and feed less cleanly into filling or sewing equipment. A hemmed mouth folds that edge inward and stitches it, creating a smoother, reinforced opening. VIDEPAK describes the double-folded edge at the opening as a method that improves appearance, reduces fraying and snagging, and supports more consistent closure on higher-friction equipment paths. Another official technical note places common hem geometry in the range of about 20–40 mm.

From the manufacturing side, the top finish can be done as part of a fully automatic inline conversion sequence or as a separate hemming step. Dedicated top-hemming machinery is offered for both laminated and non-laminated woven bags, with or without inserted liners, and with automatic alignment of the bag mouth and inner PE liner. Supplier descriptions show two equipment approaches: a standalone top-hemming machine for bag-top finishing, and an all-in-one cutting-sewing-hemming line that converts fabric rolls directly into finished Hemmed Open Mouth bags.

In similarity, Hemmed Open Mouth still lives on the same cut-and-sew backbone as many open-top sacks. In difference, it adds a controlled top preparation step rather than a more complex bottom-forming step. It does not radically change the bag body, but it improves line friendliness, visual cleanliness, and the small details customers notice only when they go wrong. That is the beauty of good converting: quiet improvements, visible results.

Making the Double Fold Double Stitch Bottom

The Double Fold Double Stitch Bottom is the classic workhorse. It answers a simple question with a practical answer: how do we get a strong factory-closed bottom at reasonable cost, across high volume, on common filling lines? VIDEPAK’s BOPP laminated bag analysis defines this structure clearly: the bag bottom is folded twice and sewn with two stitch lines using high-strength thread. The result is economical, strong, and widely used, though the needle holes mean it is not fully leakproof without added tape or seal support.

The making process is straightforward but must be disciplined. The woven tube or panel is cut to length, the bottom edge is folded once, then again, after which two parallel stitch lines are sewn through the layered section. Depending on the product and barrier requirement, converters may add a PP or LDPE tape over the seam, or use tape-over-sew logic, to reduce leakage through stitch holes and improve moisture resistance. VIDEPAK’s general product page lists fold-over stitching, fold-over stitching with PE tape, and heat-sealed tape stitching among its offered seam logics.

This is where sewn bags stay powerful in the market. The Double Fold Double Stitch Bottom does not try to imitate a carton. It does not try to be a fully sealed pouch. It focuses on proven seam strength, broad equipment compatibility, and cost discipline. For feed, grains, mineral products, and many 25–50 kg industrial packs, that is exactly the right answer. Not flashy. Not fragile. Just right.

What these structures share and where they truly diverge

At first glance, these structures seem to belong to different worlds. In fact, they share a large common core. The raw resin system is the same. Tape extrusion and drawing are the same. Weaving is the same. Heat-setting, coating, lamination, and printing are mostly the same optional modules. Even in conversion, unwinding, positioning, cutting, counting, and stacking recur again and again. The divergence begins when the bag must solve its final job: expand, stand, seal, feed, or carry.

Comparison compiled from VIDEPAK product analysis pages and official descriptions of hemming, gusseting, hot-air sealing, and pinch-bottom conversion systems.

There is also a clear material split. Hemmed Open Mouth and Double Fold Double Stitch Bottom can work well on simple woven bodies, as well as on coated or laminated ones. Gusset can be added to almost any of those bodies if the folding precision is maintained. But Block Bottom and Pinch Bottom more often lean toward laminated or coated substrates, because their sealing logic depends on a clean, sealable surface. The conclusion is simple and useful: the richer the geometry, the more the material system must cooperate.

The equipment chain that turns design into repeatable production

A serious PP Woven Bags manufacturer does not sell structure alone. It sells repeatability. That repeatability comes from equipment arranged in a disciplined chain: extrusion line, drawing oven, winding system, circular or flat weaving, heat-setting/calendering, coating or lamination, flexo or gravure printing, then conversion lines dedicated to cutting, sewing, hemming, gusseting, sealing, liner insertion, stacking, and baling. VIDEPAK’s manufacturing article lays out this full chain and adds the quality gates that keep each stage under control.

Equipment chain summarized from VIDEPAK’s process article and official converting-line descriptions from machinery suppliers.

Process control matters just as much as the machine list. VIDEPAK highlights melt temperature, die gap, draw ratio, oven temperature, and web tension in the tape stage; warp and weft tension in weaving; coating weight, nip pressure, and curing in lamination; print registration and drying in printing; then seam, seal, and dimensional checks in final conversion. This sequence reads like operations language, but it is also commercial language. A bag that prints well yet fails the seam test is not a premium product. A bag that passes tensile tests yet feeds poorly on the customer’s line is not a premium product either. Quality must travel through the full chain, not stop at one station.

The proving ground is quality control. VIDEPAK lists tensile, elongation, burst strength, seam strength, seal strength, GSM, coefficient of friction, drop testing, and leak testing among the common checks. These tests explain why one structure is chosen over another. If the main risk is seam rupture, the answer may be Double Fold Double Stitch Bottom. If the main risk is dust leakage, the answer may be Pinch Bottom. If the main risk is pallet instability, the answer may be Block Bottom or a well-controlled Gusset. Test data should lead the design, not follow it.

A detailed VIDEPAK view of PP woven bags as a product platform

From VIDEPAK’s market-side product positioning, PP Woven Bags are not a narrow category. They are a configurable platform built around woven polypropylene fabric and expanded through coating, lamination, liner insertion, surface treatment, and closure architecture. Official product information lists customizable thickness, grammage, size, and capacity; the general category commonly covers 5–50 kg applications, with general PP woven products often in the 80–150 GSM band, while open-mouth sacks and BOPP laminated builds may move within narrower task-driven windows depending on graphics, barrier, and load needs.

That platform logic is why VIDEPAK can present flat type, Gusset type, fold-over stitching, tape-reinforced seams, heat-sealed seam options, Block Bottom forms, waterproof PE-lined versions, and BOPP laminated versions inside the same family. The body may stay woven PP, but the function can shift from breathable grain sack to moisture-protected fertilizer bag to print-heavy pet food format. One base, many answers. One material family, many market stories.

Selection matrix synthesized from VIDEPAK’s product pages and structure-specific technical notes.

The surface layer matters as much as the shape. VIDEPAK explains that BOPP laminated woven bags combine woven PP strength with the printability and barrier support of laminated films. Its BOPP analysis places the woven base commonly around 60–120 gsm, total thickness commonly around 90–130 μm, denier commonly around 500D–2000D, and product capacities commonly around 5–40 kg for those branded laminated builds. This makes the BOPP route especially useful when Gusset, Block Bottom, or Pinch Bottom must work not only as structures, but as graphic selling surfaces. Strength carries the load. Print carries the brand. Both matter.

The open-mouth family remains especially important. VIDEPAK’s open-top product analysis emphasizes why open-mouth sacks still win across manual, semi-automatic, and fully automatic lines: they are flexible, easy to specify, and easy to adapt. Once details such as hem type, seam type, liner option, and surface finish are selected correctly, the same open-mouth platform can serve food staples, feed, seeds, fertilizers, resins, minerals, and construction materials. What changes is not the existence of the bag. What changes is the architecture of the bag.

For food-grade or sensitive applications, the message should stay practical and market-specific. When plastic materials are intended for food contact, compliance must be aligned with the target market’s regulatory framework, including the EU rules for plastic food-contact materials and the FDA framework for polypropylene under 21 CFR references. That does not replace product design, but it sharpens it: the right resin, the right additives, the right liner, the right documentation. Good packaging protects the product. Great packaging protects the product and the transaction.

Seen from the market department’s angle, then, the strongest story for VIDEPAK is clear. It is the story of a capable PP Woven Bags manufacturer that can move fluently from economy to premium, from breathable to barrier, from stitched strength to sealed cleanliness, from warehouse utility to shelf discipline. Gusset widens the body. Block Bottom organizes the base. Pinch Bottom upgrades sealing logic. Hemmed Open Mouth cleans the fill zone. Double Fold Double Stitch Bottom anchors the mainstream line. Separate choices, yes. But together they form one convincing portfolio language: practical, scalable, and built for real packing lines.

Quality Control and Testing

Throughout production, QC tests verify that material and finished bag properties meet specifications. Key metrics include:

• Fabric tensile strength (warp/weft): Measured by pulling a fabric strip (ISO 13934 or ASTM D5034). Ensures the woven web can carry load.
• Elongation (strain at break): Fabric stretch before failure, important for handling shocks (tested same as tensile).
• Burst strength (Mullen test): Hydrostatic pressure test (ISO 13938 / ASTM D774) measures pressure until fabric ruptures. Typical targets for heavy sacks (e.g. 50 kg capacity) are around 5.5–7.0 kg/cm².
• GSM (fabric weight): Checked by weighing a sample area. Consistency of GSM (±2–5%) ensures uniform strength.
• Seam strength: Tested on sewn or welded seams (peel or tensile test) to ensure >30–50% of fabric strength. Weak seams cause bag failure even if fabric is strong.
• Seal strength (if coated or welded): Pull-apart test on the coated seal area (ASTM F88, ASTM F904).
• Coefficient of Friction (COF) and surface energy: Checked especially if laminations: uneven dyne levels can cause print issues or seal failures.
• Drop test: Filled bags dropped from set height (e.g. 1–2 m) to simulate handling (document tear or spill). Often required by standards.
• Leak test (for liners/bag closures): Vacuum or pressure methods ensure closures are intact.

[Strong in-line QC – many producers scan fabric width/GSM continuously; in-process checks of melt temperature, draw tension, coating weight, etc. Companies like LinconPolymers note that fabric tensile and burst are checked against BIS/ISO standards (e.g. IS 14968, ISO protocols) for each batch.*]

Table: Typical QA tests for PP woven sacks

Notes: MD = machine direction (warp), CMD = cross-machine (weft). Actual values depend on application (food-grade might use finer fabric). Targets can vary; these illustrate typical range.

Common Defects and Troubleshooting

Major Defect Categories

• Seam/Seal failure: Inadequate welding time/pressure or dirty seal surfaces cause leaks. Solution: widen heat seal window (adjust temperature/time/pressure), ensure jaws are clean, and use anti-slip finger tapes to align webs.
• Lamination peeling (delamination): Root cause is poor adhesion (incompatible tie layers, surface contamination, or insufficient curing). Remedy by verifying adhesive chemistry (proper tie layer), pre-treating surfaces (flame or corona), and removing dust (cleaning bars or air knifes). Cold shock (e.g. refrigeration) can also delaminate; acclimatize rolls before use.
• Fabric tears/holing: Usually from mechanical stress or weak yarn. Could be low-quality resin, tape overdrawn, or high loom speed. Prevent by using controlled-grade PP resin, balancing loom tension, and maintaining equipment (clean guide pins, no burrs).
• Uneven weave or GSM drift: Caused by tension swings, machine stretch, or thermal shrinkage. Fix by stabilizing warp tension, verifying take-up ratio, and pre-shrinking fabric during heat-set. Regular in-line GSM checks and faster correction loops help.
• Dimensional/shape errors: Cutting mis-registration leads to wrong bag size. Allow for expected shrinkage (thermal/lateral) in cut length, use precise CNC cutters, and perform in-process length checks. Cuts should account for any loom density drift.

Troubleshooting Matrix (examples)

These are representative examples. In practice, systematic SPC (statistical process control) charts and root-cause analysis (fishbone, PFMEA) are used for continuous improvement. Modern plants also use in-line sensors and vision systems to detect many defects before stacking.

Environmental and Safety Considerations

Recycling and waste: Woven bag production can recycle most scrap. Starlinger data show that up to 100% of extrusion slitting trim, bobbin waste, and even unprinted fabric can be reclaimed and re-pelletized. In practice, companies grind waste tapes and fabric to re-feed into the extruder (sometimes adding CaCO₃ filler to make “recoBATCH” masterbatch from waste). This reduces raw-material costs and landfill. Note however that reusing printed or coated scrap is limited (degrades line speed if recycled).

Dust and static: PP tape and fabric generate dust; fine PP dust can be a combustible hazard. Adequate dust extraction and housekeeping are mandatory. Also, as plastics, PP can accumulate static charges. Anti-static agents (in-resin or spray coatings) and grounding of equipment are used when packaging flammable or explosive materials to prevent electrostatic discharge. (For example, bulk bags often use conductive threads or grounding straps.)

VOCs and emissions: Solvent emissions arise mainly from adhesives or inks. Water-based systems reduce VOCs, but many adhesives are still solvent-borne. Facilities must provide solvent recovery or air purification (e.g. thermal oxidizers) to comply with air-quality regulations. Worker safety includes respiratory protection and ventilation when handling glues or powder additives.

Chemical safety: Handling of CaCO₃, slip agents, and masterbatches requires dust control and PPE (dust masks, eyewear). The extrusion step operates at high temperature and pressure, so standard plastic-processing safeguards (thermal shielding, pressure relief valves, melt pressure monitors) are used.

Automation and Industry 4.0 Opportunities

Modern PP bag plants are increasingly automated: PLC/SCADA systems monitor temperature, pressure, tension, etc., across each machine. Emerging Industry 4.0 trends include:

• IoT Sensors: Online viscosity/melt pressure sensors, ultrasonic thickness gauges on coating, and laser distance sensors on winding allow real-time control. For example, active web guiding and tension controllers adjust draw/doff automatically to maintain even fabric.
• Machine Learning / Predictive Maintenance: Data from extruder torque or motor currents can predict screw wear. Weaving looms with integrated monitoring can flag yarn break trends before they cause excessive stoppages.
• Digital Traceability: Barcoded/QR-coded tapes or encoded roll tags (as on Starlinger lines) enable tracking material through each stage, linking QC data to each roll/batch.
• Advanced QC: Vision cameras inspect weave uniformity and print quality on the fly. Automatic defect marking and feedback to operators reduce scrap. Check-weighing and reject flaps on bag lines prevent off-weight bags from shipping.
• Automation in Finishing: Robotic cutting and sewing (CNC-driven cutters, multi-axis sewing heads) improve precision. Ultrasonic bag welders can be fully automated on continuous FFS lines.

Overall, automation increases throughput (bags per operator), reduces labor costs, and improves consistency. Leading companies report that Industry 4.0 investments (digital controls, sensors) significantly cut downtime and waste.

Cost Drivers and Yield Optimization

The main cost driver is raw material (60–70% of total cost). Therefore, using lower-cost regrind where possible, and minimizing scrap, are high priorities. High machine speed also drives cost: equipment is sized to match required throughput (e.g. larger extruders, more looms) so running near capacity minimizes per-unit overhead. Energy use (for extrusion, ovens, calendering) is significant; many plants recuperate heat or use variable-speed drives to save power.

Yield: Minimizing rejects and rework is crucial. In practice, well-controlled processes can achieve >95% yield (5% scrap or regrind). Inline optical and mechanical monitoring (e.g. lamination bond sensors, seam inspection cameras) helps catch defects early. For product yield, efficient bale/pallet patterns (e.g. 500–1000 bags per bale) and automated presses/labellers reduce manual touchpoints.

Labor: Though machines are automated, skilled operators and technicians are needed to run and maintain equipment. Investments in training and ergonomic design (e.g. automated material handlers, vacuum lifts) also improve efficiency.

Equipment and Parameters Tables

Table: Key Equipment Examples (suppliers/models)

Table: Typical Process Parameters

(Ranges are indicative and vary by specific product and machinery.)

Process Flow and Timeline

The flowchart below illustrates the major production steps from resin to bag.
